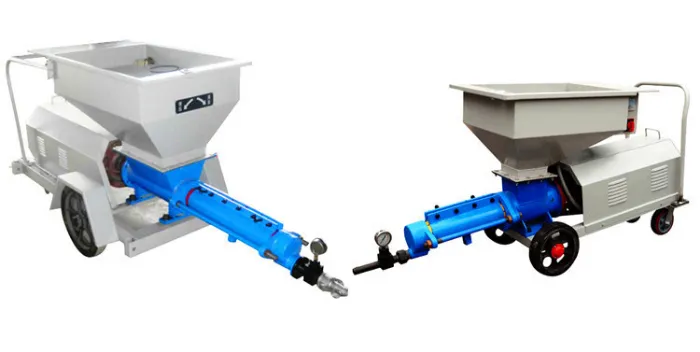

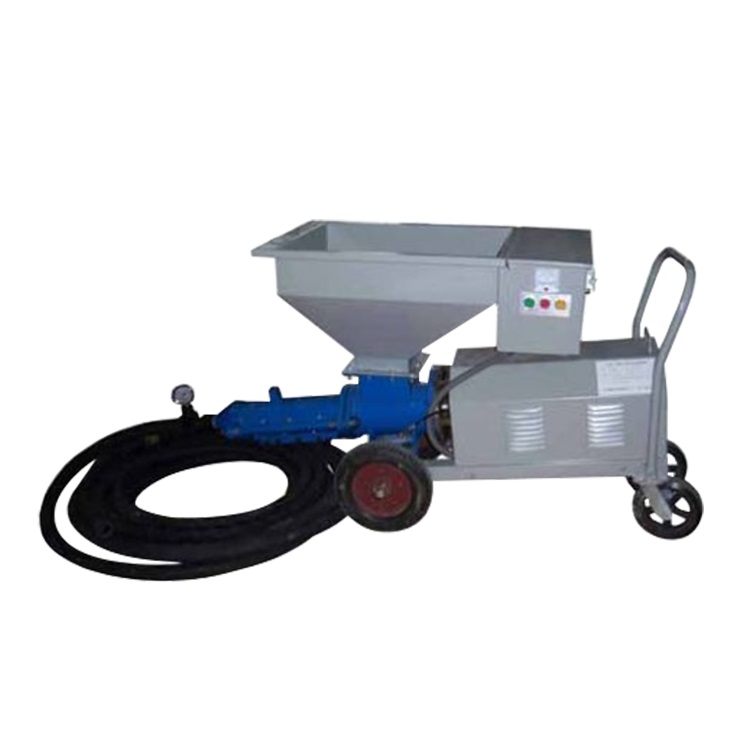

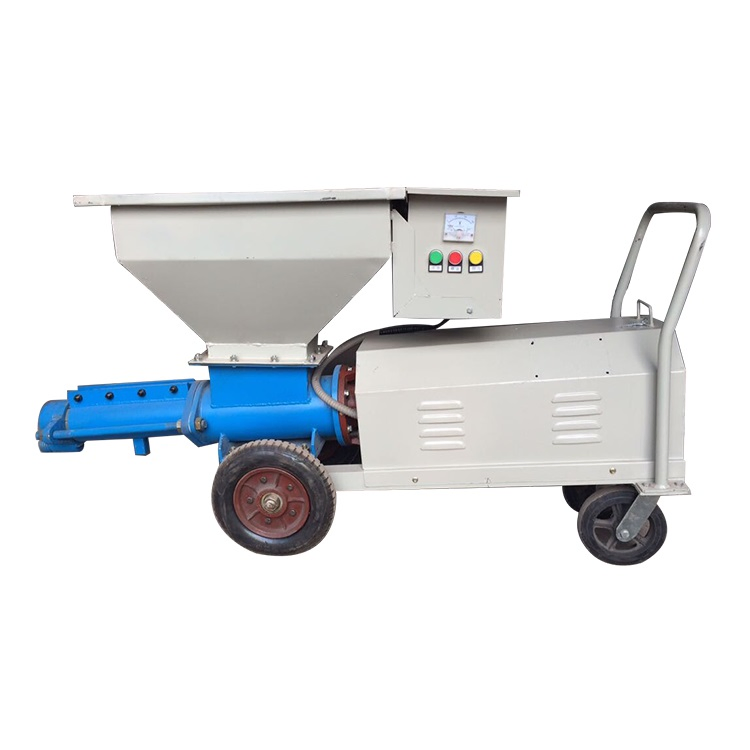

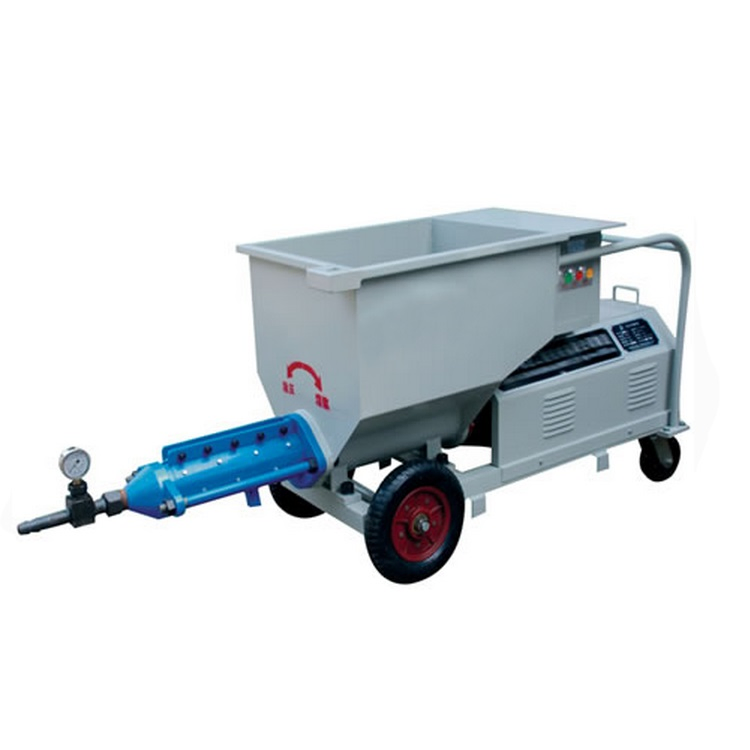

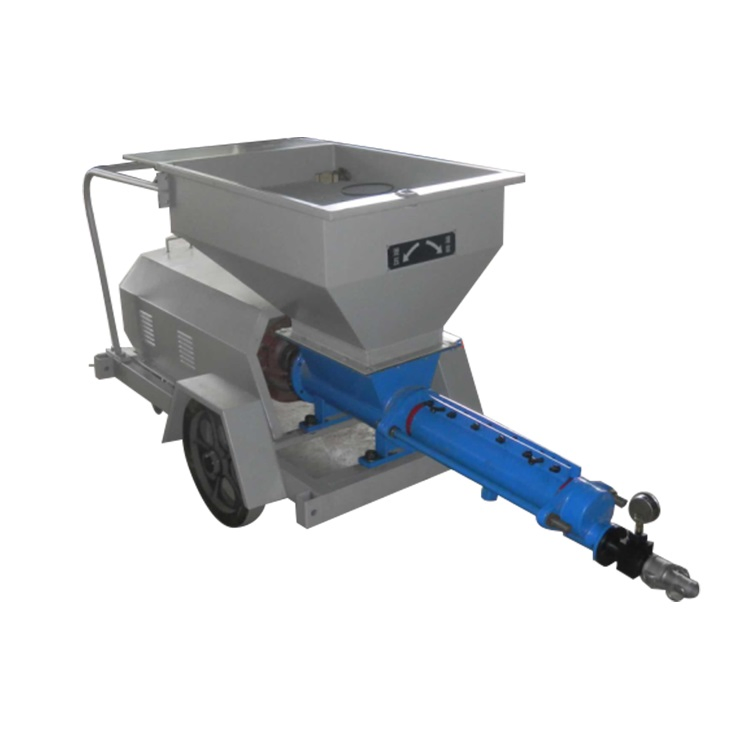

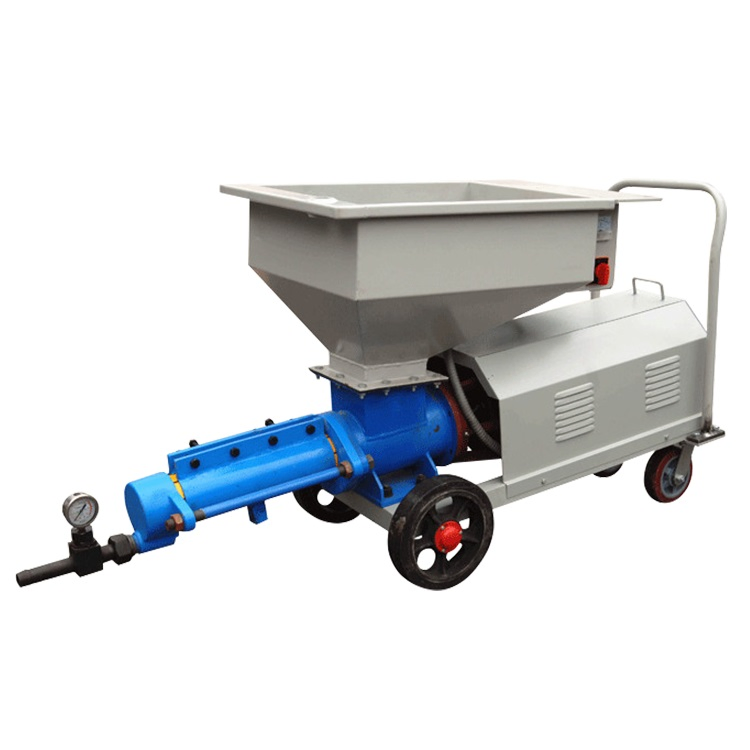

High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
1 / 5
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine
High Pressure Mortar Filling Cement Screw Pump Machine

High Pressure Mortar Filling Cement Screw Pump Machine

Customization: Available
Warranty: 2 Years
Screw Number: Single Screw Pump
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.:YG-03
Suction Method:Single Suction
Pump Shaft:Vertical
Performance:Health
Capacity:3 M3/H
Pressure:2-5 MPa
Power:4kw
Hopper Capacity:130 L
Screw Length:400 mm
Max Particle Size:5 mm
Certification:CE, ISO
Weight:200 Kg
High Pressure Mortar Filling Cement Screw Pump Machine High Pressure Mortar Filling Cement Screw Pump

The screw grout pump is specialized transport mortar equipment widely utilized in highways, railways, tunnels, urban infrastructure, subways, and hydropower stations. It is ideal for bolt grouting, consolidation grouting, backfill grouting, and anchor grouting engineering, as well as dam slope and soft rock reinforcement.

⭐ Key Features
Stable Operation Continuous stable grouting with no pulse, featuring adjustable pressure and a stable flow rate.
Portable Design Inclined vertical structure for better slurry flow. Lightweight wheel design makes it easy to move.
Flexible Rotation The pump head utilizes a universal joint design for high flexibility during operation.
High Efficiency Low energy consumption with options for single or double screws to ensure smooth operation.
📊 Technical Parameters
ModelYG-03
Production Capacity3 m3/h
Pressure2-5 Mpa
Motor4 kw
Hopper Capacity130 L
Screw Length400 mm
Particle Diameter≤5 mm
Horizontal DistanceCement: 180-200m | Mortar: 70-90m
Vertical DistanceCement: 70-90m | Mortar: 30-50m
Dimensions1850 * 590 * 830 mm
🔍 Product Details

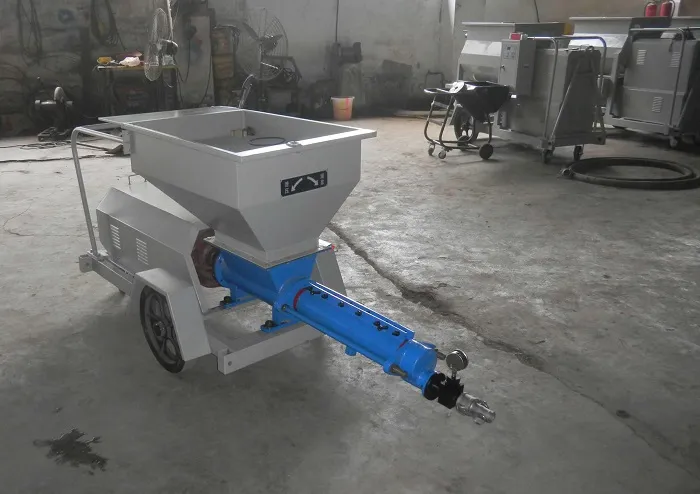

Details 1

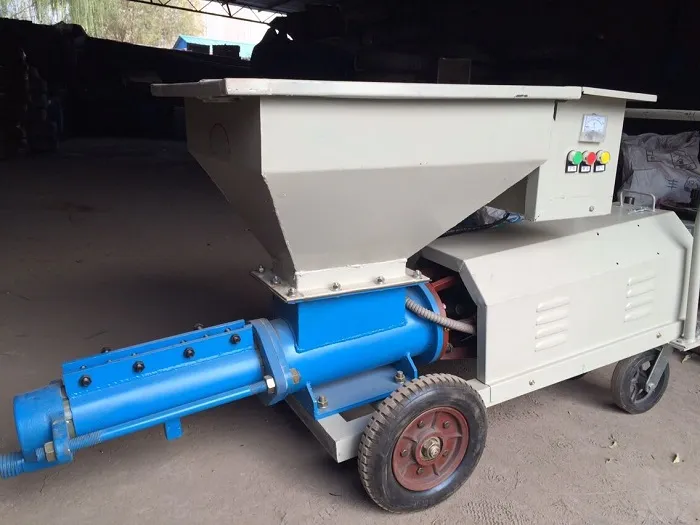

Details 2

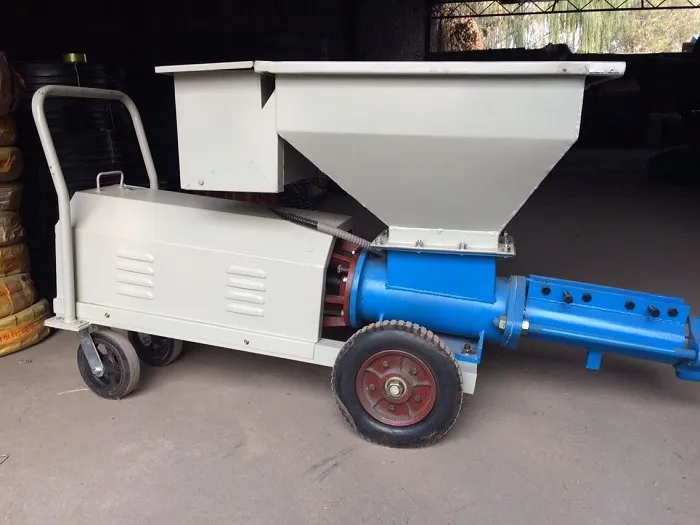

Details 3

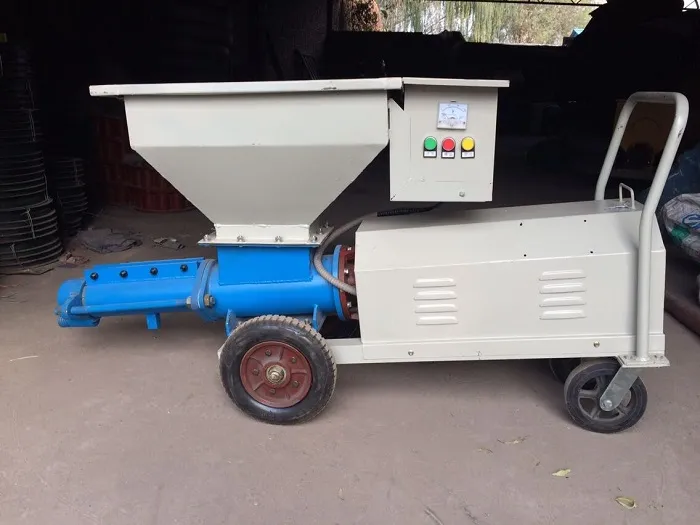

Details 4

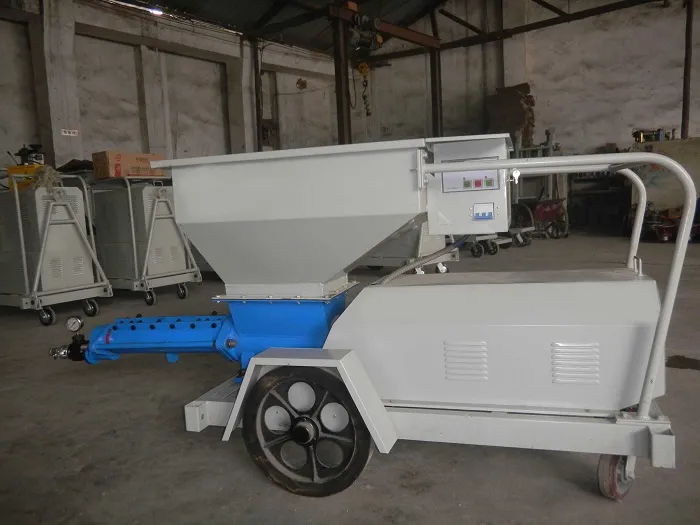

Details 5

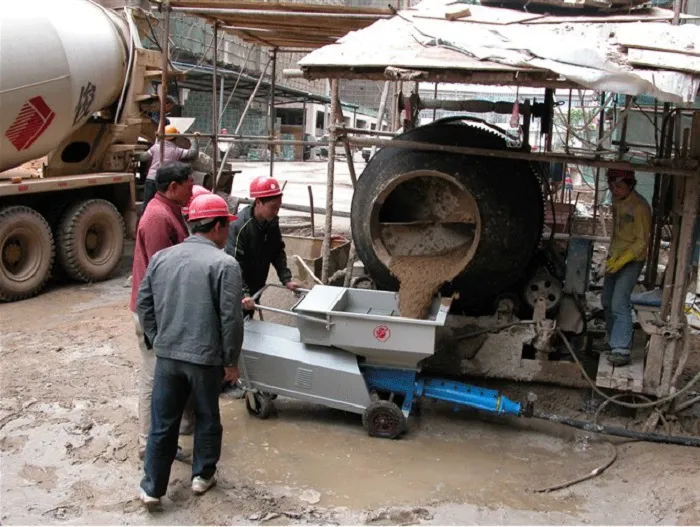

Details 6
📜 Certifications
Certification
🛠️ Our Service

Pre-Sales Service

  • Inquiry and consulting support.
  • Sample testing support.
  • Factory visits are welcomed.

After-Sales Service

  • Installation and operation training.
  • Engineers available for overseas machinery service.
  • 24-hour response to machine queries.
📦 Packing & Delivery
Packing and Delivery
❓ Frequently Asked Questions
What materials can be used with the YG-03 screw pump?
It is primarily designed for transport and grouting of mortar and cement slurry.
What is the maximum horizontal transport distance?
For cement, it can reach 180-200 meters, and for mortar, it is between 70-90 meters.
Is the grouting pressure adjustable?
Yes, the pressure is adjustable within the range of 2-5 MPa to suit different engineering needs.
What is the particle size limit for this machine?
The machine can handle materials with a maximum particle diameter of 5 mm.
Is the machine easy to transport on construction sites?
Absolutely. It features a lightweight vertical structure and a wheel-based design for easy mobility.
What kind of packaging is used for shipping?
The machine is securely packed in a professional wooden case to ensure safe transport.
