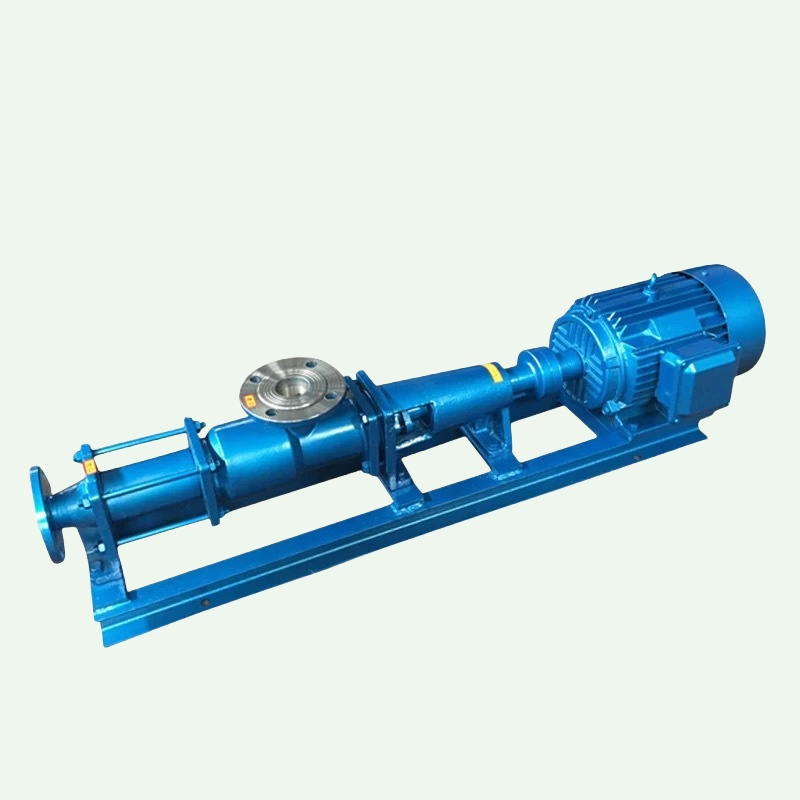

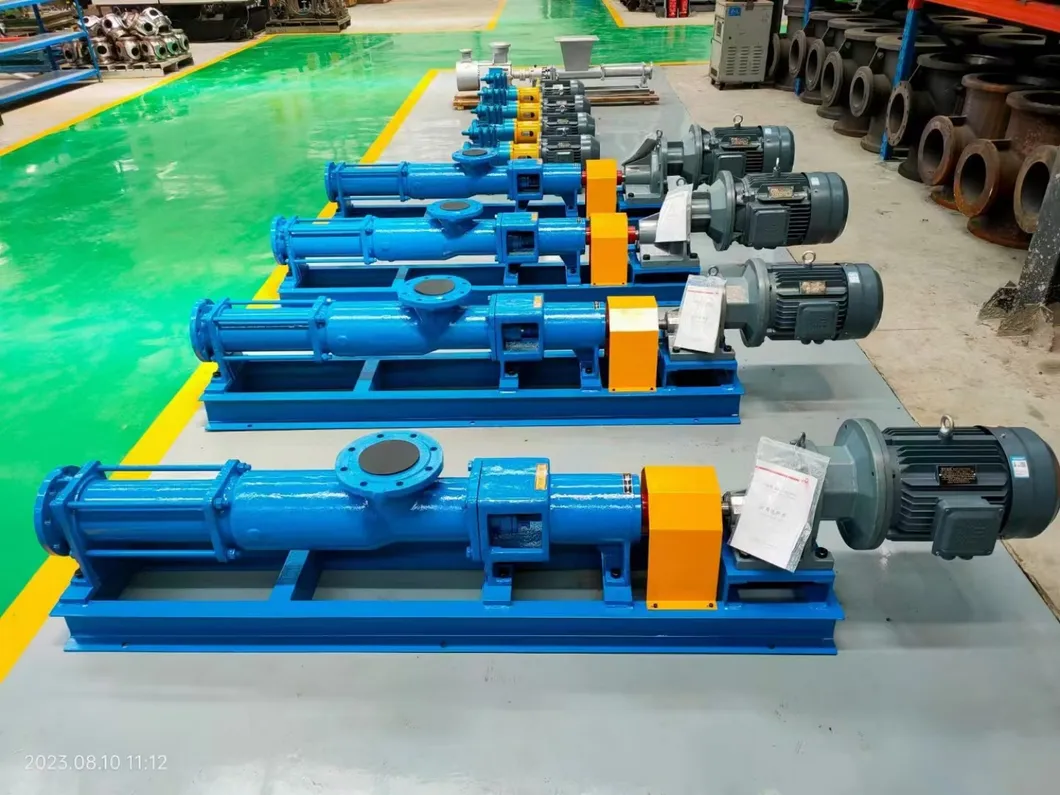

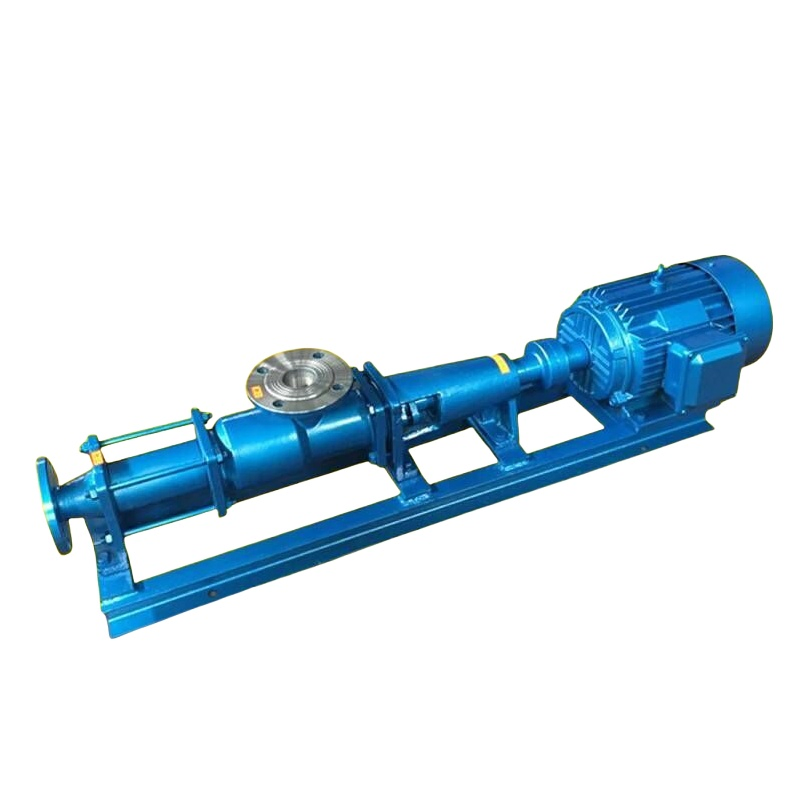

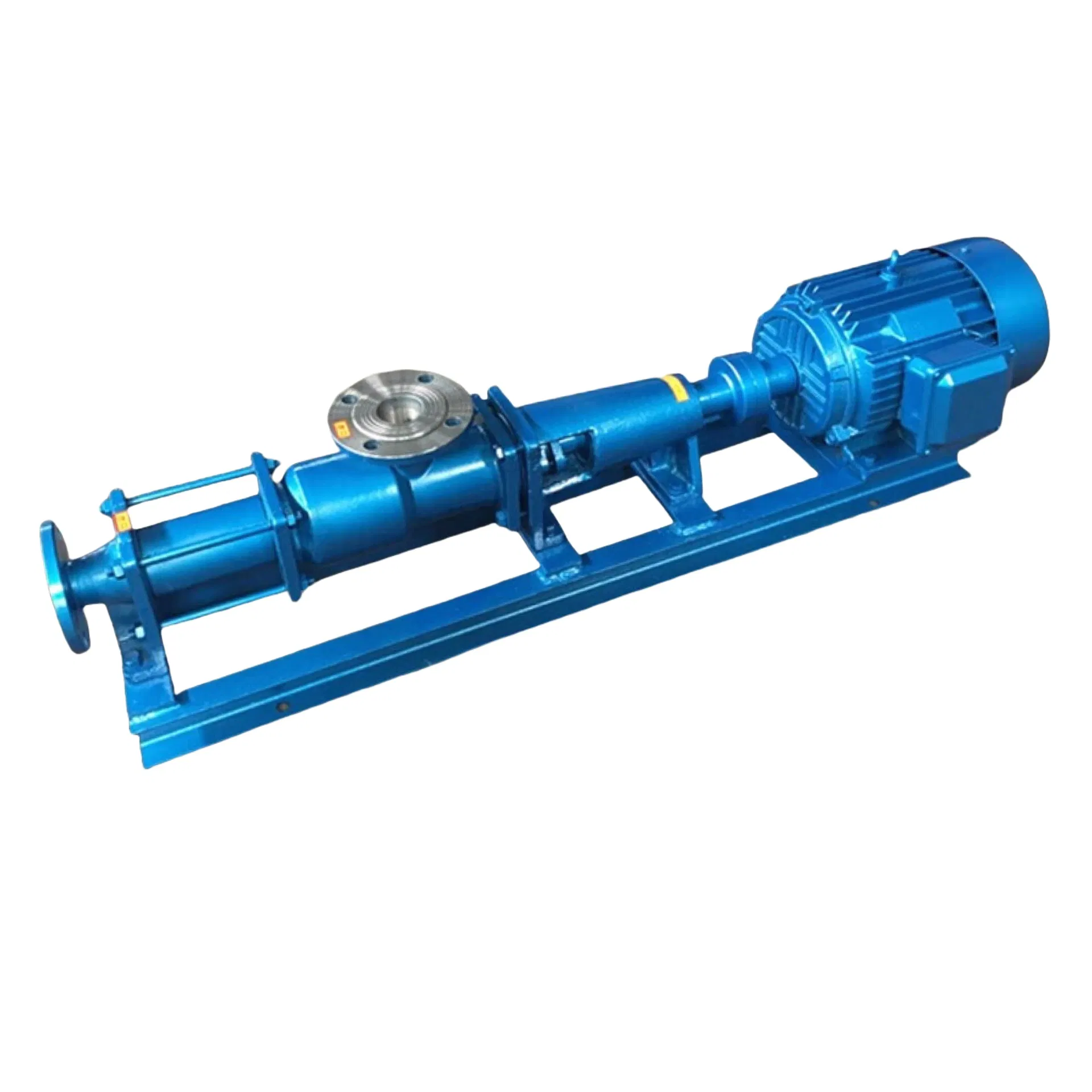

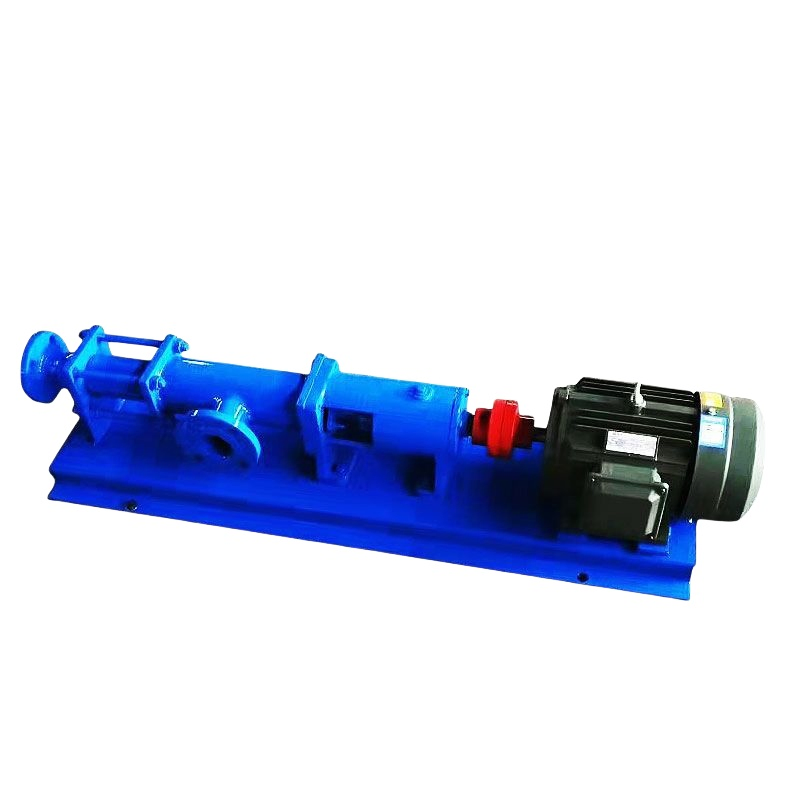

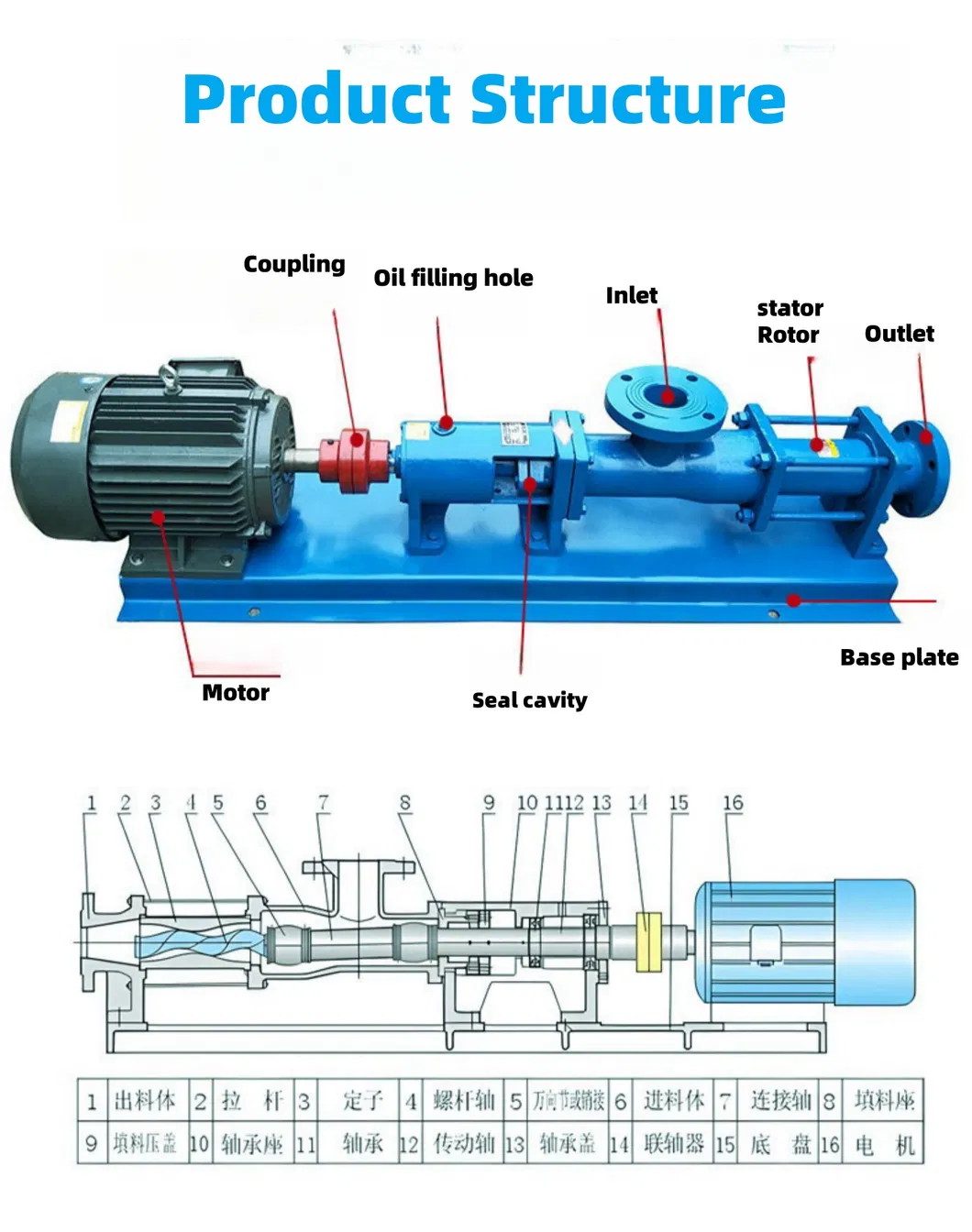

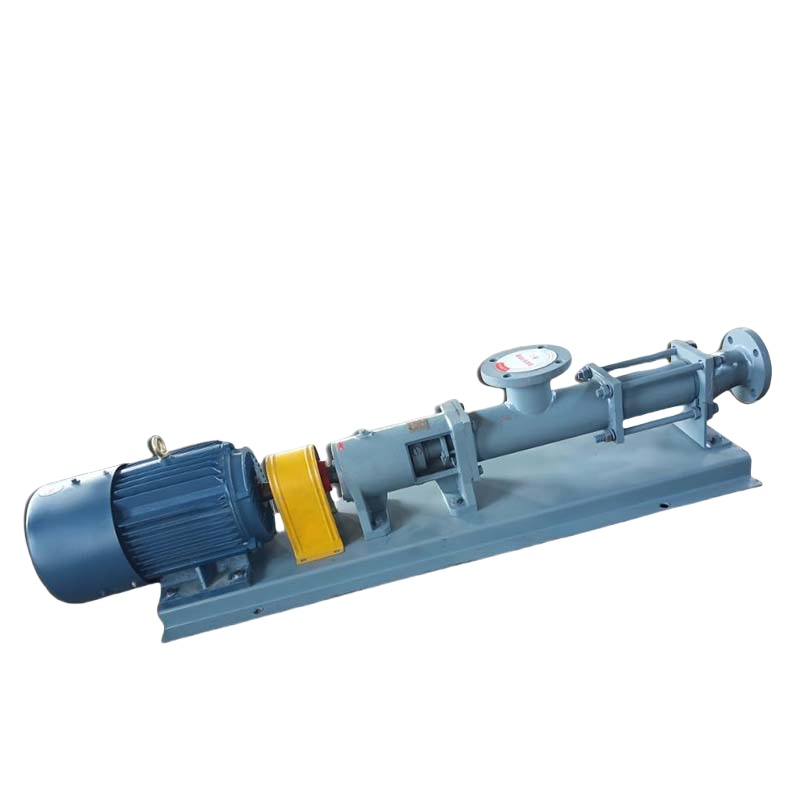

Single Screw Pump with solid is a positive displacement pump that use one or several screws to move fluids or solids along the screw(s) axis. In its simplest form (the Archimedes' screw pump), a single screw rotates in a cylindrical cavity, thereby moving the material along the screw's spindle. This ancient construction is still used in many low-tech applications, such as irrigation systems and in agricultural machinery for transporting grain and other solids.
| Model | Speed | Capacity | Pressure | Power | Inlet / Outlet |
|---|---|---|---|---|---|
| r/min | m3/h | MPa | KW | mm | |
| G20-1 | 960 | 0.8 | 0.6 | 0.75 | 25/25 |
| G20-2 | 960 | 0.8 | 1.2 | 1.5 | 25/25 |
| G25-1 | 960 | 2 | 0.6 | 1.5 | 32/25 |
| G25-2 | 960 | 2 | 1.2 | 2.2 | 32/25 |
| G30-1 | 960 | 5 | 0.6 | 2.2 | 50/40 |
| G30-2 | 960 | 5 | 1.2 | 3 | 50/40 |
| G35-1 | 960 | 8 | 0.6 | 3 | 65/50 |
| G40-1 | 960 | 12 | 0.6 | 4 | 80/65 |
| G50-1 | 960 | 20 | 0.6 | 5.5 | 100/80 |
| G60-1 | 960 | 30 | 0.6 | 11 | 125/100 |
