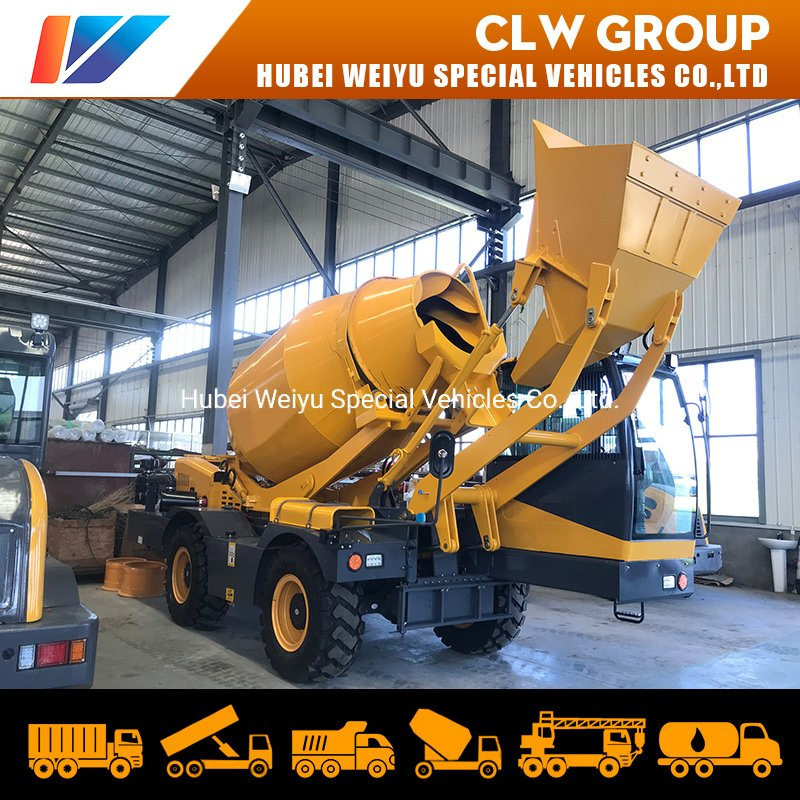

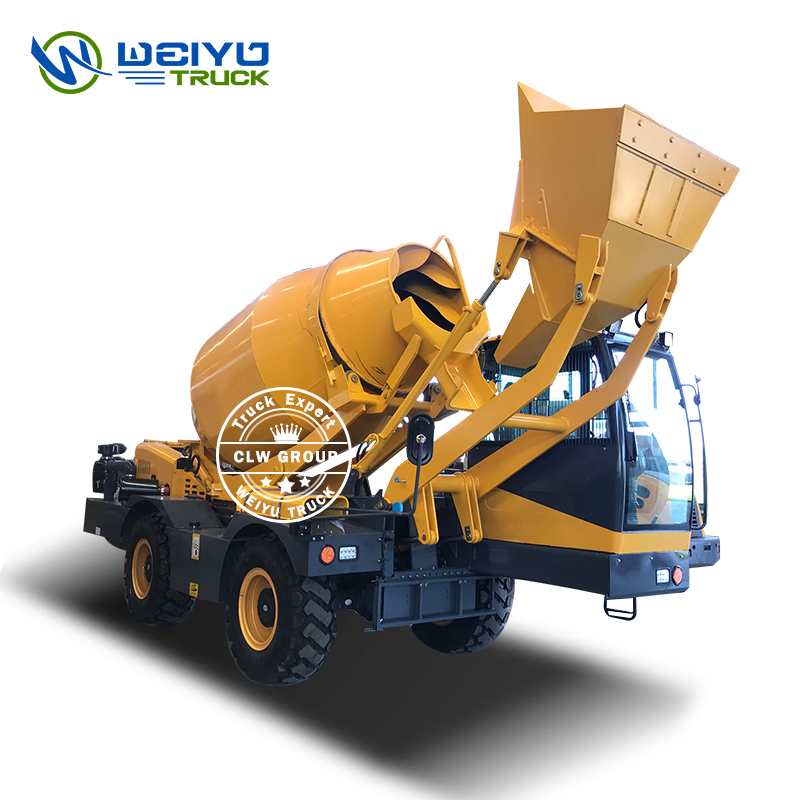

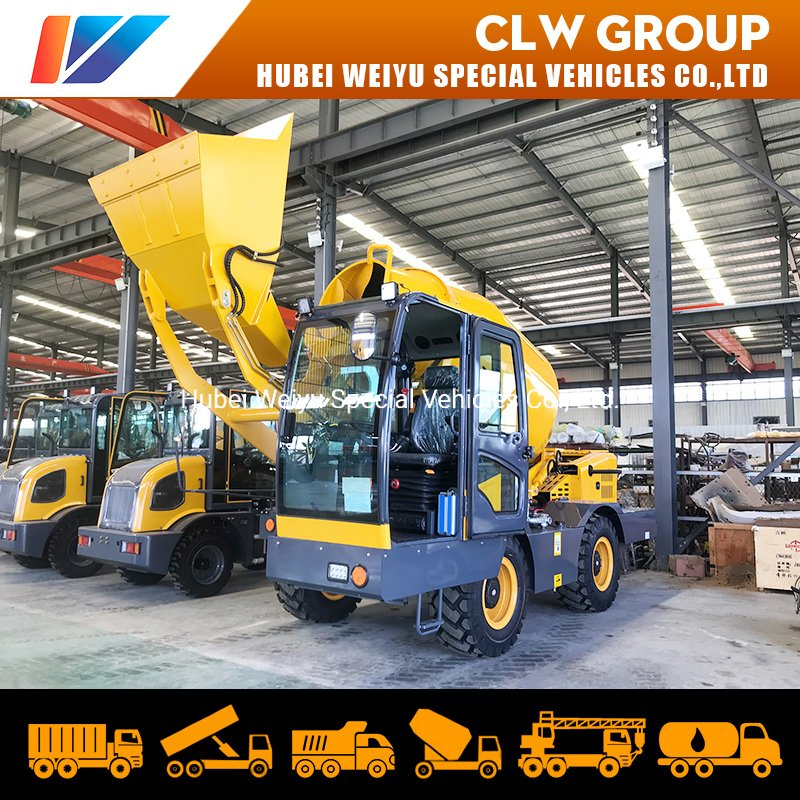

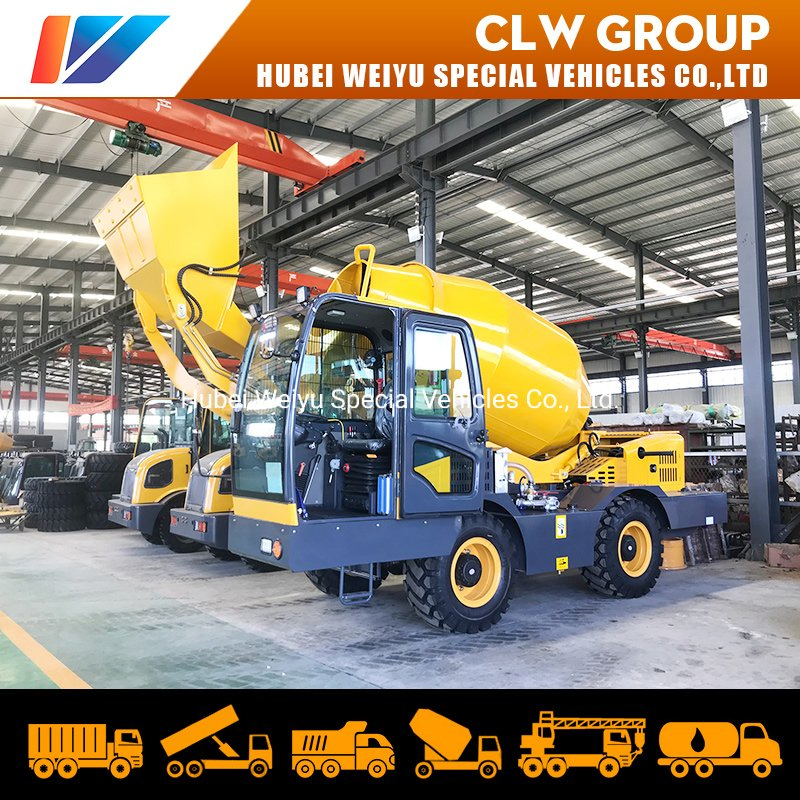

Basic Information
Type

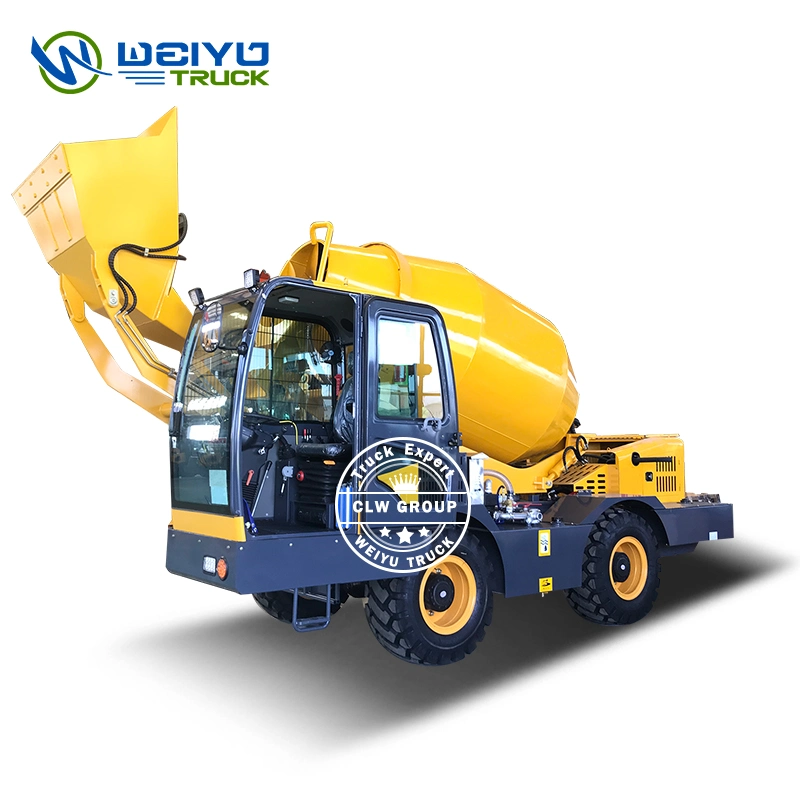

Self Loading Concrete Mixer
Mixing Method
Continuous Drum
Product Capacity
40～400t/h
Output Productivity
2.5 Cbm
Package Size
700.00cm * 300.00cm * 360.00cm
| Category |
Item |
Specification |
| Overall Machine | Net Weight | 5800kg |
| Overall Size | 6380*2470*2820mm |
| Transmission | Full Hydraulic / 4WD |
| Brake | Air brake |
| Engine System | Type | Yunnei |
| Rated Power | 76KW / 2400RPM |
| Cylinders | 4 |
| Mixing Drum | Drum Capacity | 3.5cbm (Work: 2.5cbm) |
| Rotation Speed | 21R/min |
| Rotation Angle | 240° Turbo-Wom |
| Loader Bucket | Capacity | 0.3cbm |
| Weight Model | Computer Control |
Key Accessories & Features
✓ Double reverse camera
✓ Air conditioner
✓ Automatic weighting system with printer
✓ Hydraulic Torque Converter Transmission
✓ 4 wheel drive, articulated style
✓ Automatic upper water system
✓ Preheater for engine

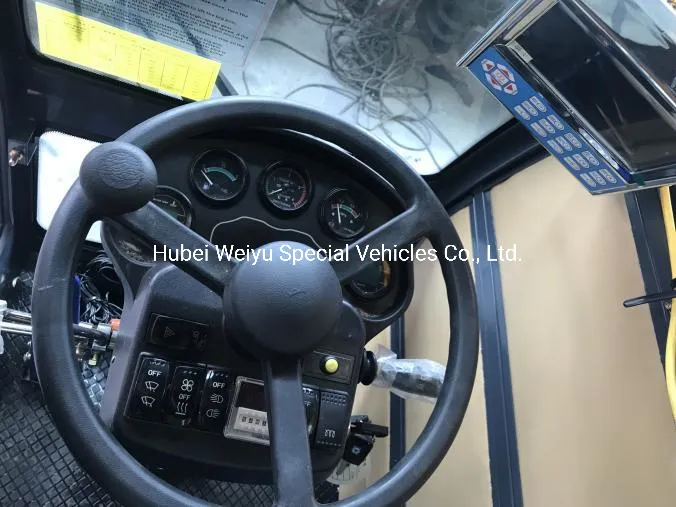

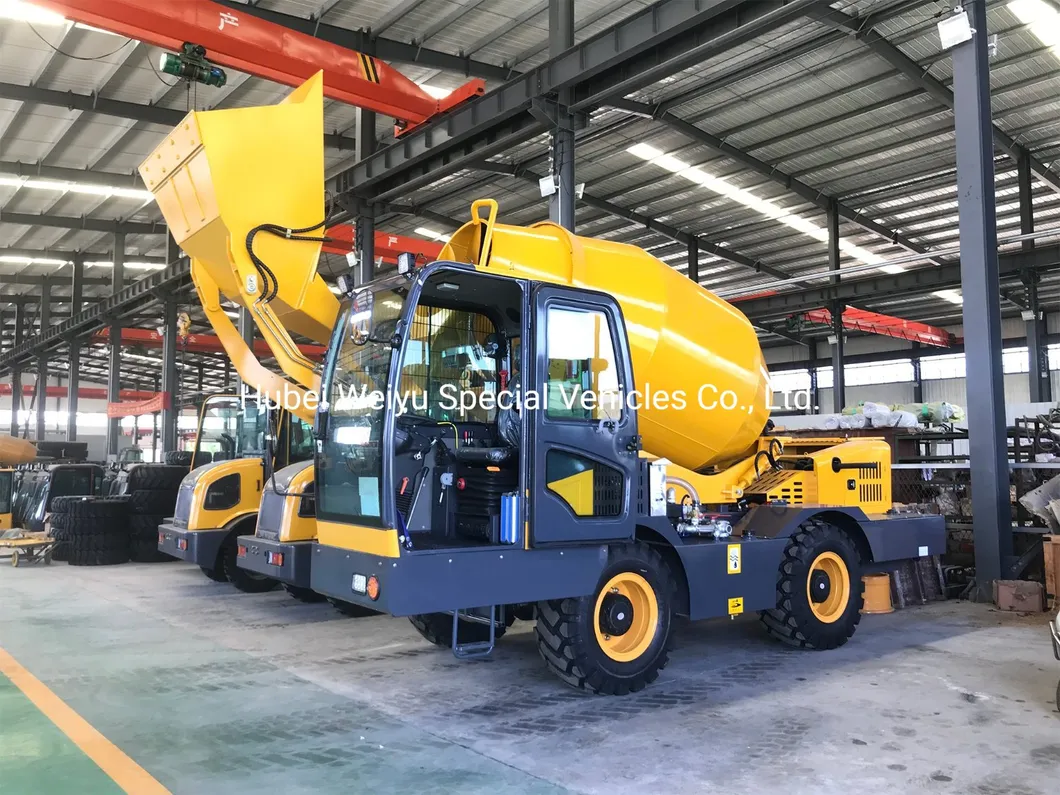

Steering & Weighting System

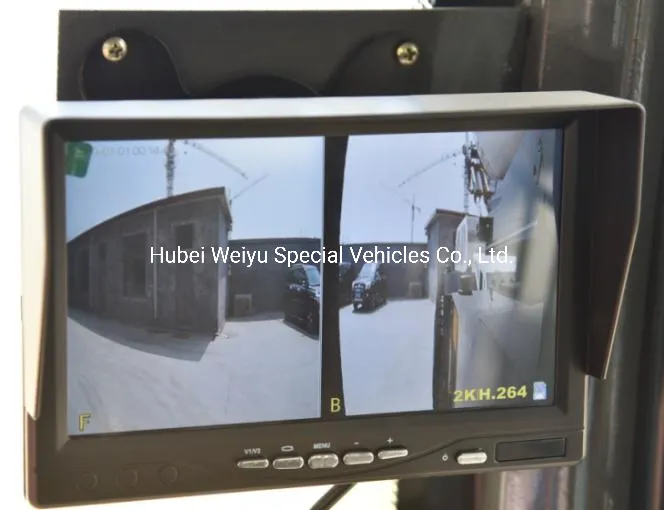

Backup and Side Camera

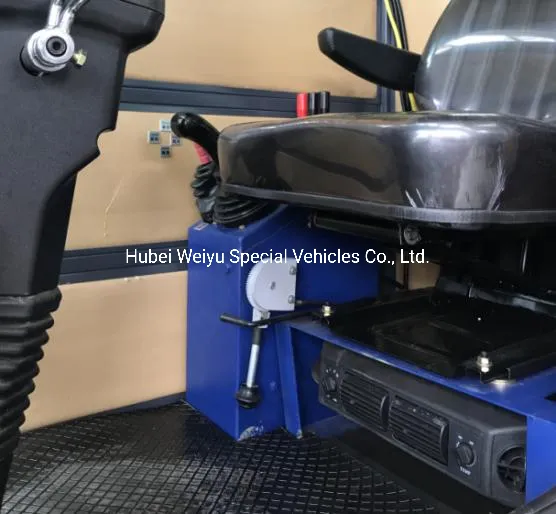

Air Conditioner & Control Joystick

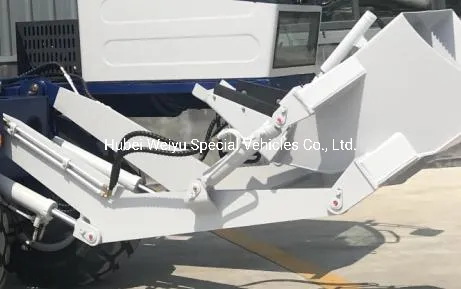

Lifting Arm System
Off-road Chassis View
Professional Capability
Why Choose This Equipment
Excellent quality with 15+ years of export experience.
Certified by CCC, ISO, BV, and ASME standards.
Proven performance in over 90 countries and regions.
Advanced 4WD hydraulic system for tough terrains.
Frequently Asked Questions
What is the concrete output productivity per cycle?
The mixer has a working drum capacity that delivers a concrete output of 2.5 cbm per batch.
Does the drum rotate for easier discharging?
Yes, it features a Turbo-Wom rotation function with a 240° self-rotation angle for flexible concrete placement.
What type of engine powers this self-loading mixer?
The vehicle is equipped with a high-performance Yunnei 76kw water-cooling engine.
Is the weighing system automated?
Yes, it includes an automatic computer-controlled weighting system equipped with a printer for accurate data management.
Can this vehicle handle rough off-road terrain?
Absolutely. It is designed with an off-road chassis, 4-wheel drive (4WD), and an articulated style for superior maneuverability.
What accessories are included for operator comfort?
The cabin is equipped with air conditioning, a heater, a radio, and a 4-way hydraulic control stick for ease of operation.
