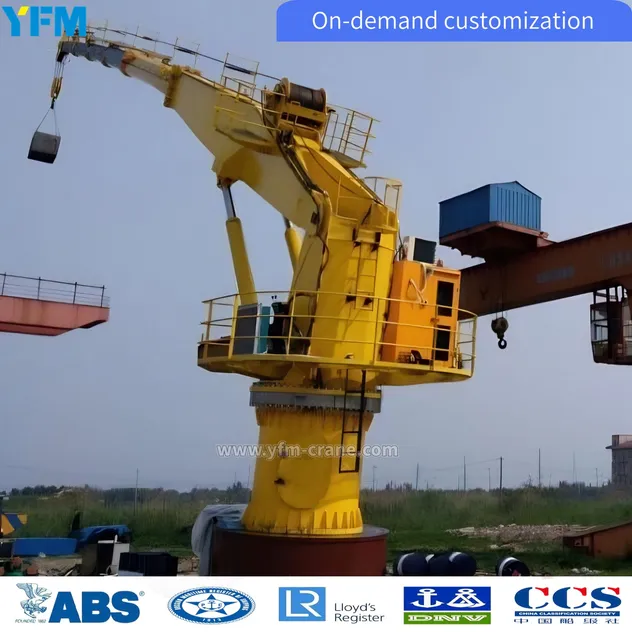

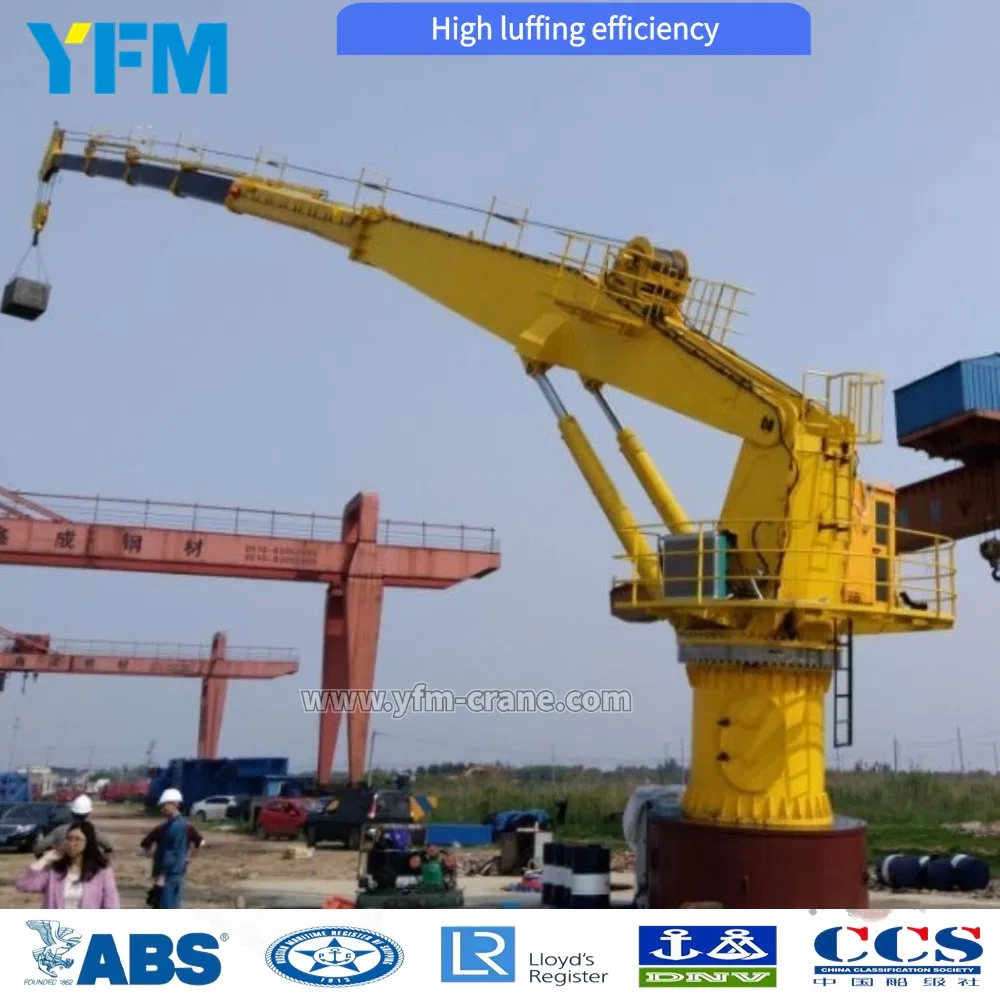

A telescopic offshore marine deck crane is a type of lifting equipment that is specially designed for offshore operations. Telescopic offshore marine cranes allow you to have a longer reach on board. Being able to retract the telescopic boom with an external telescopic gearbox makes it easier for you to store it on the deck of your vessel, creating more space on deck. Using a high-performance telescopic boom marine crane allows you to work more efficiently without compromising the space of the offshore supply vessel.
Specification
Applications
1. Loading and Unloading of Supplies for Offshore and Inland Water Vessels
Dry Cargo Ships: Lifting containers, bagged goods, and barreled chemicals. The 40-meter boom can cover long-distance loading and unloading between the wharf and the deck, especially suitable for small wharves without shore cranes.
Auxiliary for Liquid Cargo Ships: Hoisting oil delivery hoses, metering equipment, or transferring pump bodies, valves, and other components during maintenance.
Supplying Engineering Vessels: Providing fuel and spare parts for dredgers and ships.
2. Auxiliary Operations in Marine Engineering
Construction of Small Offshore Platforms: Lifting steel structure components of platforms and auxiliary drilling equipment.
Submarine Pipeline Laying: Hoisting pipeline docking tools and launching/recovering underwater robots (ROVs). The 40-meter boom can extend beyond the ship's side to reduce the distance from the hull during operations.
Auxiliary for Wind Power Installation: Lifting grouting equipment and cable protection pipes for small offshore wind power pile foundations.
3. Shipbuilding, Repair, and Maintenance
Hoisting in Shipyards: In the construction of medium and small-sized ships, lifting main engine components (such as crankshafts and cylinder blocks, with some light main engine components weighing ≤ 30 tons), rudders, and propellers.
On-Voyage Maintenance: This includes replacing anchor chains for ships during navigation and hoisting lifeboats. The telescopic boom can adjust the operating angle when the hull is shaking.
4. Fishery and Special Operations
Supplying Ocean-Going Fishing Vessels: Hoisting fishing nets, refrigeration equipment, and fish catch transfer boxes. The 40-meter boom enables cross-ship lifting between mother ships and fishing boats.
Deploying Equipment for Research Vessels: Hoisting deep submersibles, trawling equipment, and meteorological observation instruments for marine research vessels.
5. Emergency and Rescue Missions
Maritime Search and Rescue: Hoisting survivor transfer baskets from wrecked ships and salvaging small wrecked boats and rafts.
Oil Spill Treatment: Lifting oil booms, skimmers, and other anti-pollution equipment to deploy operational equipment in oil spill areas quickly.
Key Configurations

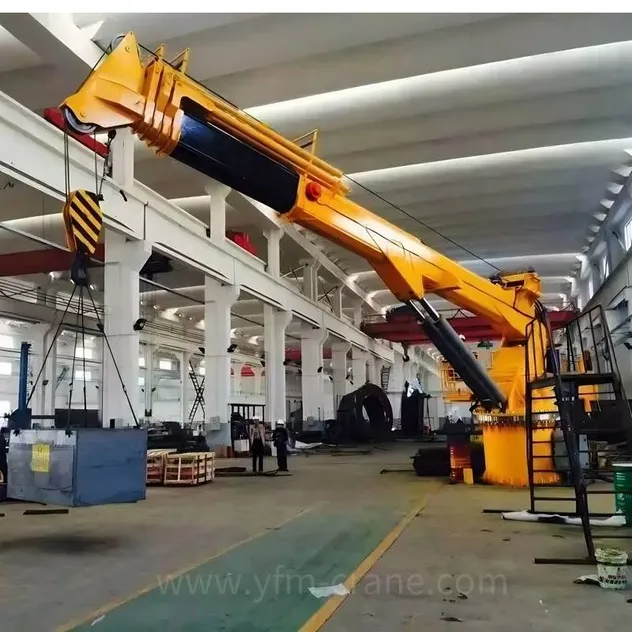

Lifting System1. 4-5 sections of high-strength steel telescopic boom (maximum length 40 meters), hydraulically driven for extension and retraction;2. Main and auxiliary double winches (single rope pulling force ≥ 35 tons), equipped with anti-corrosion steel wire ropes;3. 360° full-slewing mechanism with self-locking brake.

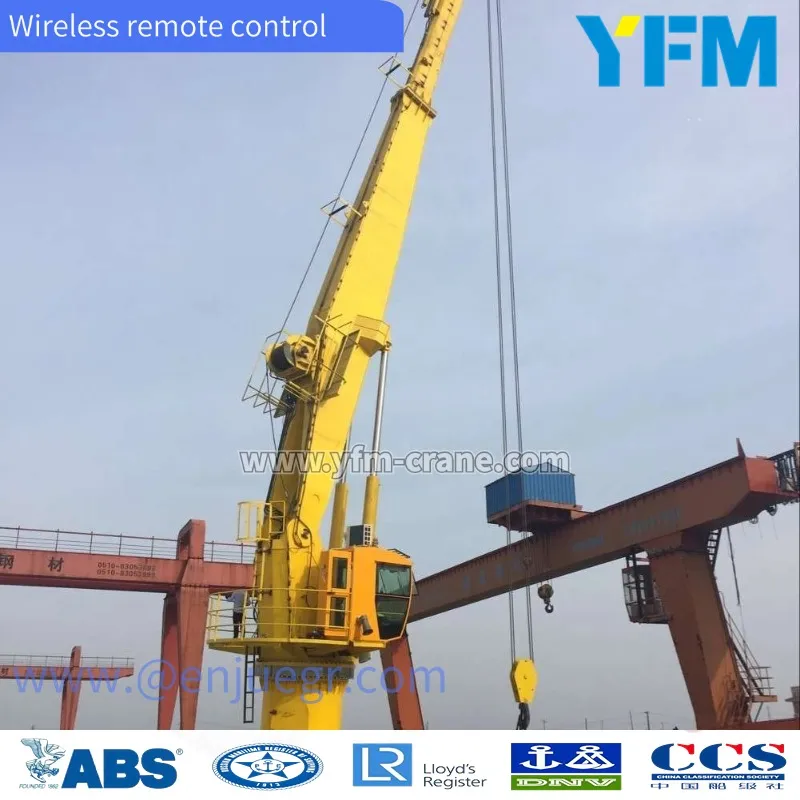

Control and Safety1. Linked operating console + PLC intelligent control (anti-overloading);2. Load moment limiter, dual braking, emergency stop mechanism;3. Optional wireless remote control (50-meter range).
Power and Protection1. Marine power supply / independent generator set (≥ 150kW);2. High-pressure hydraulic system (25-31.5MPa) + three-stage filtration;3. Full anti-corrosion treatment (salt spray resistance ≥ 1000 hours, IP66 protection).
Technical Specifications
(Custom configurations available upon request.)
Model
Load Capacity (T*m)
Max. Boom Length (m)
Pedestal Height (mm)
Pedestal Dia. (mm)
Lifting Min. Retracted
Lifting Max. Fully Extended
Est. Power (kw)
YFMTC-2T12m
2T x 12 m
12
1500
850
2 T x 8 m
2T x 12 m
22.0
YFMTC-5T15m
5T x 15 m
15
1500
1420
5 T x 10 m
5T x 15 m
30.0
YFMTC-5T25m
5T x 25 m
25
1500
1620
5 T x 12 m
5T x 25 m
37.0
YFMTC-10T20m
10T x 20 m
20
1800
1820
10T x 8 m
5T x 20 m
75.0
YFMTC-10T30m
10T x 30 m
30
2300
2250
10T x 16 m
5T x 30 m
10.0
YFMTC-15T25m
15T x 25 m
25
2000
2250
15T x 12 m
5T x 25 m
25.0
YFMTC-15T35m
15T x 35 m
35
2300
2500
15T x 20 m
5T x 35 m
60.0
YFMTC-20T20m
20T x 20 m
20
2000
2500
20T x 8 m
10T x 20 m
25.0
YFMTC-20T30m
20T x 30 m
30
2300
3000
20T x 16m
10T x 30 m
90.0
YFMTC-25T30m
25T x 30 m
30
2500
3000
25T x 16 m
10T x 30 m
200.0
Note:
1. A larger load capacity crane not listed herein can be offered on request.
2. Please specify explosion-proof requirements in your inquiry.

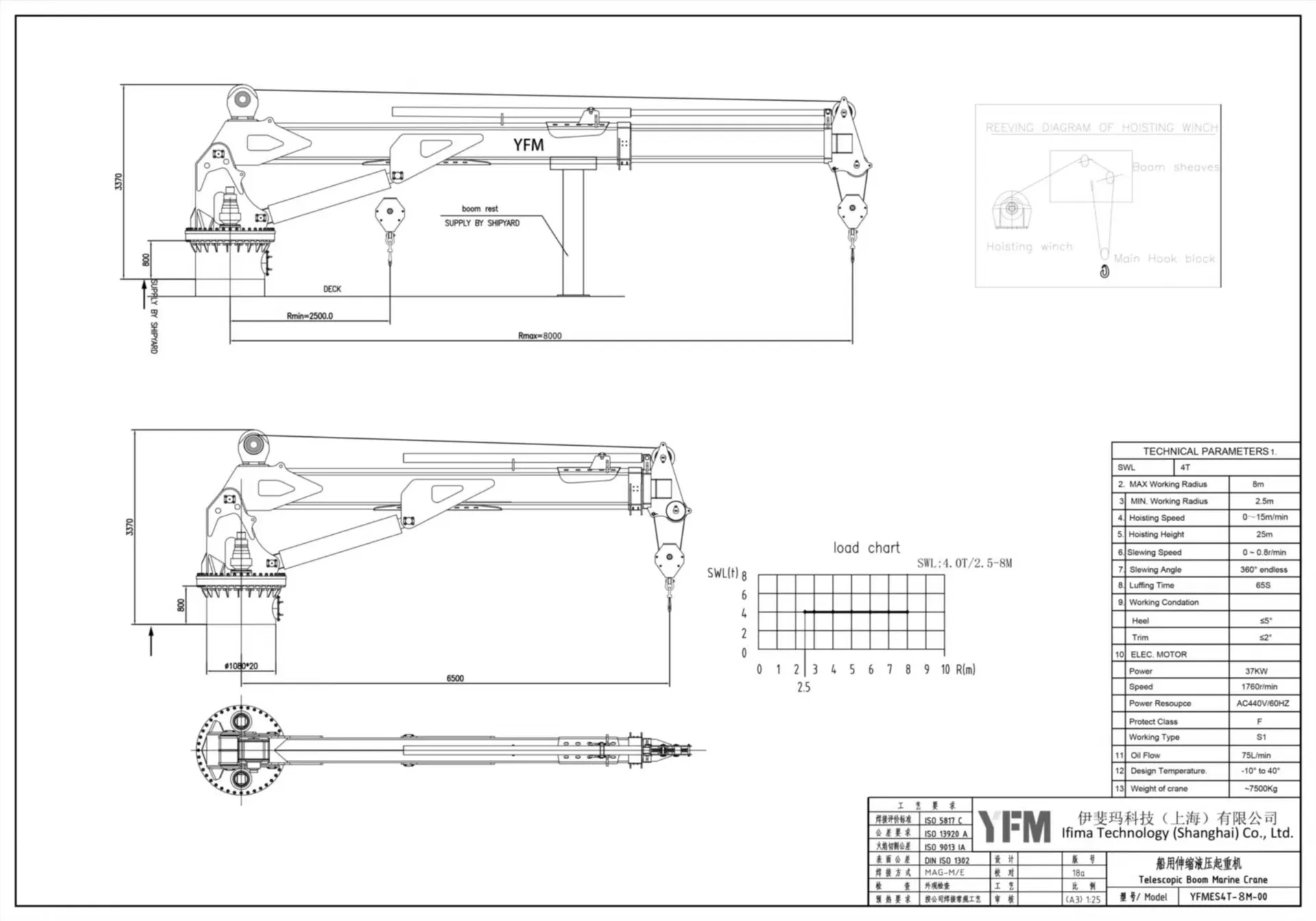

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Warranty
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first). Extended Warranty: Optional coverage up to 36 months.
Global Support & Training
24/7 Support: Real-time technical assistance and spare parts supply. Training: On-site or remote operation and maintenance training.
Company Profile

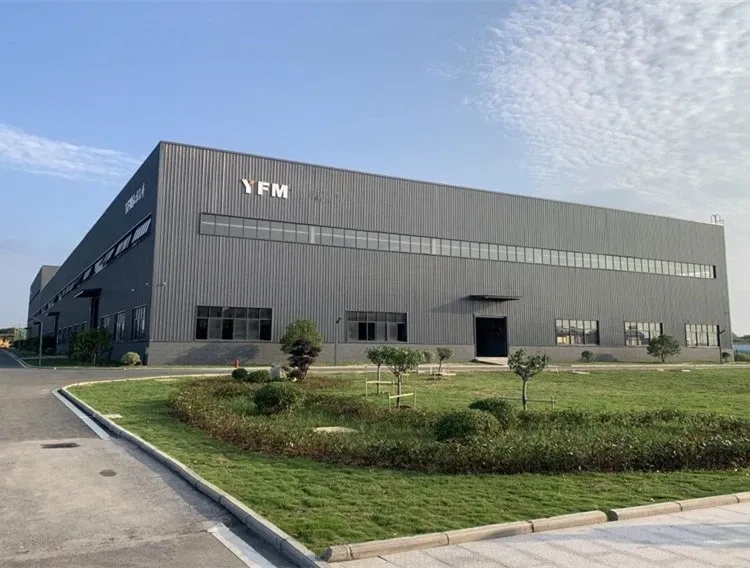

We are a port machinery and equipment manufacturer with 13 years of experience in China. With ISO 9001, CE, and GOST certifications and exports to more than 50 countries, we provide reliable marine machinery guaranteed by R&D innovation and strict quality control.
Q1: What information should I provide when I request a quote?
The more detailed information you provide, the more accurate and optimal solution we can prepare for you! Useful parameters include: safe working load (lifting capacity), maximum operating span (reach), desired lift height, power supply specifications, and any environmental parameters (such as wind speed or ambient temperature).
Q2: Can your marine cranes be customized?
Yes! Because of the vastly different marine operational requirements, working conditions, and sea states, all our offshore telescopic cranes are fully customizable according to customer demands. Provide us with your target load capability, boom length, pedestal dimensions, and special environmental options for a tailored layout.
Q3: How is the installation and commissioning handled?
Our senior mechanical and electrical engineers can provide complete structural installation guidance, field testing services, and operational training on-site or via remote support, ensuring a safe, efficient integration onto your vessel deck or platform.
Q4: Do you offer heavy-duty marine lifting accessories?
Absolutely! We can supply a comprehensive range of professional auxiliary lifting gear matched to your crane's capacity, such as wire rope slings, shackles, hydraulic grabs, magnet systems, container spreaders, and other customized lifting tools.
Q5: What are your accepted payment terms?
We accommodate standard international trade financing parameters, primarily accepting telegraphic transfers (T/T) and letters of credit (L/C) depending on the order scale and structural specifications.
Q6: What classification society certifications are available for your marine cranes?
Our marine and offshore cranes are engineered to meet global classification standards. We can coordinate class-approved design and third-party inspection certifications from major societies, including CCS, ABS, BV, DNV, and GL, as per project specification demands.
