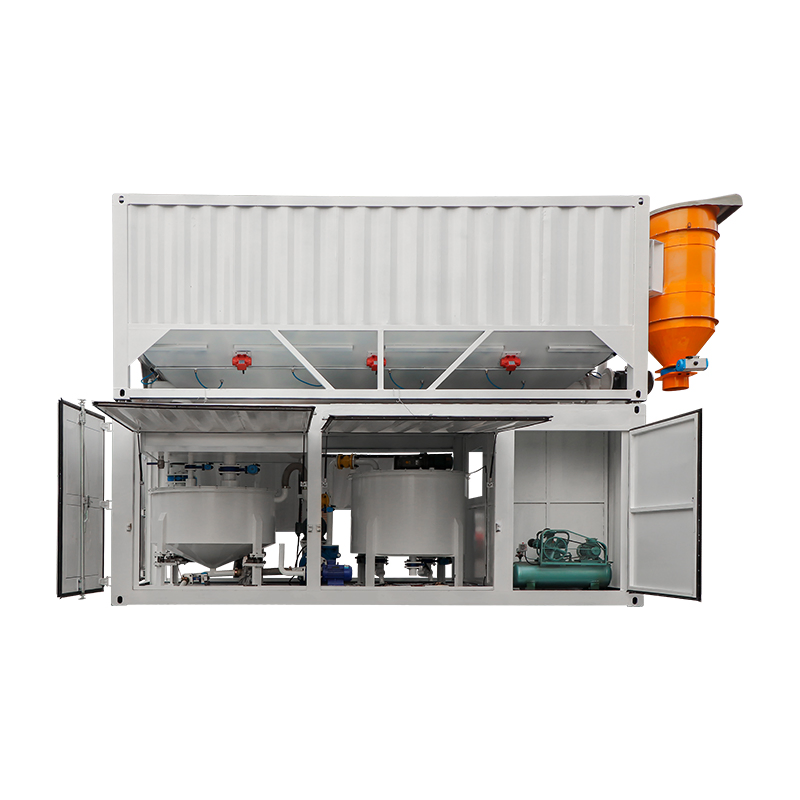

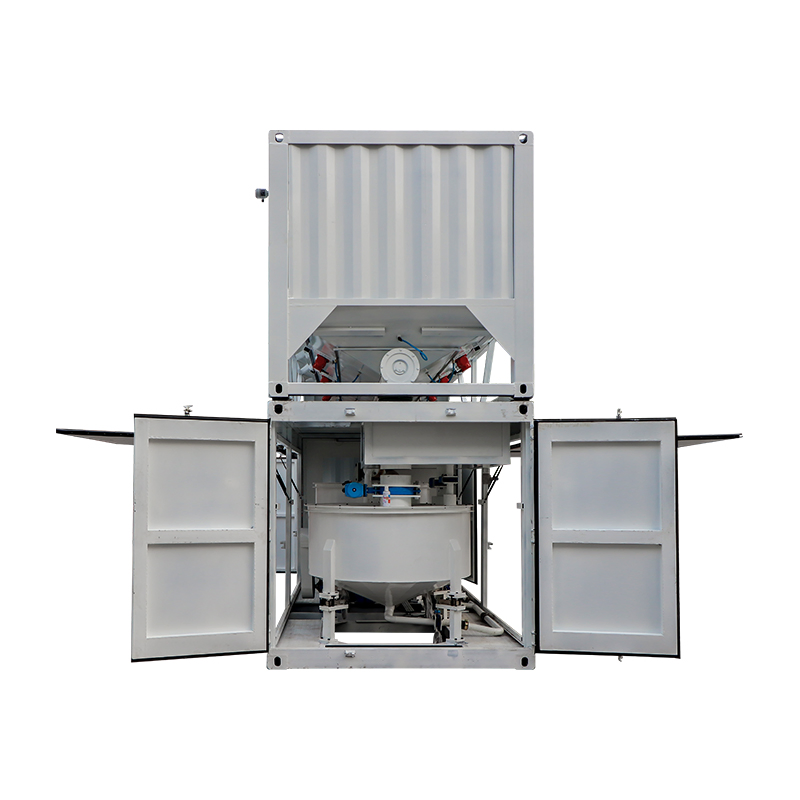

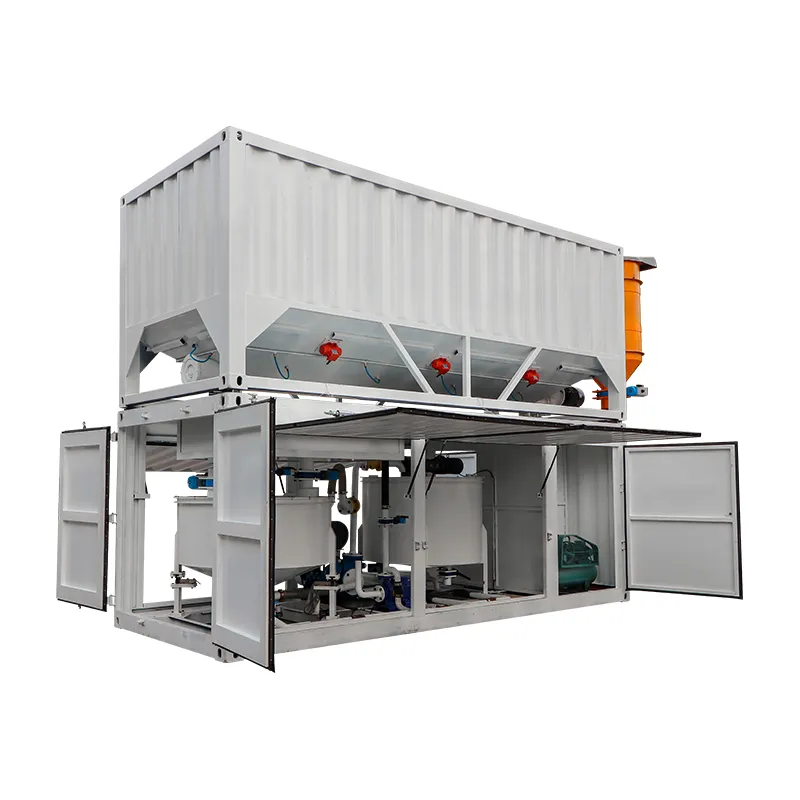

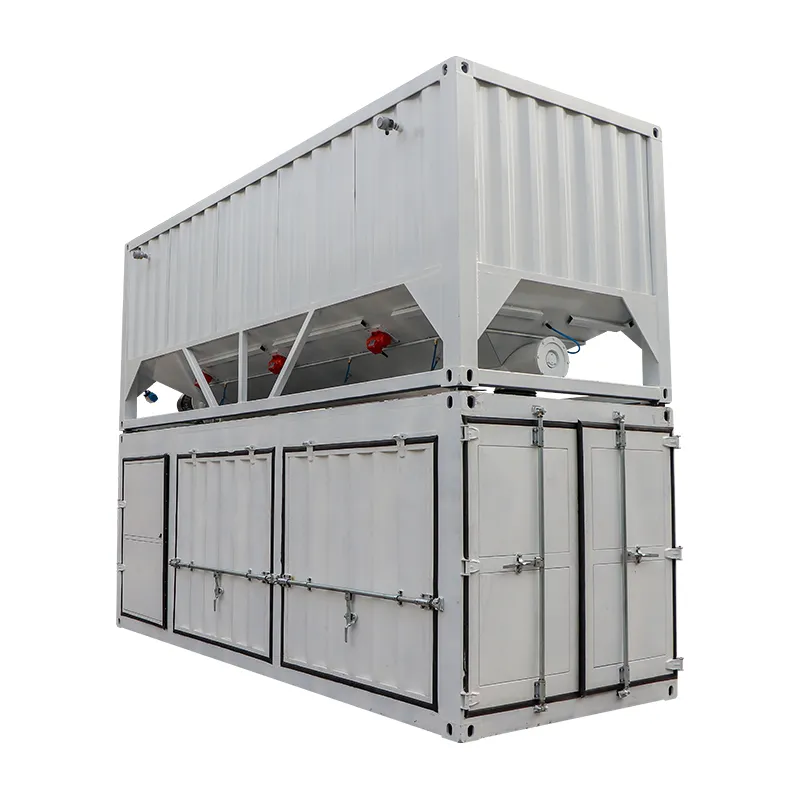

Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
1 / 5
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine
Full automatic grout mixer machine and cement mixing machine

Full automatic grout mixer machine and cement mixing machine

Send Inquiry

Product Description

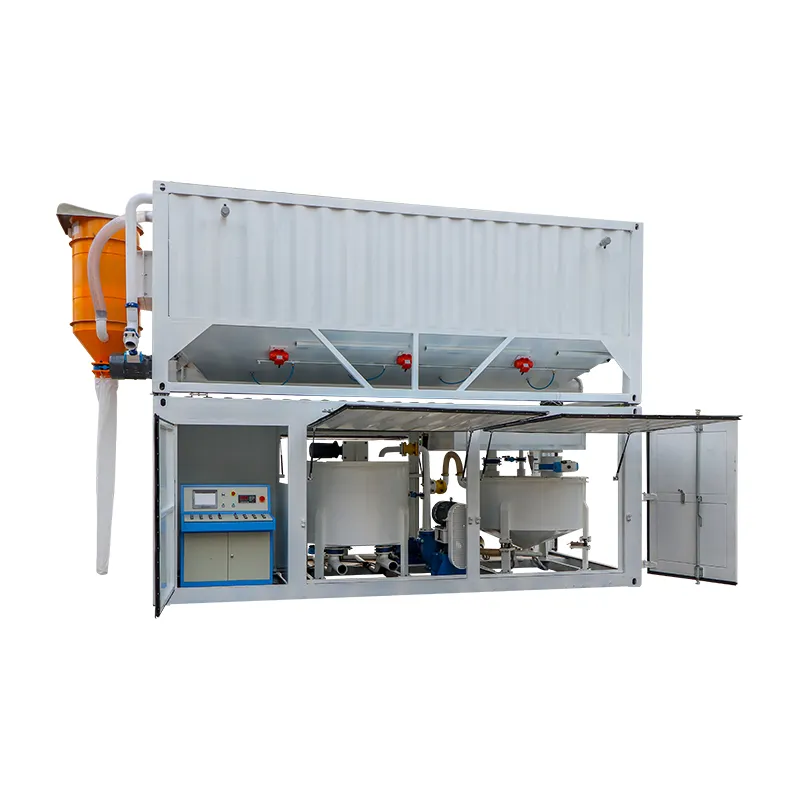

Full automatic grout mixer machine and cement mixing machine
Product Description

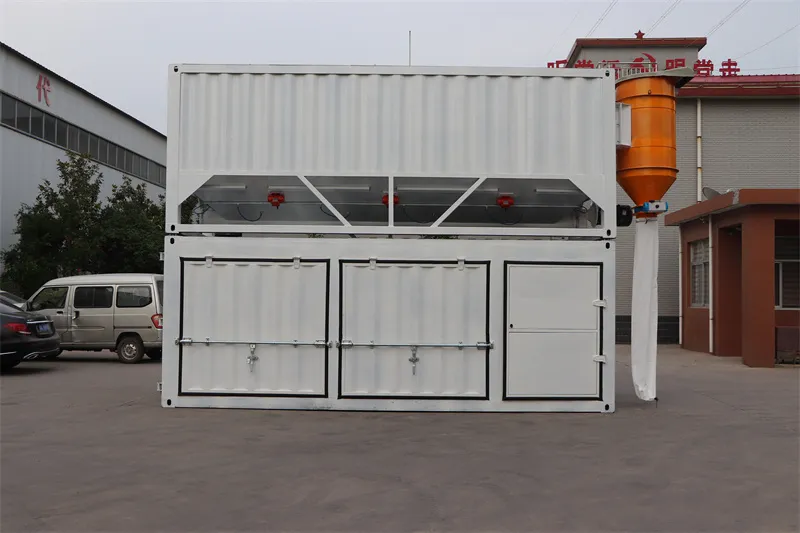

Grout mixer machine

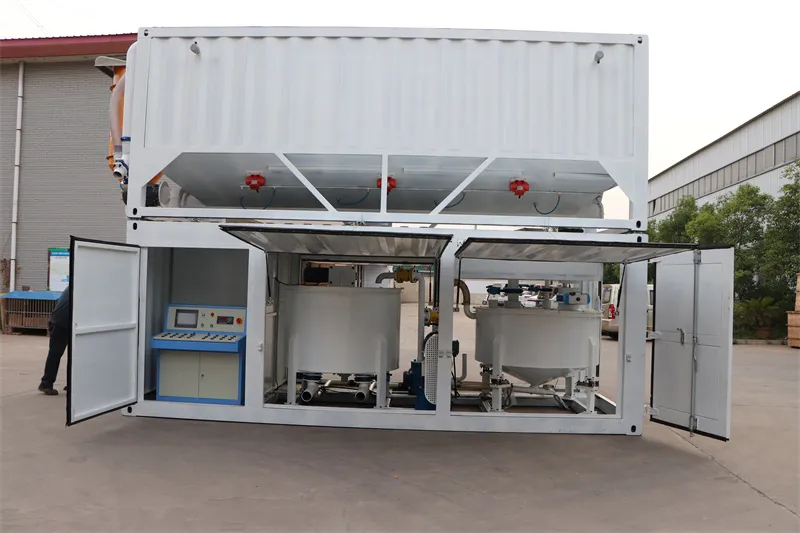

Cement mixing machine

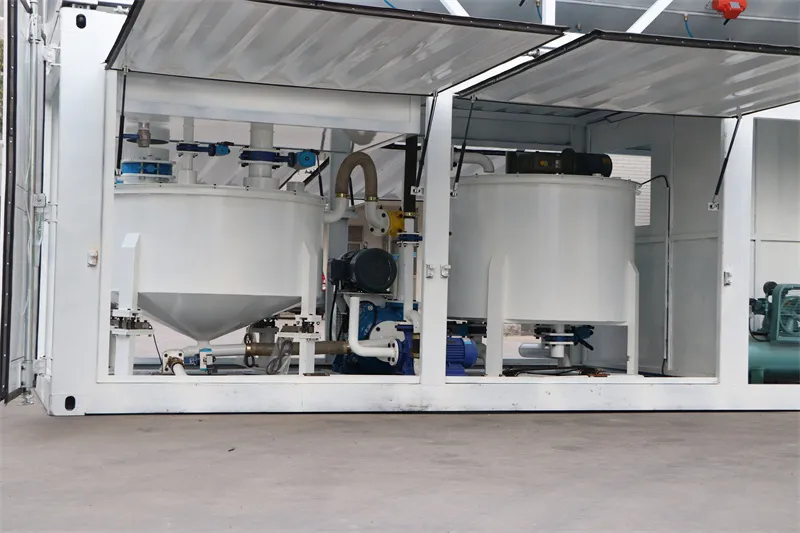

High pressure pump

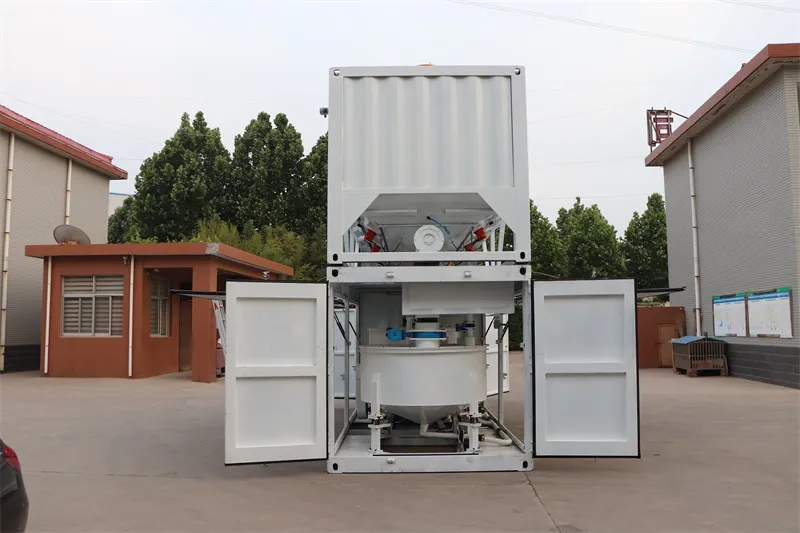

Automatic grout mixer
LGP114/500-120D Diesel-driven High-pressure Pump is a horizontal three-cylinder single acting reciprocating pump, designed with reference to the advanced structure of foreign plunger pumps.
It is composed of five parts: power (120Kw diesel engine), clutch, gear-box (Eaton FAST), universal joint coupling, and high-pressure pump. Gearbox has four gears and can be gotten at four speeds as demand.
This system provides high-pressure power for jet-grouting, strengthening weak foundations in buildings, highways, railways, and underground projects. It is also ideal for uneven settlement treatment, deep prevention curtains, mine leakage prevention, and slope anchoring.
The entire unit is designed to be placed in a 20ft container for easy transportation and mobility.
Detailed Photos

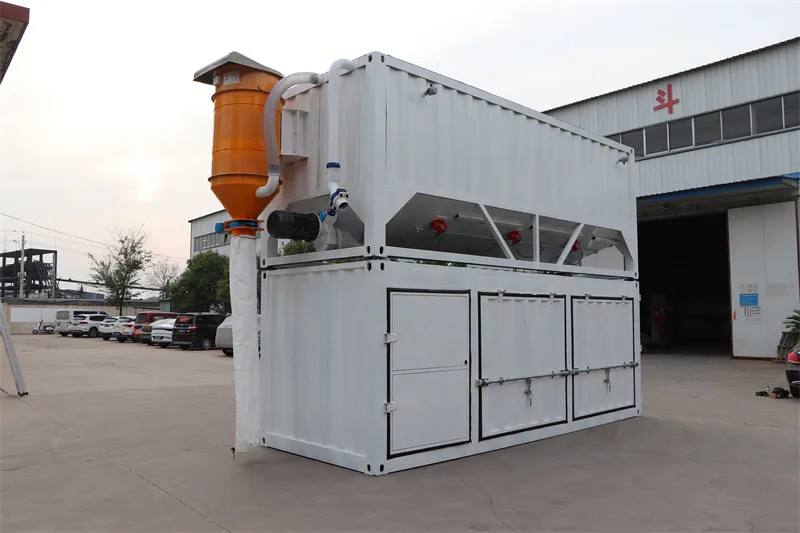

Machine details

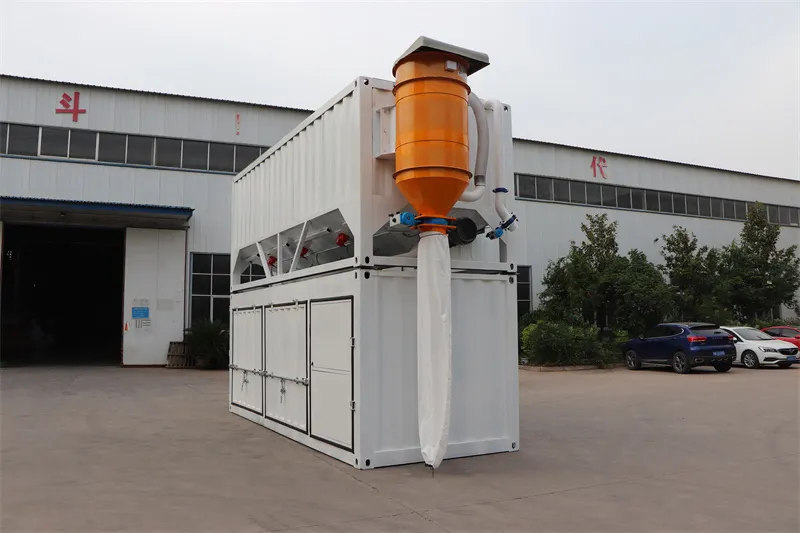

Mixing plant components
Diesel engine
Control panel

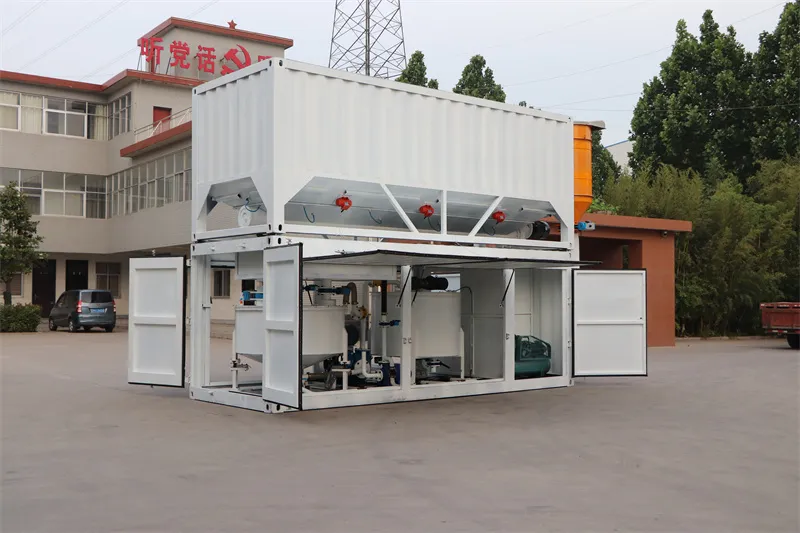

High pressure valves

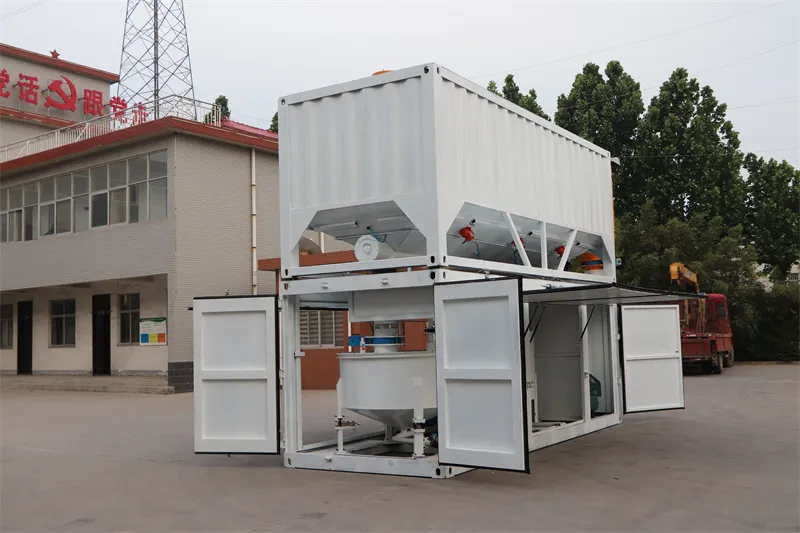

Pipeline structure

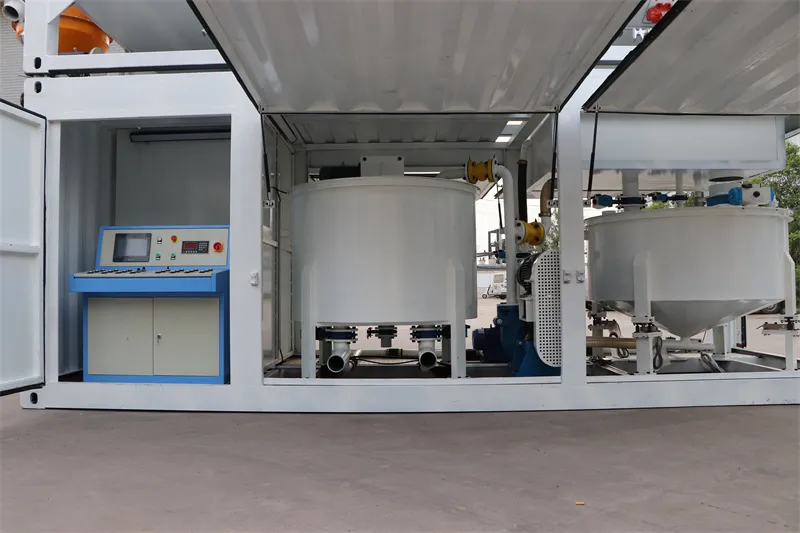

Mixing tank

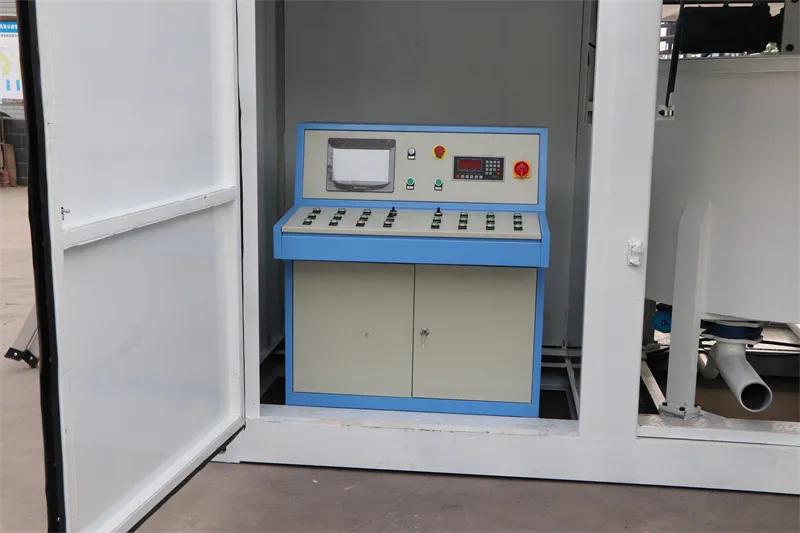

Operation system
Our Advantages

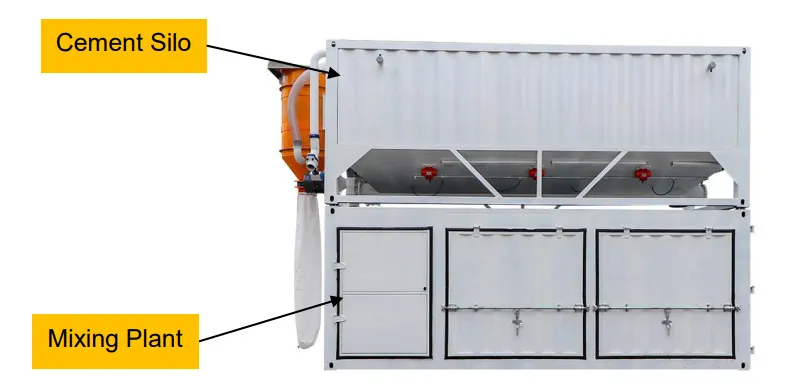

Cement Silo Advantage
CEMENT SILO FEATURES:
  • Upper and lower recalling dipsticks (2 each)
  • Efficient Dust collector (1)
  • Safety Pressure relief valves (2)
  • OLI-WOLONG Vibrators (6)
Automatic Mixing Plant
AUTOMATIC MIXING PLANT ADVANTAGES:

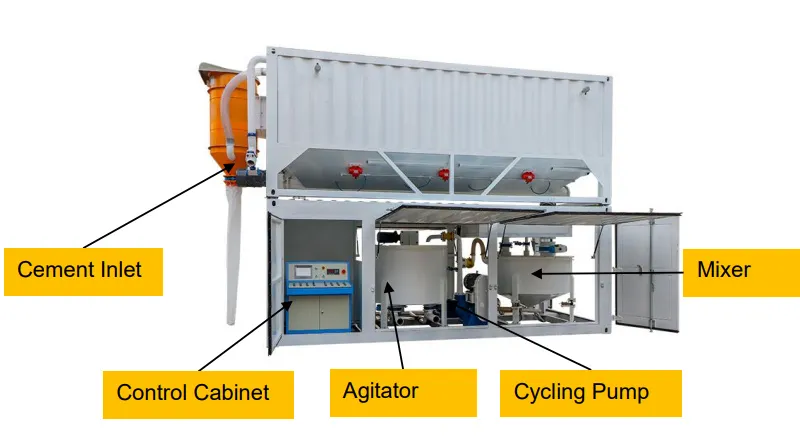

Plant view 1

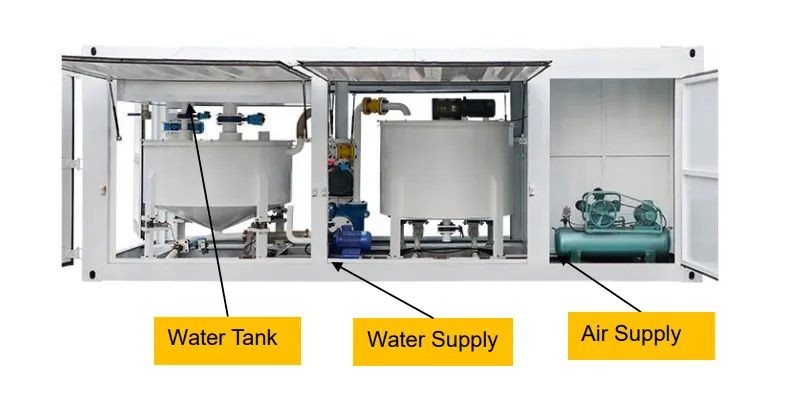

Plant view 2
  • High-speed Colloidal Grout Mixer
  • All main pipeline valves are pneumatic
  • Automatic cleaning function for mixture, cycling pump, and agitator
  • Automatic cement addition via silo or screw feeder
  • Capable of ternary or quaternary compound mixing
  • Dual Operation Modes: Fully automatic and manual mode
  • Simple operation and maintenance
  • Handles particle sizes up to 5mm
  • Integrated ceiling lamps for night-time illumination
  • Compact design for 20ft cabinet storage
Product Parameters
Specifications & Performance
1. Dual operation modes: automatic and manual.
2. Integrated automatic cleaning system.
3. Ternary/quaternary compound mixing capability.
4. Optimized for 40ft cabinet transport.
HCS17B Cement Silo
Volume17m³ Conveying40t/h
Inlet Dia.100mm Outlet Dia.273mm
Power18.5Kw Supply380V, 50Hz
LMA20 Mixing Plant
Mixer Vol.1000L Agitator Vol.1100L
Flow1200L/min Agitator Speed25r/min
Max Output20m³/h Mixer Power15Kw
Air Flow300L/min Water Tank750L
Air Pressure0.8MPa Power supply380V, 50Hz
* All data tested using water. Products can be customized to specific requirements.
Profile & Configuration
Layout 1
Layout 2
Layout 3
Frequently Asked Questions
What are the primary applications for this grout mixer?
The equipment is designed for jet-grouting and strengthening foundations for buildings, highways, railways, and underground construction projects like reservoirs and dams.
Does the machine support fully automatic operation?
Yes, the system features two operation modes: a fully automatic mode for high efficiency and a manual mode for specific operational control.
Is there an automatic cleaning system included?
Yes, the mixture pump, cycling pump, and agitator all have automatic cleaning functions to ensure easy maintenance and longevity.
What is the output capacity of the LMA20 Mixing Plant?
The LMA20 Mixing Plant offers a maximum output of 20m³/h with a mixer flow rate of 1200L/min.
How is the equipment transported?
The unit is compactly designed to be placed directly in a 20ft or 40ft container, making it easy to ship and move between job sites.
Can the machine handle compound mixing?
Yes, it is capable of preparing ternary or quaternary compound mixing, utilizing either one or two liquid components and one solid component.
