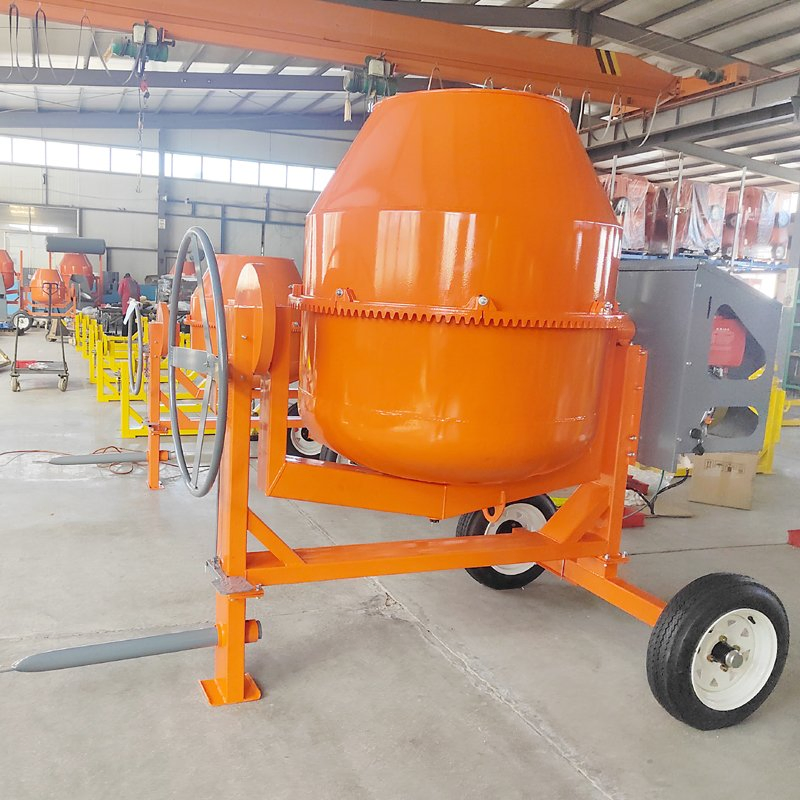

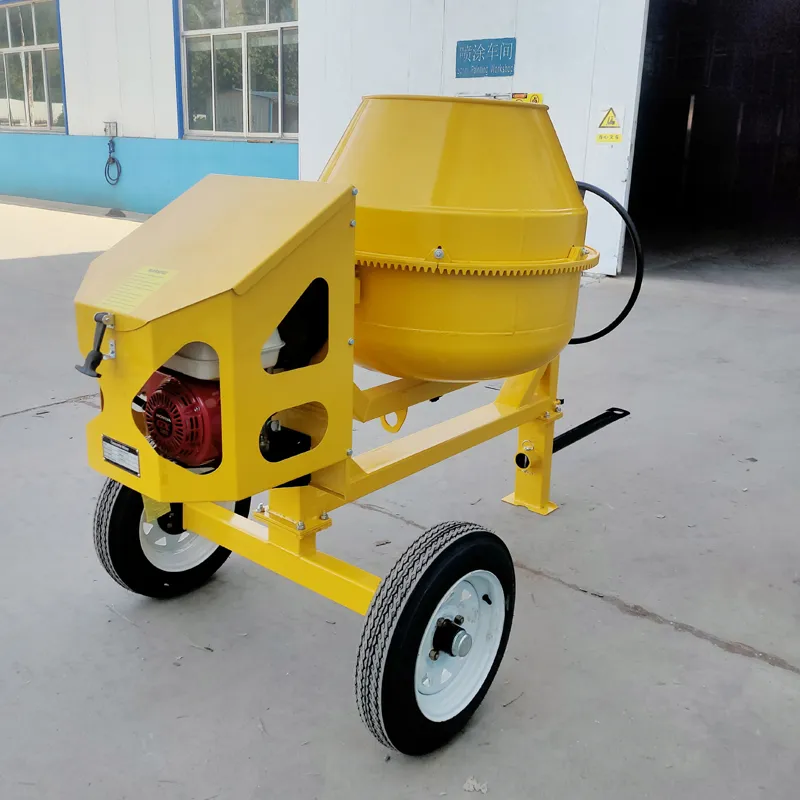

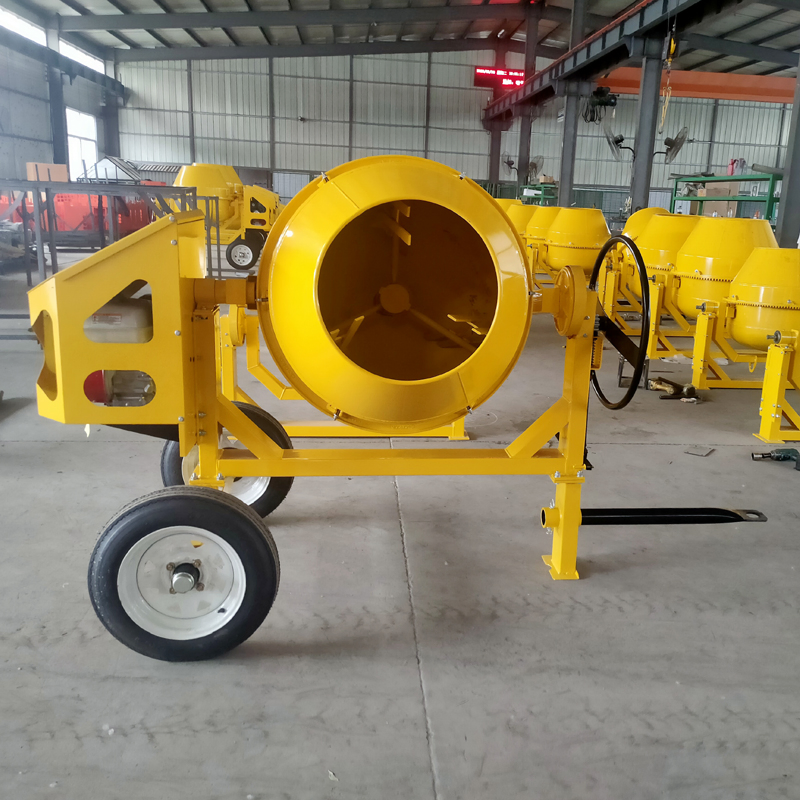

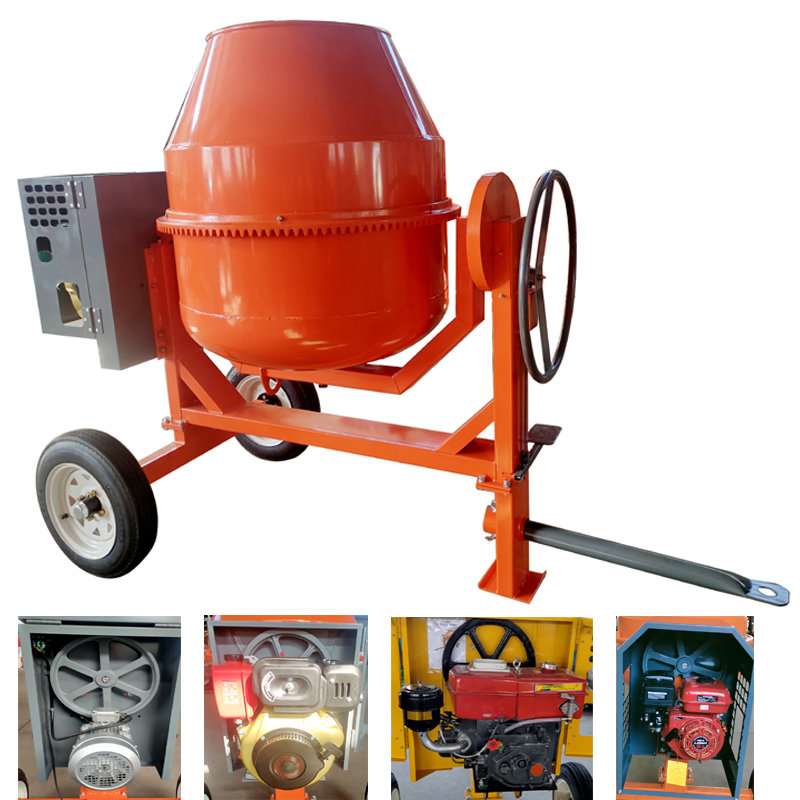

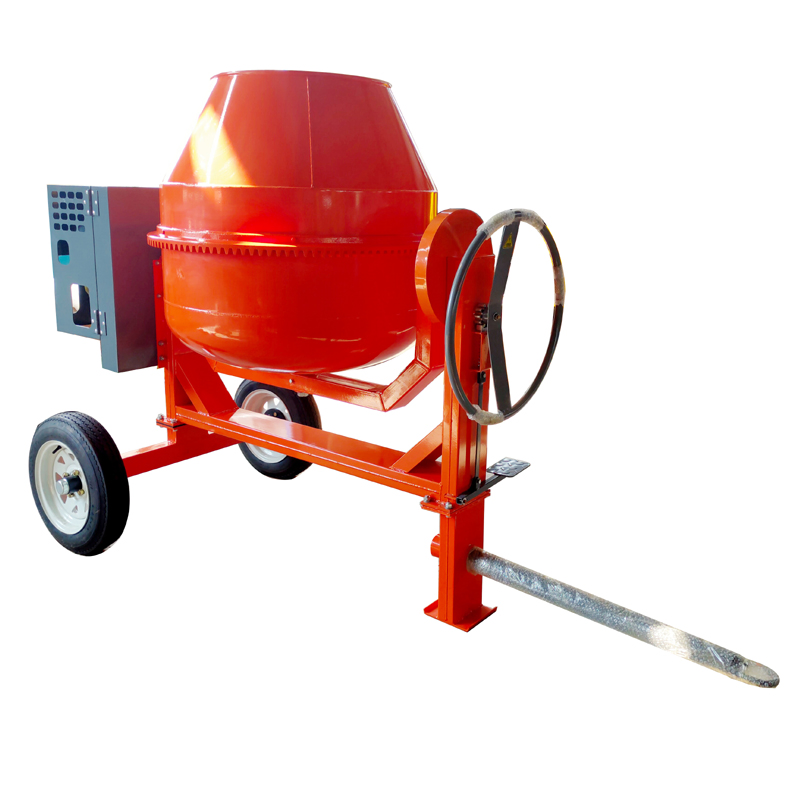

We are a professional manufactory devoted to designing, researching, developing, manufacturing, and exporting many different kinds of portable concrete mixers, plate compactors, and block making machines. Our concrete mixer range from 260 liters to 800 liters, which can be equipped with diesel engines, gasoline engines, or electrical motors.
Our company adheres to a professional and trustworthy business philosophy, supplying first-class quality products and service. With rich experience in production and continuous innovation, we have gained a good reputation worldwide, selling to more than 20 countries.
| Model No. | 260L | 300L | 350L | 400L | 450L |
|---|---|---|---|---|---|
| Drum Mouth | 450mm | 450mm | 516mm | 516mm | 516mm |
| Drum Max. Dia. | 700mm | 700mm | 800mm | 800mm | 800mm |
| Drum Height | 687mm | 777mm | 766mm | 851mm | 936mm |
| Productivity | 2-5m³/h | 3-8m³/h | 4-10m³/h | 5-12m³/h | 6-14m³/h |
| Diesel Engine | 6HP | 6HP | 6HP | 6HP | 6HP |
| Net Weight | 230kg | 250kg | 260kg | 270kg | 280kg |
| Model No. | 500L | 600L | 700L | 800L |
|---|---|---|---|---|
| Drum Mouth | 566mm | 566mm | 600mm | 600mm |
| Drum Max. Dia. | 900mm | 900mm | 1000mm | 1000mm |
| Drum Height | 920mm | 1040mm | 1075mm | 1205mm |
| Productivity | 4-5m³/h | 5-6m³/h | 6-7m³/h | 7-8m³/h |
| Electric Motor | 3KW | 3KW | 3KW | 3KW |
| Gross Weight | 370kg | 380kg | 440kg | 480kg |

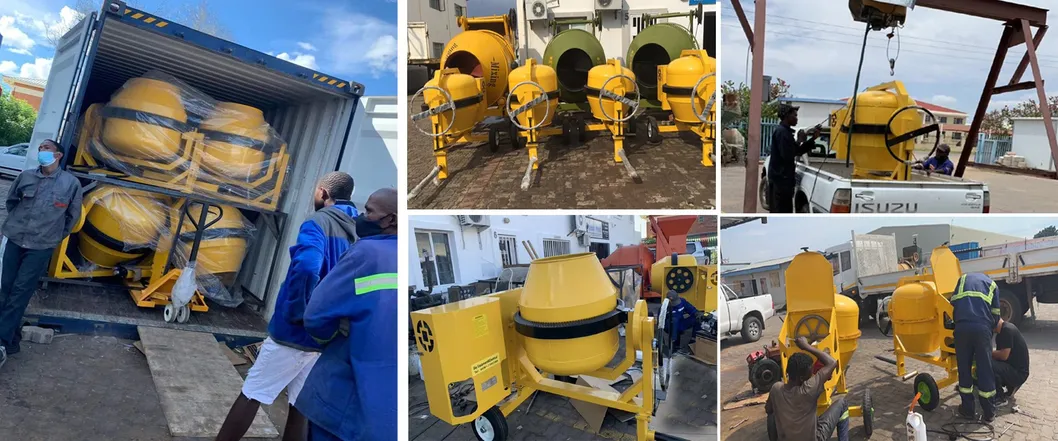

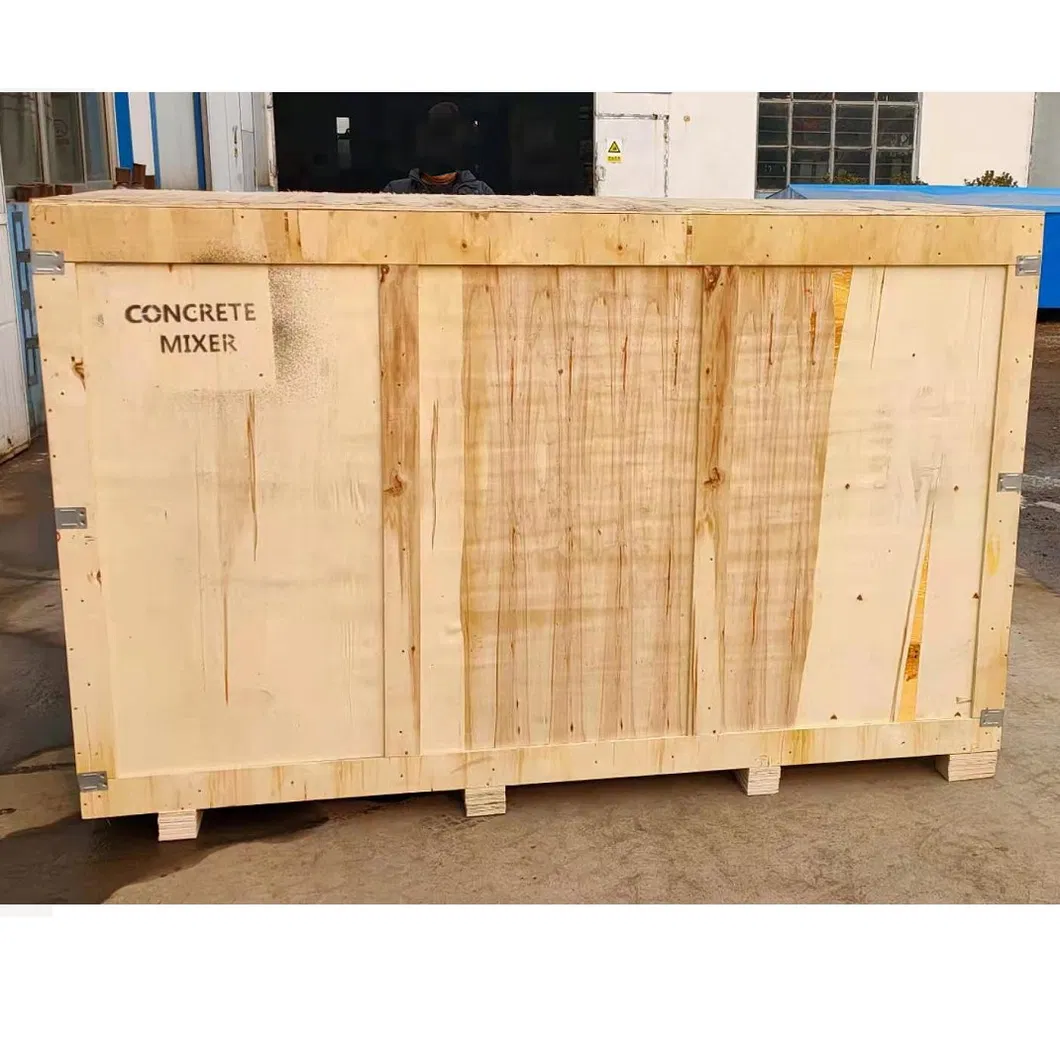

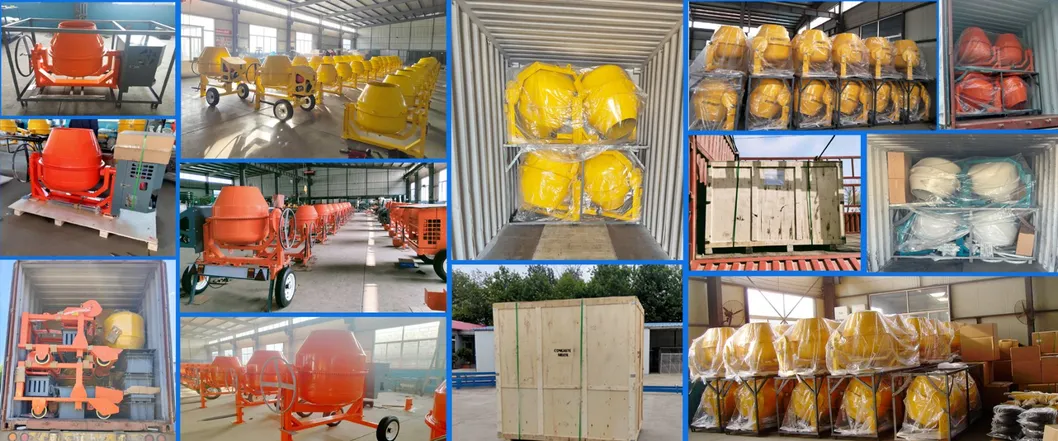

Packing Details: Standard export packing or according to requirements. We use cranes/forklifts for container loading and wire fastening to ensure machines remain stable. Cork wood is used to prevent collisions.
Delivery Time: Swift delivery within 15-30 days after receiving the deposit.
