Application
It is mainly applicable to carbide rotary drilling, screw drilling, pneumatic drill hole hammer, pneumatic drill hole hammer with pipe drilling and other drilling techniques. It can also be used in tunnel pipe shed support, rock and soil anchoring, blasting hole, embankment reinforcement, ground source heat pump hole, hydrologic well, foundation pile construction and geological disaster control and other engineering fields.
Introduction

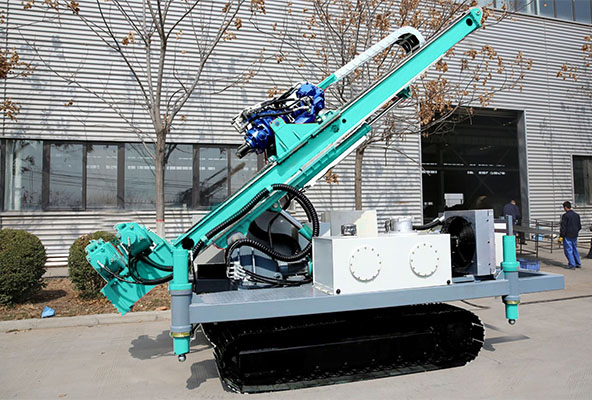

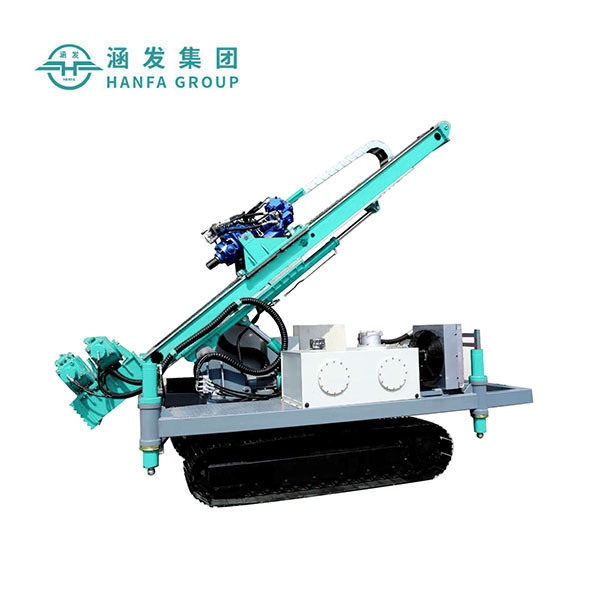

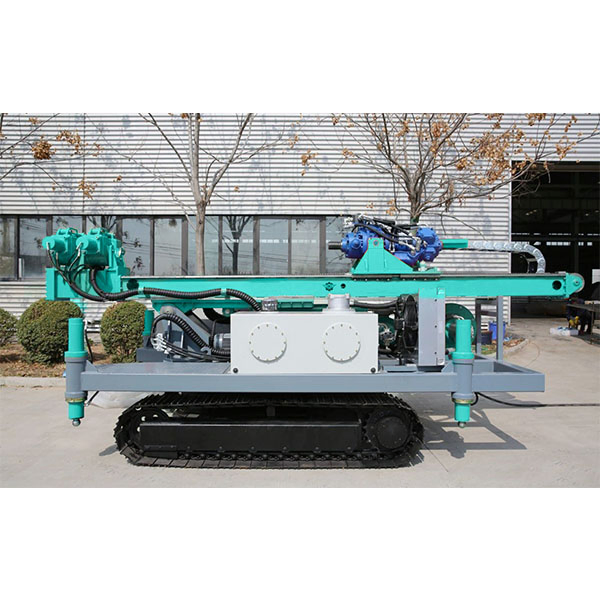

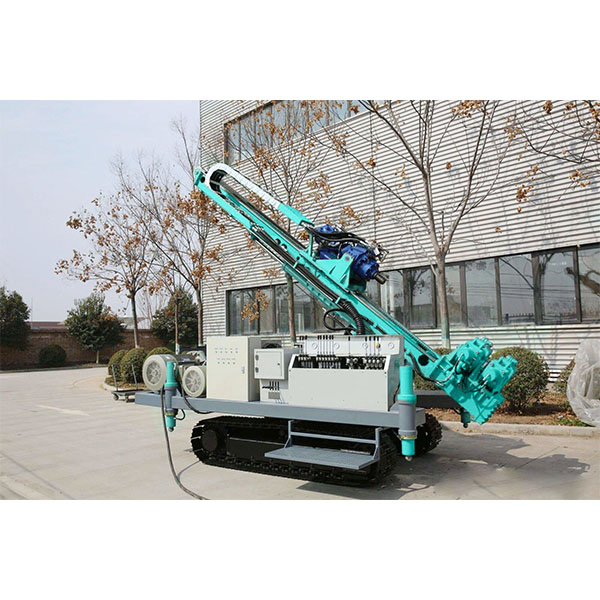

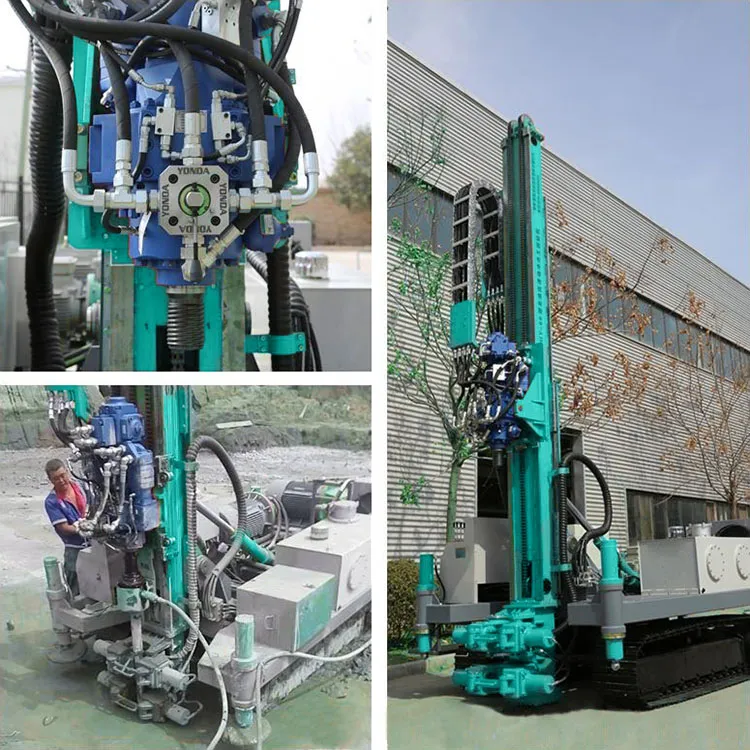

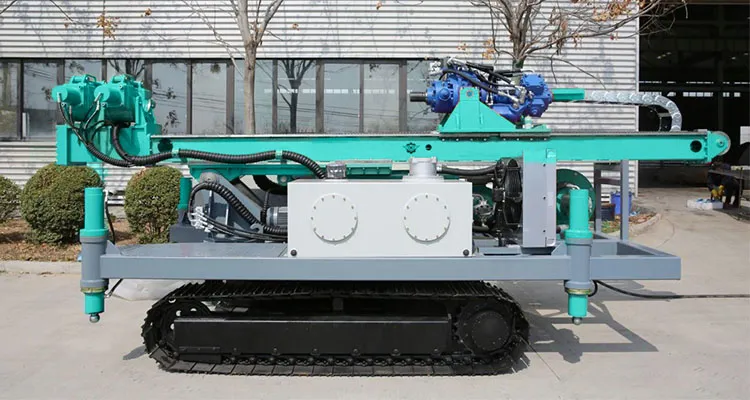

HFXT-60/80 crawler-type hydraulic dynamic impact engineering drill can perform rotary drilling using common alloy bits. In unstable strata such as pebble beds, casing drilling tools can be used. Supporting hydraulic impact meets the requirements for rock drilling, underground micro piles, anchor cables, geological exploration, geothermal hole formation, and foundation reinforcement.
Features
1. Full hydraulic power transmission, stepless speed change, high drilling efficiency.

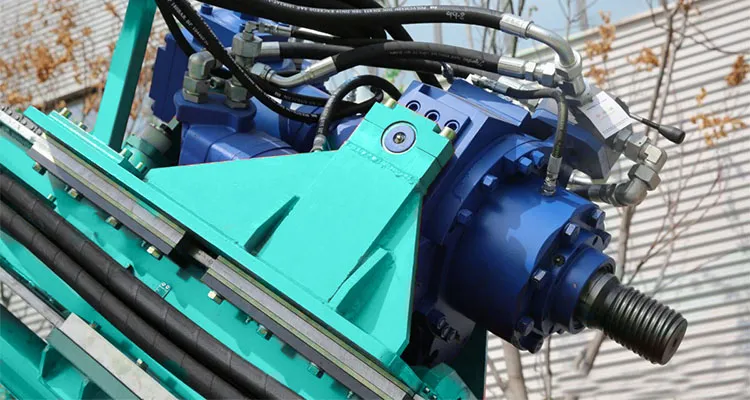

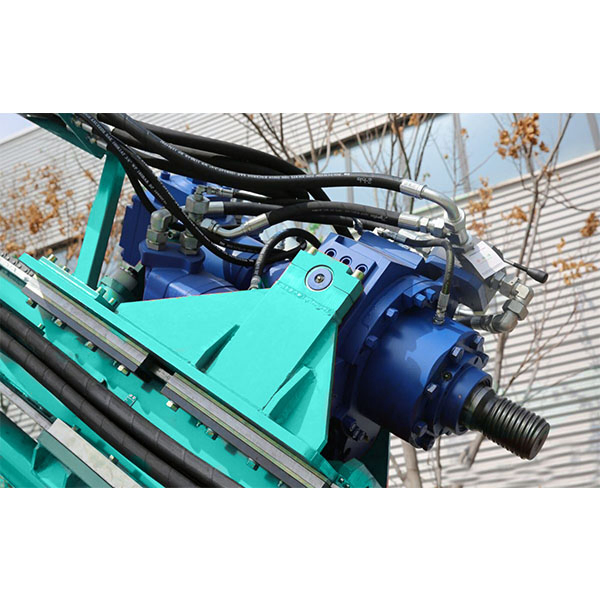

2. Power head adopts hydraulic variable speed mode with high and low gear.
3. Direct-acting load feedback variable hydraulic system for high efficiency and low energy consumption.
4. Crawler walking for quick and easy movement.
5. Compact structure, centralized operation, safe and convenient.
| Item | HFXT-60 | HFXT-80 |
|---|---|---|
| Maximum torque(N.m) | 11500 | 16680 |
| Power head speed(rpm) | 0-92 | 0-64 |
| Impact frequency(bmp) | 1500 | 2500 |
| Single impact work(Nm) | 800 | 1100 |
| Climbing ability(°) | 20 | |
| Traveling speed (km/h) | 1.5 | |
| Weight (kg) | 7900 | |
