| Model NO. | Hfxt-60/80 |
| Drill Hole Diameter | φ42 φ50 φ73 |
| Drill Hole Depth | 50-200mm |
| Bit Type | Drag Bit |
| Drilling Way | Mobile Gyrator |
| Maximum Torque(N.M) | 11500-16680 |
| Power Head Speed(Rpm) | 0-92 |
| Impact Frequency(BMP) | 1500-2500 |
| Single Impact Work(Nm) | 800-1100 |
| Maximum Stroke of Power Head(mm) | 3400 |
| Rated Lifting Power(Kn) | 50 |
| Hole Angle(°) | 0-90 |
Application: It is mainly applicable to carbide rotary drilling, screw drilling, pneumatic drill hole hammer, and pneumatic drill hole hammer with pipe drilling. It can also be used in tunnel pipe shed support, rock and soil anchoring, blasting hole, embankment reinforcement, ground source heat pump hole, hydrologic well, foundation pile construction, and geological disaster control.

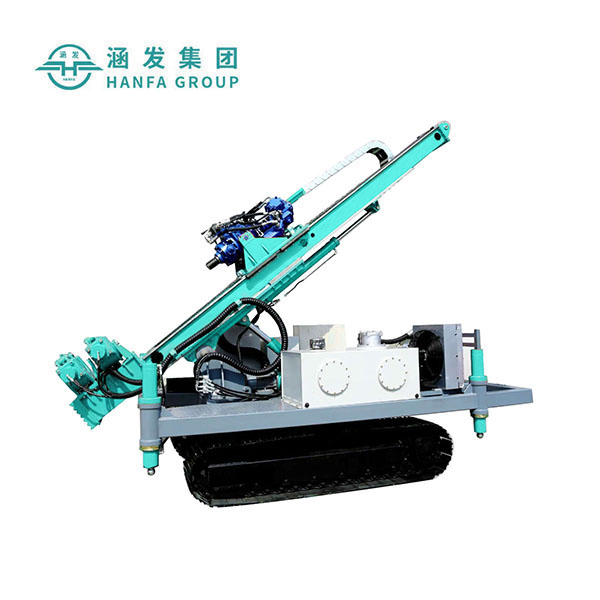

Introduction: HFXT-60/80 crawler-type hydraulic dynamic impact engineering drill allows for rotary drilling using common alloy bits. For unstable strata such as pebble beds, pipe drilling tools can be used to drill holes with casing. It supports hydraulic impact for rock drilling operations, underground micro piles, anchor cables, and geothermal hole formation.
| Model | HFXT-60 | HFXT-80 |
|---|---|---|
| Maximum torque(N.m) | 11500 | 16680 |
| Power head speed(rpm) | 0-92 | 0-64 |
| Impact frequency(bmp) | 1500 | 2500 |
| Single impact work(Nm) | 800 | 1100 |
| Climbing ability(°) | 20 | |
| Traveling speed(km/h) | 1.5 | |
| Motor Power(KW) | 50+30 | |
| Weight(kg) | 7900 | |
