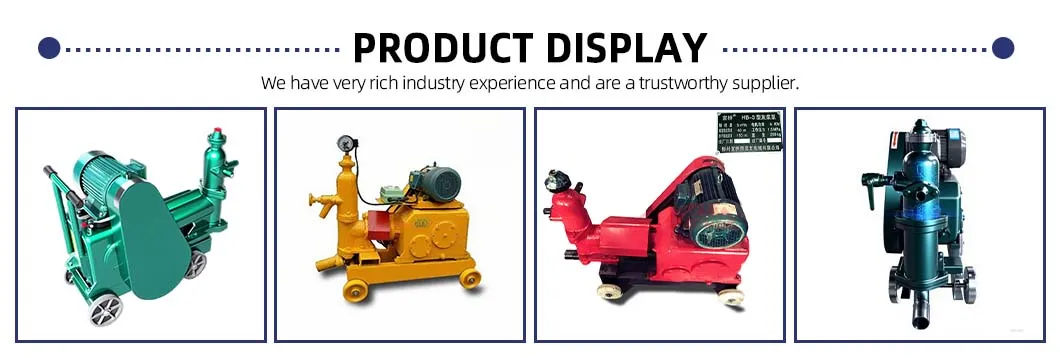

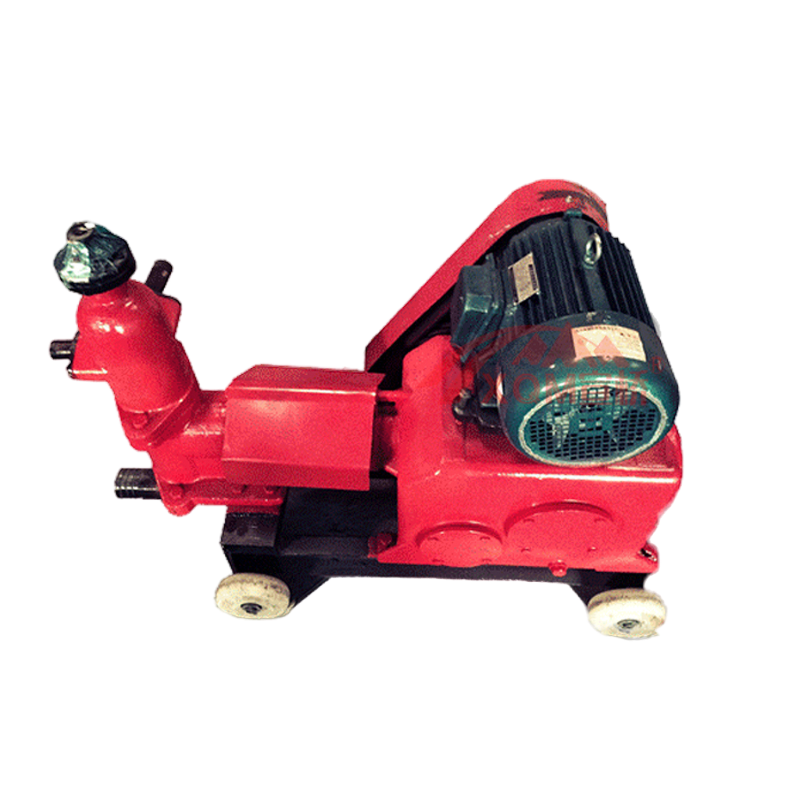

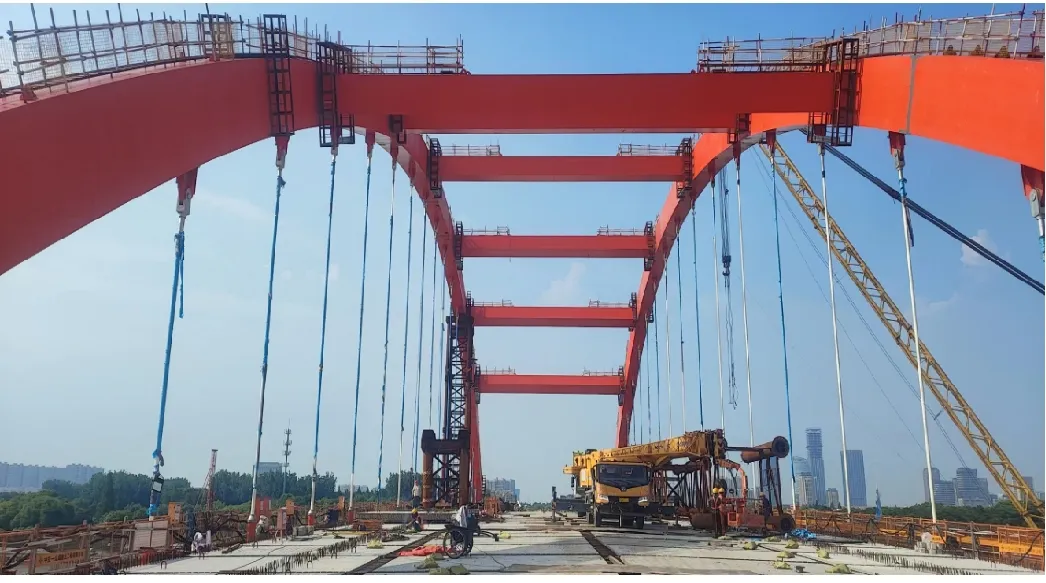

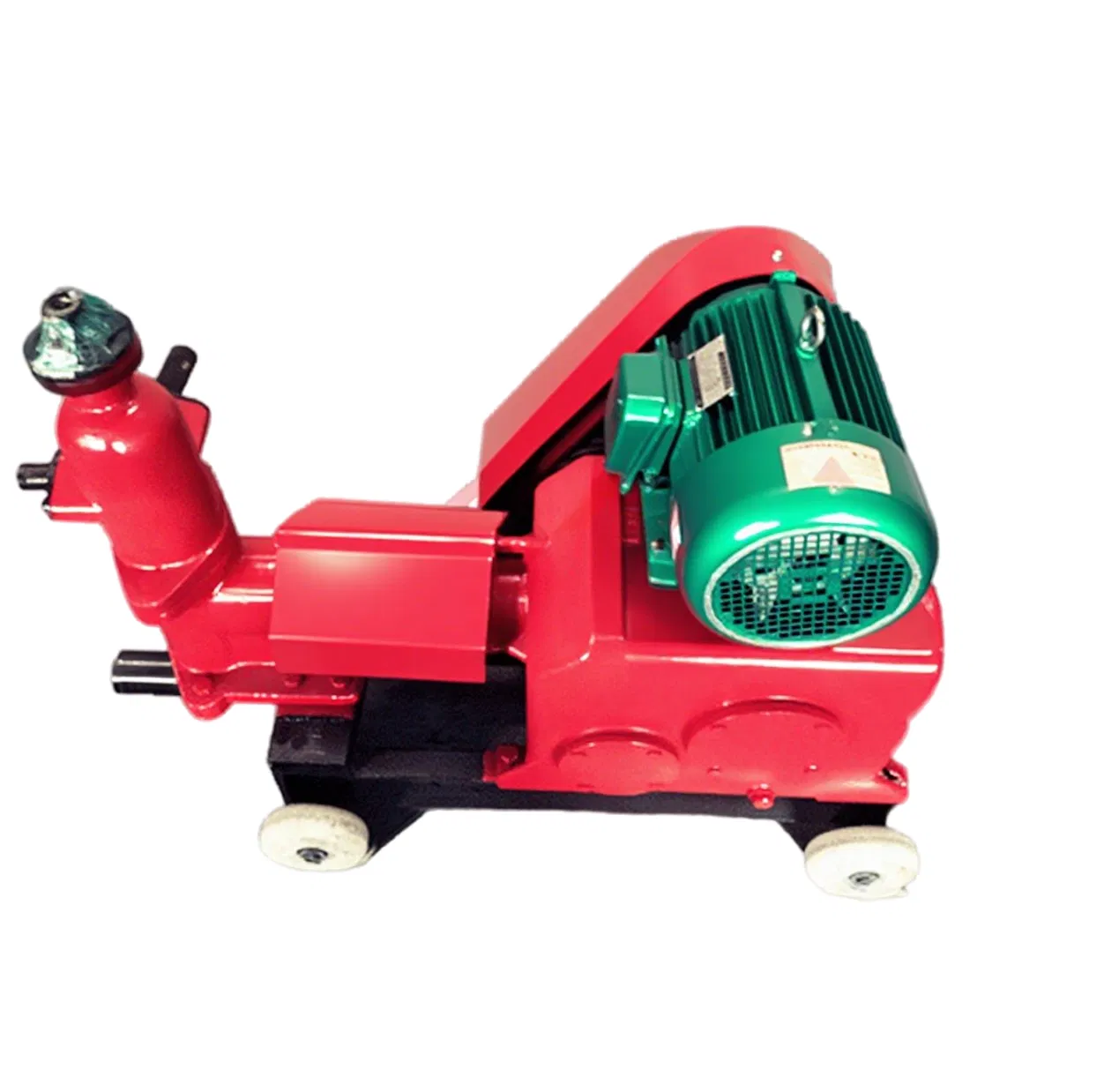

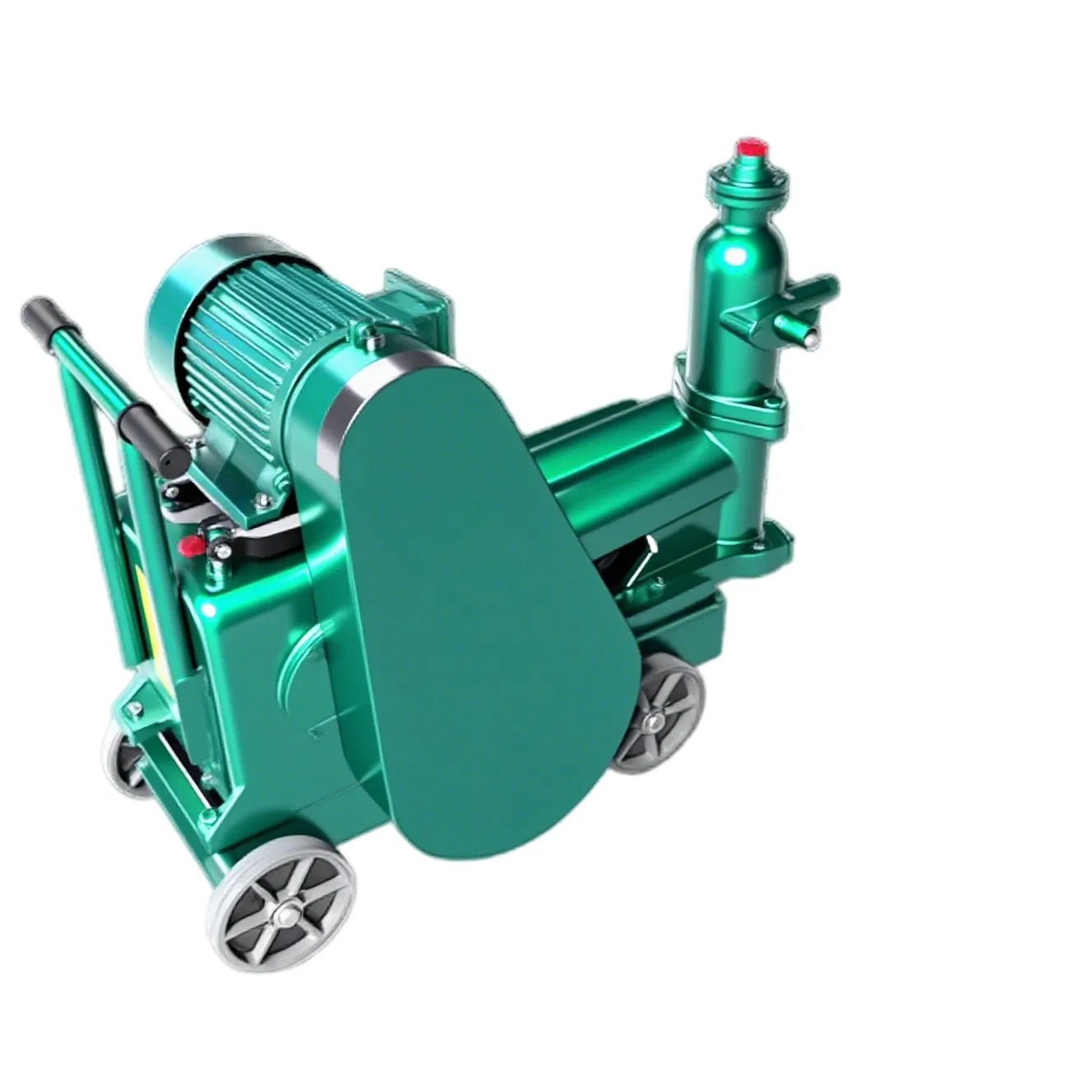

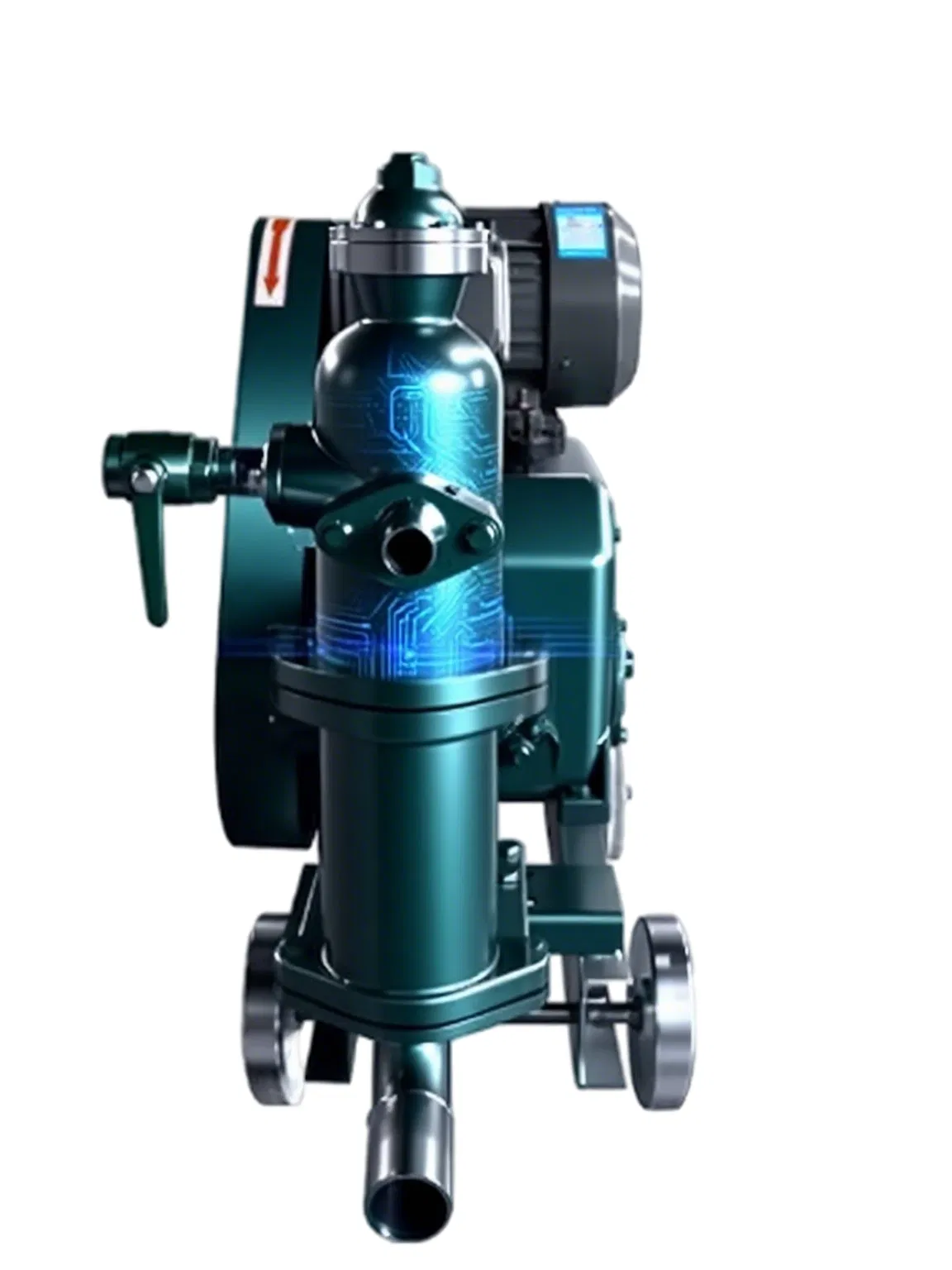

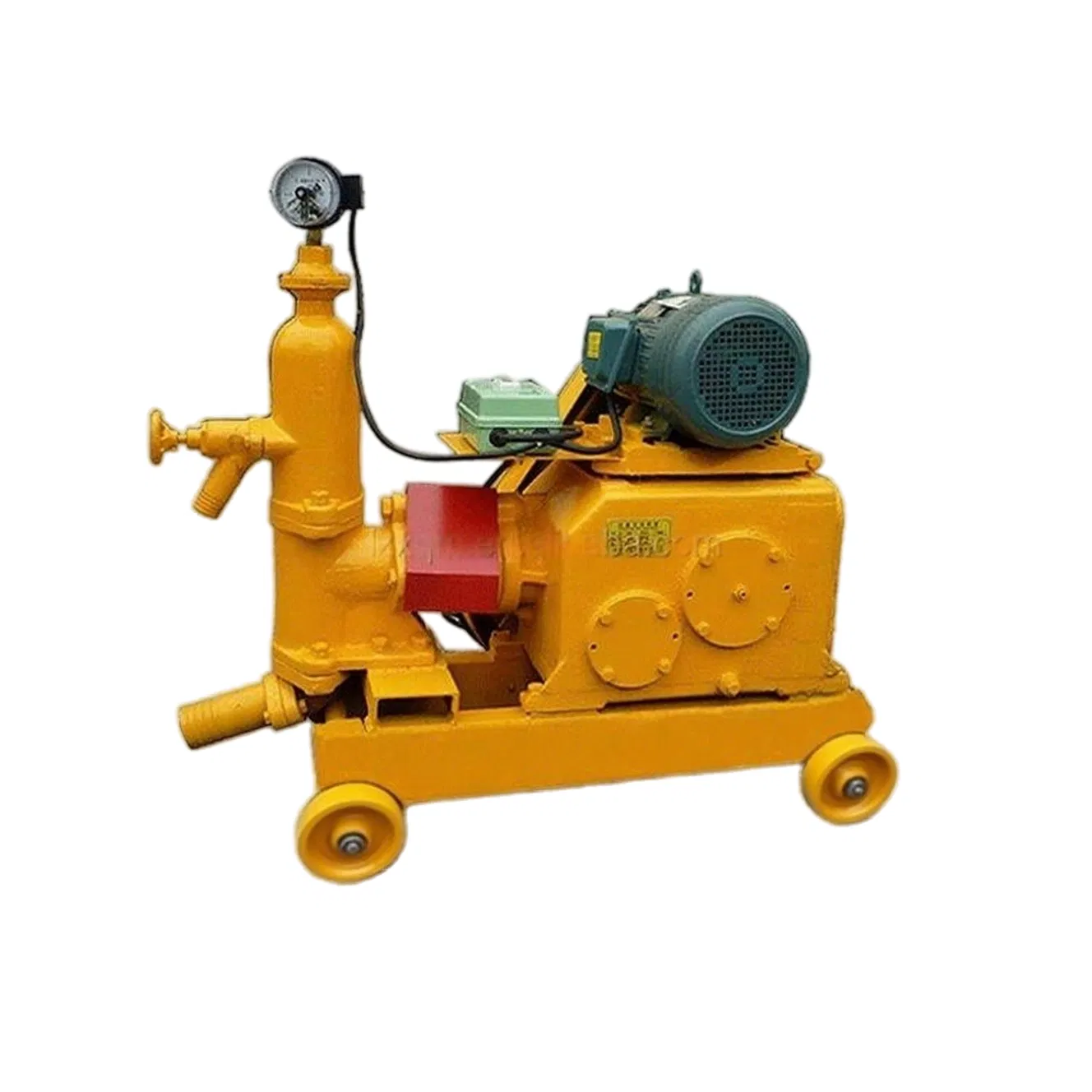

HB-3 Piston Grouting Pump is an essential equipment widely utilized in construction, bridge building, and tunnel engineering. It operates via the reciprocating movement of the piston within the cylinder block to pressurize and transport grouting materials like cement slurry and mortar through a precise suction-discharge cycle.
Ideal for medium and low viscosity materials, the 1.5MPa pressure is perfect for cement slurry and mortar applications. It is widely applied in:
| Parameter | Value | ||
|---|---|---|---|
| Model No. | HB-3 | Motor Power | 4KW |
| Working Pressure | 1.5MPa | Motor Speed | 1420r/min |
| Conveying Capacity | 3m³/h | Dimensions | 110×45×80cm |
| Cylinder Quantity | 1 pc | Weight | 250kg |
| Level Conveying Distance | 150m | Vertical Distance | 40m |
| Inlet Hose Diameter | 64mm | Exit Hose Diameter | 25mm |
Note: Technical parameters are for reference. Specifications may change without notice based on product improvements.

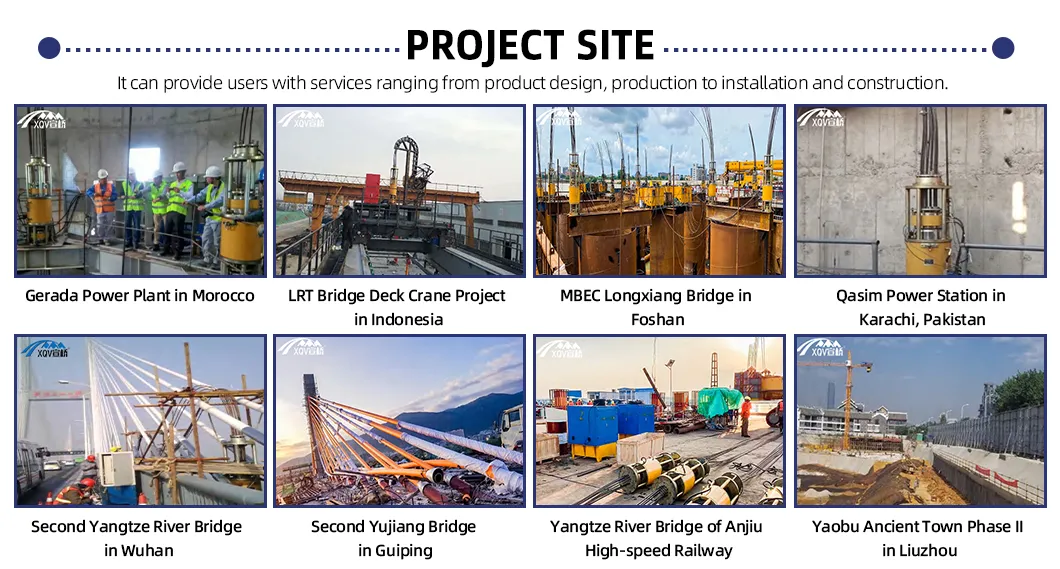

Our company was established in 2013 with significant registered capital, integrating the production of prestressed anchorages, machinery, and related engineering products. We provide a full range of services from product design and scientific research to installation and construction.

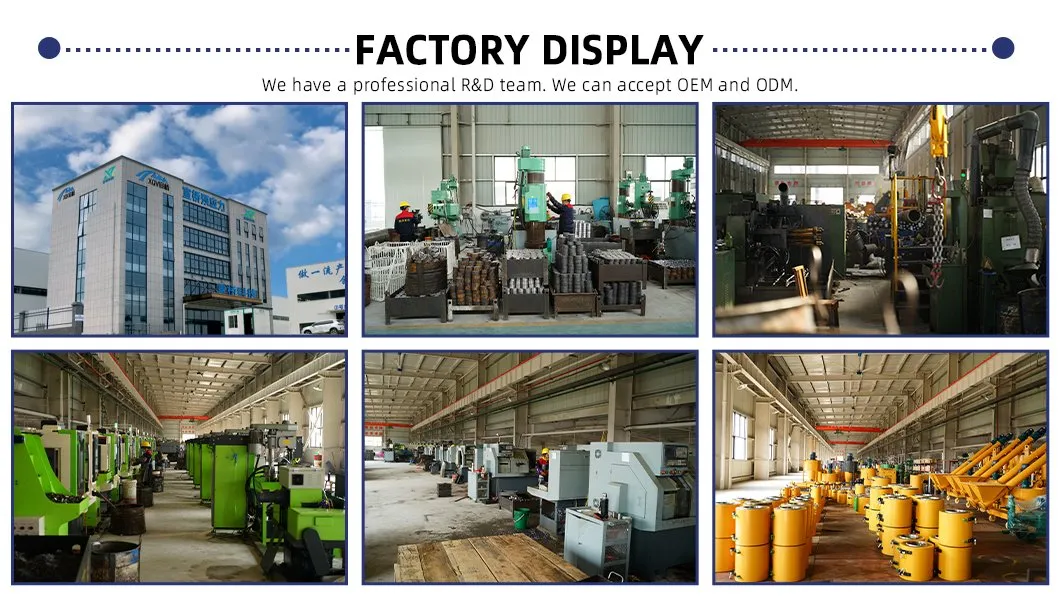

Our quality assurance system is managed in accordance with ISO9001-2015 international standards. We hold multiple patents and international CE certifications, ensuring our products meet global safety and performance criteria. With a professional R&D team, we support both OEM and ODM requirements to meet specific project needs worldwide.
