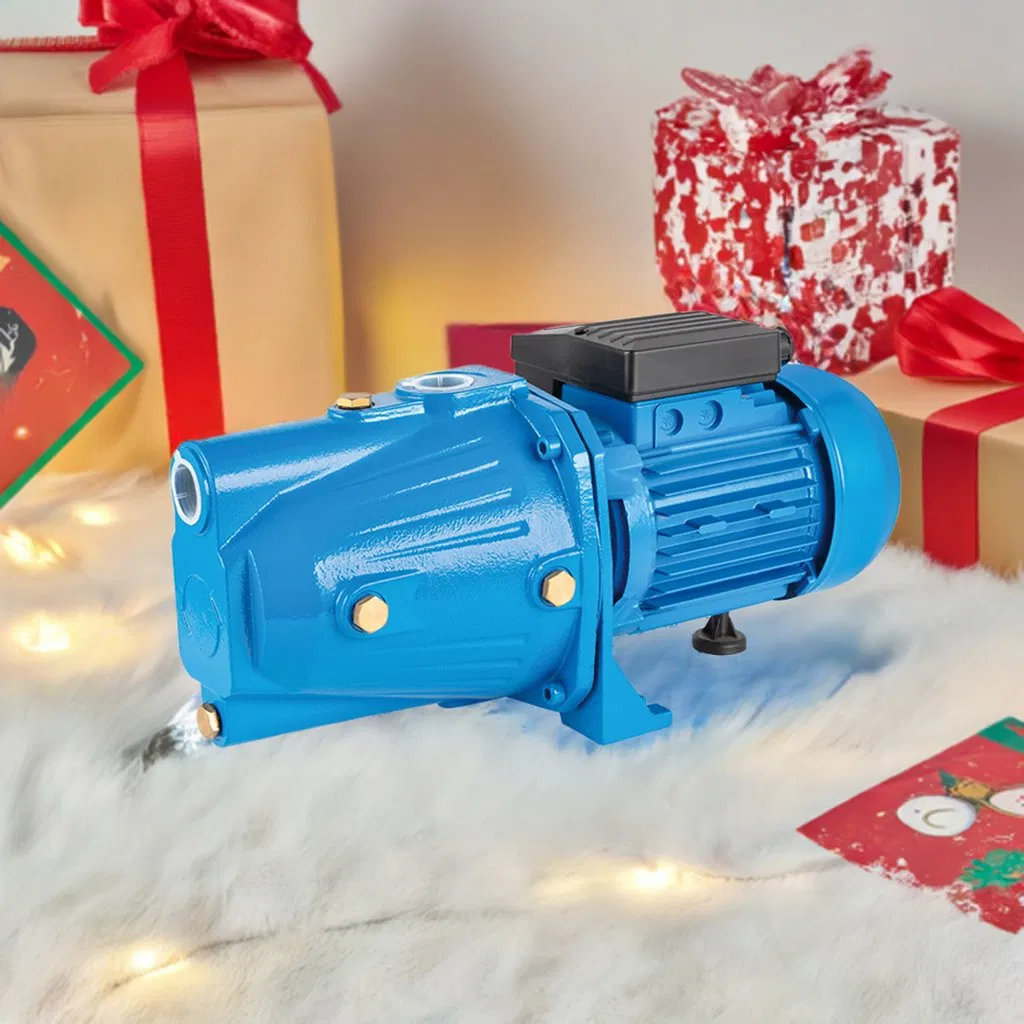

High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
1 / 5
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W
High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W

High Pressure Impeller Stable Output Injection Jet Electric Water Pumps (JETL) 750W

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
JET-100L
Power
Electric
Material
Cast Iron
Working Fluid
Water
Performance
Electric
Applications
House / Domestic
Impeller
Brass / PPO / Stainless Steel
Weight
13.5kg
Transport Package
Carton
Specification
475*210*220mm
Trademark
ELESTAR
Origin
China
HS Code
8413709990
Production Capacity
100,000 PCS/Month

Product Description

JET-L Series Self-priming pump: High efficiency jet pumps designed for excellent suction performance even in the presence of air bubbles. The system consists of a single impeller, centrifugal pump, and a jet pipe with a nozzle. Ideal for domestic water supply, small-scale agricultural irrigation, and applications requiring reliable self-priming operations.

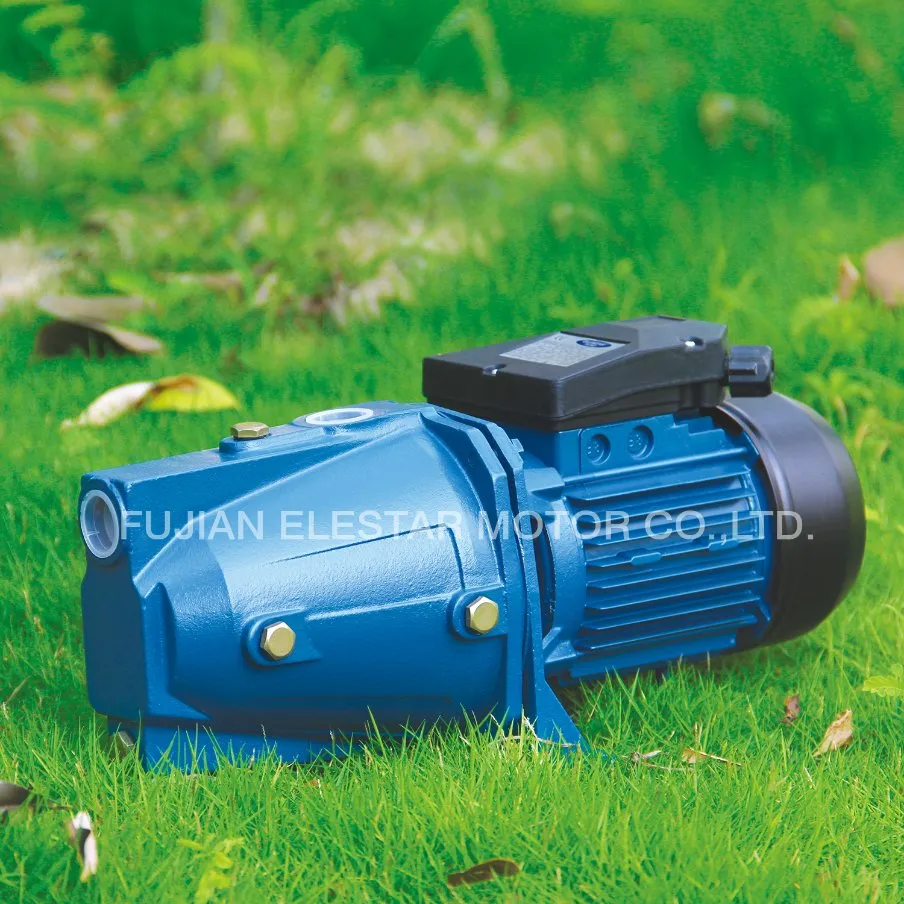

JET-L Series Self-priming pump

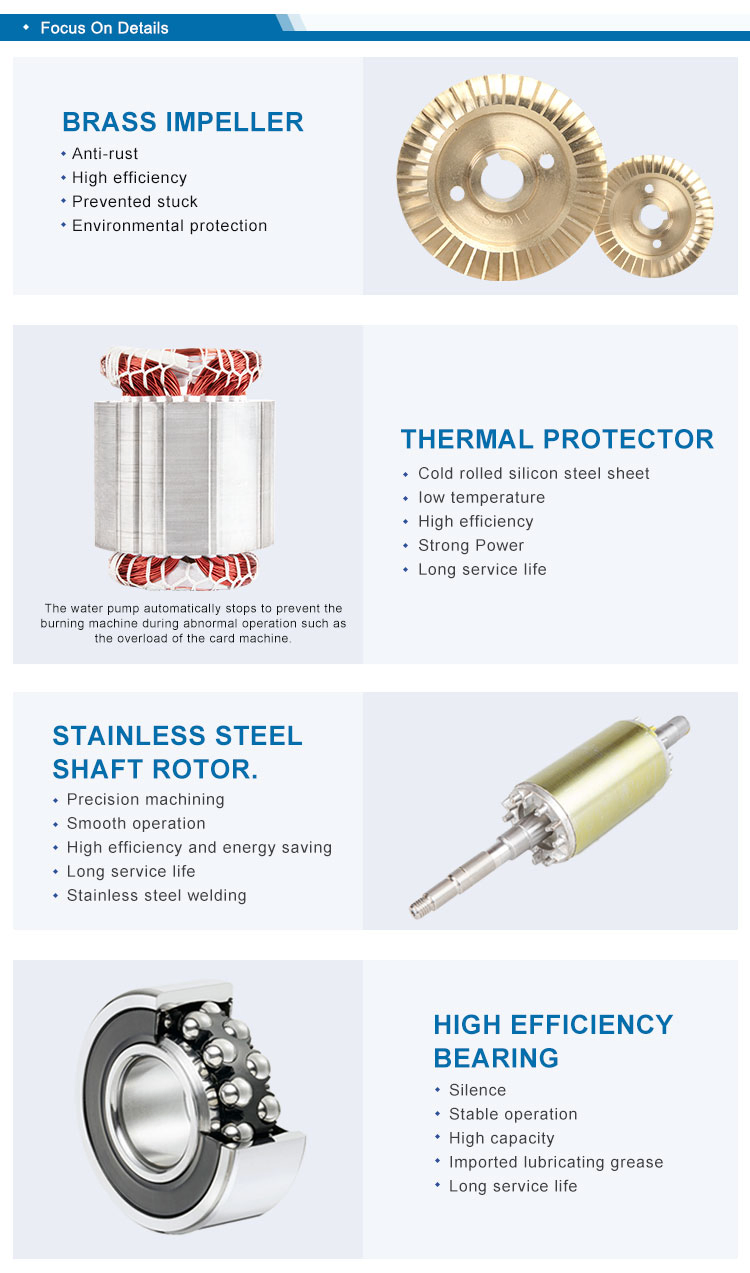

Pump Construction & Motor Specifications

PUMP DETAILS

  • Pump Body: Stainless Steel
  • Impeller: Brass / P.P.O / Stainless Steel
  • Mechanical Seal: Carbon / Ceramic / Stainless Steel

MOTOR DETAILS

  • Type: Single Phase, Heavy Duty Continuous Work
  • Motor Housing: Aluminum
  • Shaft: Stainless Steel
  • Insulation: Class B / Class F
  • Protection: IP44 / IP54
  • Cooling: External Ventilation

Technical Data

Compliant with ISO9001:2008 quality management systems, utilizing advanced inspection equipment for perfect quality control.
Model Input Max Output Power Current Q. Max H. Max Suct. Max DNA/DNM
JET100L 1.1 KW 1HP / 0.75KW 5.2A 53 L/MIN 51M 9M 1" / 25mm

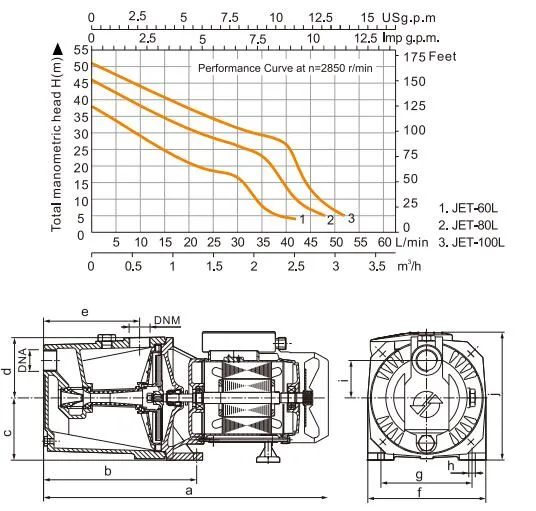

Technical Performance Curve

Manufacturing & Global Presence

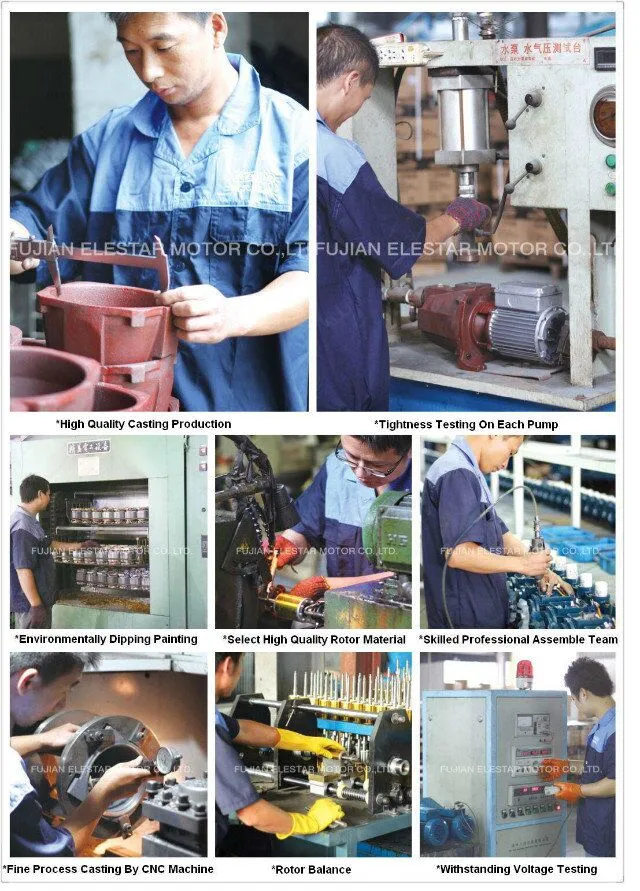

Factory Overview
Goods Delivery
Product Certificate

China Import And Export Fair (Canton Fair)

Canton Fair Info

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ) for the JET-100L?
The MOQ for this item is 100 PCS.
What is the estimated delivery time?
Typically, delivery takes 30-45 days after receiving the original L/C or a deposit by TT.
Do you offer OEM services for custom branding?
Yes, we provide professional OEM services. We require an official authorization document to proceed with your brand name.
Which loading ports are used for shipping?
Mainly through Fuzhou or Fujian ports in China.
What are the standard payment terms?
A 30% deposit is required, with the balance paid via T/T against the copy of the Bill of Lading, or via L/C at sight.
What is the monthly production capacity for these pumps?
Our production capacity ranges from 50,000 to 60,000 pieces of pumps per month.
