Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
1 / 5
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques
Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques

Multi-Angle Operation Drill Rig for Horizontal, Vertical, Upward, and Downward Drilling Techniques

Customization: Available
After-sales Service: Yes
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
Diesel Engine
Drill Hole Dia.
75mm
Drill Hole Depth
>200m
Bit Type
Diamond Bit
Drilling Way
Rotary
Power Type
Electric Motor / Diesel
Use
Coal / Geotechnical
Weight(Kg)
550 / 6000
Spindle Speed
66/180/350/820r/Min
Production Cap.
450 Sets/ Month
Product Description

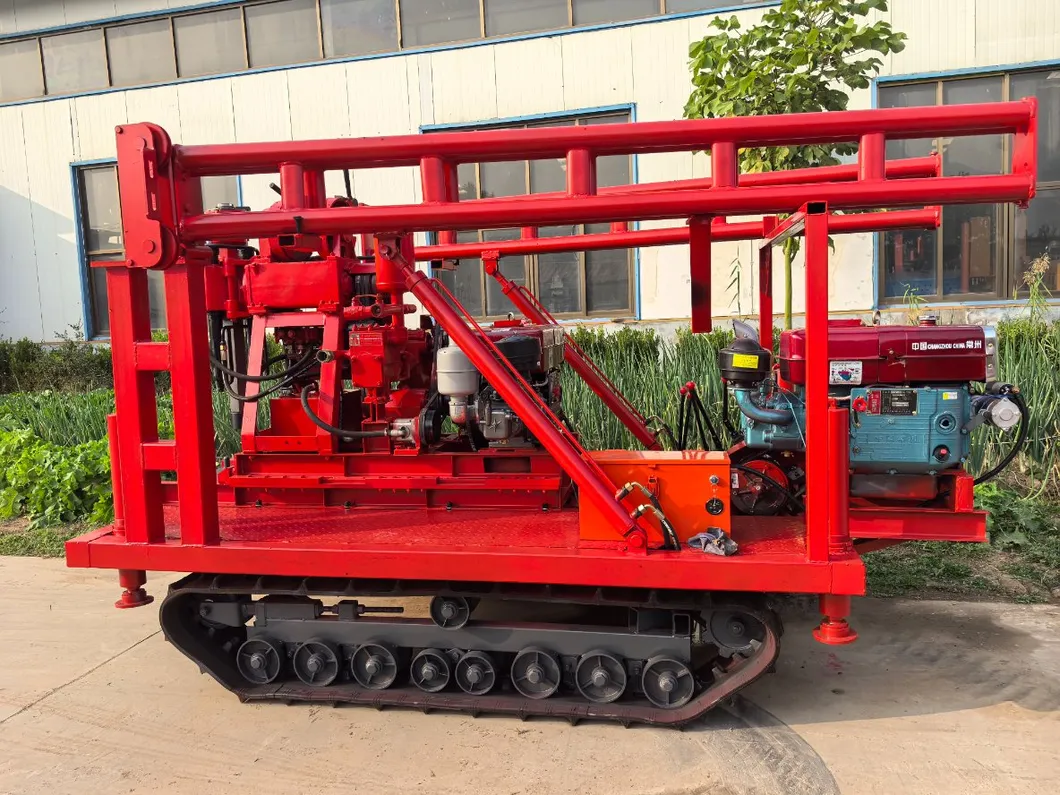

Drill Rig View 1

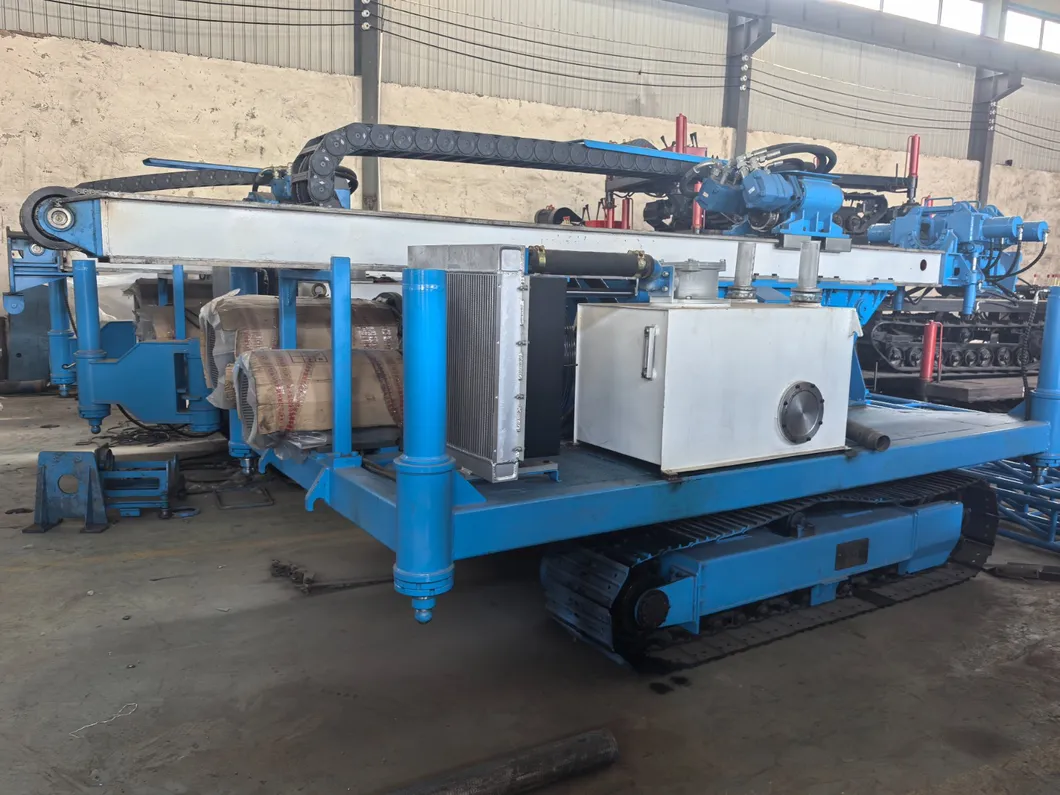

Drill Rig View 2
MDL-150H Series High-Lift Multifunctional Drill Rig: A comprehensive drilling solution composed of a crawler track base and a high-performance drill rig, ready for various terrains.
★ Main Features
  • Optimized Torque & Speed: Reasonably matched for 3-meter combined drilling with rods and casings across different geological strata.
  • Stable Operation: Equipped with track chassis, high-position rotating platform, and large-diameter leg cylinders.
  • Efficiency: Gripping unloader reduces labor intensity and increases loading/unloading speed.
  • Excavator-Style Arm: Dual oil cylinders provide excellent stability with a maximum horizontal lifting height of 3 meters.
  • Multi-Angle Capability: Operates in horizontal, vertical, upward, and downward angles.
  • High Mobility: Large track clearance adapts to harsh construction environments.

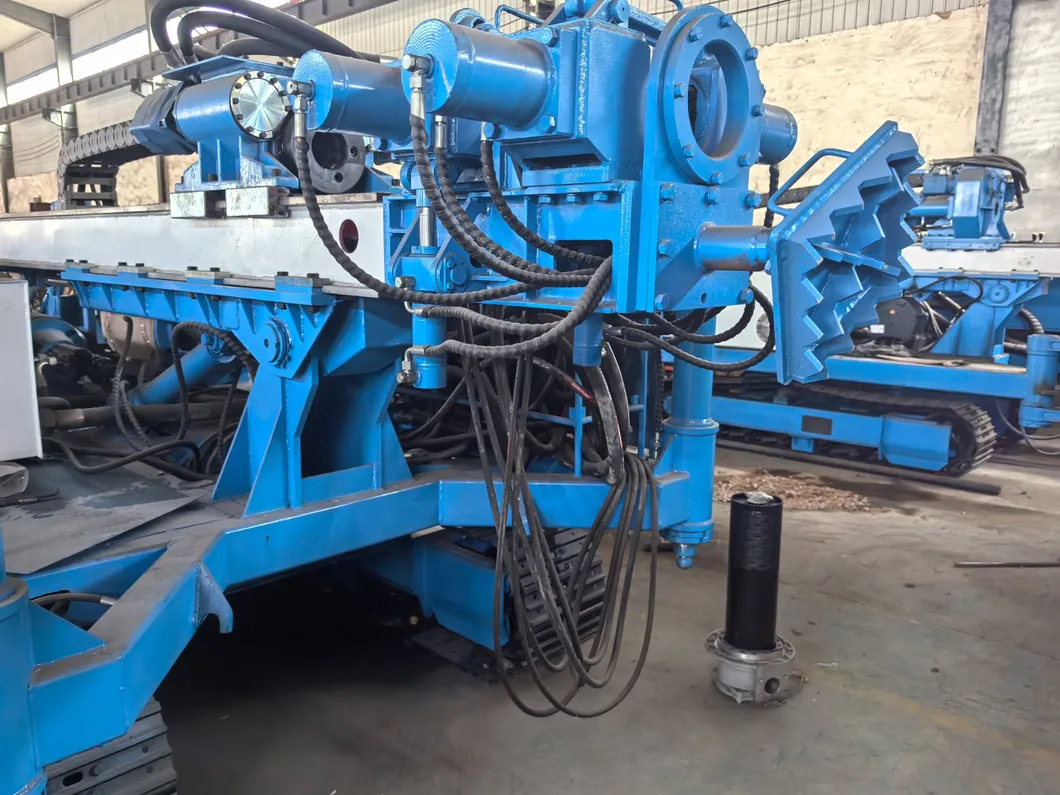

Application 1

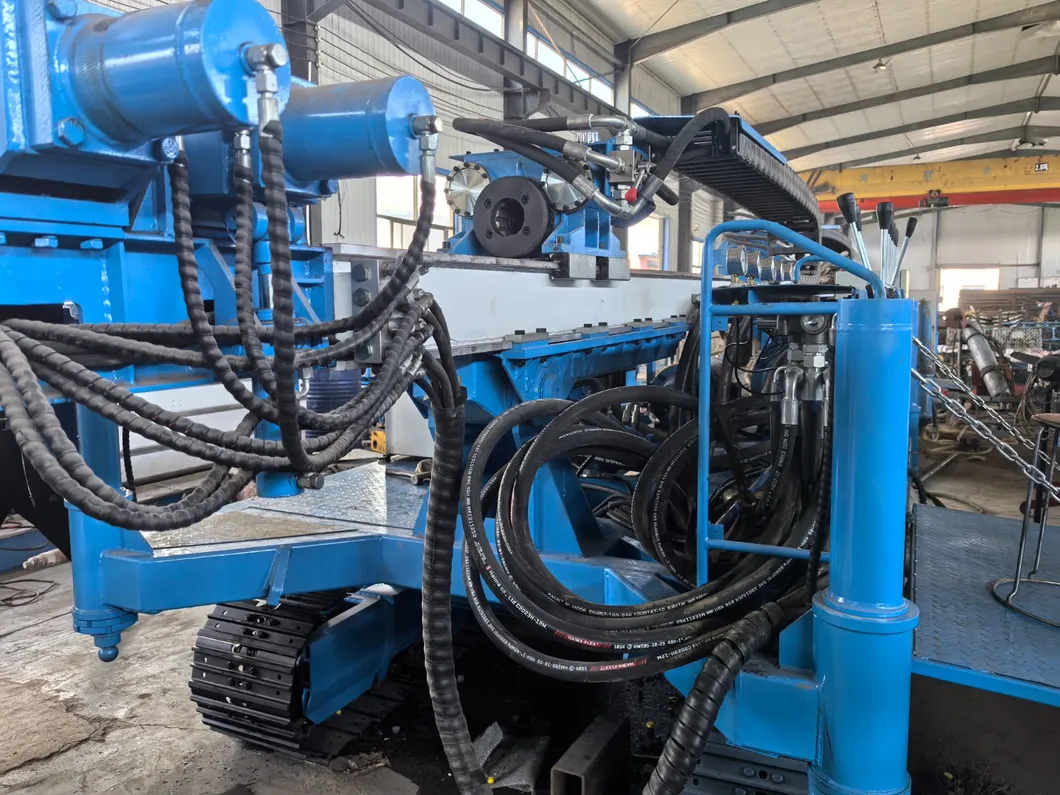

Application 2

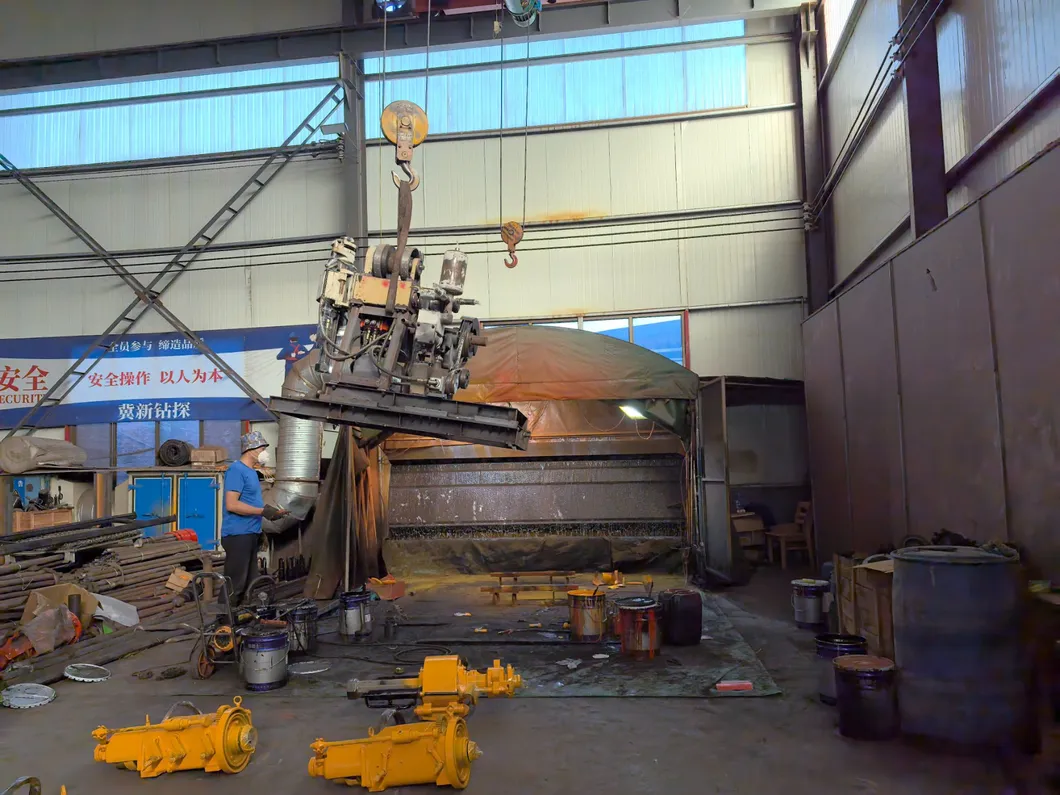

Application 3
★ Application Scope

Ideal for subways, tunnels, high slope protection, high-rise buildings, airports, geothermal heat pumps, and deep foundation pits for anchoring, jet grouting, and dewatering.

Technical Parameters
Hole Diameter / Depthφ150~φ250 mm / 100~140 m
Hole Angle0~90°
Rated Output Torque6800 Nm
Rated SpeedI Gear: 6-45 r/min | II Gear: 12-90 r/min
Lifting / Feed Force65 kN / 33 kN
PowerElectric motor, 55kW + 18.5kW + 2.2kW
Weight6000 kg
Dimensions (Vertical)3200 × 2200 × 5000 mm
Packaging & Gallery

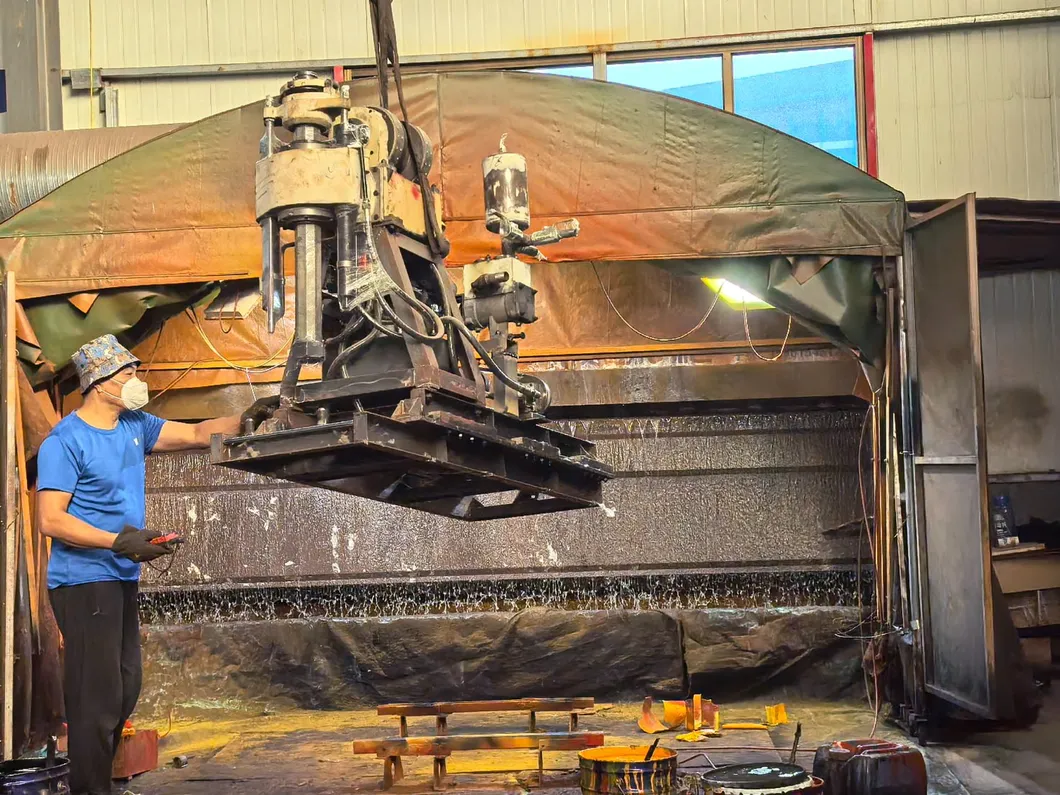

Detail 1

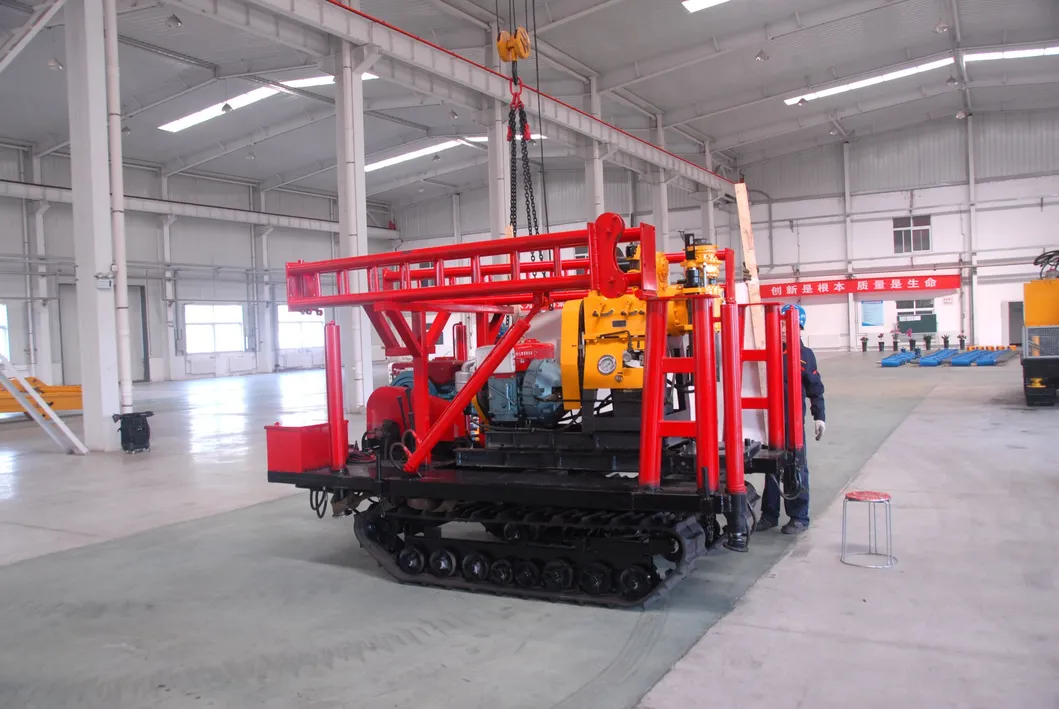

Detail 2

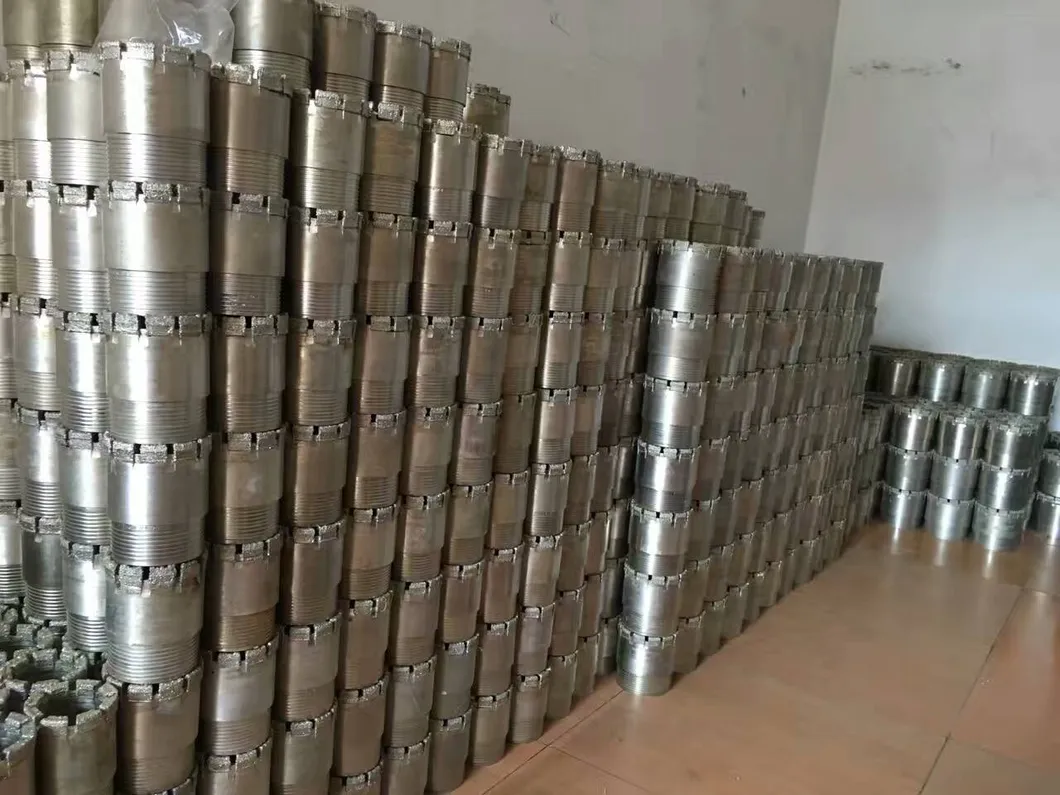

Packing 1

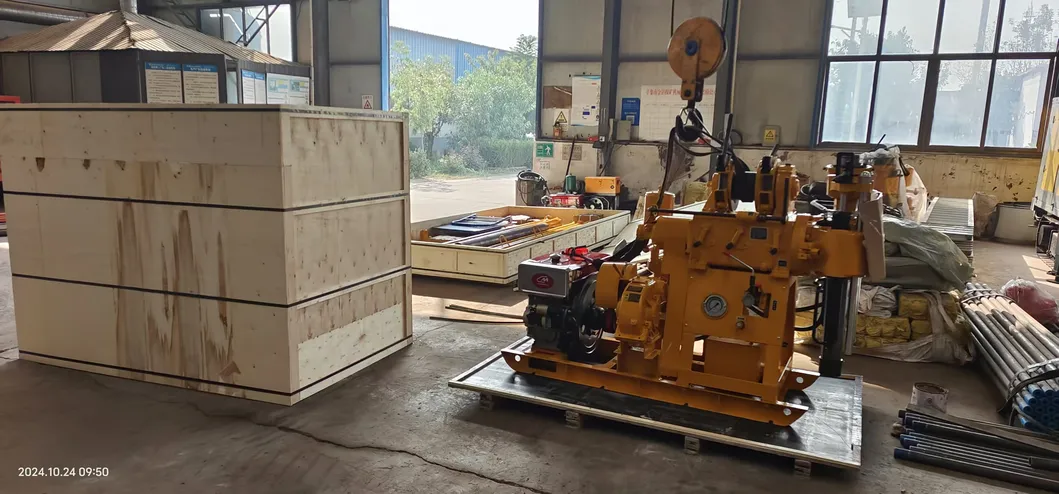

Packing 2

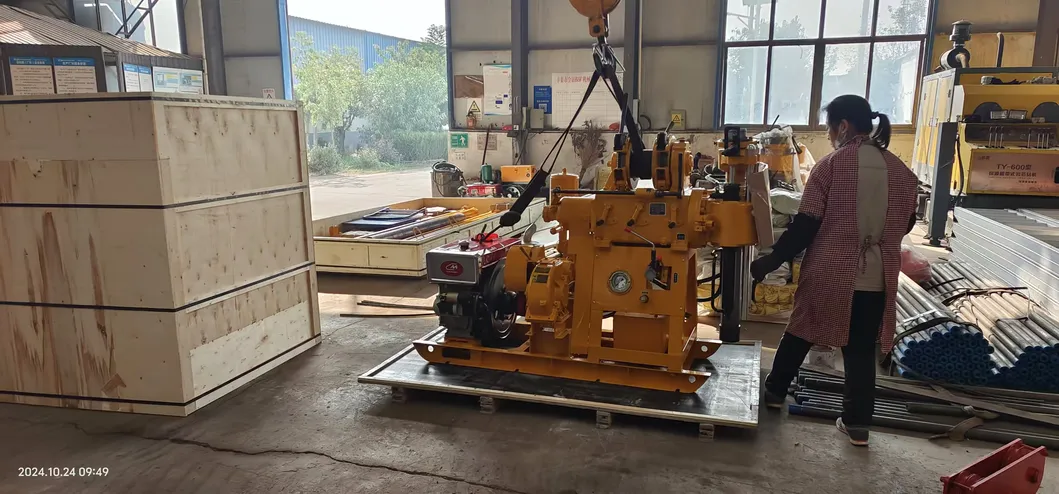

Packing 3

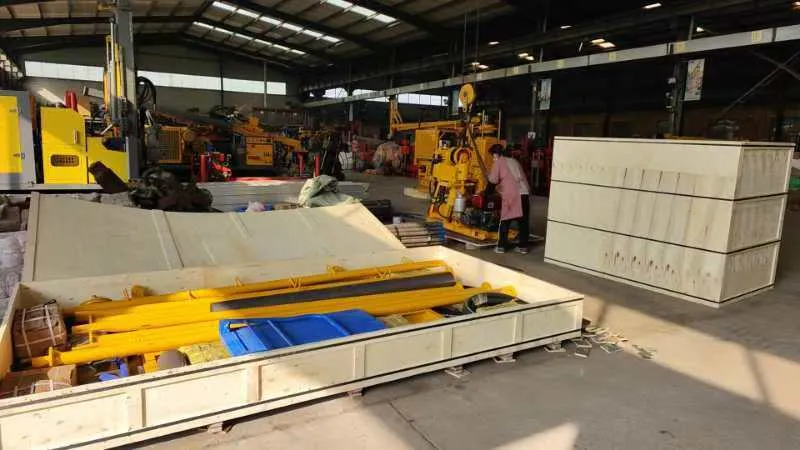

Shipping
Frequently Asked Questions
Are you an original manufacturer or a trading company?
We are an integrated corporation specialized in manufacturing and exporting high-quality drilling equipment.
What are your main products and their applications?
Our products include diamond core bits, PDC drill bits, core barrels, drill rods, and drill rigs. They are primarily used for mineral exploration, geotechnical engineering, and water well drilling.
Can you supply related drilling tools?
Yes, we provide full sets of drilling tools, including tricone bits, DTH hammers, mud pumps, and air compressors.
What are the payment and delivery options?
We accept T/T, L/C, Western Union, and PayPal. Transportation is available via air express (DHL/TNT/FedEx), sea, or train.
How is the quality of the drill rigs ensured?
We have a professional QC team, and every order undergoes strict inspection and testing before shipment.
Is customization available for specific drilling needs?
Yes, we support various customized models assisted by an experienced team of designers and engineers to meet specific client requirements.
