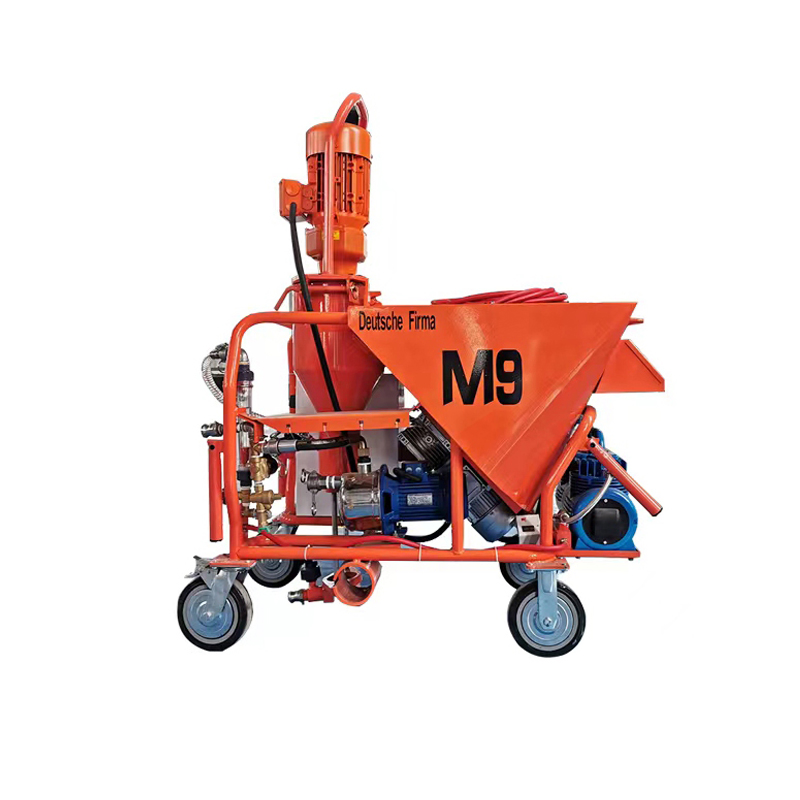

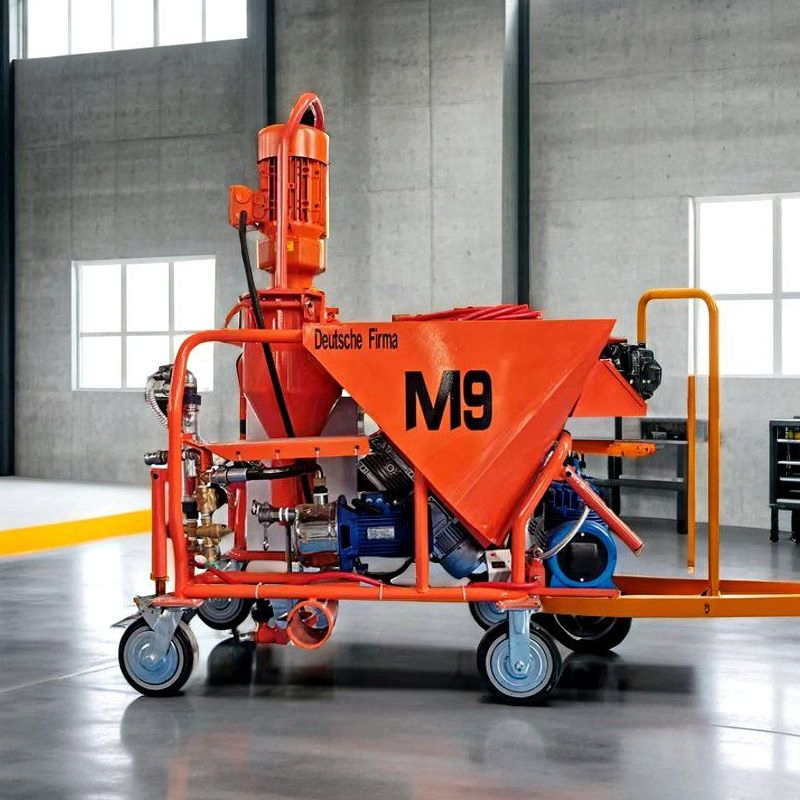

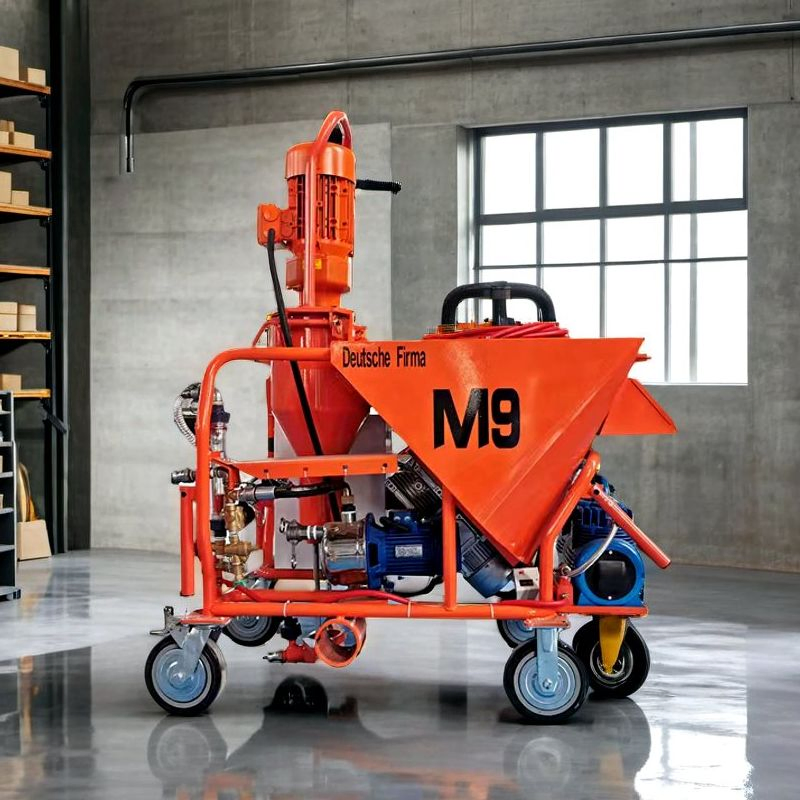

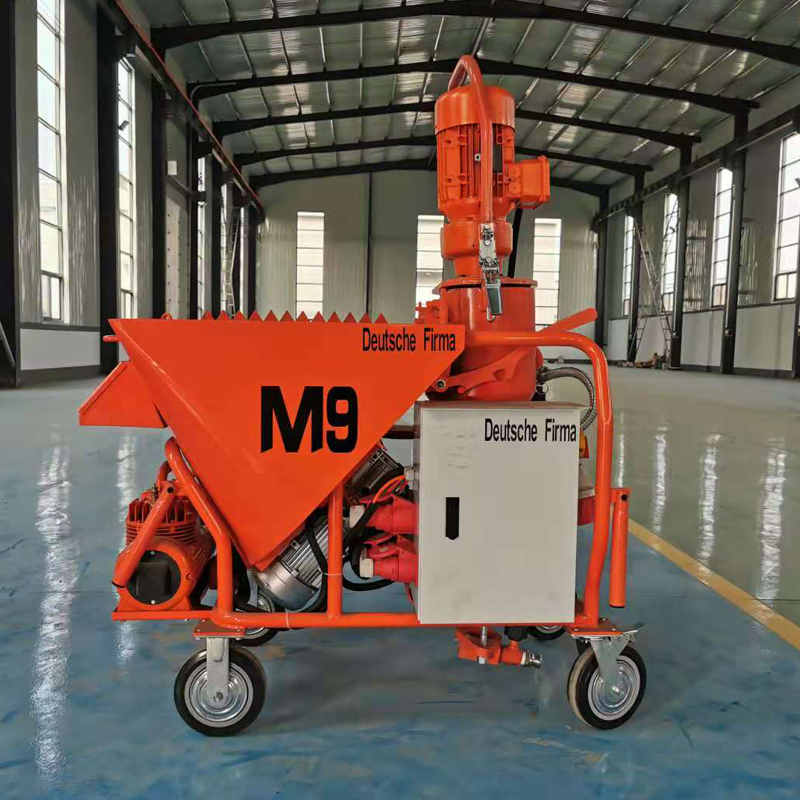

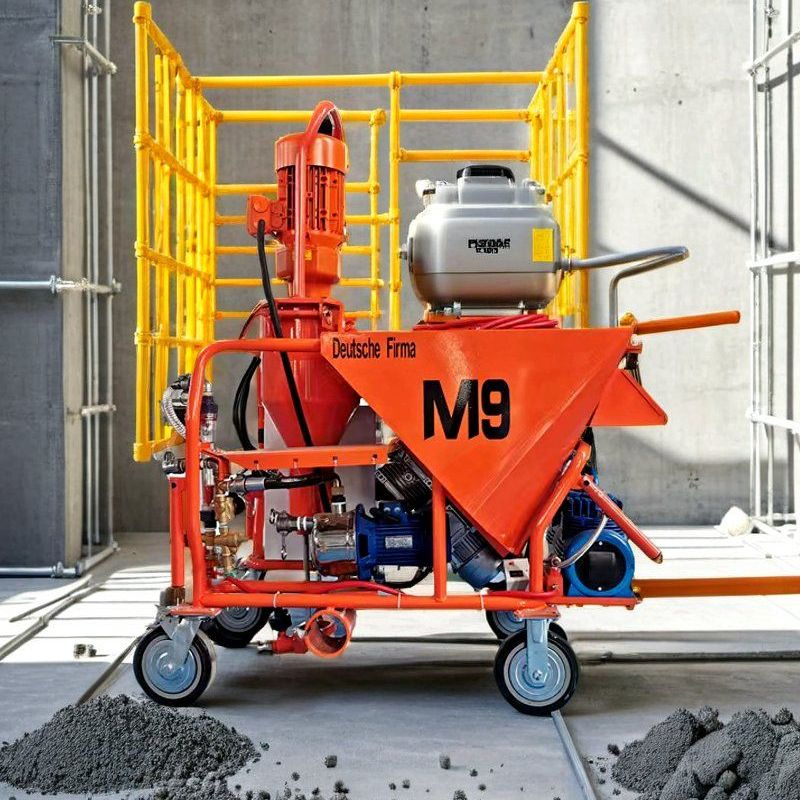

Our drywall spraying machine is an efficient construction equipment used to spray gypsum-based materials onto architectural surfaces such as walls and ceilings. It employs high-pressure spraying technology, allowing for efficient and uniform spraying of gypsum, achieving rapid construction and precise control.
| Parameter | Details |
|---|---|
| Model | HP-M9 |
| Whole machine weight (kg) | 220 |
| Main motor power (kW) | 5.5 |
| Air compressor power (w) | 1000 |
| Fill height (cm) | 90 |
| Blender capacity (L) | 115 |
| Maximum particle size (mm) | 6 |
| Vertical conveying distance (m) | 20 |
| Horizontal conveying distance (m) | 30 |

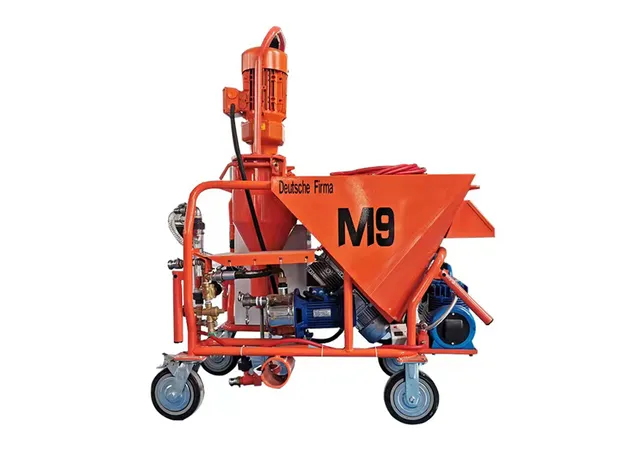

Right Elevation

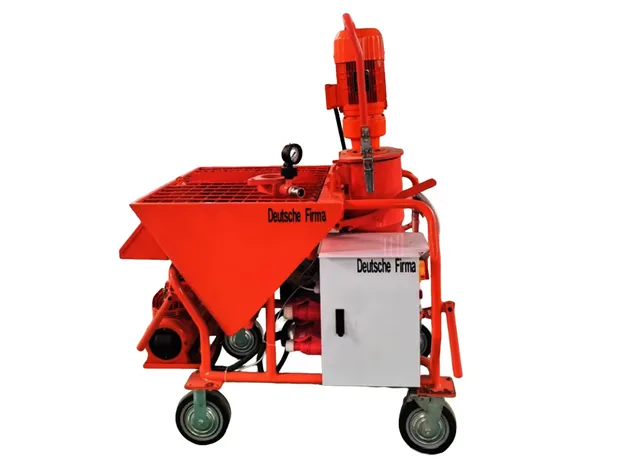

Left Elevation

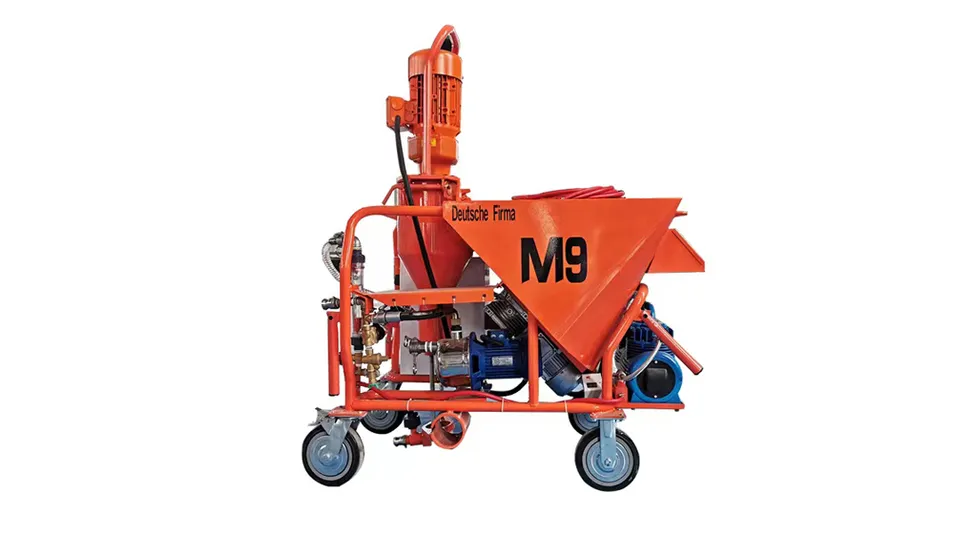

Facade
Standard warranty period: One year
