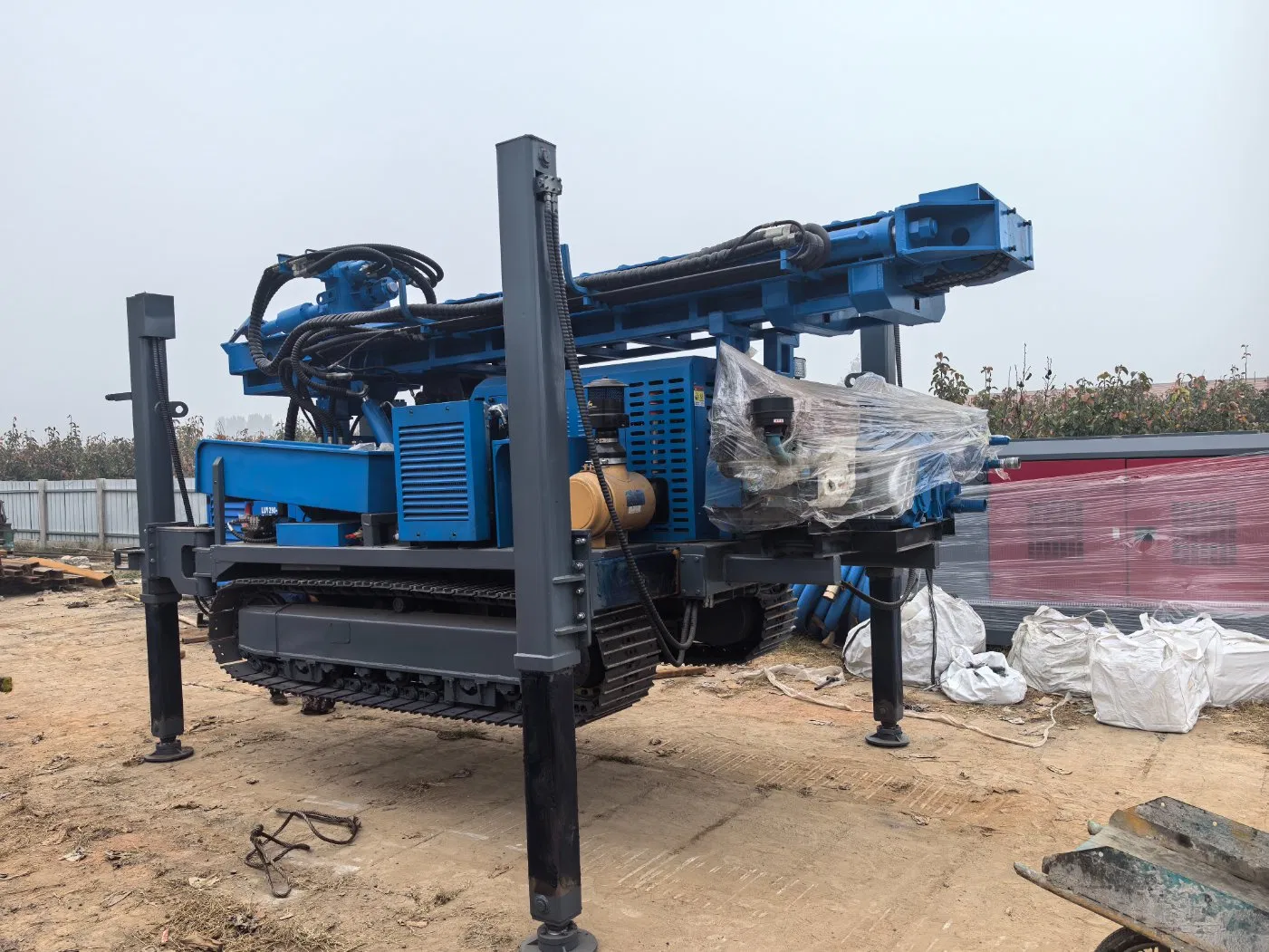

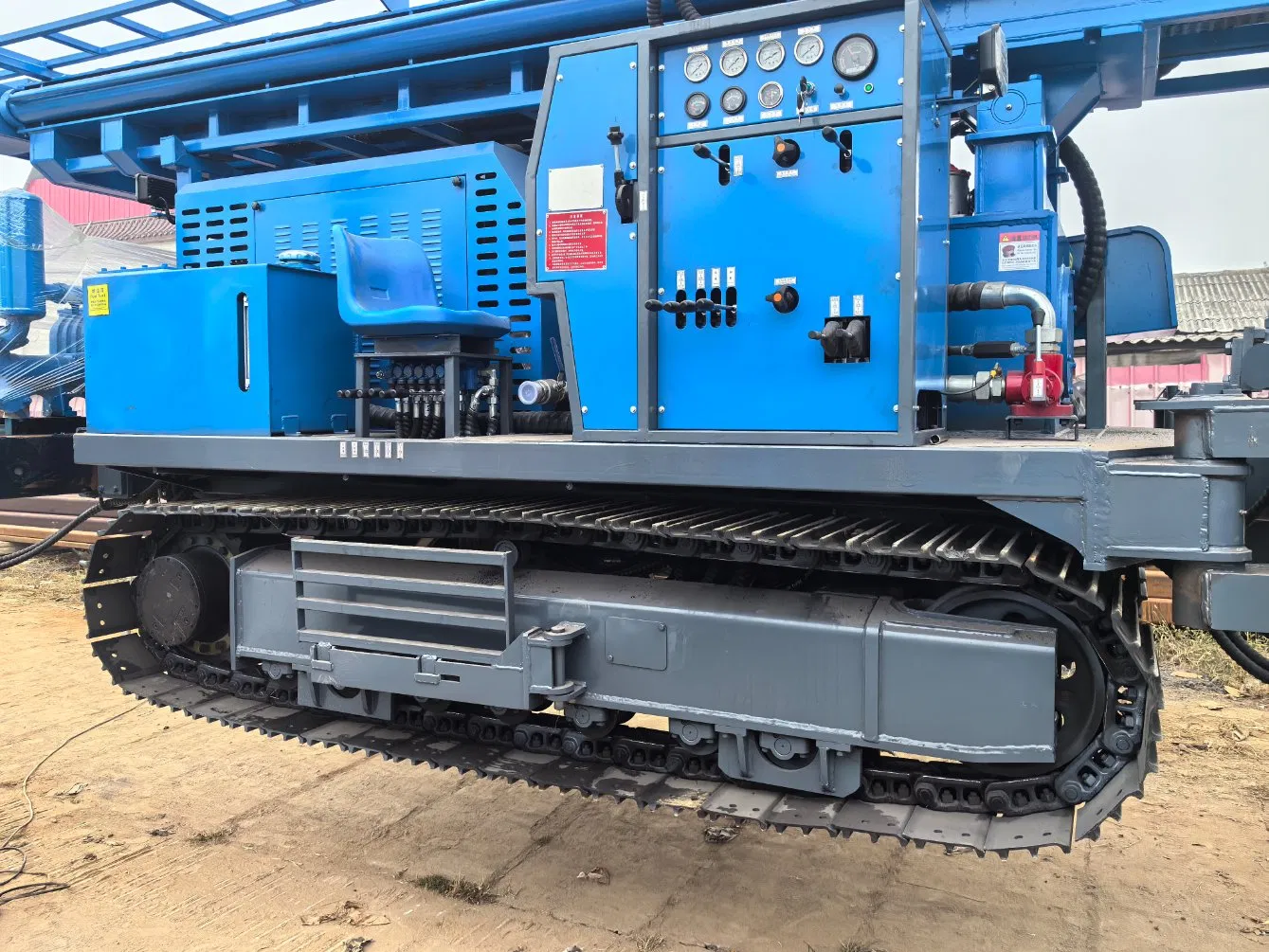

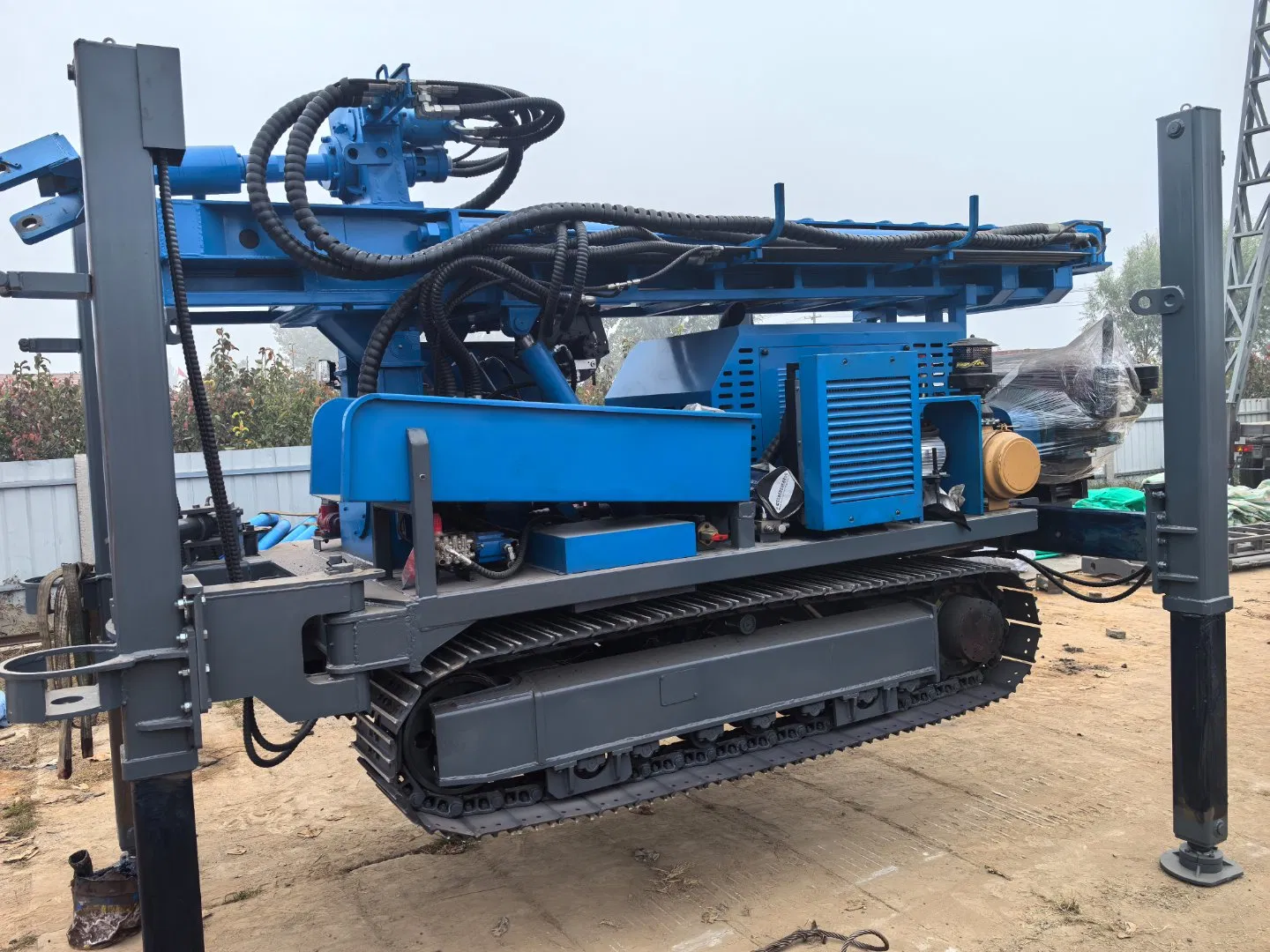

Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
1 / 5
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency
Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency

Gripping Unloader Drill Rig for Reduced Labor Intensity and Increased Efficiency

Customization: Available
After-sales Service: Yes
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
Diesel Engine
Drill Hole Diameter
75mm
Drill Hole Depth
>200m
Bit Type
Diamond Bit
Drilling Way
Rotary
Power Type
Electric Motor / Diesel
Weight(Kg)
550
Core Components
Pump, Bearing, Engine
Dimension
1750*850*1300mm
Rated Speed
1460r/Min
Drilling Angle
90-75
Production Capacity
450 Sets/ Month
Product Description

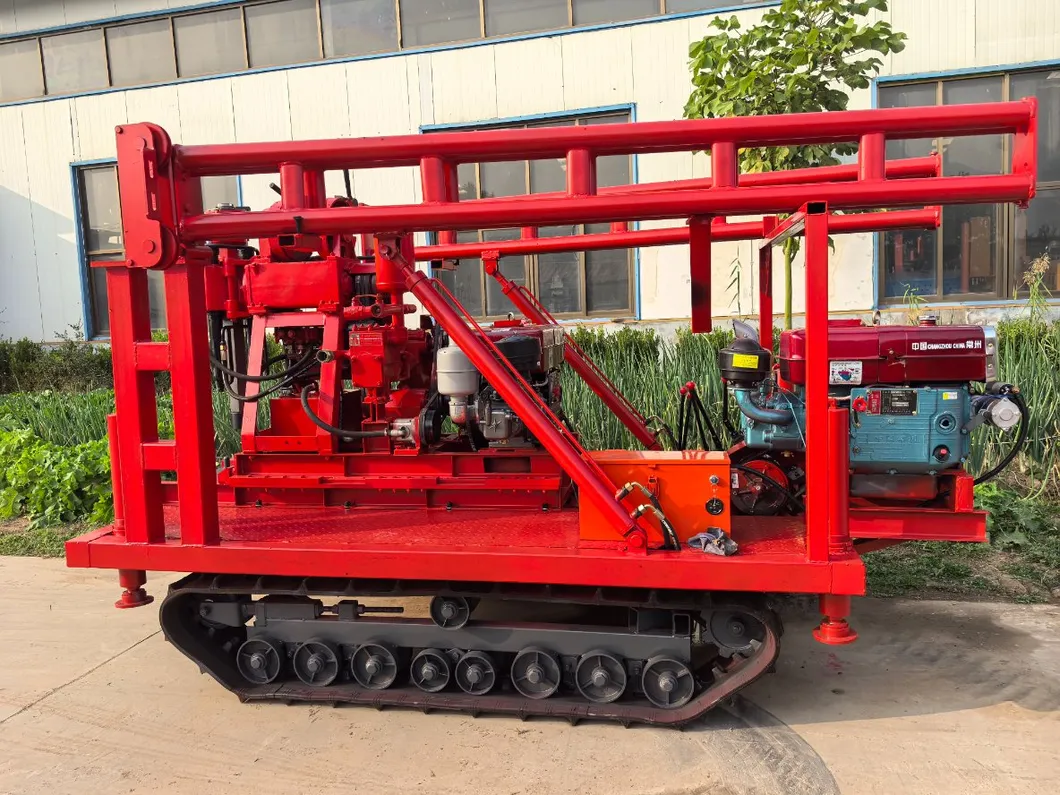

Drill Rig Overview

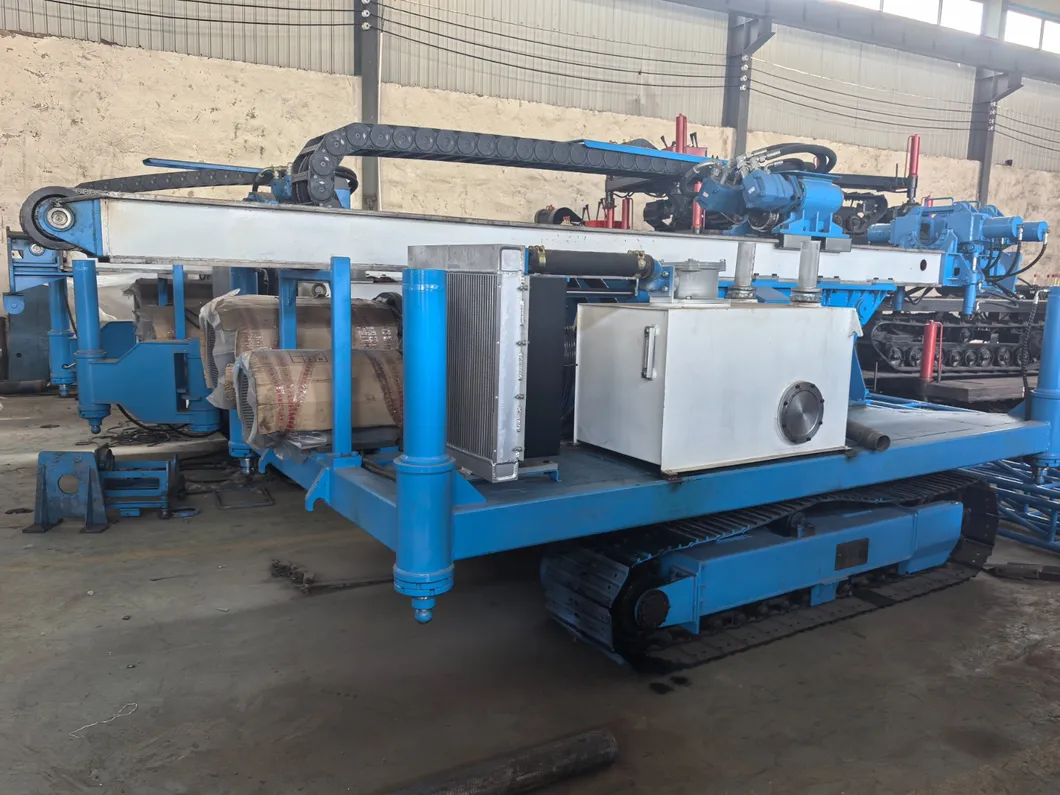

Drill Rig Detail
The Crawler Track Drill Rig is a comprehensive drilling solution composed of a crawler track base and high-performance drill rig, designed for versatile deployment on various terrains.

MDL-150H Series High-Lift Multifunctional Drill Rig

The MDL-150H series is designed for versatility and efficiency in geotechnical construction. With its capability to lift higher, reach further, and deliver greater torque, it is optimized for high-demand drilling applications.

Flexible Torque & Speed: Match torque and rotation speed according to geological strata, enhancing adaptability for 3-meter combined drilling.
Stable Operation: Equipped with a track chassis, high-position rotating platform, and large-diameter leg cylinders for reliable positioning.
Gripping Unloader: Reduces labor intensity and increases efficiency for loading/unloading drill rods and casings.
High Stability: Dual oil cylinder excavator-style arm provides stability with a maximum horizontal lifting height of 3 meters.
Multi-Angle Capability: Operates in horizontal, vertical, upward, and downward angles to meet various construction needs.
Adaptability: Larger track clearance for harsh construction environments.

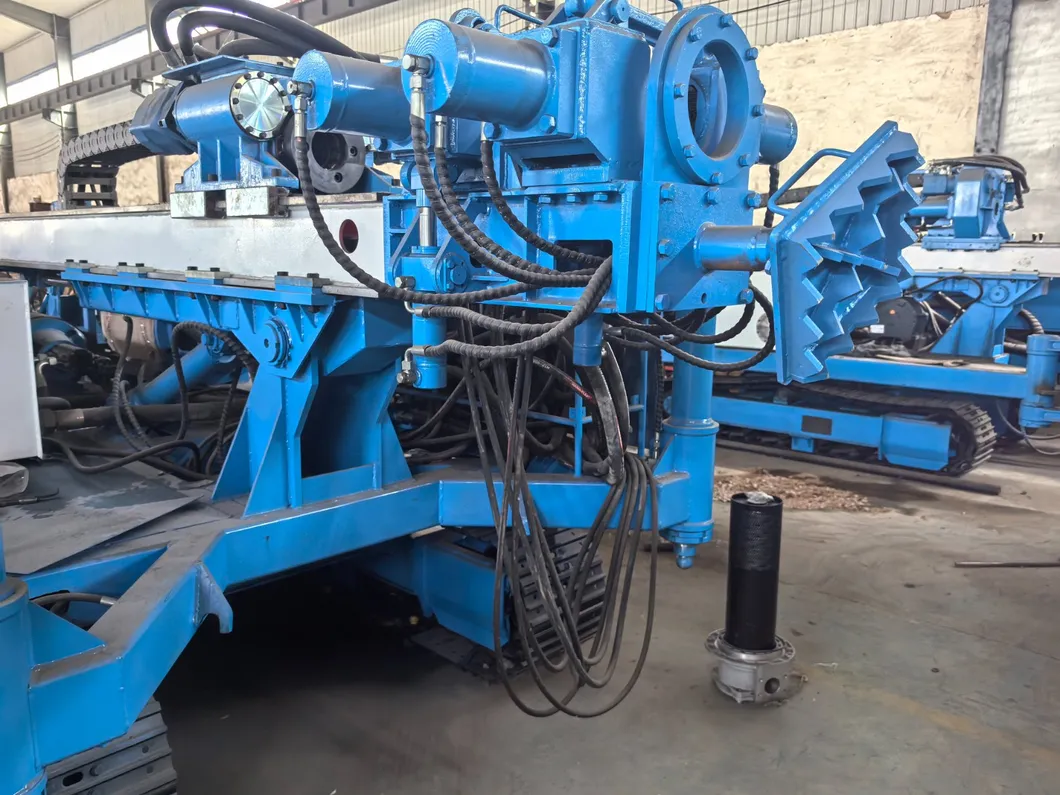

Construction Site

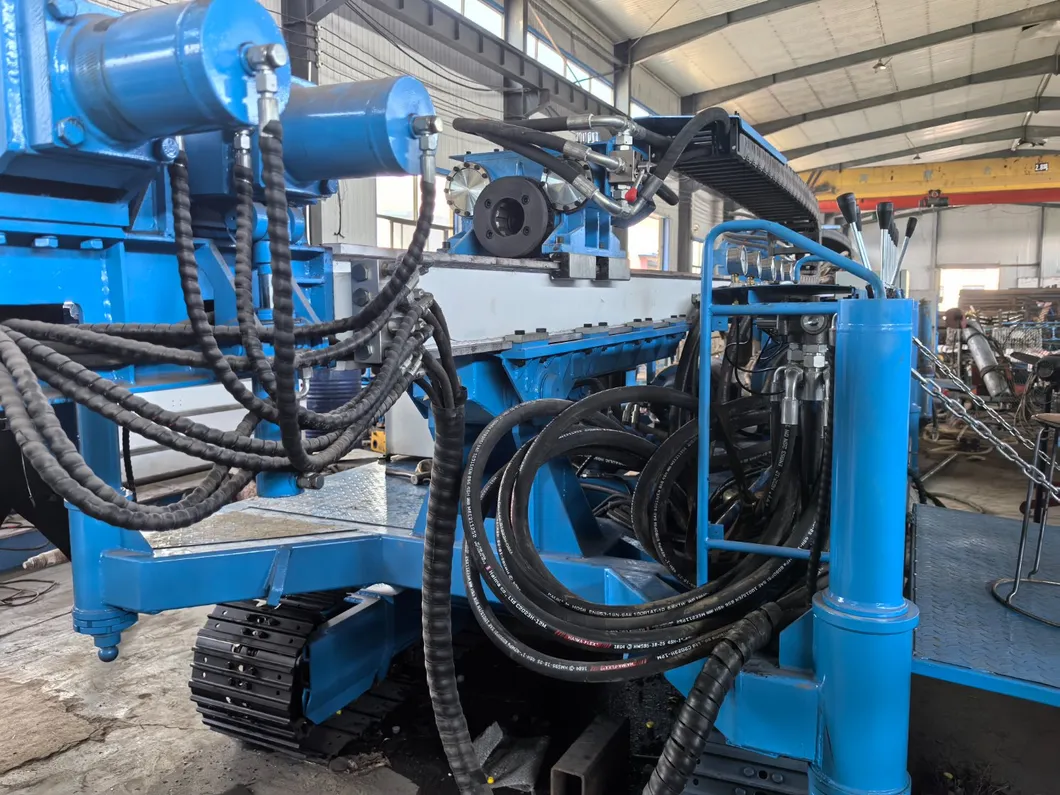

Powerful Drilling

Application Scope

Suitable for subways, tunnels, high slope protection, high-rise buildings, airports, geothermal heat pumps, and deep foundation pits for anchoring, jet grouting, and dewatering operations.

Technical Parameters
  • Hole Diameter φ150~φ250 mm
  • Hole Depth 100~140 m
  • Hole Angle 0~90°
  • Rated Output Torque 6800 Nm
  • Rated Lifting Force 65 kN
  • Rated Feed Force 33 kN
  • Feed Stroke 3400 mm
  • Sliding Stroke 900 mm
  • Total Power 55kW + 18.5kW + 2.2kW
  • Total Weight 6000 kg
  • Climbing Angle 25°
  • Vertical Dimensions 3200×2200×5000 mm

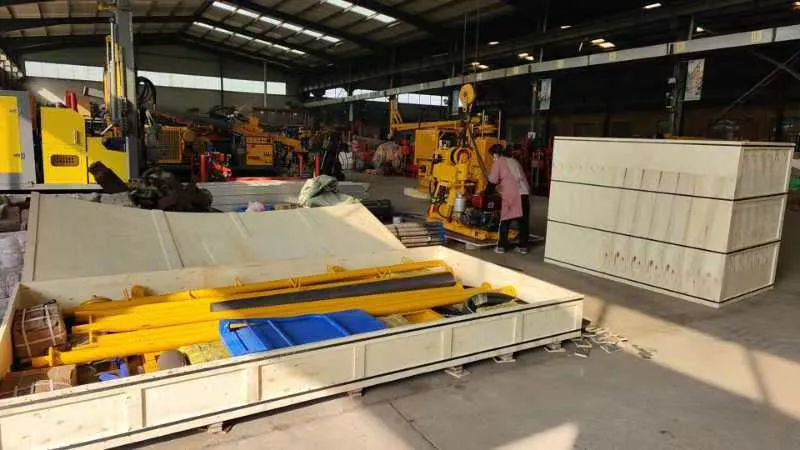

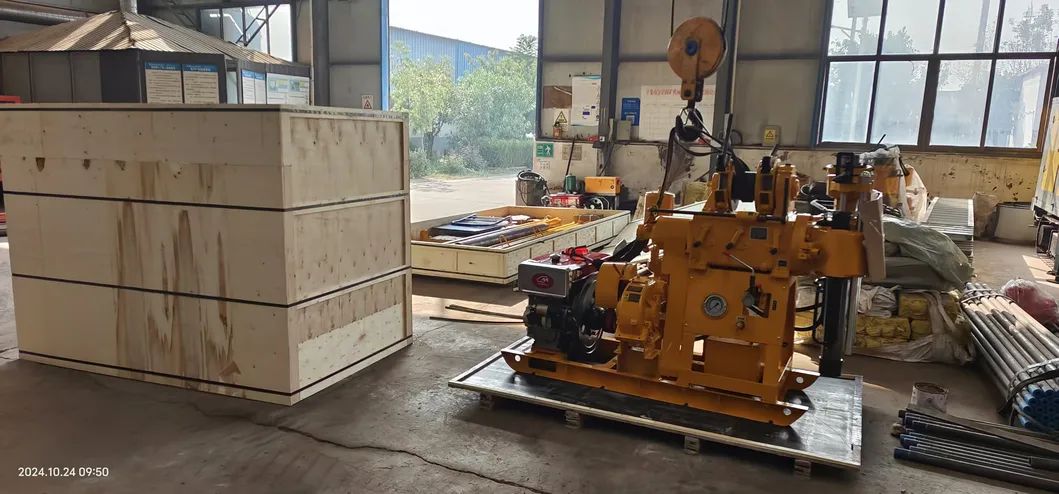

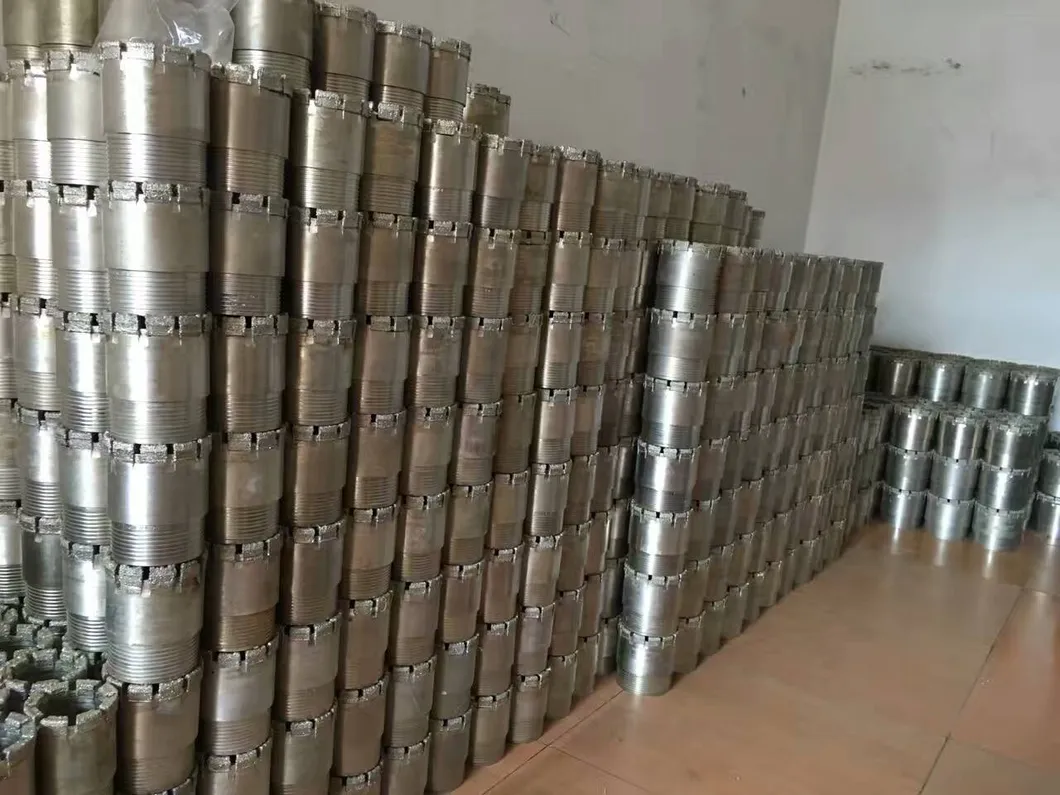

Product Gallery & Packing
Frequently Asked Questions
Q1: Are you an original manufacturer or a trading company?
We are an integrated corporation specialized in manufacturing and exporting high-quality drilling equipment.
Q2: What are your main products and their applications?
Our products include diamond core bits, PDC drill bits, core barrels, casing, drill rods, and drill rigs. They are primarily used for mineral exploration, geological drilling, geotechnical engineering, and soil sampling.
Q3: Can you supply related drilling tools and accessories?
Yes, we provide a full set of drilling tools, including drill pipes, tricone bits, drag bits, DTH hammers, mud pumps, and air compressors.
Q4: What are your payment terms and delivery methods?
We accept T/T, L/C, Western Union, and PayPal. The minimum order quantity is 1 piece. Transportation is available via express (DHL/TNT/FedEx), air, sea, or train.
Q5: How do you ensure the quality of your products?
We have a professional QC team, and all products undergo strict inspection and testing for every order before shipment.
Q6: Do you support customized equipment?
Yes, we support various customized models. Our experienced team of designers and engineers can complete projects based on specific client requirements.
