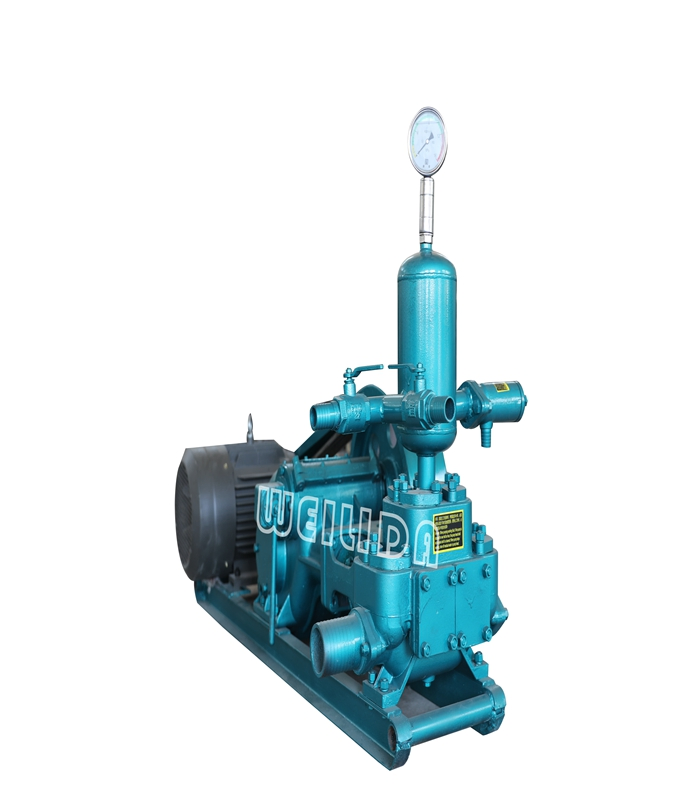

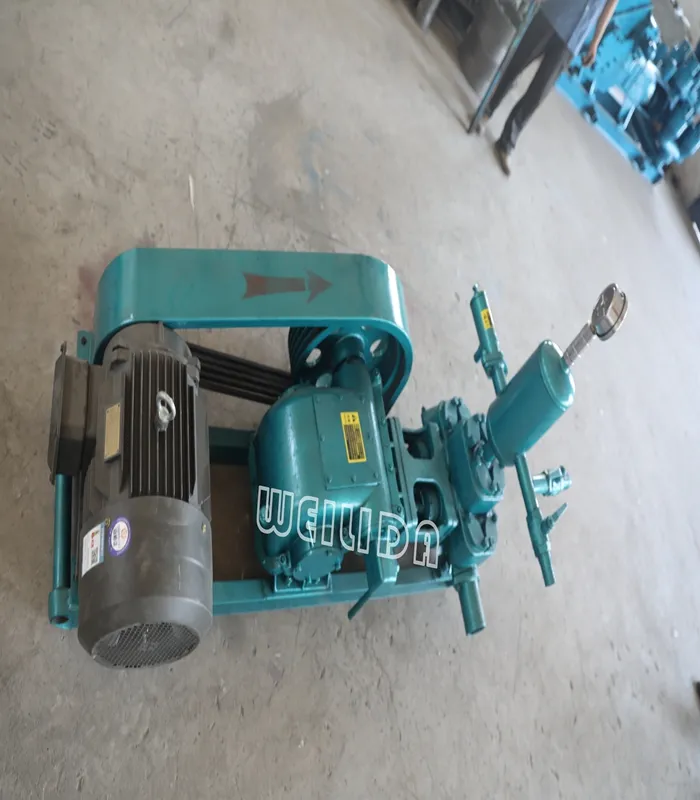

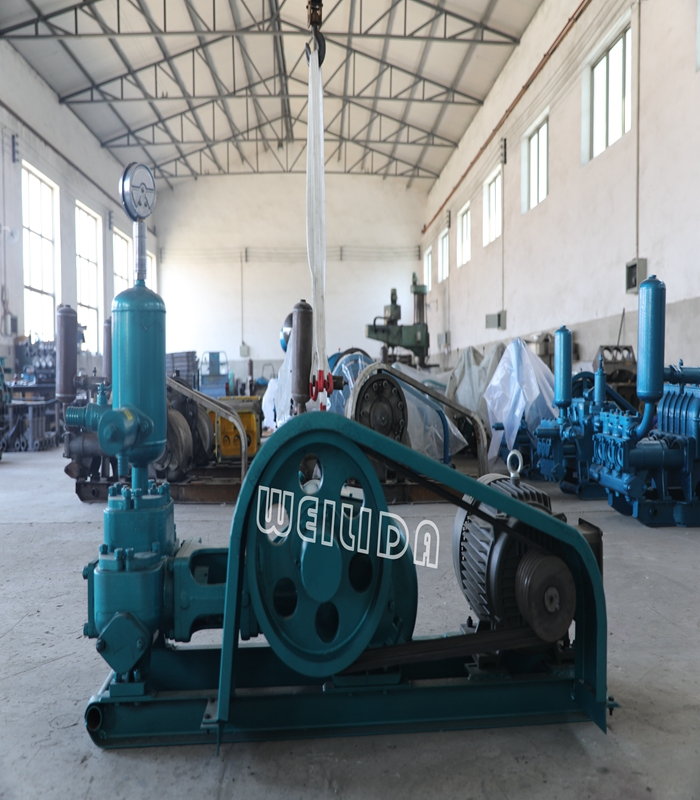

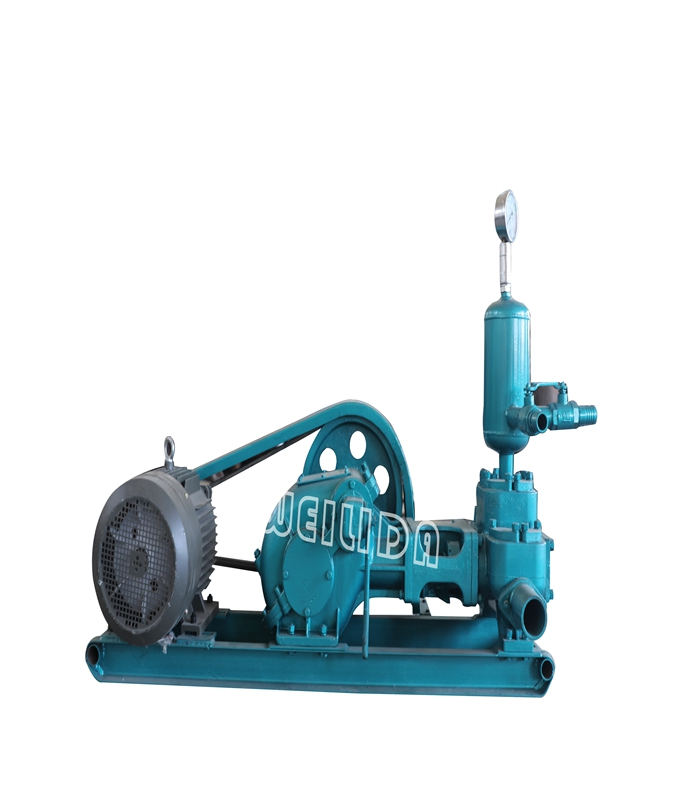

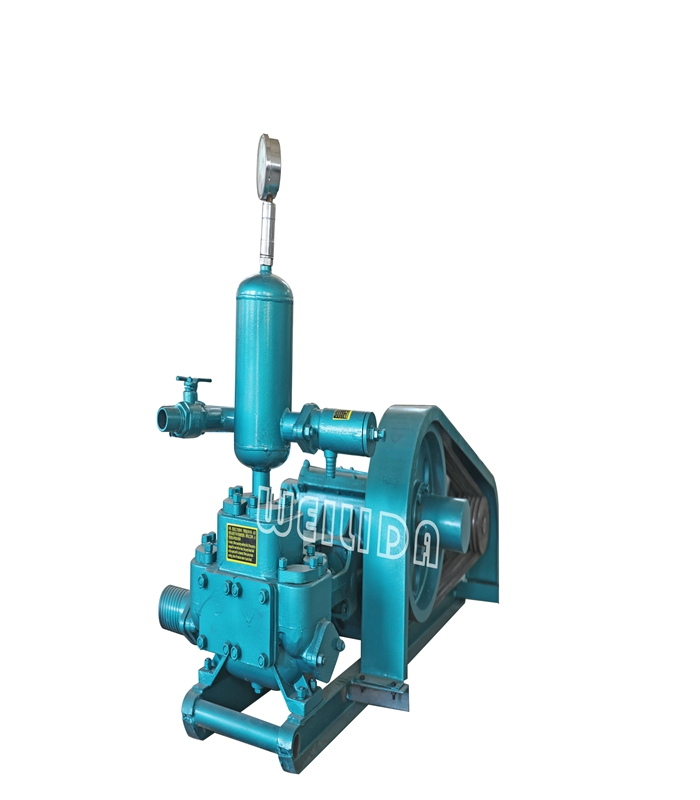

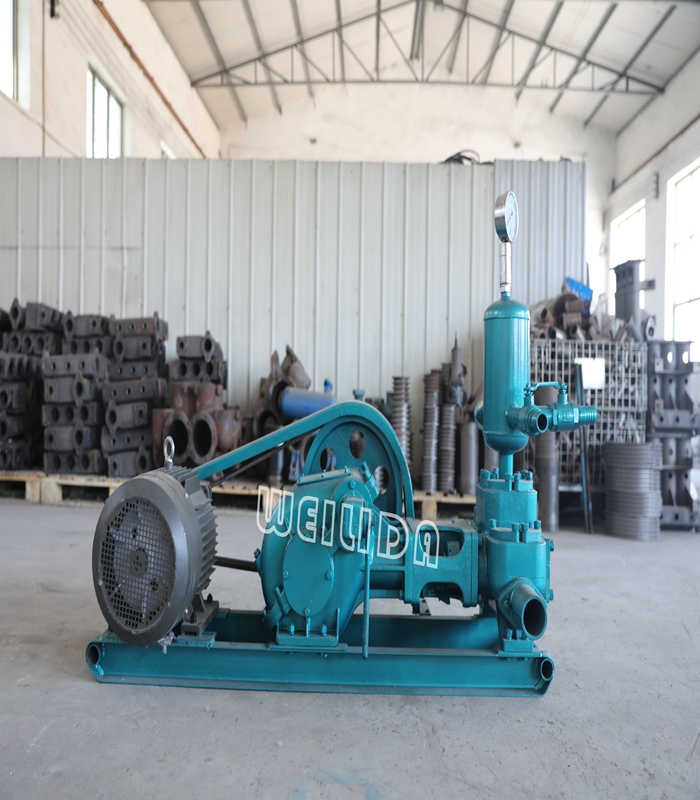

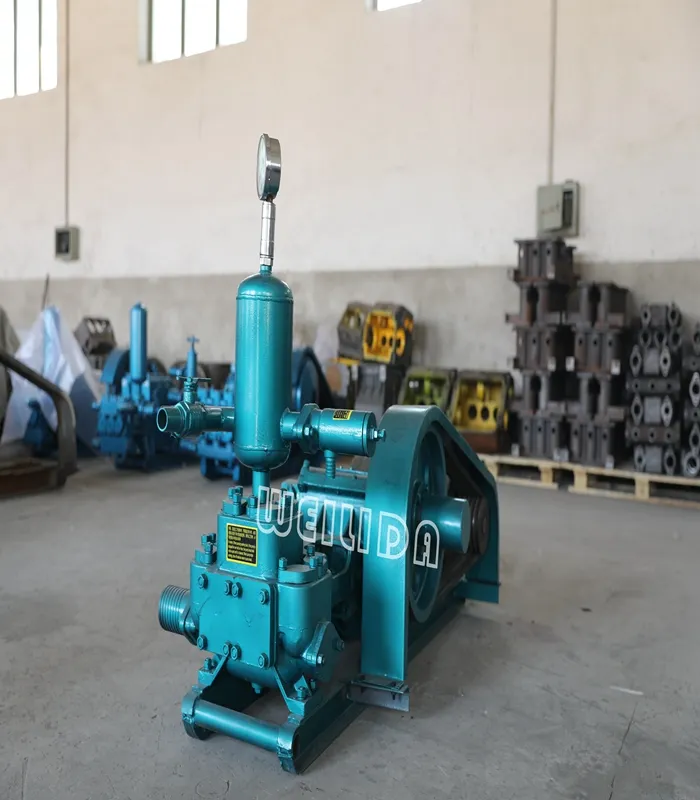

The BW200 slurry pump is a horizontal double cylinder ratio double acting reciprocating piston pump, which is mainly used for supplying flushing liquid into the borehole in core drilling. The rinsing liquid can be mud or water. In order to adapt to general alloy and steel grain drilling, and to meet the needs of small diameter diamond drilling, the pump is equipped with two diameter cylinder liners: φ80mm cylinder liner for alloy and steel grain drilling, and φ65mm cylinder liner for small diameter diamond drilling. This pump serves as essential supporting equipment for drilling rigs up to 1000 meters.
| Type of water pump | Horizontal double action, 2 cylinders |
| Cylinder liner diameter (mm) | 80; 65 |
| Stroke (mm) | 85 |
| Reciprocating times (times/min) | 145 |
| Displacement (L/min) | 200; 125 |
| Working pressure (MPA) | 4; 6 |
| Transmission shaft speed (RPM) | 530 |
| Triangle pulley diameter (mm) | 385 |
| Triangle pulley type | B * 5 |
| Power required (kW) | 11 |
| Suction pipe diameter (mm) | 65 |
| Drain pipe diameter (mm) | 37 |
| Overall dimension (L*W*H) (mm) | 1050 * 630 * 820 |
| Weight (kg) | 300 |

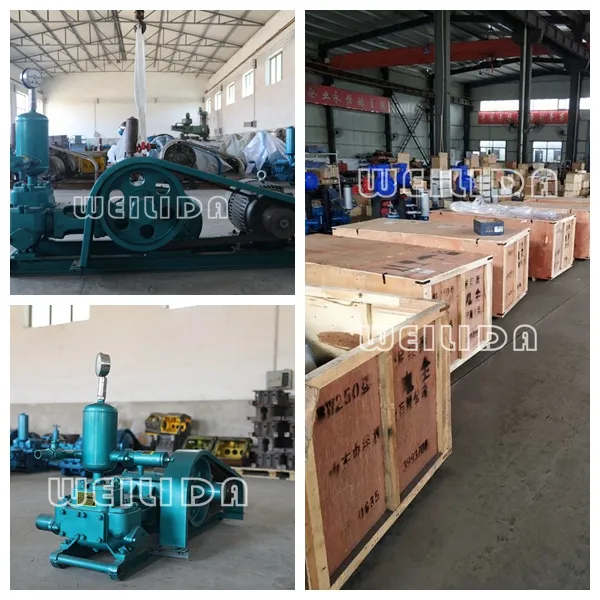

Packing Details: The pump will be packed into a protective wooden box. Drill pipes will be packed into bundles or according to specific requirements.
Delivery Details: Standard loading occurs at major international ports, ensuring efficient global transit.

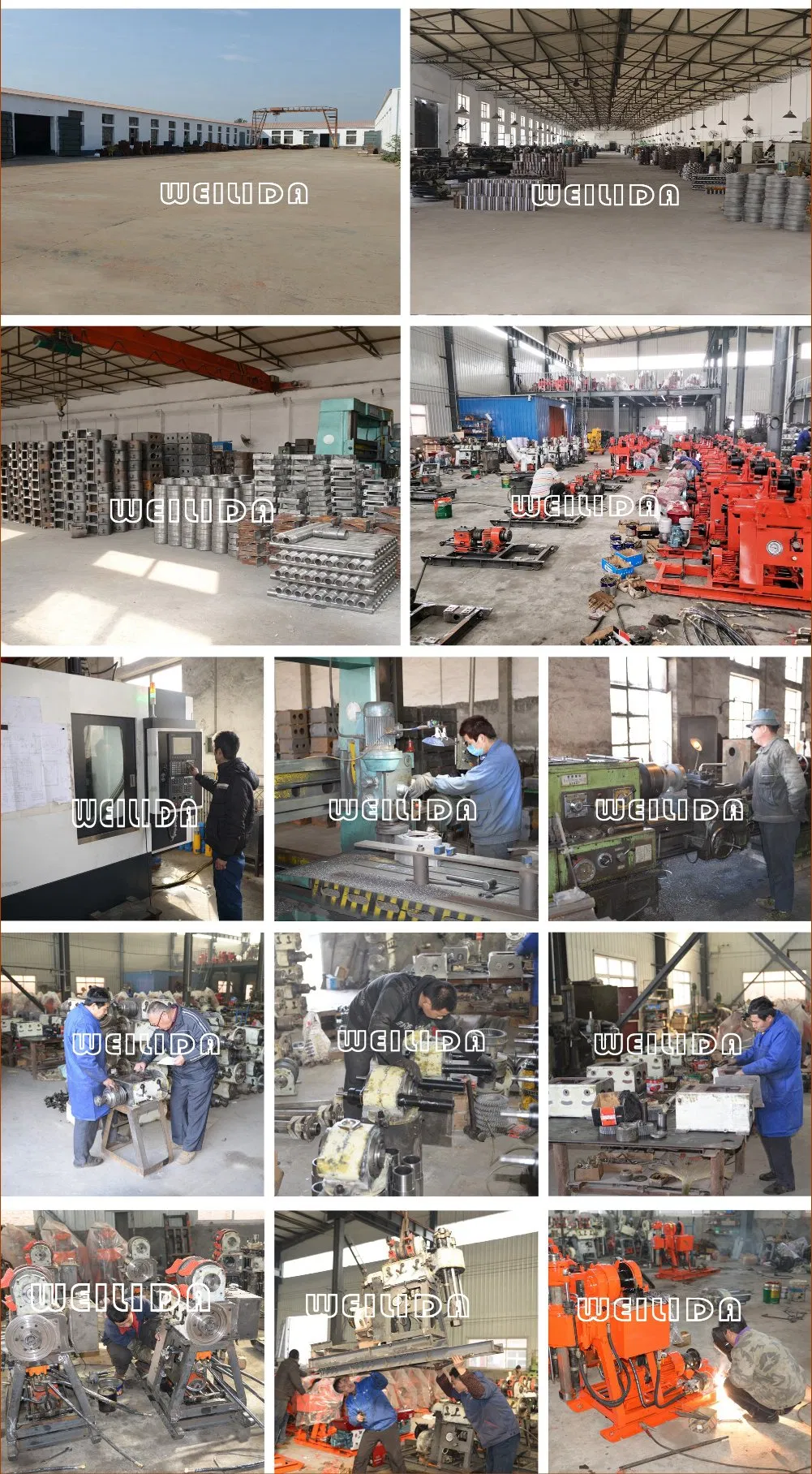

We are a professional manufacturer specializing in drill pipes, drilling rigs, and advanced drilling tools. Our facility covers an area of 20,000 square meters with total assets reaching 50 million yuan. We are committed to providing:
