Hb-3 Piston Grouting Pump for Bridge and Infrastructure Construction

1 / 5

Hb-3 Piston Grouting Pump for Bridge and Infrastructure Construction

Send Inquiry

Product Description

Product Description

Overview

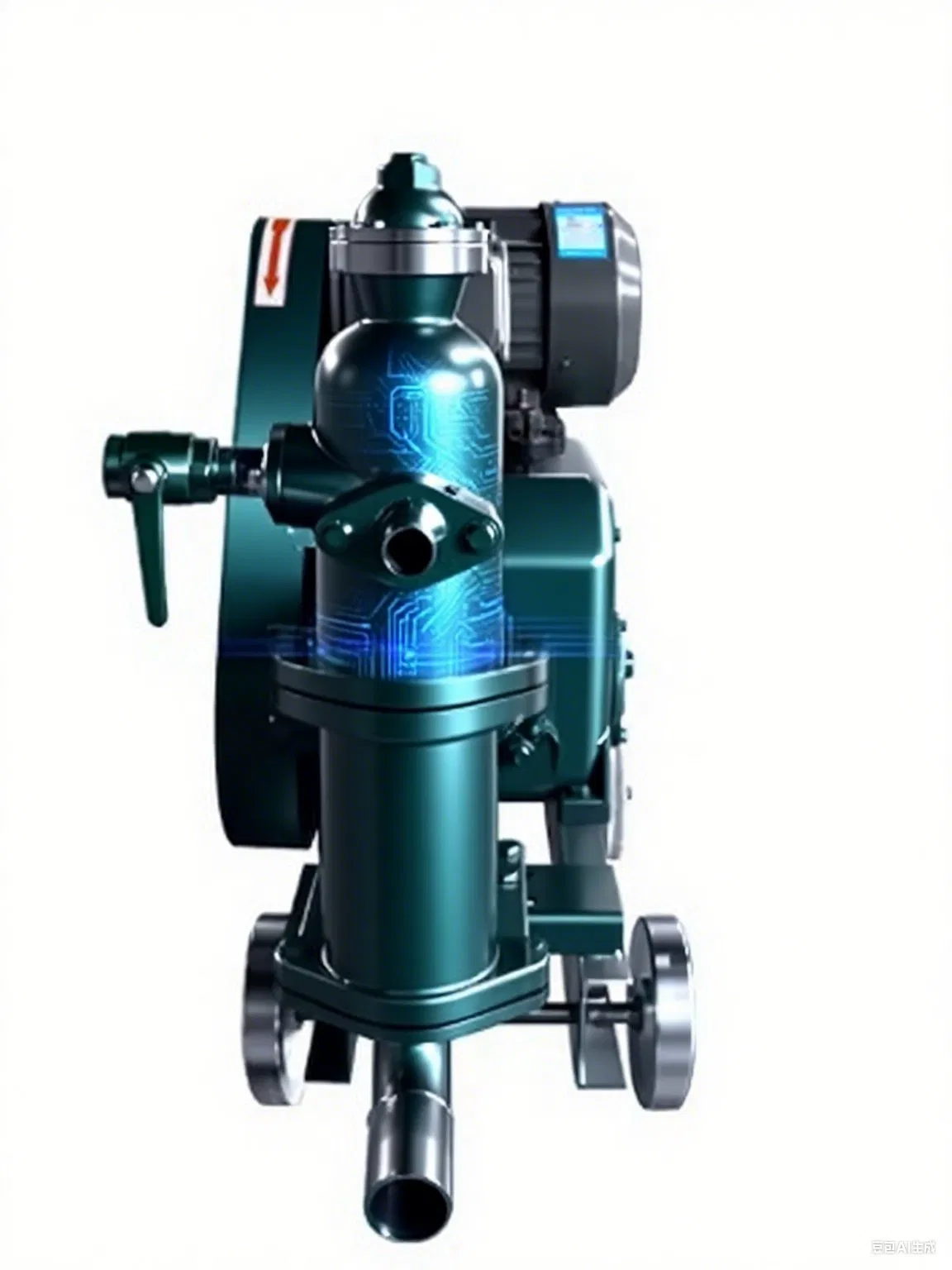

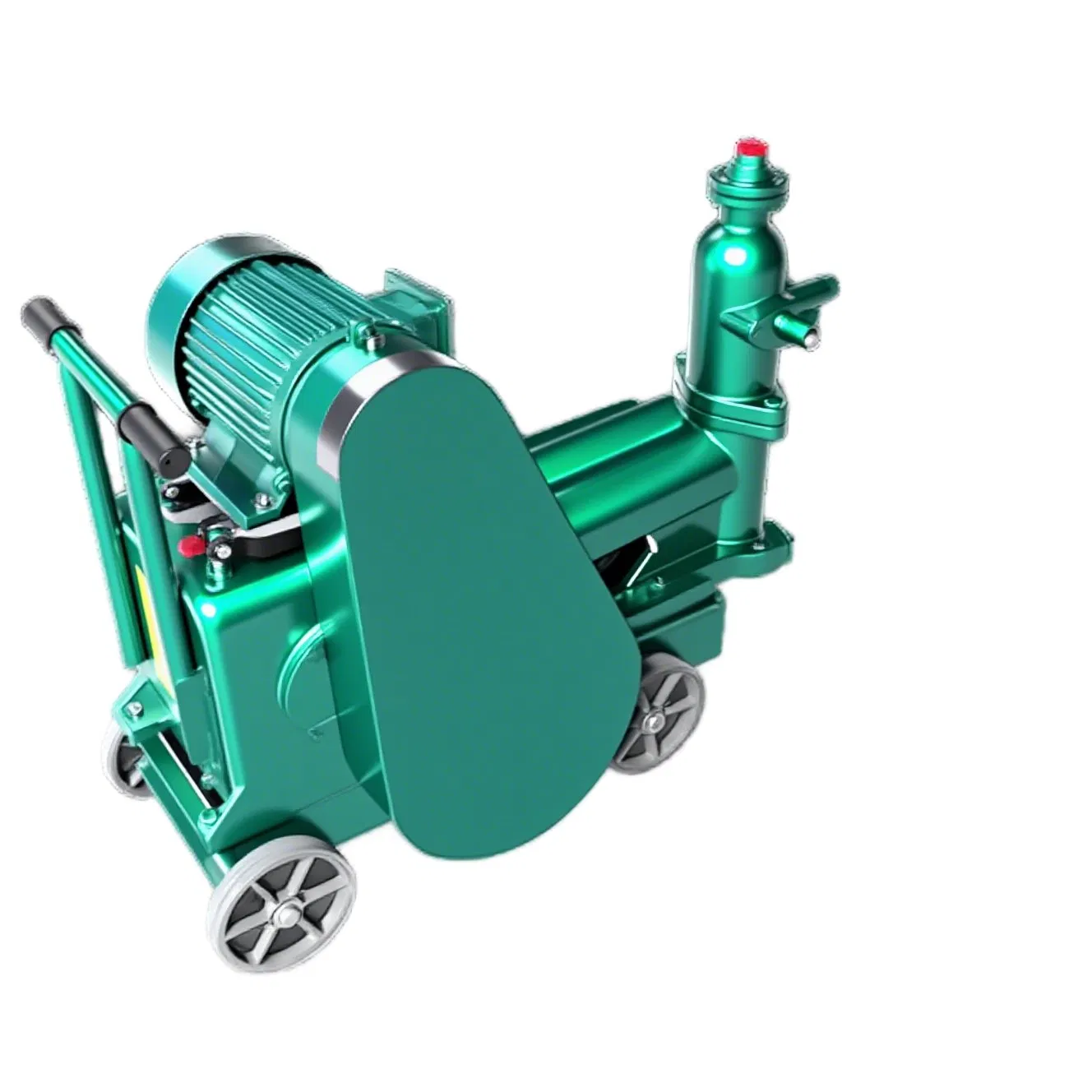

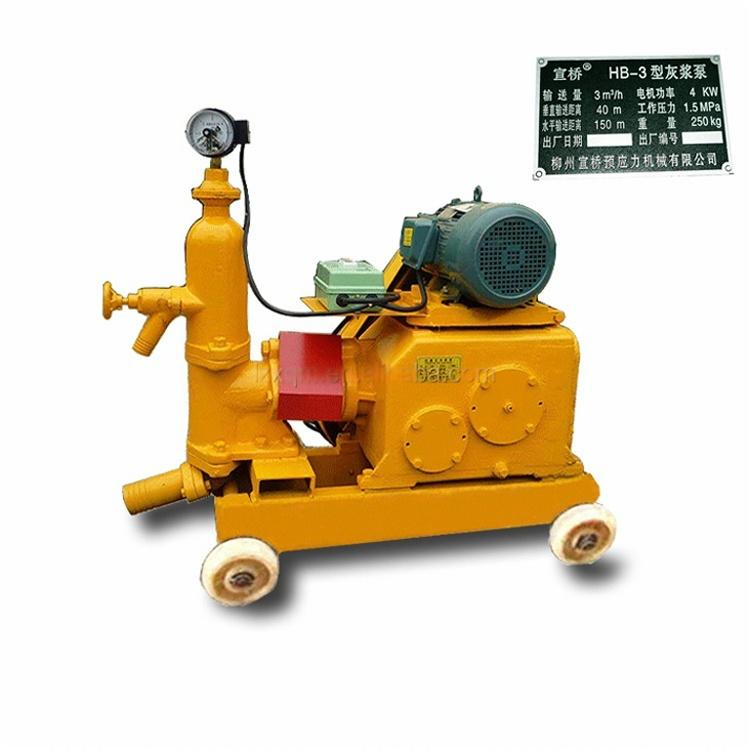

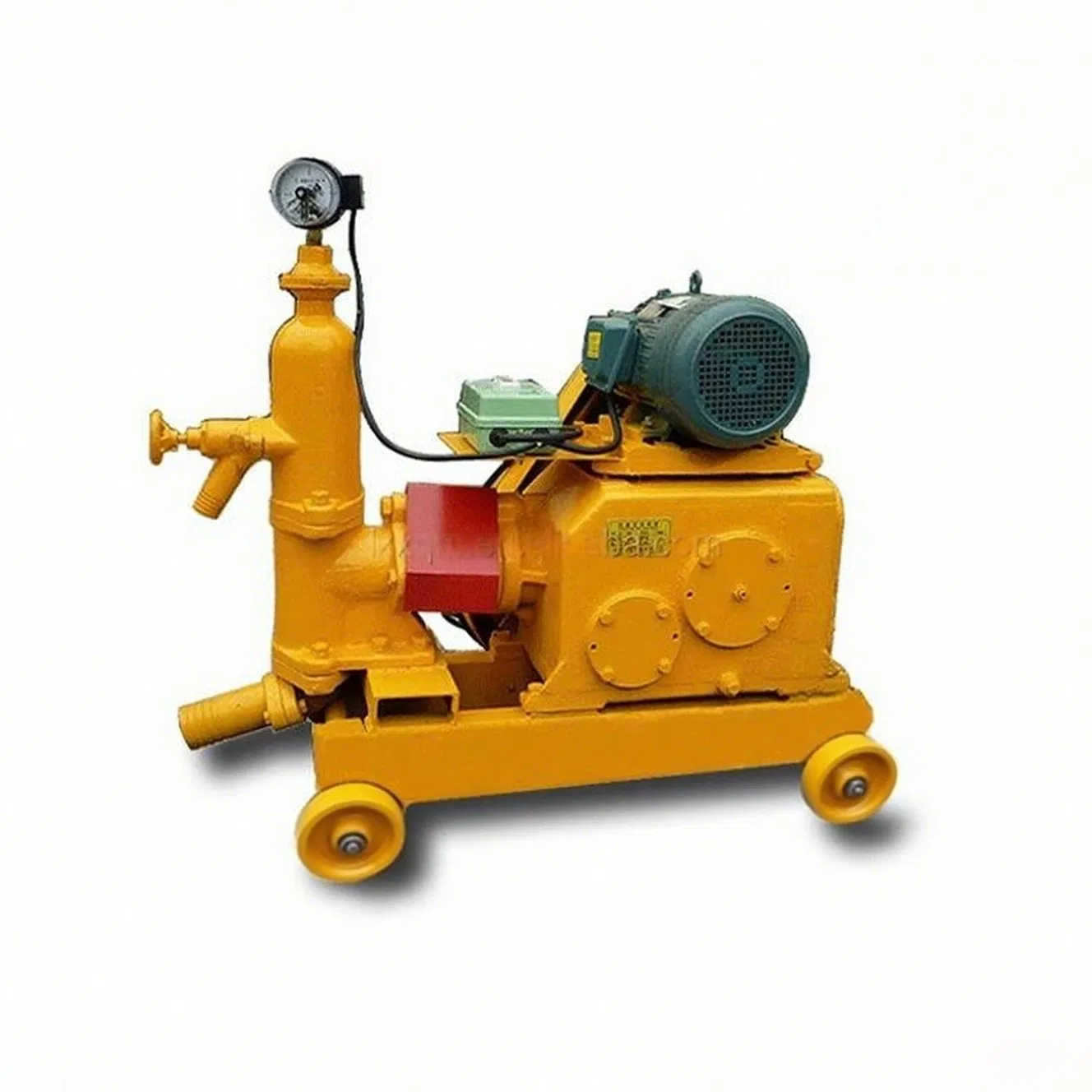

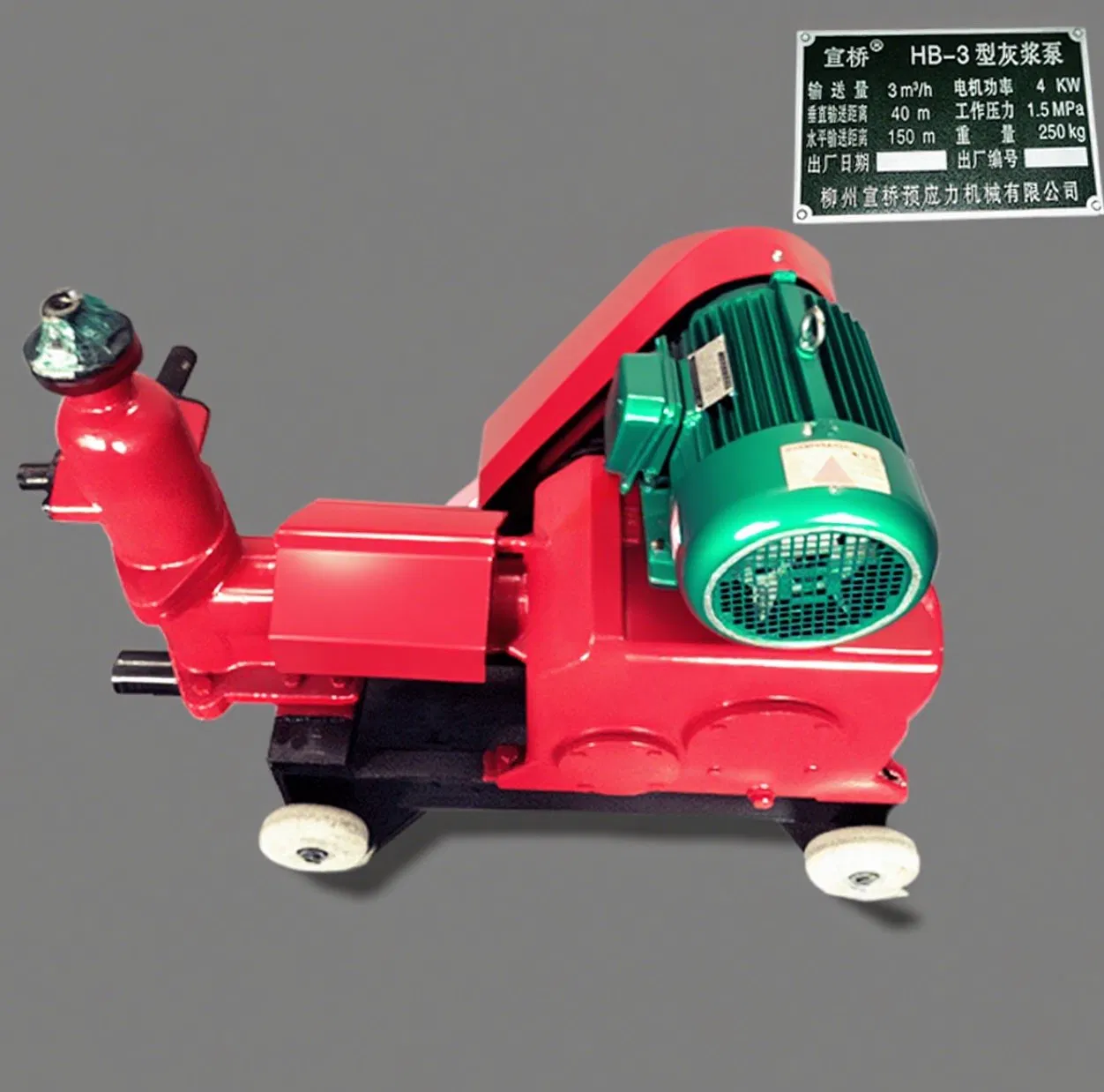

HB-3 Piston Grouting Pump is a professional-grade grouting equipment widely utilized in construction, bridge, tunnel, and infrastructure projects. It operates using the reciprocating movement of a piston within the cylinder block to pressurize and transport grouting materials, such as cement slurry and mortar, through a high-efficiency suction-discharge cycle.

Designed with a simple structure for easy maintenance, the core components like the piston and cylinder block feature extreme wear resistance, ensuring stability during long-term continuous operations. Its portable design allows for flexible movement across complex construction sites, including tunnels and outdoor environments.

Applications

Material Compatibility: Optimal for medium and low viscosity materials (cement slurry, cement mortar) at 1.5MPa pressure.
Infrastructure Repair: Crack repair of building components and grouting of post-cast strips.

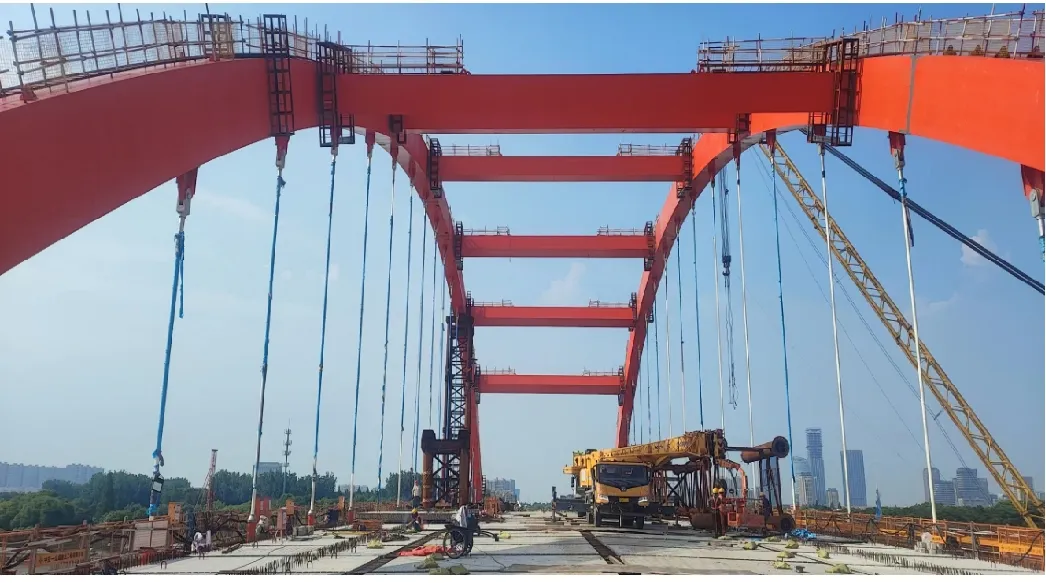

Bridge Engineering: Grouting and filling of bridge bearings and precast beam pipelines.
Tunnel Construction: Gap filling between tunnel secondary lining and surrounding rock formations.

Technical Specification

HB-3 Piston Grout Pump Parameters
Model No.	HB-3	Motor Power	4KW
Working Pressure	1.5MPa	Motor Speed	1420r/min
Conveying Capacity	3m³/h	Dimension	110×45×80cm
Plunger Cylinder	1 pc	Weight	250kg
Horizontal Distance	150m	Inlet Hose ID	64mm
Vertical Distance	40m	Exit Hose ID	25mm

Note: Technical parameters are for reference. Specifications may be adjusted based on product updates.

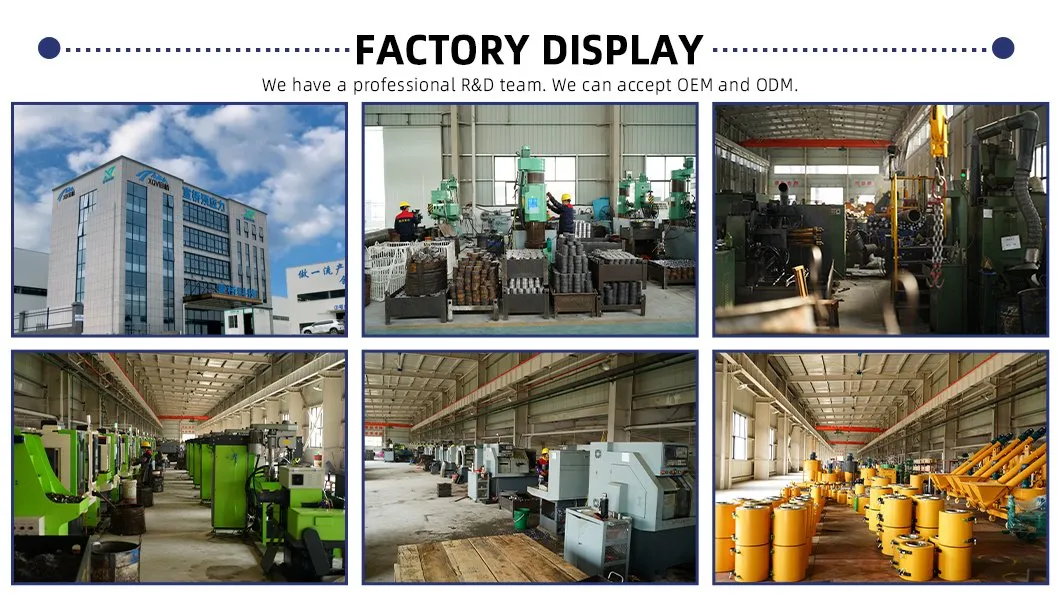

Quality Assurance & Manufacturing

The company integrates the production of prestressed anchorages and machinery with advanced scientific research and development. With a robust quality assurance system managed according to ISO9001-2015 international standards, all products undergo rigorous testing.

We hold international CE certifications and multiple intellectual property patents. Our professional R&D team supports OEM and ODM services, providing comprehensive solutions from product design to professional installation and construction support.

Certifications

Frequently Asked Questions

Q1: How do you guarantee the quality of the HB-3 grouting pump?

A: Every shipment includes a Mill Test Certification. We also fully support and accept inspections by authorized third-party agencies to ensure product compliance.

Q2: What materials can the HB-3 piston pump handle?

A: It is designed for medium and low viscosity materials, specifically cement slurry and cement mortar. For very high viscosity pastes with large aggregates, customized equipment may be required.

Q3: Do you offer OEM or customized anchorage and pump systems?

A: Yes, we provide full OEM and ODM services. We have experience collaborating with global PT suppliers and can manufacture products based on your specific technical drawings.

Q4: What is the lead time for product delivery?

A: Items in stock are shipped within 3 days. Standard out-of-stock items take about 7 days, while customized equipment typically requires 10-15 days for production.

Q5: What are the payment terms for international orders?

A: We accept multiple payment methods including T/T, L/C, Western Union, and PayPal. Other terms can be discussed based on order volume.

Q6: Is the pump suitable for vertical transport in high-rise projects?

A: Yes, the HB-3 has a vertical conveying distance of up to 40 meters and a horizontal distance of up to 150 meters, making it suitable for most standard construction requirements.
