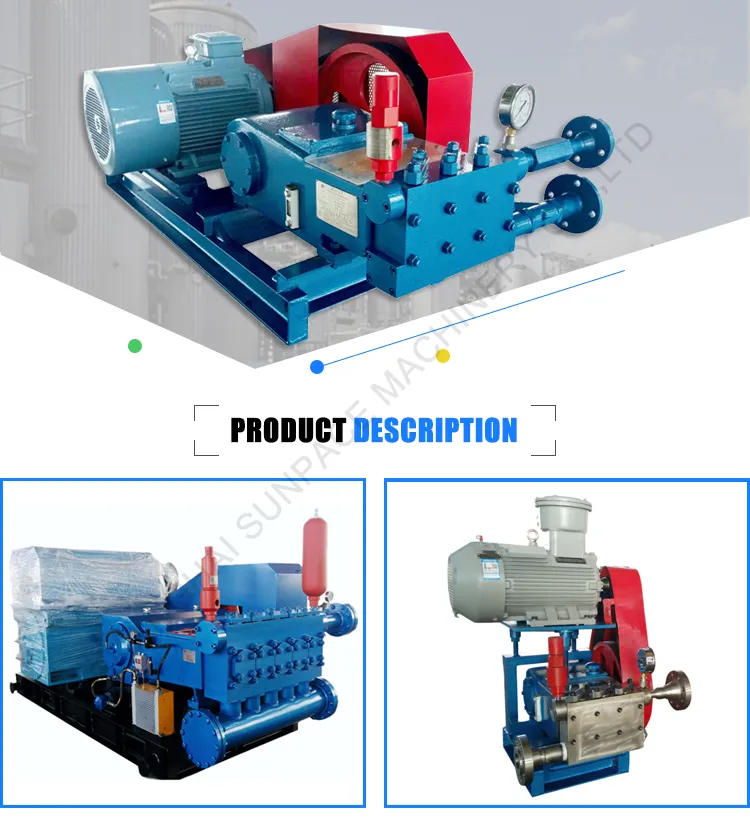

Our primary reciprocating pump offerings include the T series and Q series. These high-performance pumps are configured as triplex or quintuplex units, available in both plunger and piston designs. Featuring conservative pressure ratings and slow-speed operation, they are engineered for enhanced durability and cost-effectiveness.

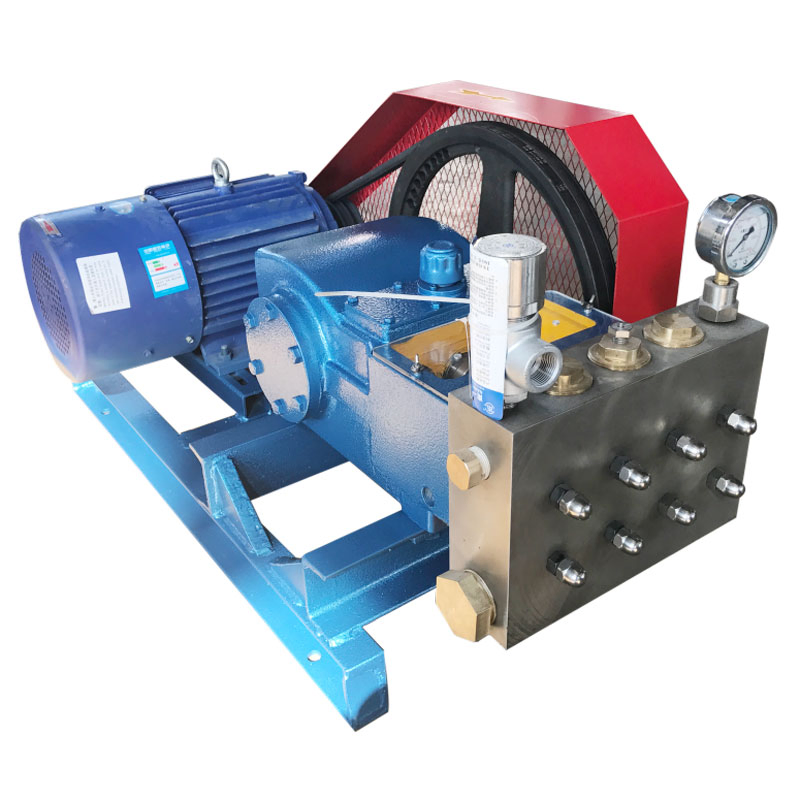

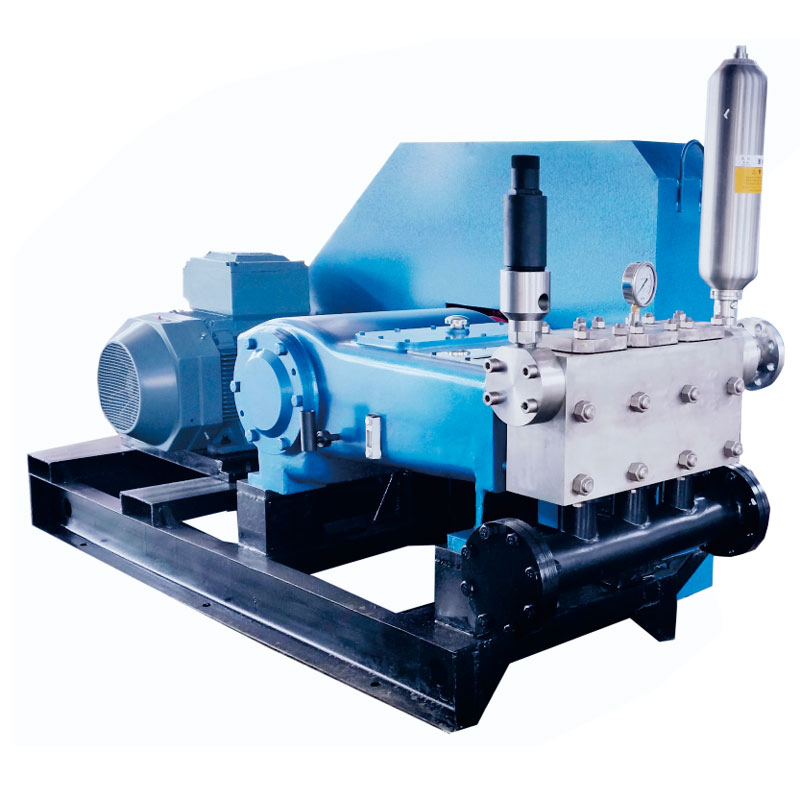

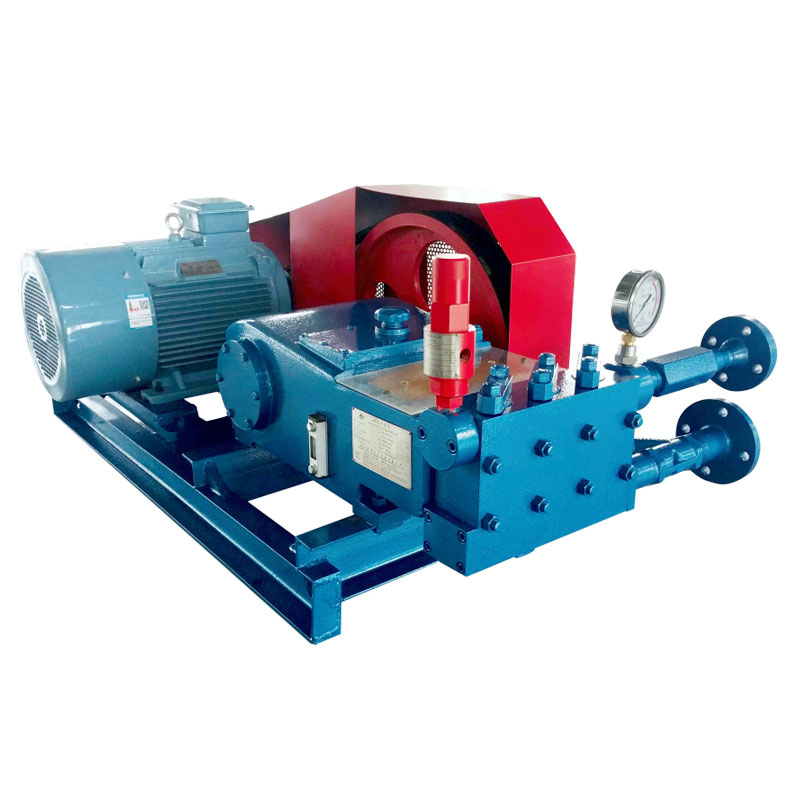

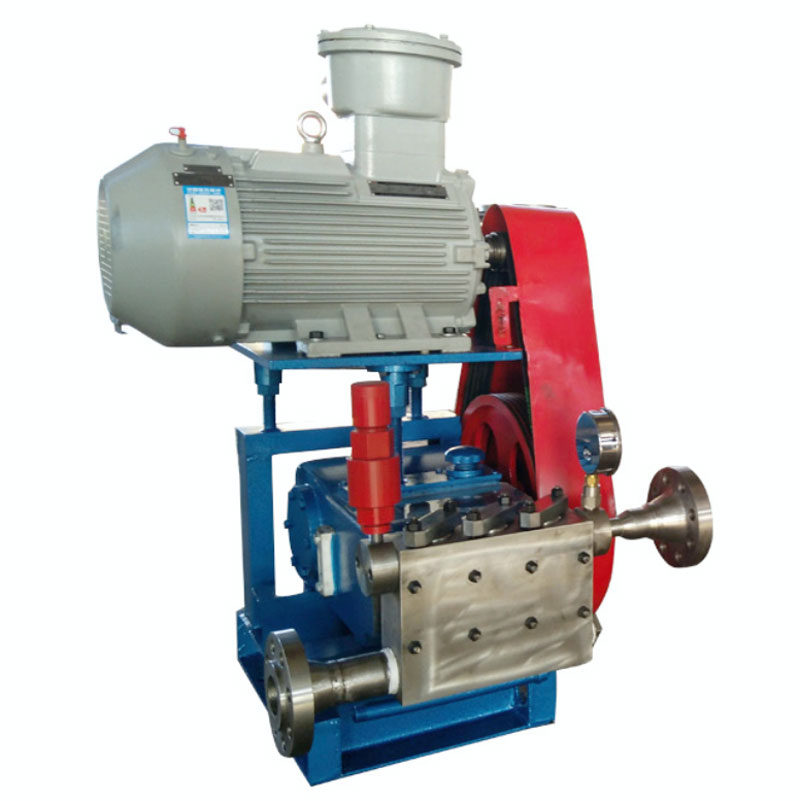

The T series is a single-acting triplex pump ranging from 4HP to 410HP for continuous duty and up to 486HP for intermittent duty. It is ideal for general industrial use, reverse osmosis, supercritical CO2, and mud pumping in oil and gas production.
| T Series Specifications | |||
| Parameter | Metric Units | Continuous | Intermittent |
| Stroke Length | Max 181mm | - | - |
| Power (HP) | - | Max 410HP | Max 464HP |
| Rod Load | Max 11500Kg | - | - |
| Maximum Speed | - | 266 rpm | 300 rpm |
| Mechanical Efficiency | 90% | - | - |

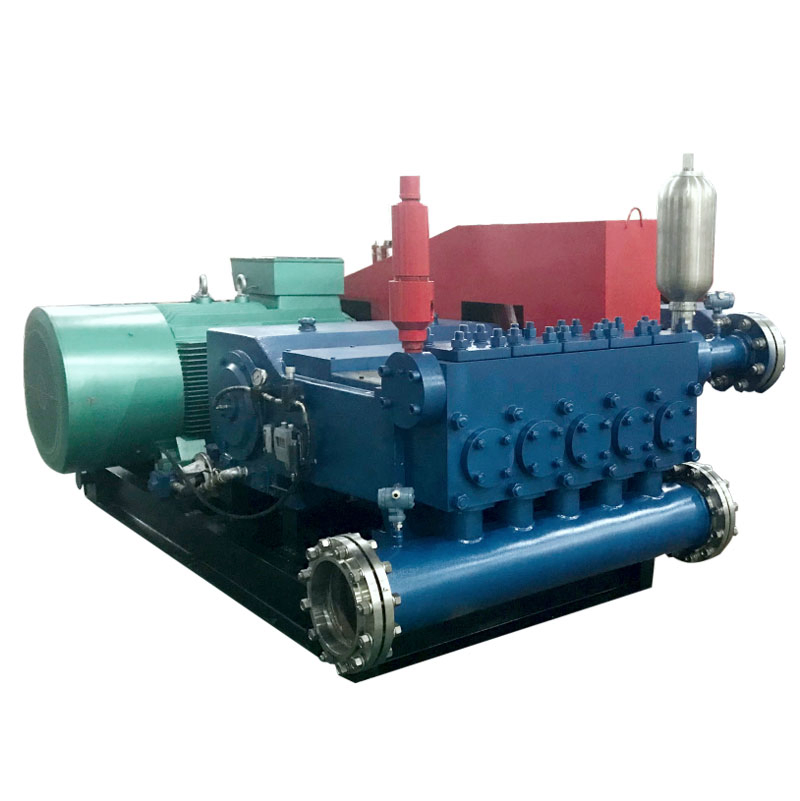

The Q series is a single-acting quintuplex pump ranging from 290HP to 1000HP in continuous duty services. This versatile series supports a variety of material and design options, making it suitable for heavy-duty industrial applications and drilling rigs.
| Q Series Specifications | ||
| Parameter | Metric Units | Continuous Duty |
| Stroke Length | Max 200mm | - |
| Power (HP) | - | Max 1020HP |
| Rod Load | Max 17500Kg | - |
| Maximum Speed | - | 236 rpm |
| Max Fluid Temp | 140ºC | - |
