Product Description

📊

Basic Info.

Model NO.DSP/30/8 Concrete Wet Spraying Machine
TypeConcrete Pump
Shotcrete TypeWet
Machining ProcessHydraulic
StructureCylinder Type
Productivity6-8m³/H
Feeding Height1400mm
Vibrating Amplitude1.1mm
CertificationISO9001: 2000
ConditionNew
ColorYellow
Outlet Pressure8MPa
Power30kw
Hydraulic Tank Volume70L
Weight1500kg
Rated Speed1480r/Min
Specification3800-1500-1550mm
📦

Packaging & Delivery

Package Size380.00cm * 150.00cm * 170.00cm
Package Gross Weight1500.000kg
🏗️

Product Description

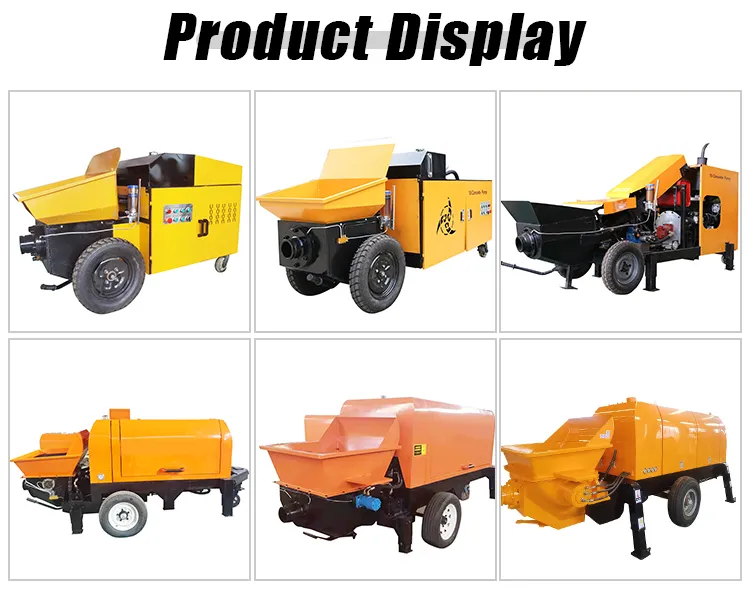

Concrete Wet Spraying Machine Overview

Introduction Of DSP/30/8 Model High Quality Concrete Wet Spraying Machine

The concrete wet spraying machine is a high-efficiency construction equipment widely used in engineering projects. It utilizes compressed air or hydraulic power to transport mixed materials through pipelines and spray them at high speeds onto surfaces. This technology ensures rapid condensation and hardening, forming a durable concrete support layer. Shotcrete technology is valued for its simple operation, low construction costs, wide adaptability, and minimal dust generation, which significantly protects the working environment and improves the quality of the spray layer.

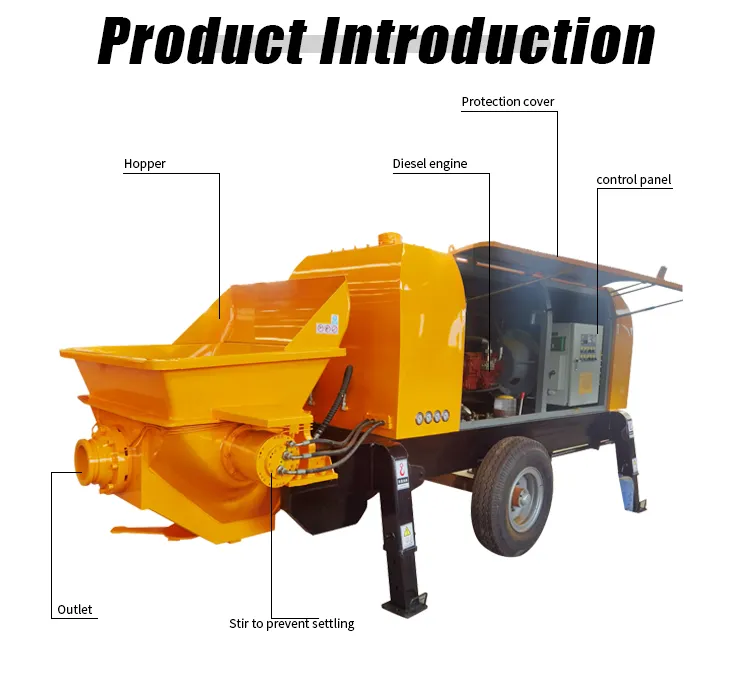

Equipment Display
⚙️

Product Parameters

Maximum Theoretical Concrete Delivery Volume6-8m³/h
Maximum Pumping Concrete Pressure8MPa
Distribution Valve FormS-pipe valve
Concrete Conveying Cylinder Bore*StrokeΦ140*600mm
Outlet DiameterΦ125mm
Rated Power30KW
Rated Speed1480r/min
Hydraulic Circuit FormOpen circuit
Pumping Oil Pressure18MPa
Oil Pressure Of Stirring System8MPa
Hydraulic Tank Volume70L
Maximum Spray Vertical Distance80m
Maximum Spraying Horizontal Distance120m
Maximum Particles Allowed20mm
Dimensions (L*W*H)3800-1500-1550mm
Total Mass1500kg
📷

Detailed Photos

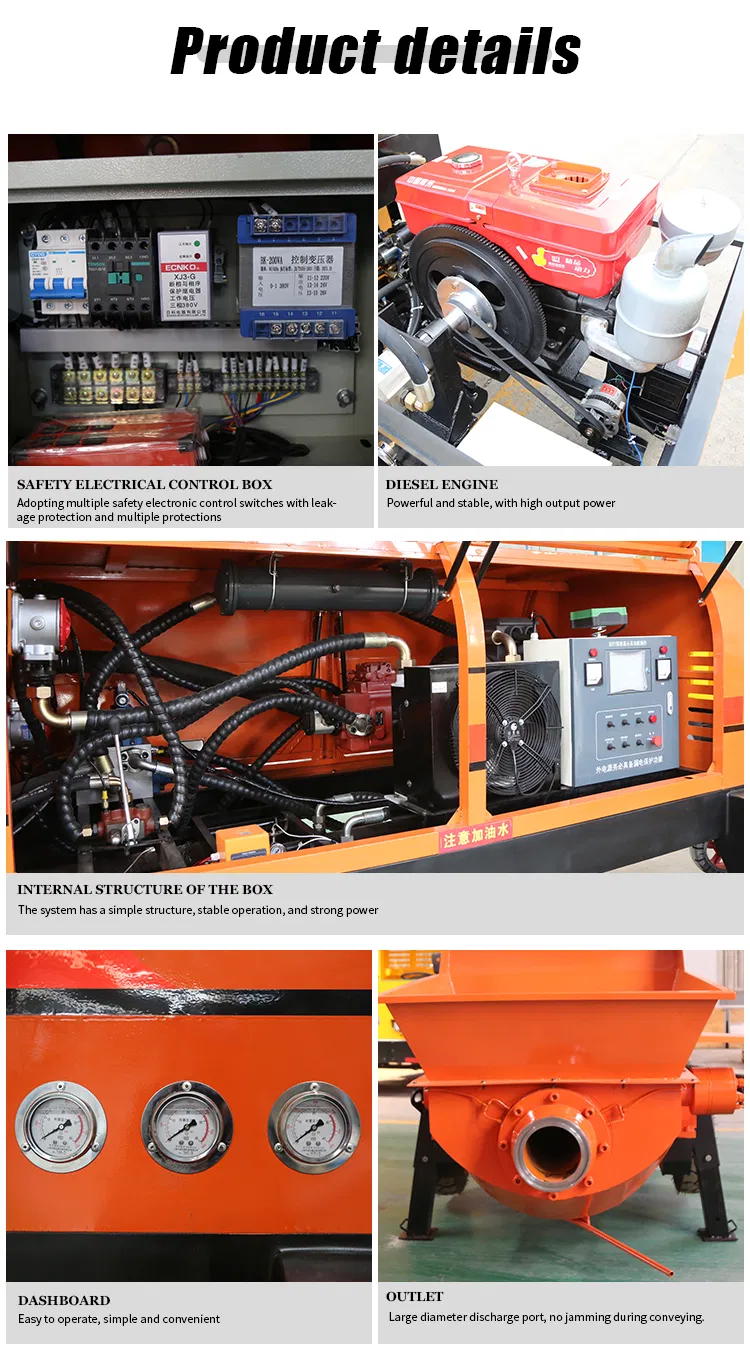

Detailed View 1

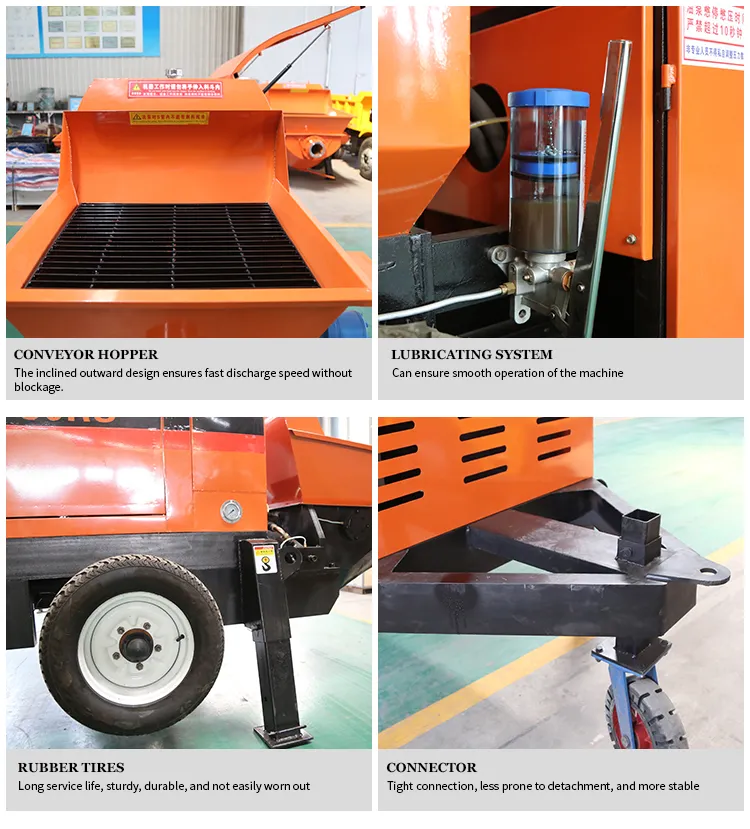

Detailed View 2
📜

Certifications & Exhibition

Certification
Exhibition
🏢

Production Capabilities

Factory View 1

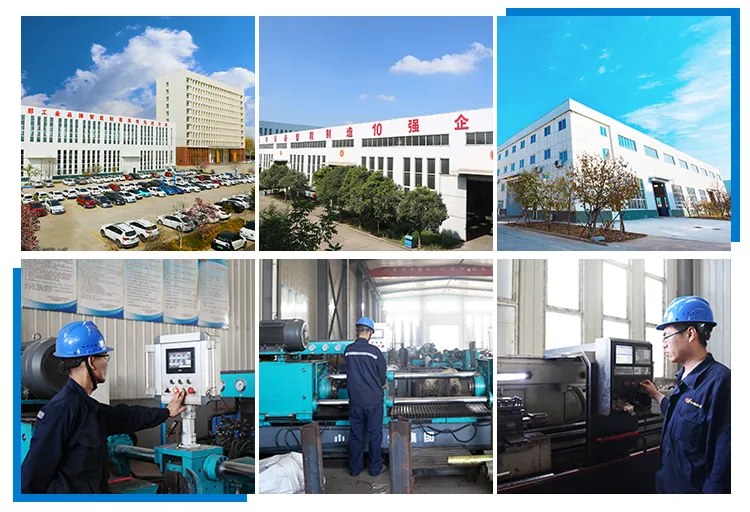

Factory View 2

Frequently Asked Questions

What is the maximum productivity of the DSP/30/8 wet spraying machine?
The machine features a theoretical concrete delivery volume of 6-8m³ per hour.
What are the maximum vertical and horizontal spraying distances?
It can achieve a maximum vertical spray distance of up to 80 meters and a horizontal distance of up to 120 meters.
What size particles can this concrete pump handle?
The equipment allows for maximum particles up to 20mm in size.
What is the rated power and motor speed?
The machine is equipped with a 30KW power system and operates at a rated speed of 1480r/min.
What type of distribution valve is used in this model?
The DSP/30/8 model utilizes a high-quality S-pipe valve for efficient concrete distribution.
What are the main advantages of using a wet spraying machine?
Wet spraying offers lower dust levels, less material rebound, better protection of the working environment, and improved quality of the concrete support layer.
