| Model | GHP40F | Type | Concrete Pump |
|---|---|---|---|
| Shotcrete Type | Wet | Process | Hydraulic |
| Productivity | 40m³/H | Structure | Cylinder Type |
| Feeding Height | 125-90mm | Certification | ISO9001: 2000 |
| Condition | New | Origin | Hunan |

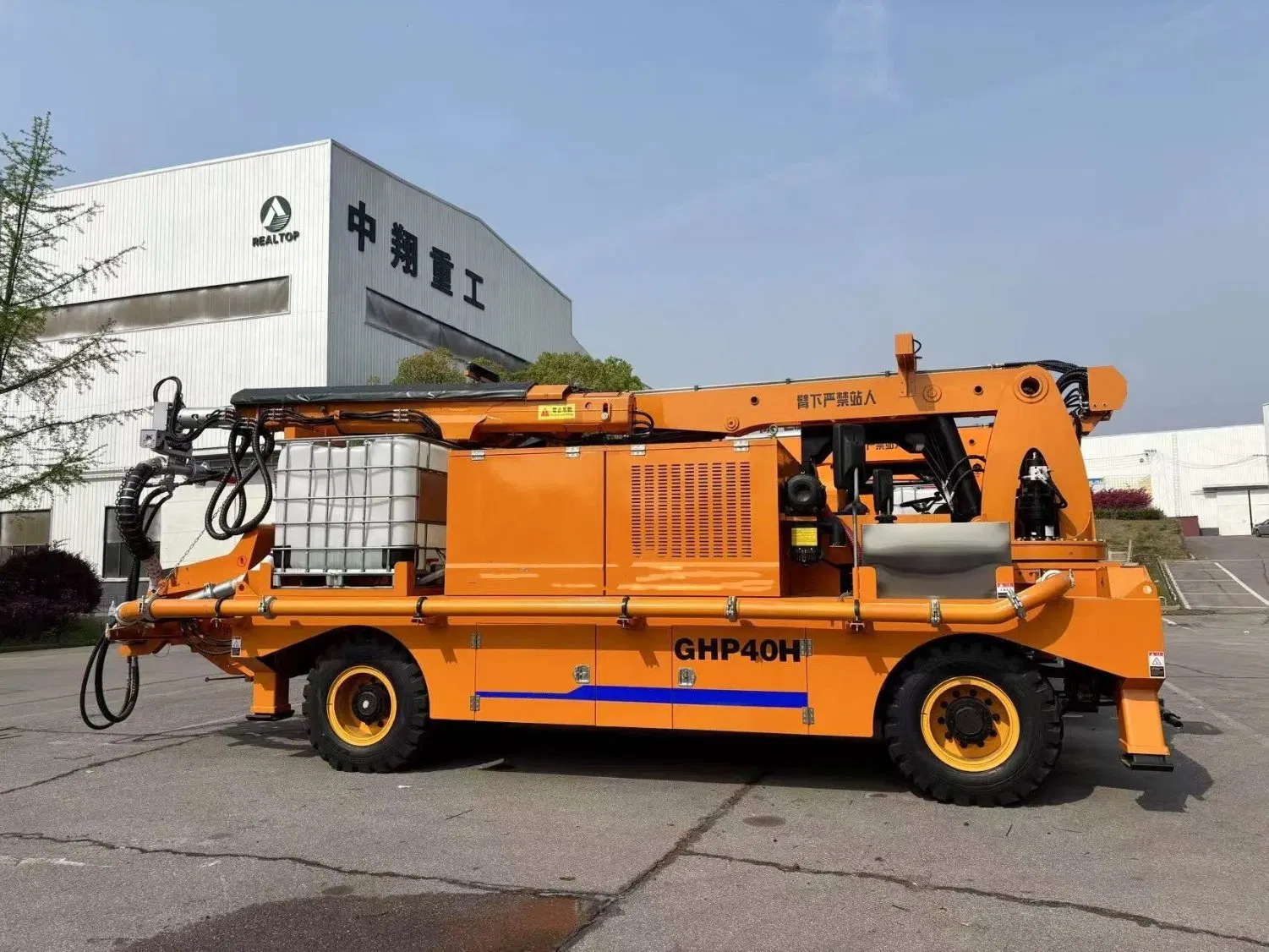

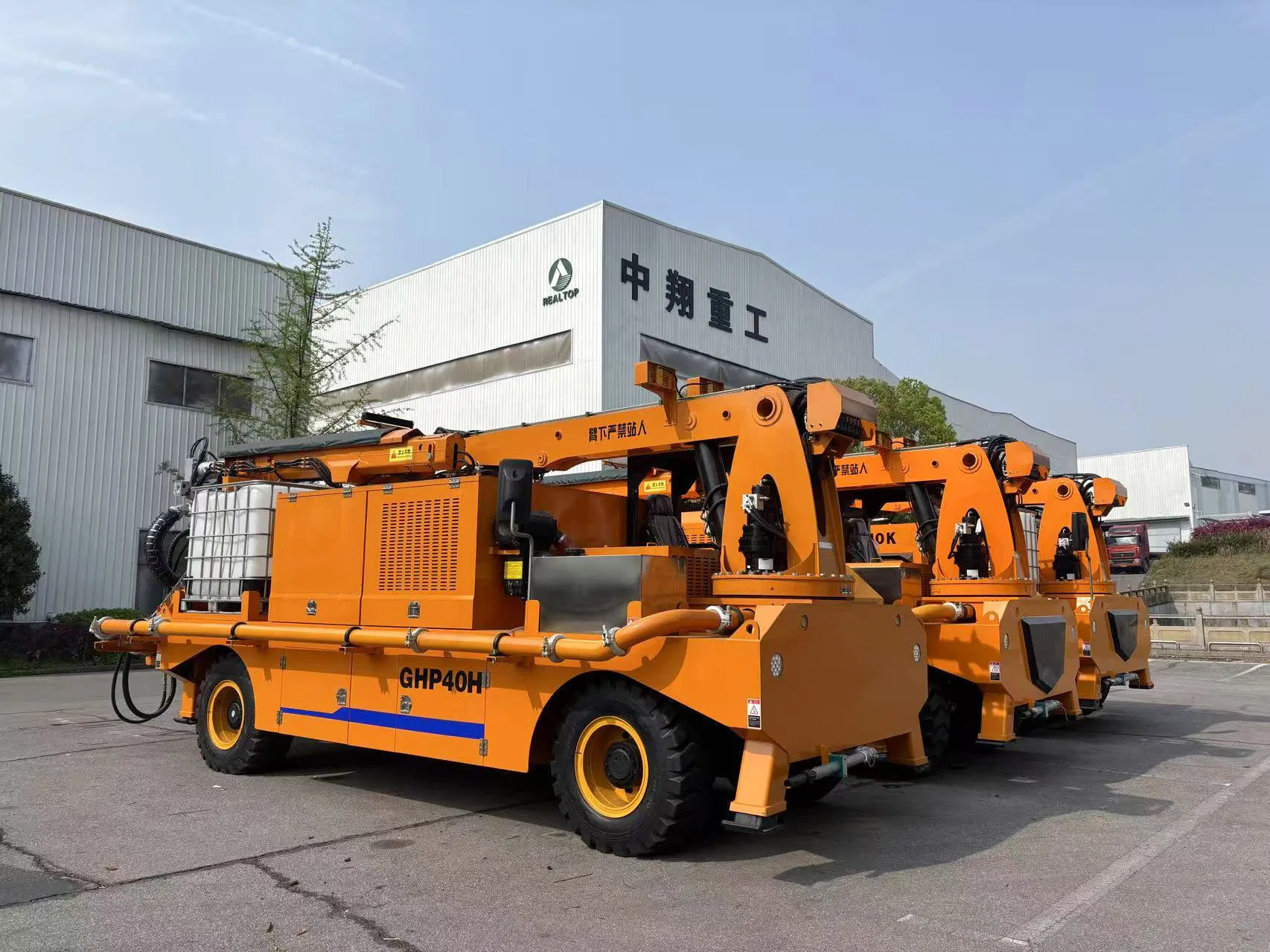

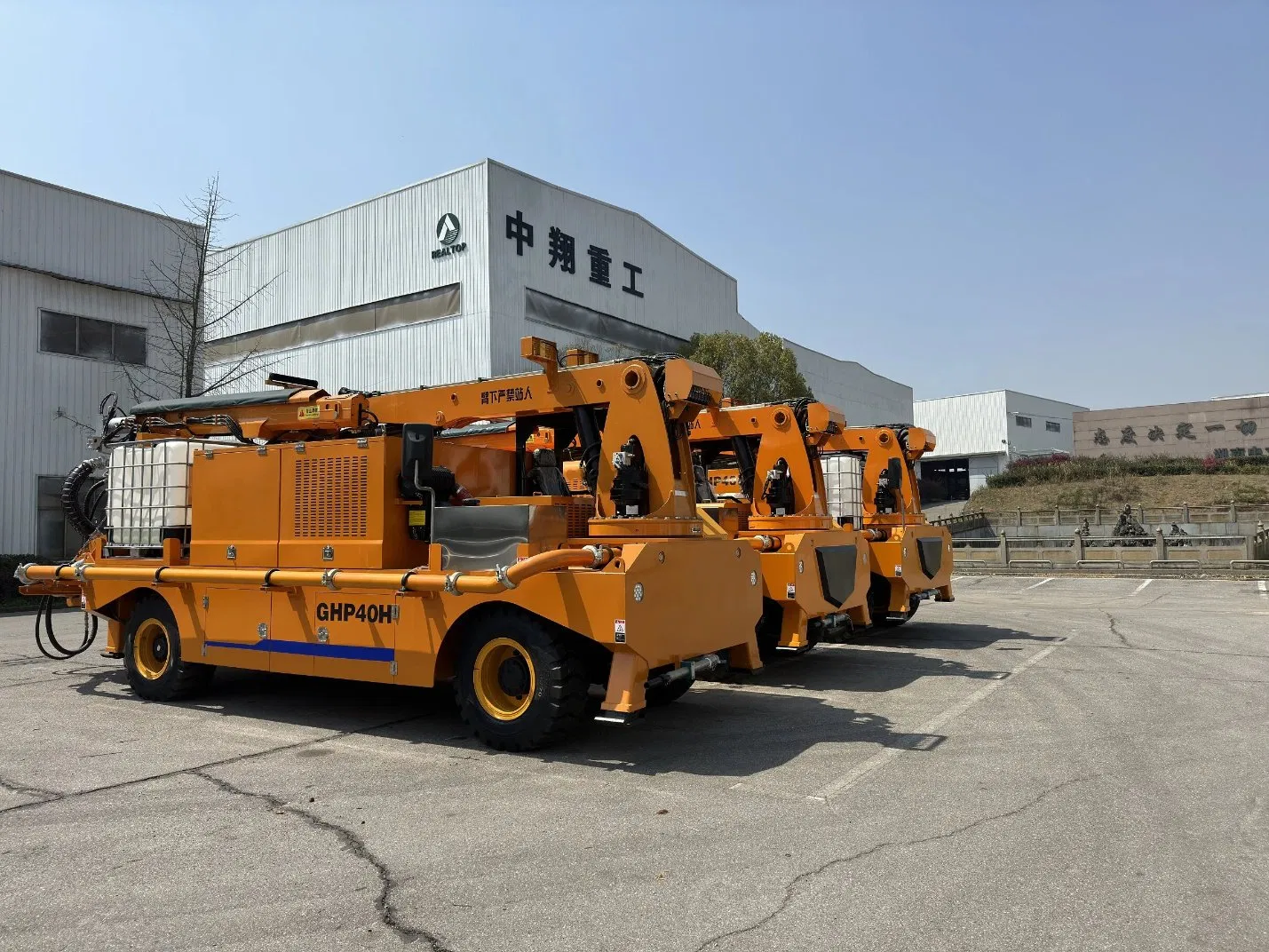

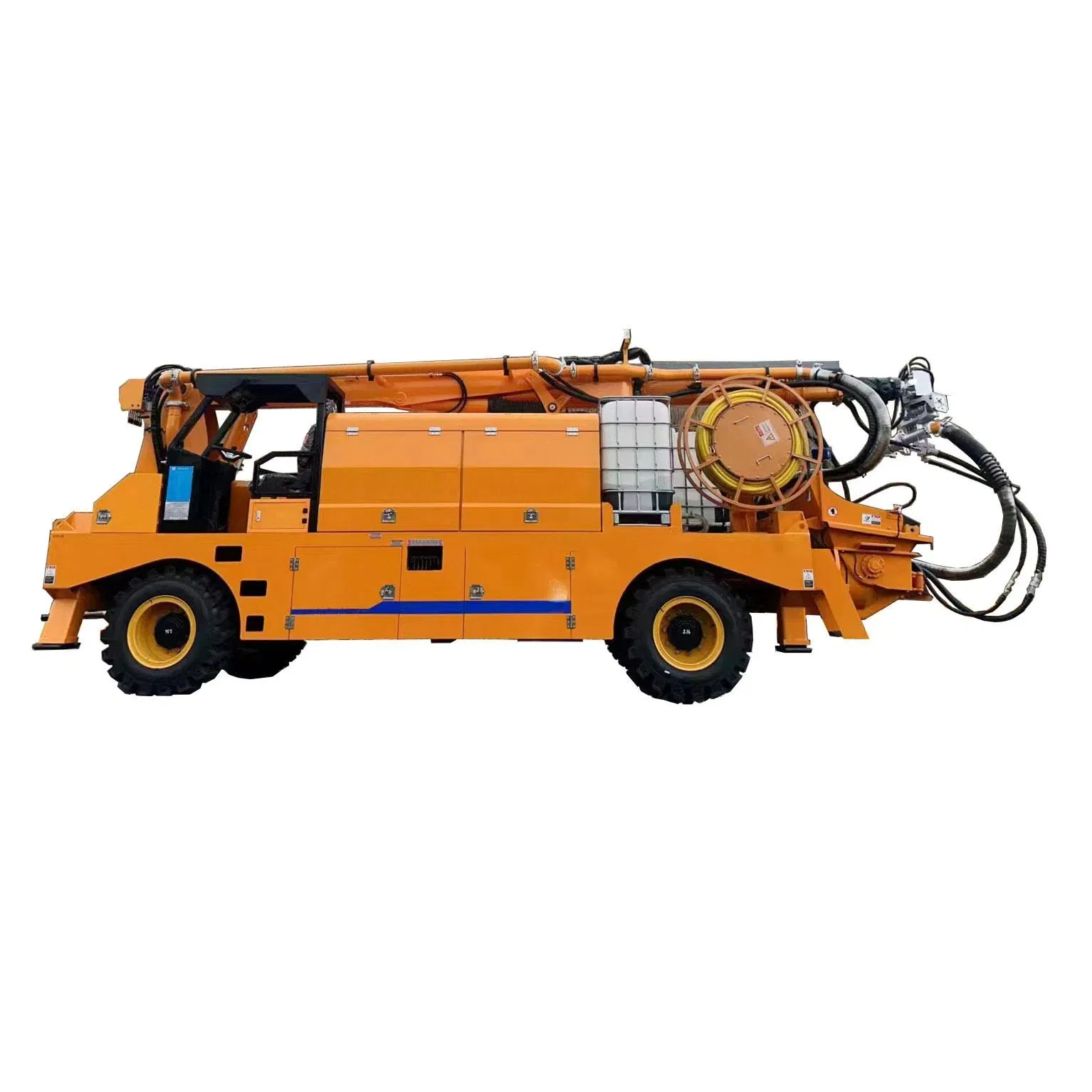

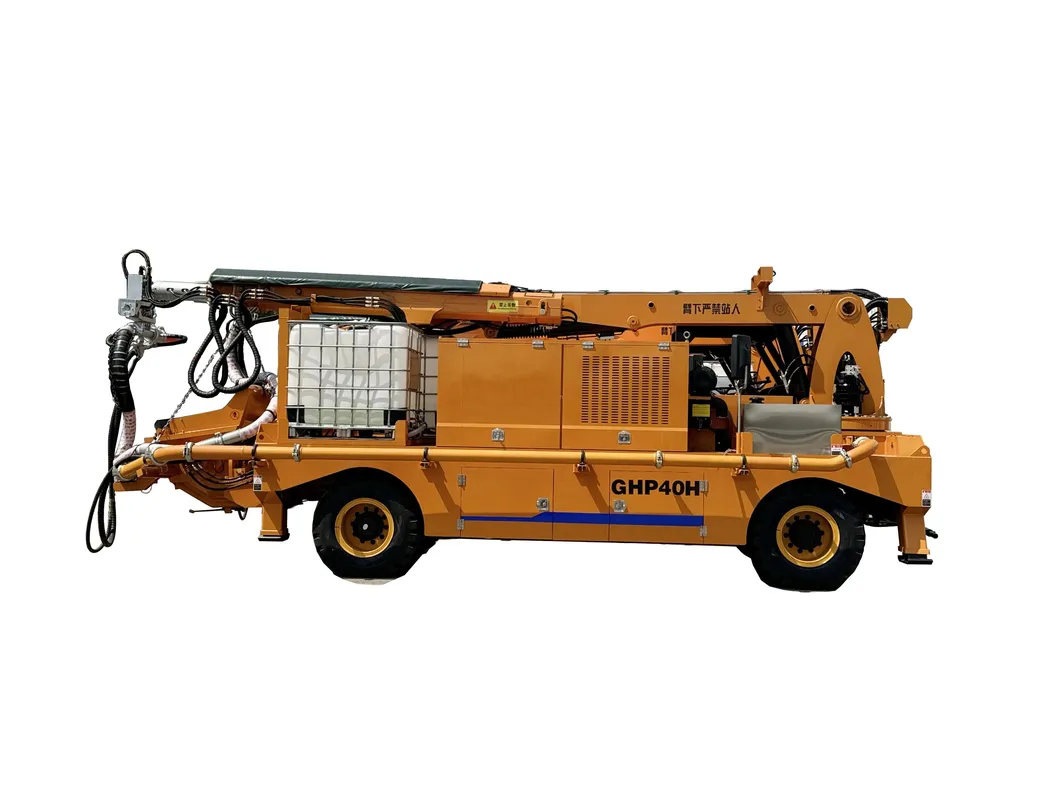

The GHP40F Engineering Concrete Wet Spraying Trolley is an advanced electromechanical-hydraulic integrated equipment designed for third-generation tunnel construction needs. By combining international design standards with robust manufacturing, it achieves superior performance in shotcreting volume, blockage prevention, and rebound control.

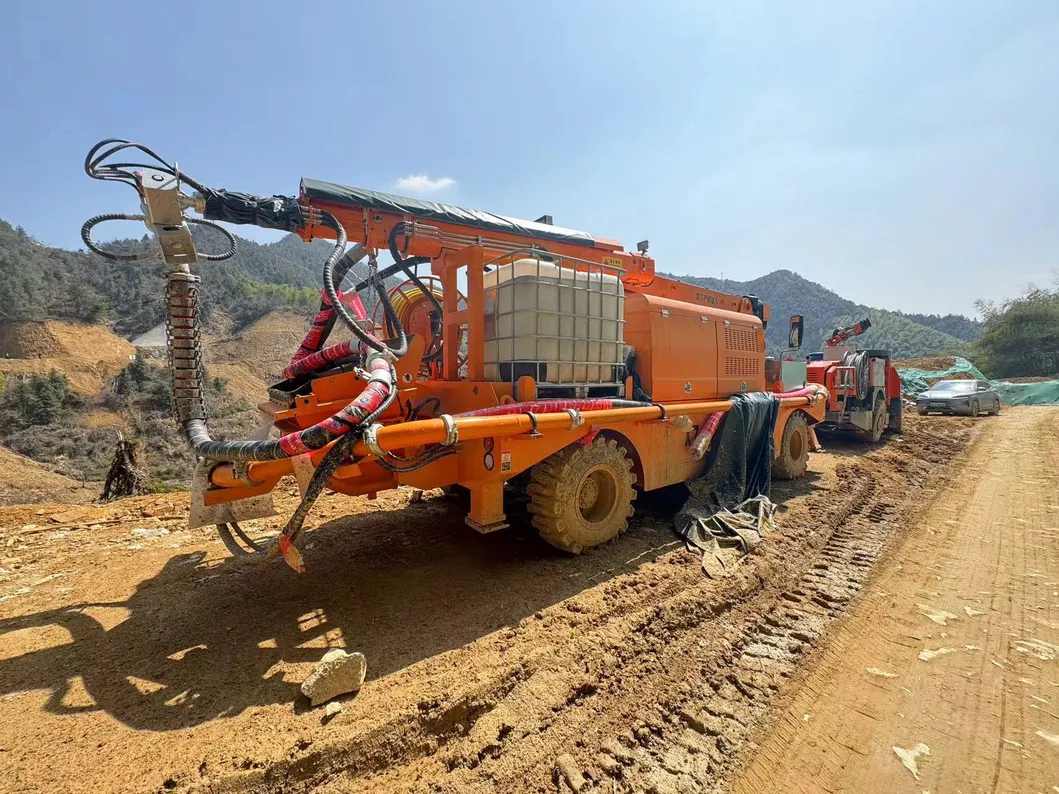

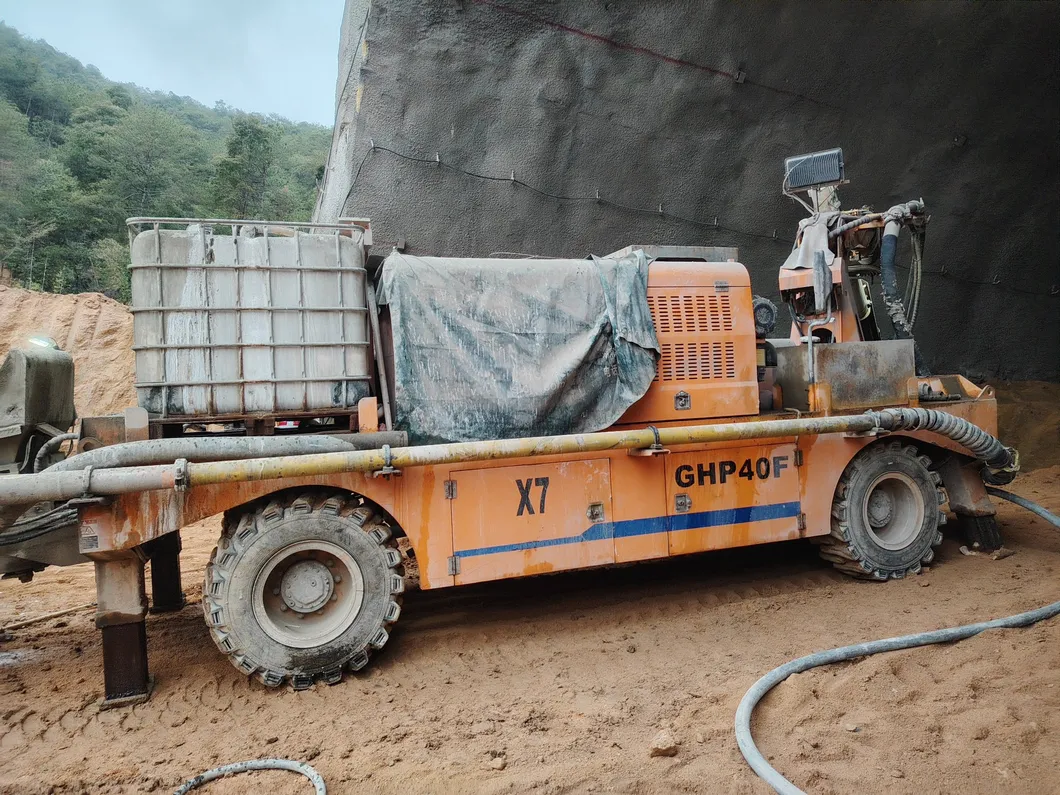

This trolley is perfectly suited for highway and railway construction across full, two-step, and three-step sections. Its versatile working arm ensures there are no blind spots during operation.
| System | Parameter | Unit | Value |
|---|---|---|---|
| Pumping System | Max. Theo. Capacity | m³/h | 40 |
| Concrete Cylinder Dia. | mm | Φ180 | |
| Stroke | mm | 1200 | |
| Max. Pumping Pressure | Bar | 80 | |
| Traveling System | Drive Mode | - | 4-Wheel Drive |
| Engine Power | kW | 110 | |
| Max. Speed | km/h | 25 | |
| Boom System | Max. Spraying Height | m | 17 |
| Max. Spraying Width | m | 15 | |
| Boom Rotation | ° | 270 |
| Weight | 16500 kg |
|---|---|
| Dimensions | 8048*2650*3310 mm |
| Method | Nude packing / Bulk ship / RORO |
The theoretical maximum capacity is 40 cubic meters per hour, suitable for high-volume tunnel construction.
Yes, it features a dual diesel and electric system. The diesel engine can be used for emergency responses and site movement.

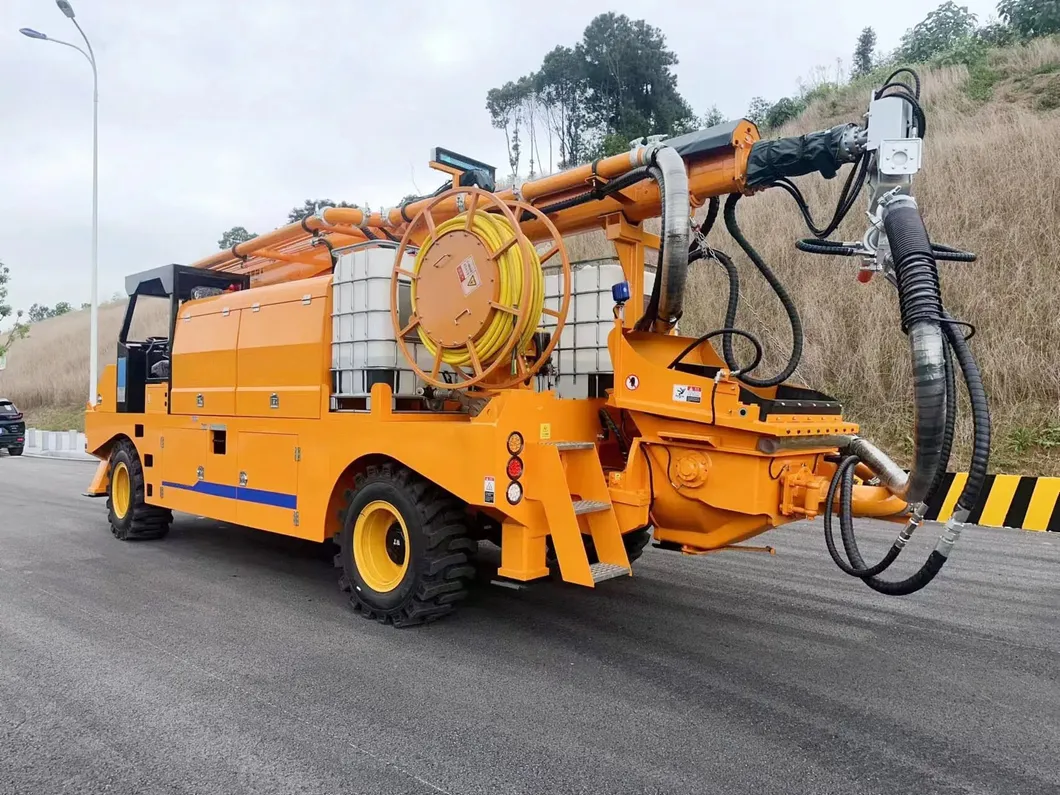

The telescopic boom can reach a maximum spraying height of 17 meters and a maximum spraying width of 15 meters.
The robotic arm is controlled via an advanced wireless remote control system, allowing the operator to spray precisely with minimal rebound.
We accept T/T and L/C. Shipping can be arranged via FOB, CIF, or EXW using bulk or RORO shipments.
All our machines come with a standard 12-month warranty along with lifelong technical support.
