Product Description

Overview
Basic Info.
Model NO. DSP/30/8 Concrete Wet Spraying Machine
Type Concrete Pump
Shotcrete Type Wet
Machining Process Hydraulic
Structure Cylinder Type
Productivity 6-8m³/H
Feeding Height 1400mm
Vibrating Amplitude 1.1mm
Certification ISO9001: 2000
Condition New
Color Yellow
Model DSP/30/8 Concrete Wet Spraying Machine
Working Capacity 6-8m³/H
Outlet Pressure 8MPa
Power 30kw
Hydraulic Tank Volume 70L
Weight 1500kg
Rated Speed 1480r/Min
Transport Package Wooden Case or as Required
Specification 3800-1500-1550mm
Origin China
Production Capacity 1000 Sets Per Month
Packaging & Delivery
Package Size 380.00cm * 150.00cm * 170.00cm
Package Gross Weight 1500.000kg
Hot Sales

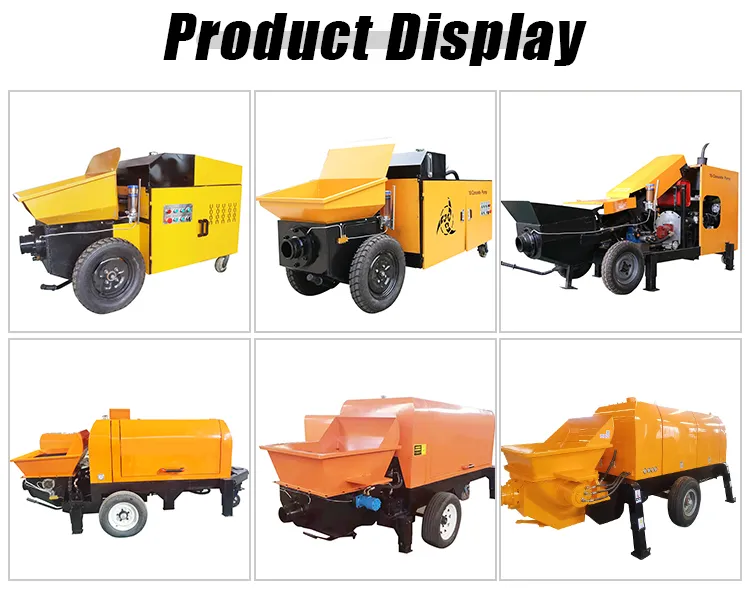

Hydraulic Stationary Construction Machinery
Hydraulic Stationary Construction Machinery Banner
Product Description
Product Description Divider
Introduction Of DSP/30/8 Model High Quality And Low Price Concrete Wet Spraying Machine

Concrete wet spraying machine is a kind of construction equipment widely used in engineering construction. It uses compressed air or other power to transport the mixed material in a certain proportion through the pipeline and spray it at a high speed to the sprayed surface to condense and harden, thereby forming a concrete support. The protective layer, shotcrete technology is simple, the construction cost is low, the adaptability is wide, the operation dust is small, the spray rebound is less, the protection of the working environment, the saving of raw materials, and the improvement of the spray layer quality have played an important role in various construction fields.

zmwm21

Machinery Banner Section

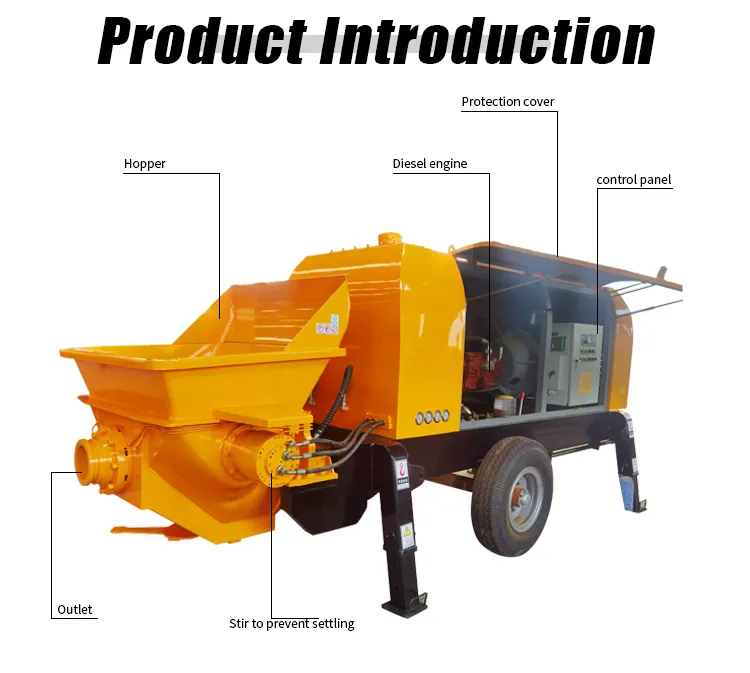

Concrete Wet Spraying Machine Structure Details
Product Parameters
Parameters Header Banner
Parameters of DSP/30/8 Model High Quality And Low Price Concrete Wet Spraying Machine
Maximum Theoretical Concrete Delivery Volume 6-8m³/h
Maximum Pumping Concrete Pressure 8MPa
Distribution Valve Form S-pipe valve
Concrete Conveying Cylinder Bore*Stroke Φ140*600mm
Outlet Diameter Φ125mm
Rated Power 30KW
Rated Speed 1480r/min
Hydraulic Circuit Form open circuit
Pumping Xiyong Oil Pressure 18MPa
Oil Pressure Of Stirring System 8MPa
Hydraulic Tank Volume 70L
Maximum Spray Vertical Distance 80m
Maximum Spraying Horizontal Distance 120m
Maximum Particles Allowed 20mm
Dimensions L*W*H 3800-1500-1550mm
Total Mass 1500kg
Detailed Photos
Detailed Photos Banner
Photos Of DSP/30/8 Model High Quality And Low Price Concrete Wet Spraying Machine

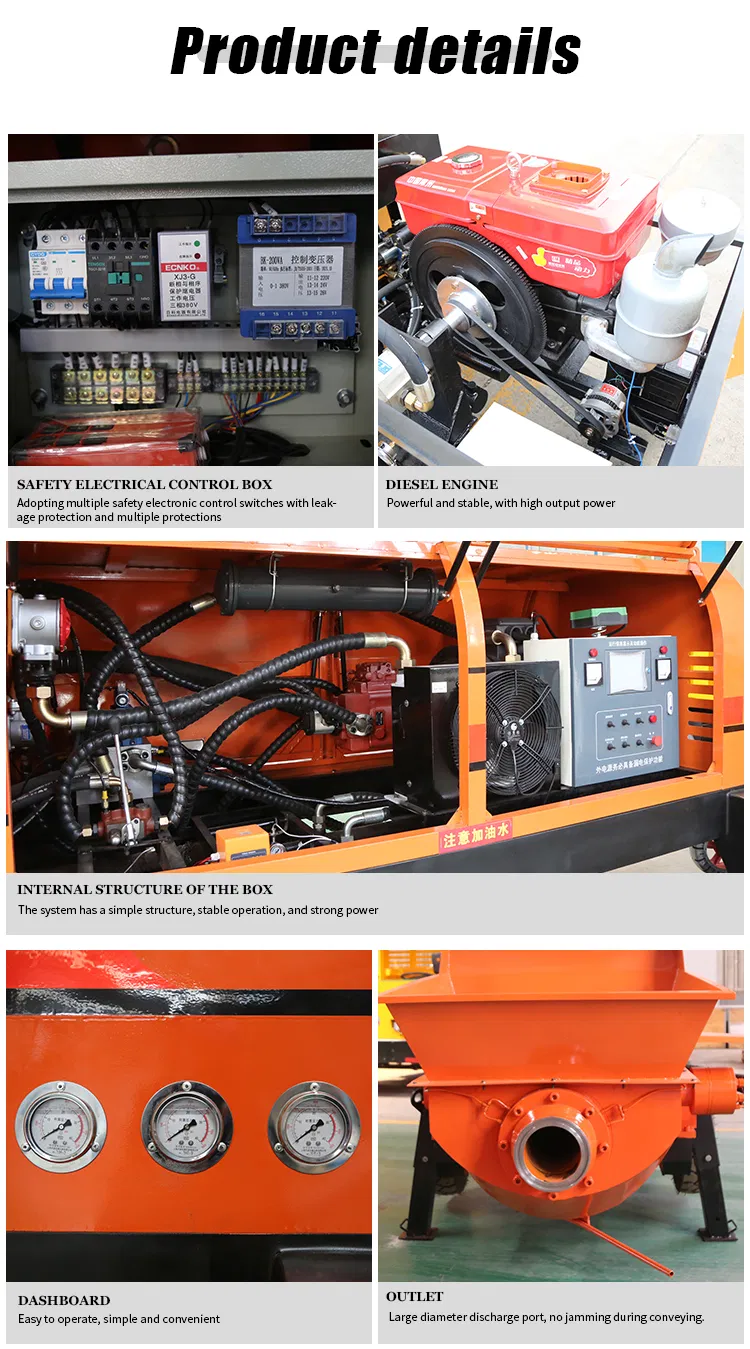

Equipment Structural View

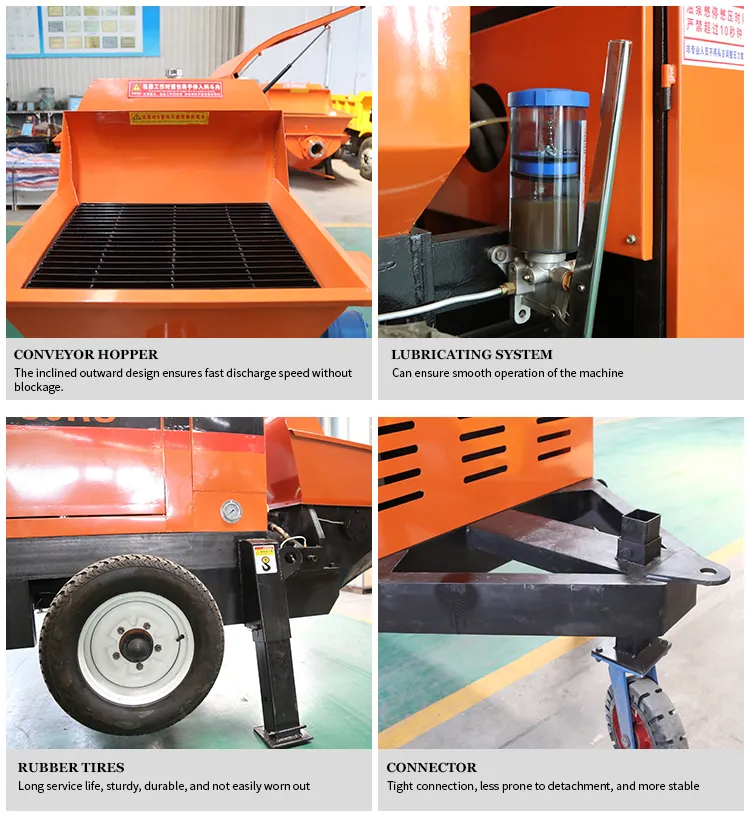

Machine Close Up View
Certifications & Exhibition
Certifications
ISO Certification Credentials
Exhibition
Company Exhibition Booth
Company Profile

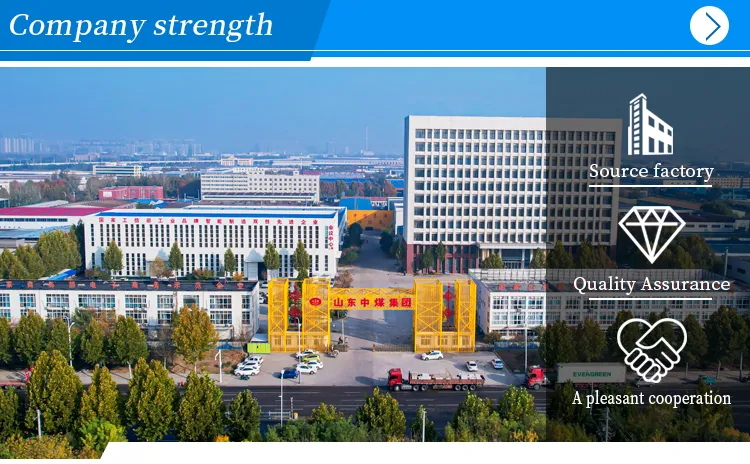

Production Workshop

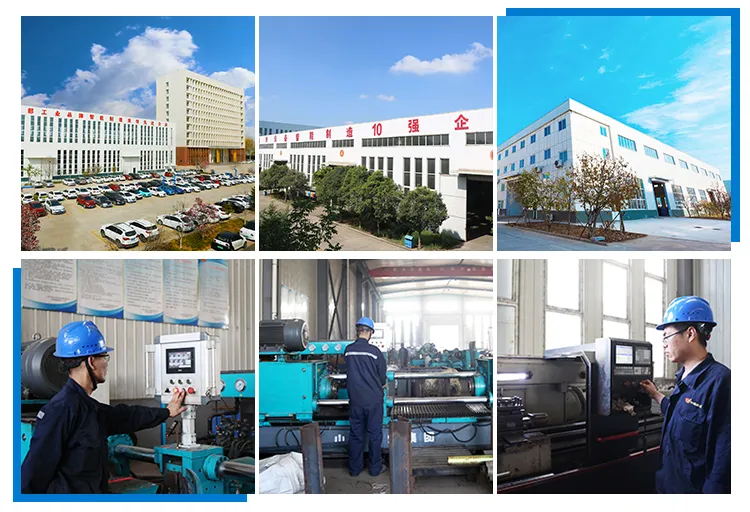

Machinery Manufacturing Line
Frequently Asked Questions
Q1 What is the maximum output capacity of the DSP/30/8 Concrete Wet Spraying Machine?
The machine has a maximum theoretical concrete delivery volume of 6-8 m³/h, allowing for efficient operations in shotcrete projects.
Q2 What are the maximum vertical and horizontal spraying distances?
This high-performance unit supports a maximum vertical spraying distance of up to 80 meters and a maximum horizontal spraying distance of 120 meters.
Q3 What kind of distribution valve system is integrated into this machine?
It is engineered with a robust and highly efficient S-pipe distribution valve system to ensure smooth concrete pumping flow.
Q4 What is the maximum aggregate particle size allowed for operation?
The maximum allowable aggregate particle diameter is 20mm, providing excellent material handling capabilities.
Q5 Does this concrete pump carry quality control certifications?
Yes, the equipment is manufactured under high-standard quality controls holding ISO9001: 2000 certification.
Q6 What are the power ratings and speed parameters of the motor?
It is powered by a high-grade 30KW motor working at a rated speed of 1480 r/min, providing powerful and stable pneumatic force.
