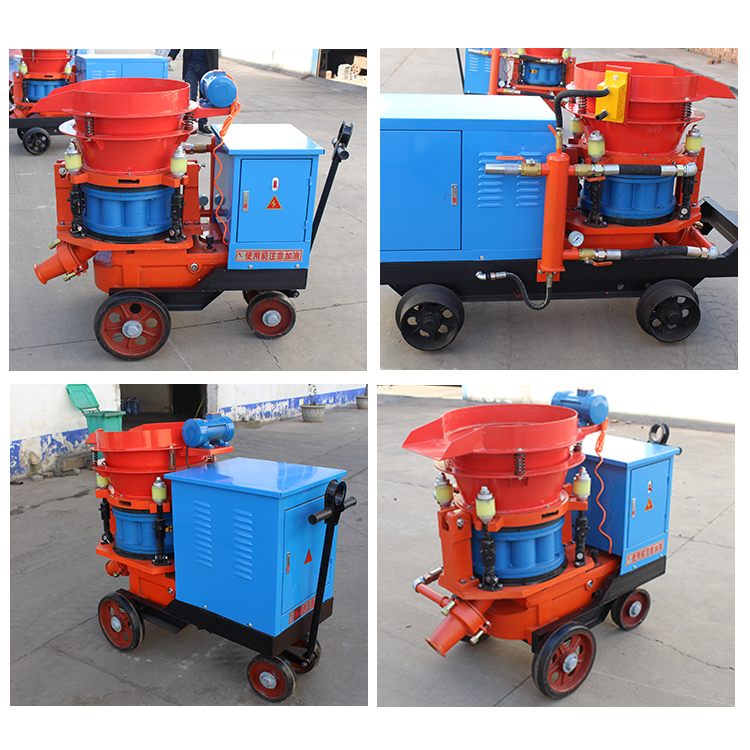

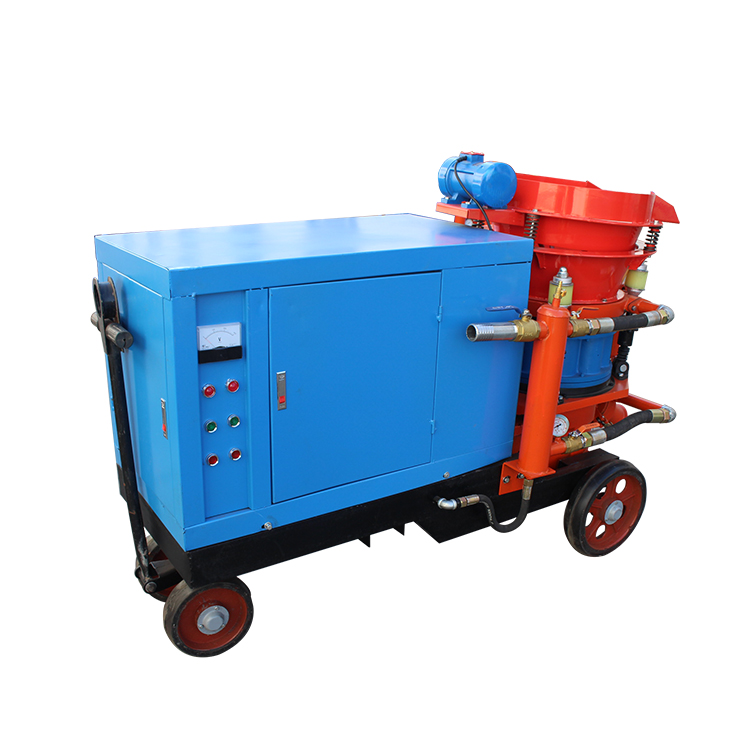

PRODUCTS DESCRIPTION
| Model |
EB-5 Dry spray |
EB-7 Dry spray |
EB-5 Wet spray |
EB-7 Wet spray |
| Efficiency |
5m3/h |
7m3/h |
3-5m3/h |
5-7m3/h |
| Max.aggregate diameter |
Φ20mm |
Φ20mm |
Φ15mm |
Φ15mm |
| Inner diameter of pipe |
Φ51mm |
Φ51/64mm |
Φ51mm |
Φ51/64mm |
| Rotor diameter |
Φ438mm |
Φ480mm |
Φ438mm |
Φ480mm |
| Work pressure |
0.4-0.6MPa |
0.4-0.6MPa |
0.3-0.6MPa |
0.4-0.6MPa |
| Air consumption |
7-15m3/min |
7-15m3/min |
15-20m3/min |
15-20m3/min |
| Motor |
5.5kw |
7.5kw |
5.5kw |
7.5kw |
| Voltage |
380v |
380v |
380v |
380v |
| Weight |
600kg |
700kg |
700kg |
800kg |

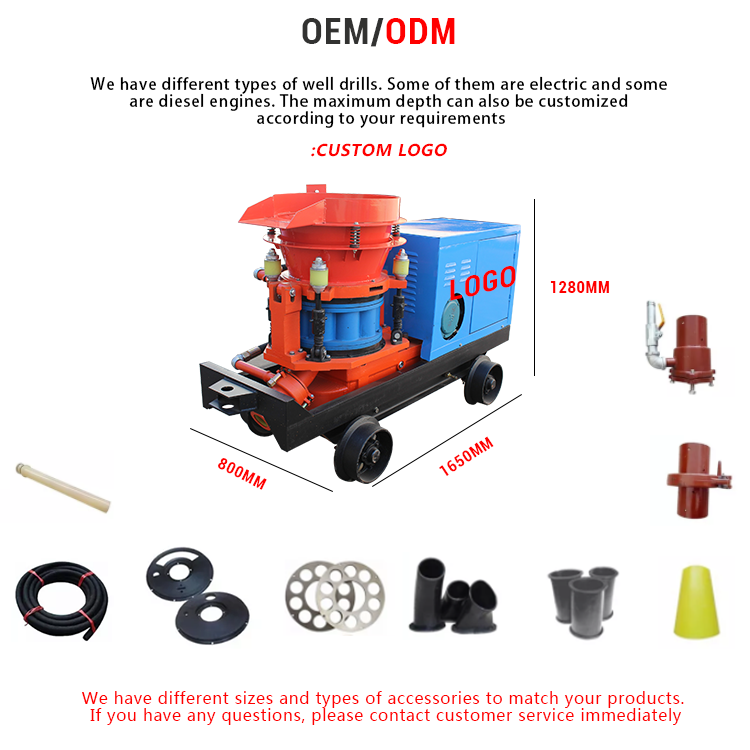

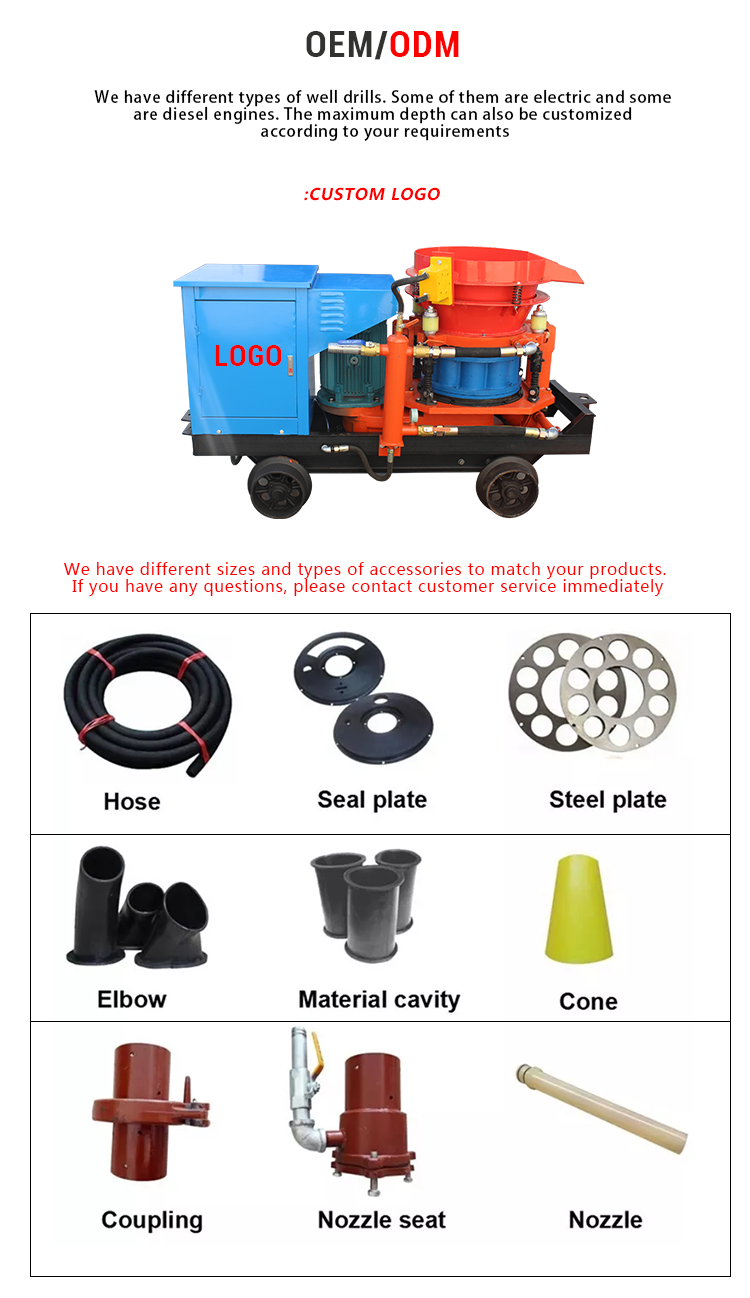

- Several hosen and nozzle options are available to meet the demands of every gunite/shotcrete spraying application.

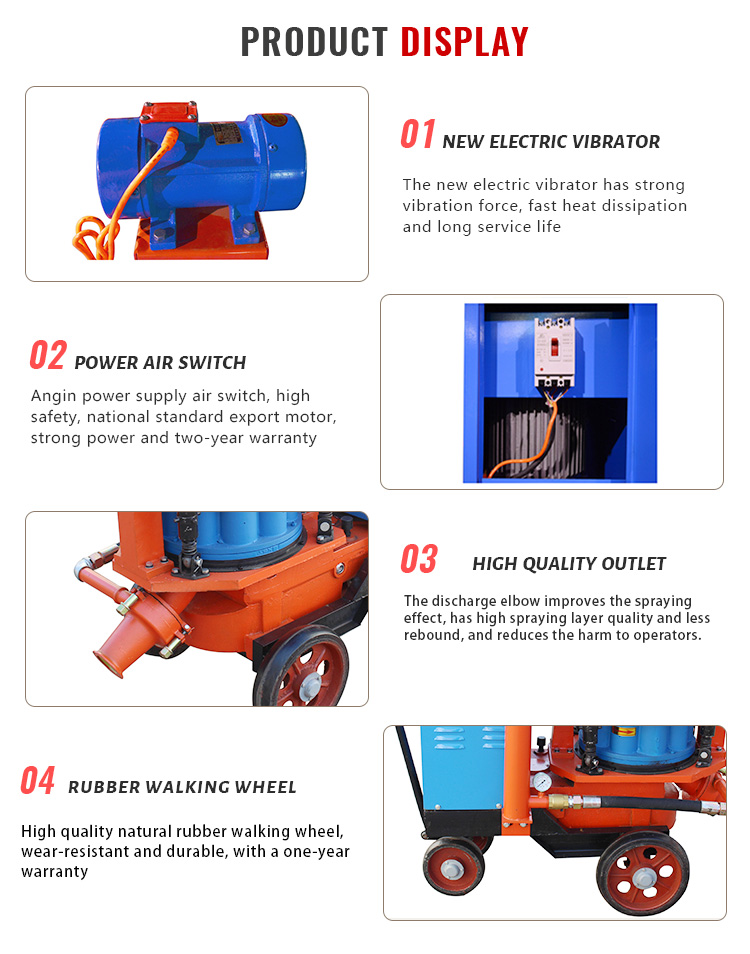

- Driven by the electric motor, with ABB frequency converter, flow could be adjustable according to needs.
APPLICATION SCENARIO
Mine shotcrete machine uses concrete pump to convey concrete through pipeline to the nozzle of manipulator, and uses compressed air with accelerator to spray concrete to the wall of shotcrete roadway.
It is widely used in various working environments, such as tunnels, culverts, subway, hydropower projects, underground projects, slope protection and high methane mine roadways.

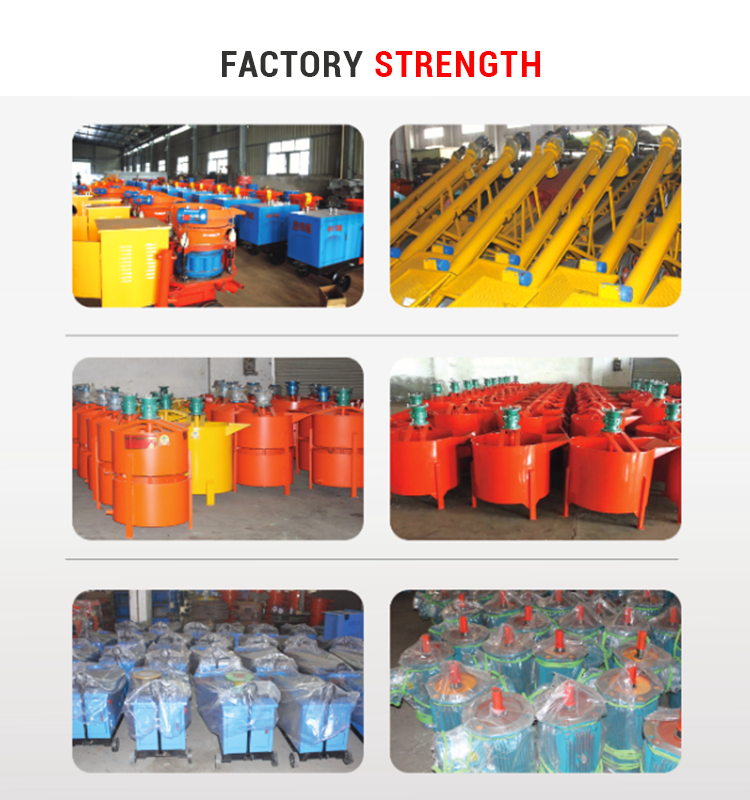

FACTORY STRENGTH
We are a manufacturer with 6 years of production experience. No matter what you need, we have inventory.
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.: Our main machine enjoys a 1 year warranty (except for wear parts). During this time, broken accessories can be replaced, and we provide videos for installation and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden cases for LCL goods, and fix the equipment securely for FCL shipments.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery, and we attach an inspection report for every machine.
