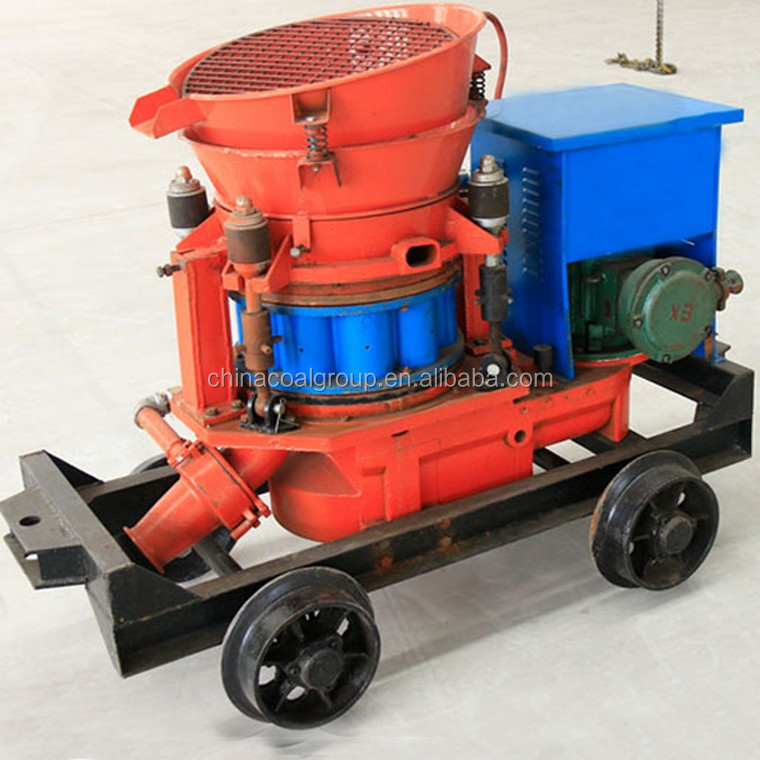

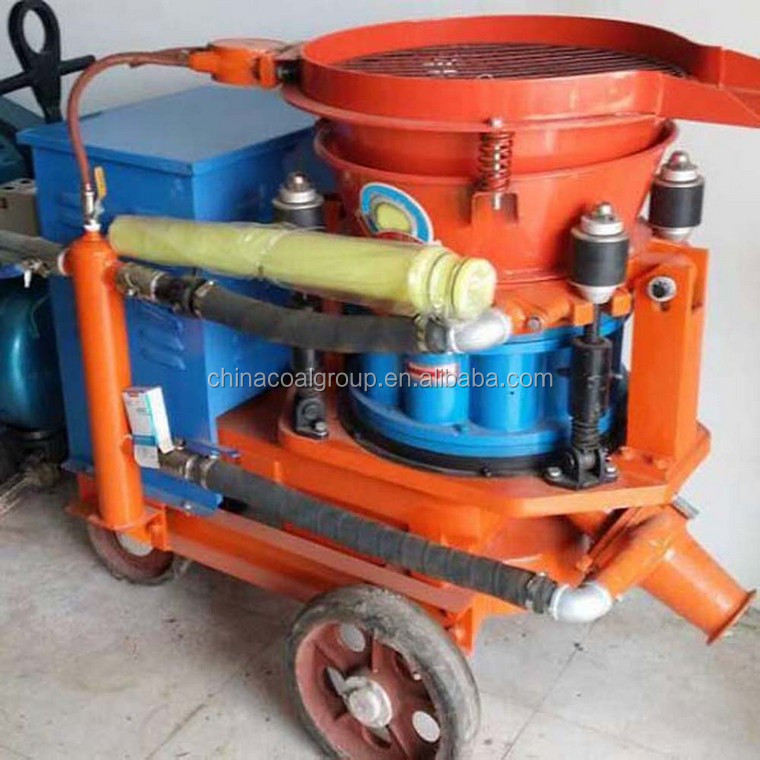

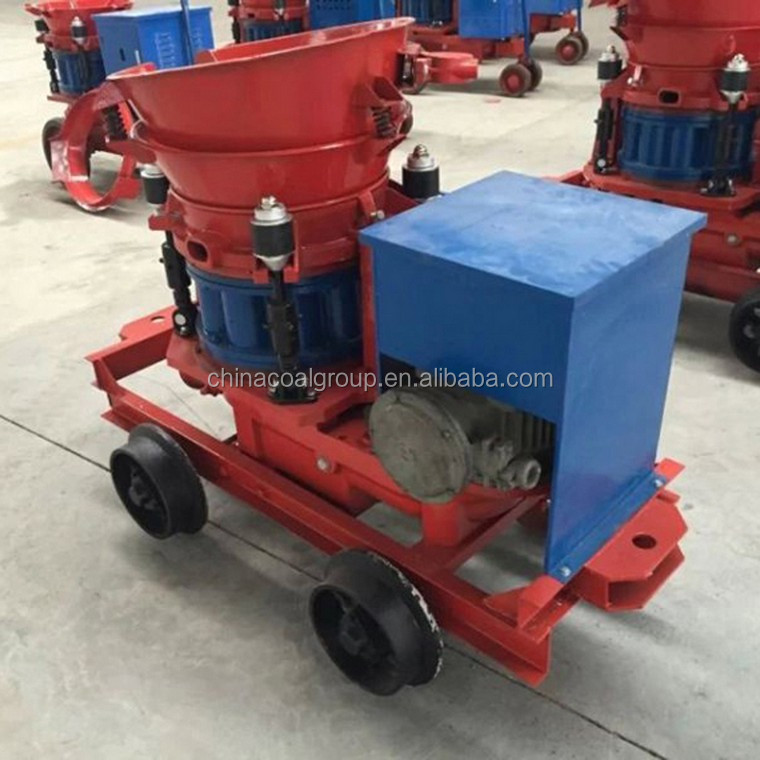

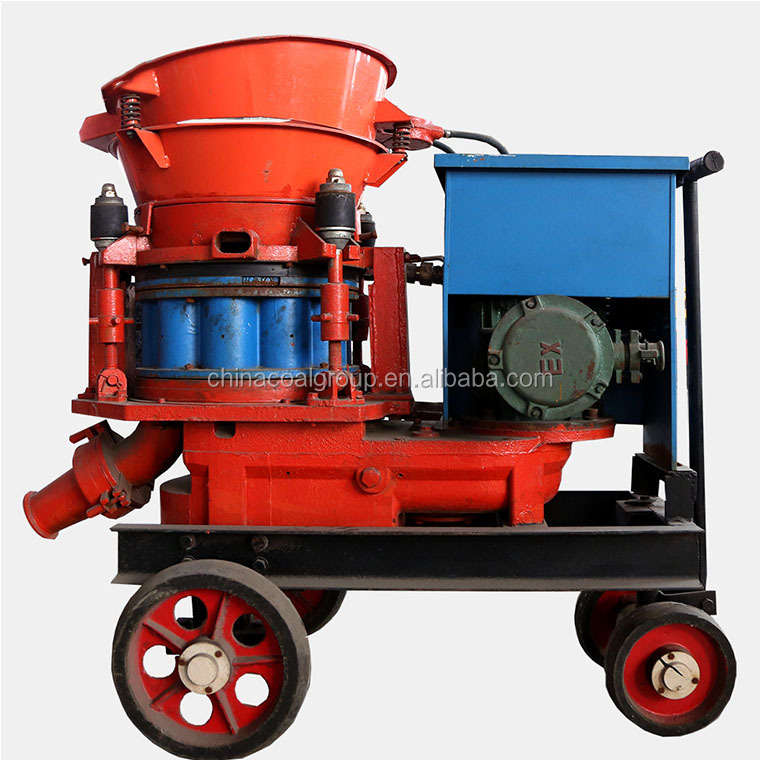

Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
1 / 5
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine
Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine

Explosion-proof Wet Shotcrete Machine Dry-mix Mortar Conveying Equipment Dry-mix Mortar and Concrete Spraying Machine

Send Inquiry

Product Description

Explosion-proof Wet Shotcrete Machine Installation Instructions
Introduction Of Explosion-proof Wet Shotcrete Machine

The HSP Gunite Machine for Construction uses a whole cup type elastic material, the elastic sticky discharges elbow, the overall clean boards. Rotor material cup and bend the material has a self-cleaning effect, non-adhesive, non-blocking, no cleaning, dust concentration 20mg/m3, the average rebound rate 15%.

Key Features: Simple structure, high reliability, high efficiency, easy assembly and disassembly of the nozzle, discharge uniformity, and long life of wearing parts. It stands as one of the leading technology concrete injection machines in the industry.

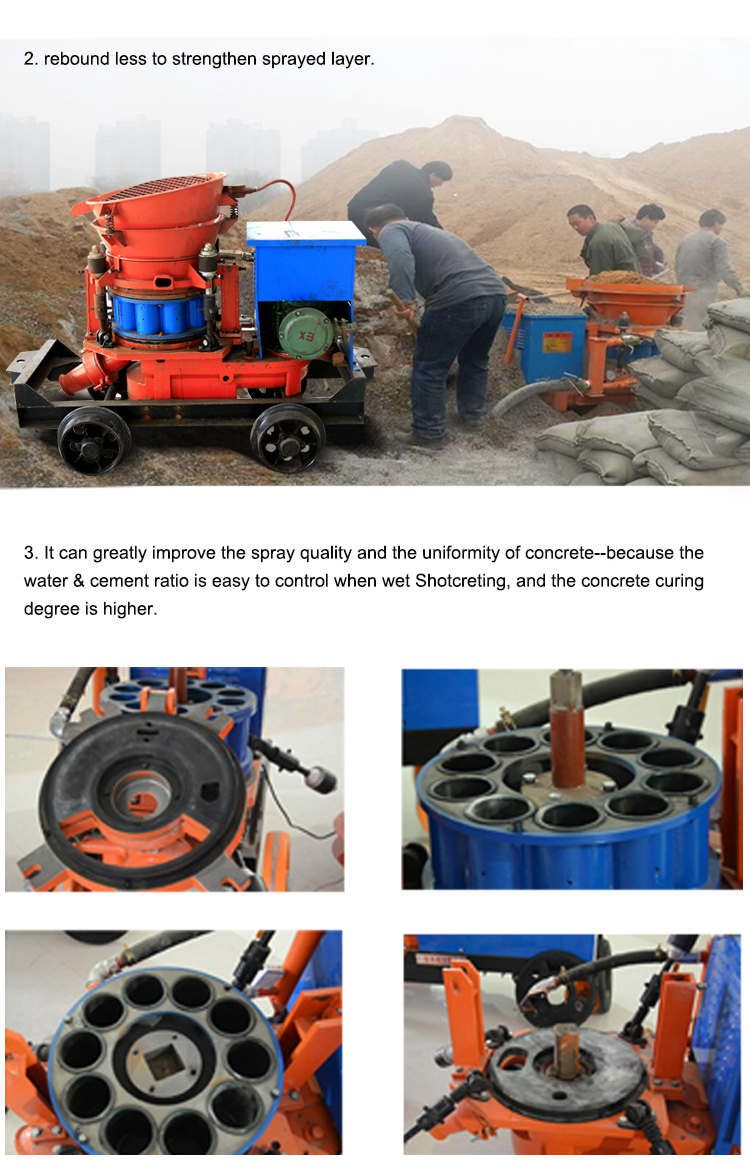

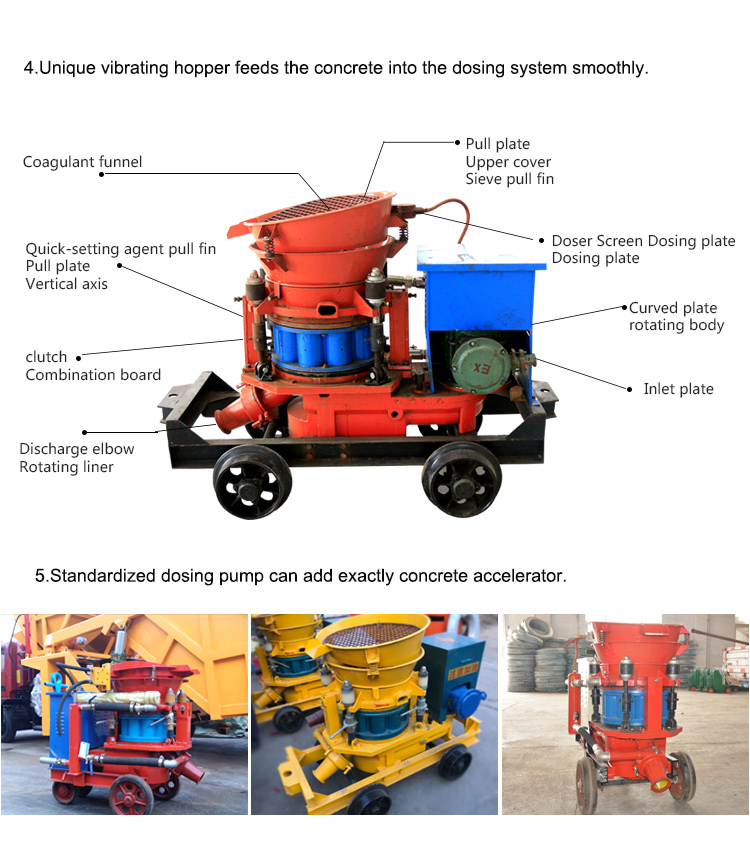

Shotcrete Machine Side View Shotcrete Machine Components
Product Parameters
Technical Specifications Overview
Model PZ-3 PZ-5 PZ-7 HSP-5 HSP-7 HSP-9
Output 3.5m³/h 5m³/h 7m³/h 4.0-5.0m³/h 5.0-7.0m³/h 6.0-9.0m³/h
Max. Convey Distance (H) 200m 200m 200m 30-50m 30-50m 30-50m
Max. Convey Distance (V) 20m 20m 20m 20m 20m 20m
Water Cement Ratio ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Max. Aggregate Size Φ20mm Φ20mm Φ20mm Φ15mm Φ15mm Φ15mm
Hose Inner Size Φ38mm Φ51mm Φ64mm Φ51mm Φ51/64mm Φ51/64mm
Operating Air Pressure 0.4~0.6MPa 0.4~0.6MPa 0.4~0.6MPa 0.3-0.6Mpa 0.3-0.6Mpa 0.3-0.6Mpa
Air Consumption 3-4 m³/min 7-8 m³/min 12-15 m³/min 10.0-15.0m³/min 10.0-15.0m³/min 10.0-15.0m³/min
Voltage 380V / Customized 380V / Customized 380V / Customized 380V / Customized 380V / Customized 380V / Customized
Detailed Product Images
Product Image Banner

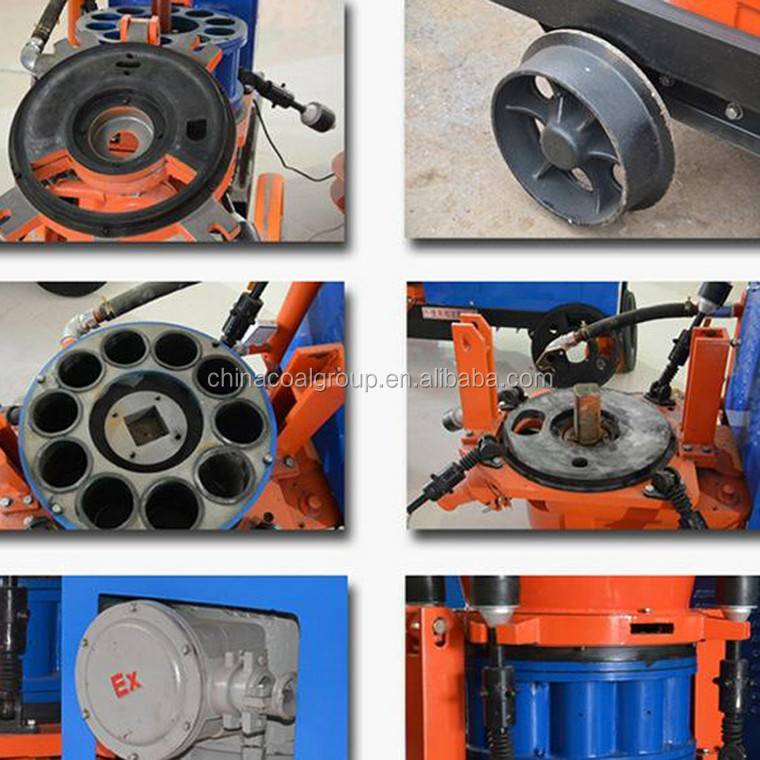

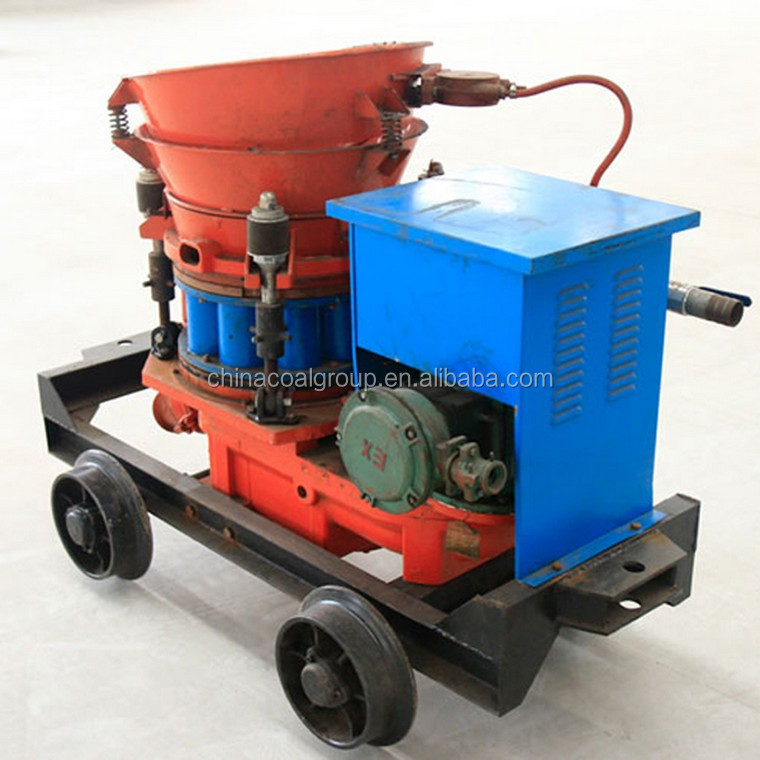

Machine Detail 1 Machine Detail 2

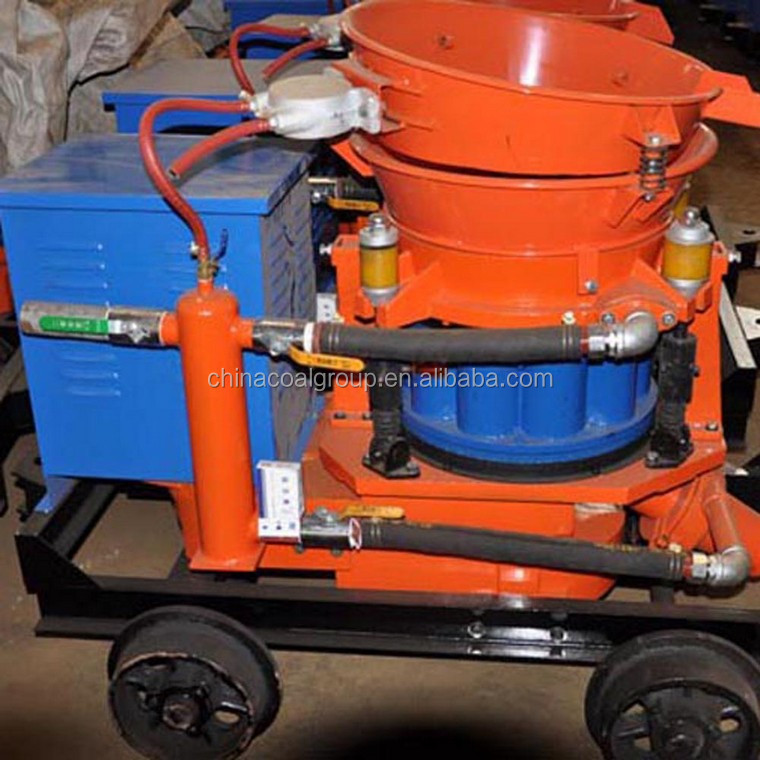

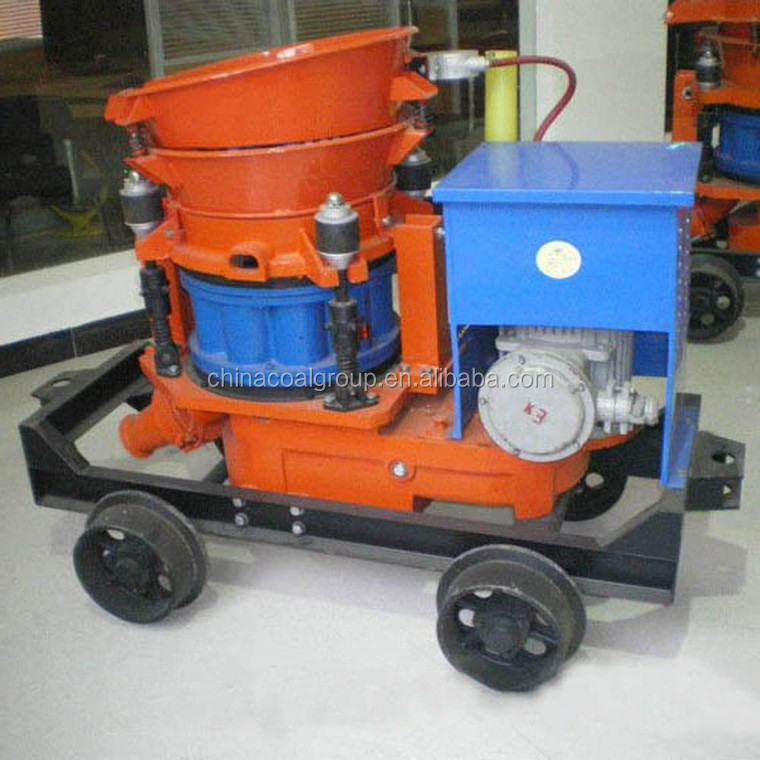

Machine Detail 3 Machine Detail 4
Machine in Operation
Why Choose Our Equipment

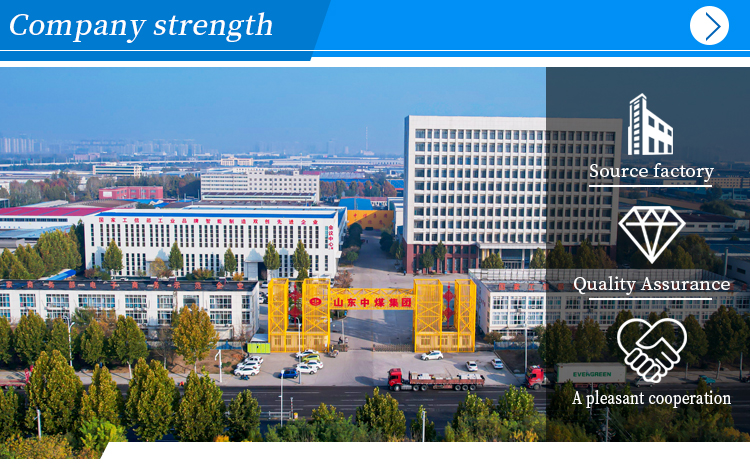

Professional Manufacturing Quality Control Engineering Expertise
Certifications Client Support
Frequently Asked Questions (FAQ)
Are you a manufacturing factory or a trading company?
We are a dedicated manufacturing factory specializing in mine support equipment, transport equipment, lifting equipment, spray equipment, and more.
What are your primary products?
Our main production lines focus on mining machinery and railway equipment. We offer a wide range of industrial machinery tailored to your project needs.
What is the typical production lead time?
Generally, lead time is 15-20 days for in-stock goods. For out-of-stock items or large bulk orders, it typically takes 20-30 days depending on the quantity.
What payment terms do you accept?
We accept various payment terms including TT in advance (30% deposit, 70% balance before shipment), bank transfers, PayPal, and L/C.
How is the quality of the machinery controlled?
We utilize a professional design team and experienced engineers to oversee production. Our facility is ISO9001, CE, and SGS certified to ensure strict quality standards.
Can the equipment be customized to specific voltages?
Yes, our standard is 380V, but we can customize the power requirements to meet your specific local electrical standards.
