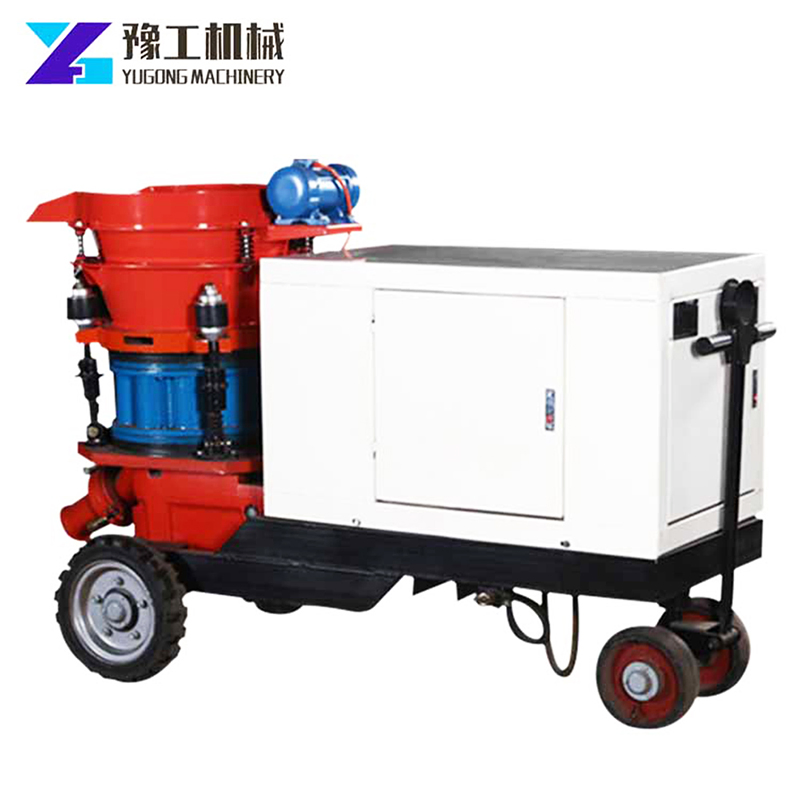

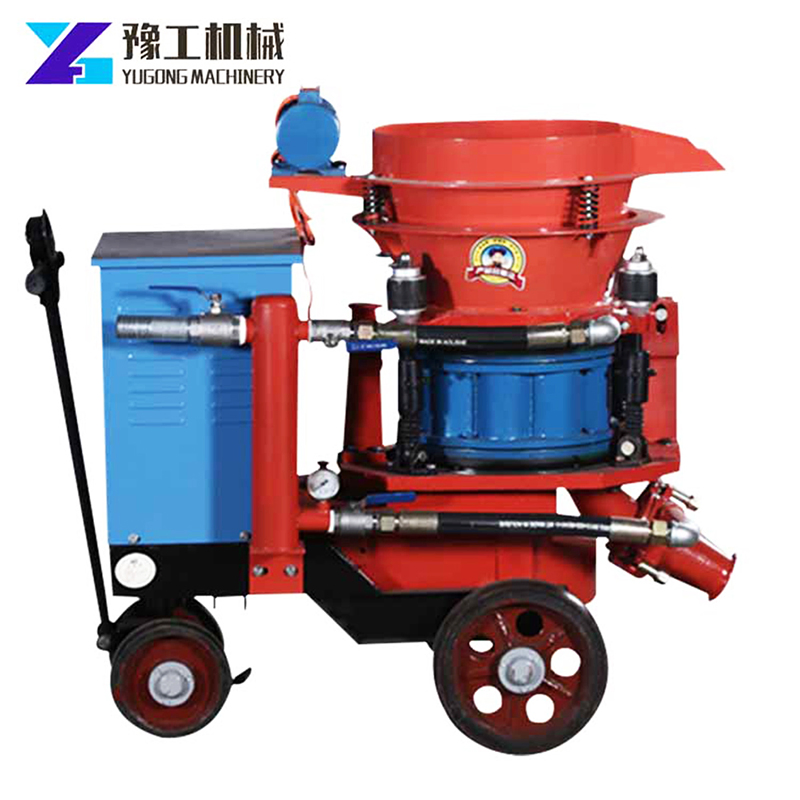

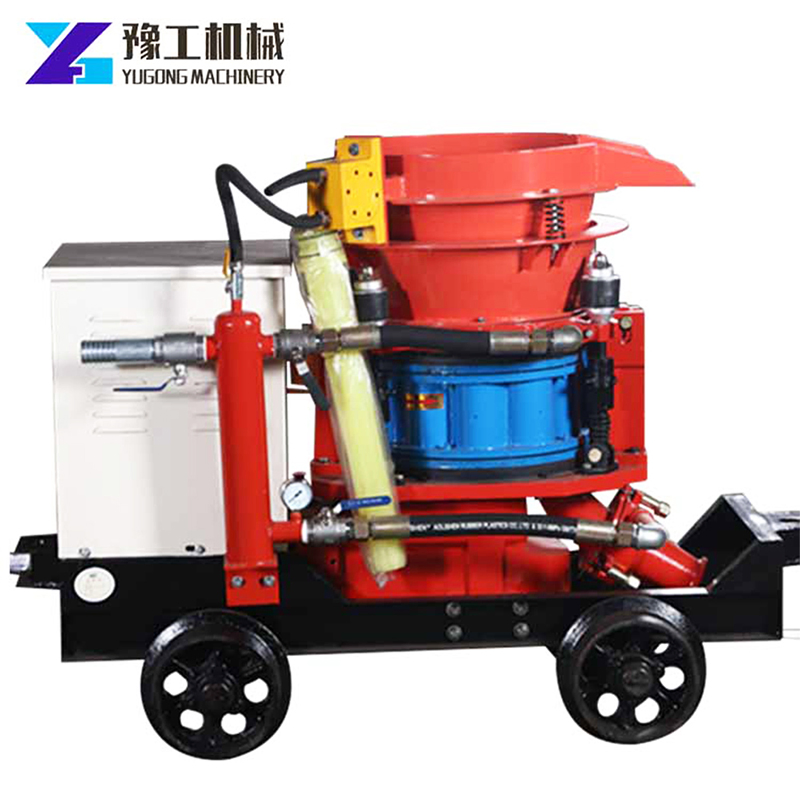

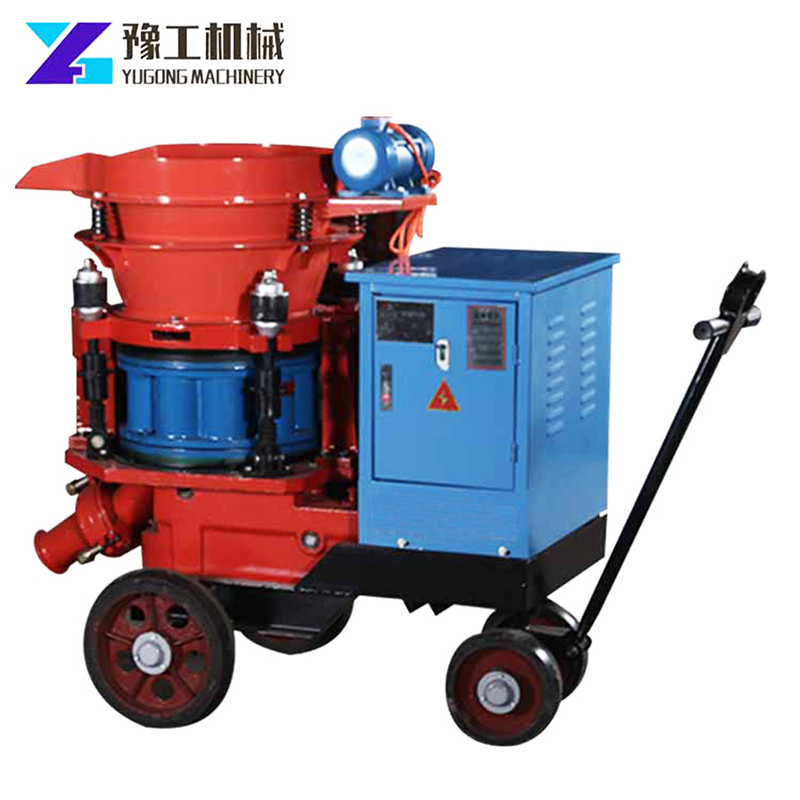

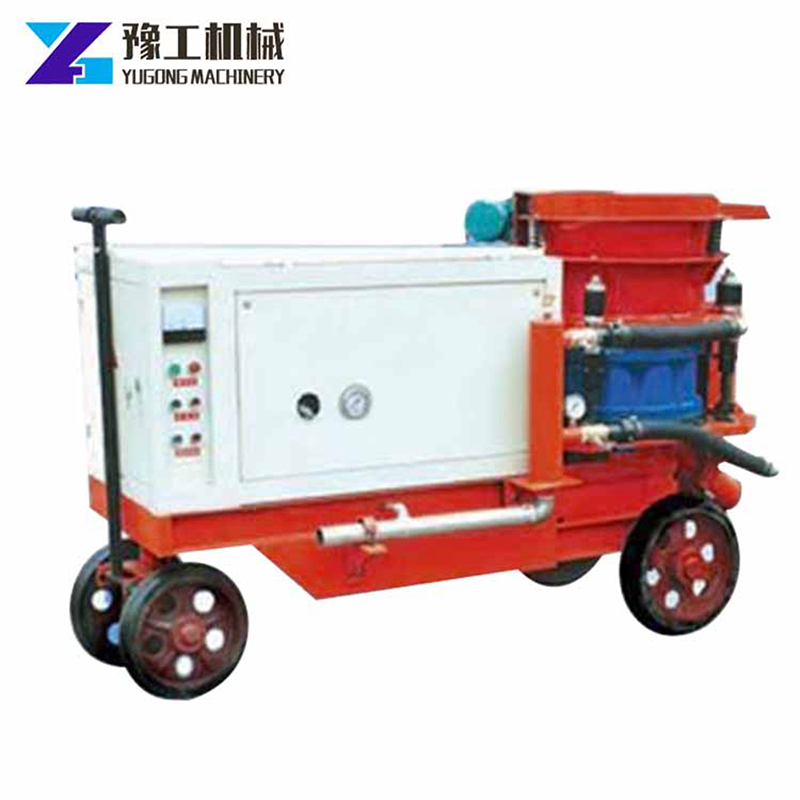

Wet and Dry Mix Explosion-Proof Shotcrete Plastering Machine

Customization: Available
Type: Shotcrete
Shotcrete Type: Wet and Dry Mix

Product Description

📋

Basic Information

Model NO.YGM
Machining ProcessElectric
StructureRotor Type
Productivity5-8m³/H
Feeding Height200m
CertificationISO9001: 2000, CE, SGS
ColorCustomizable
ApplicationTunnel Mining Swimming Pool Walls Construction
Motor Power5.5/7.5 Kw
HS Code8401200000
⚙️

Wet and Dry Mix Shotcrete Machine

Shotcrete machine is a kind of spraying machine like mortar spraying machine which works by using compressed air to continuously transport concrete along the shotcrete machine hose and spray it to the construction surface by a shotcrete nozzle. It is well received by the market because of its high efficiency, low cost, easy operation, and wide application.

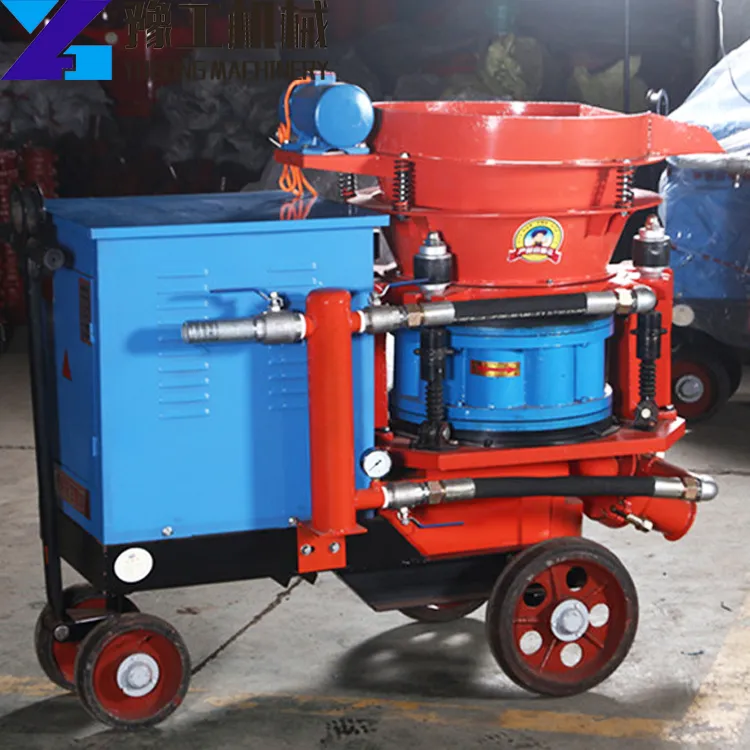

Shotcrete Machine View 1

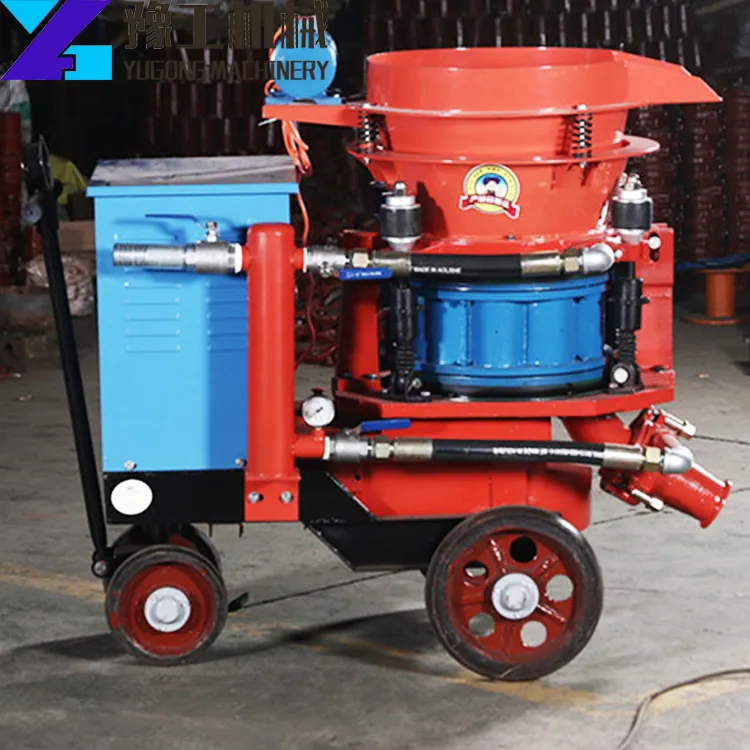

Shotcrete Machine View 2

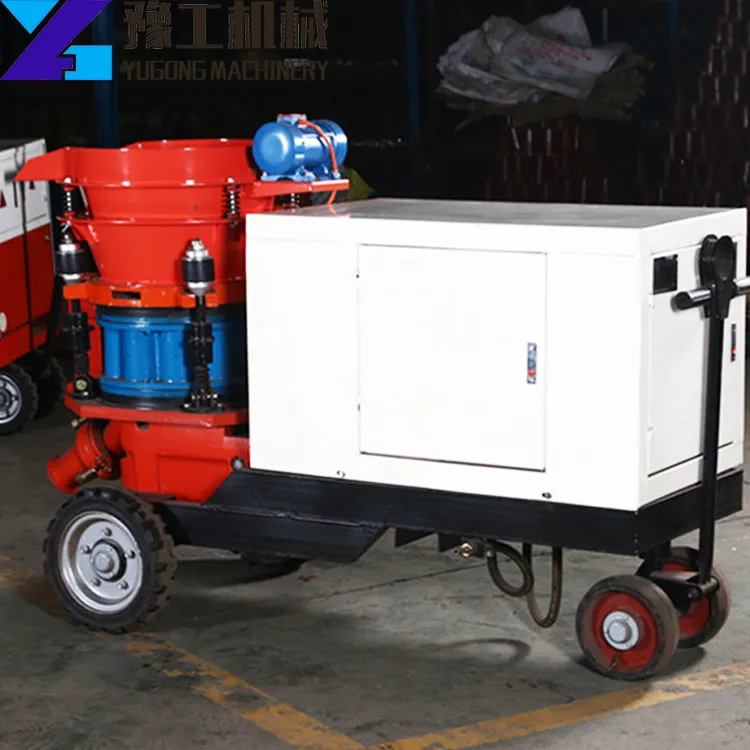

Shotcrete Machine View 3
📊

Dry Shotcrete Specification

Model YGM-DS5P YGM-DS7P
Capacity (cubic m/h)57
Tube Diameter (mm)5157
Discharge Head (Horizontal)200m200m
Max Aggregate (mm)2020
Air Pressure (mpa)0.4-0.60.6-0.8
Motor Power(kw)5.57.5
Weight (kg)850950
📊

Wet Shotcrete Technical Parameter

Model GM-WS5P YGM-WS7P
Capacity (cubic m/h)57
Tube Diameter (mm)5157
Discharge Head50m(H) / 20m(V)50m(H) / 20m(V)
Max Aggregate (mm)1515
Compressed Air Consumption7-10m³/min7-10m³/min
Motor Power(kw)5.57.5
Dimension (mm)1350*750*11501400*750*1300

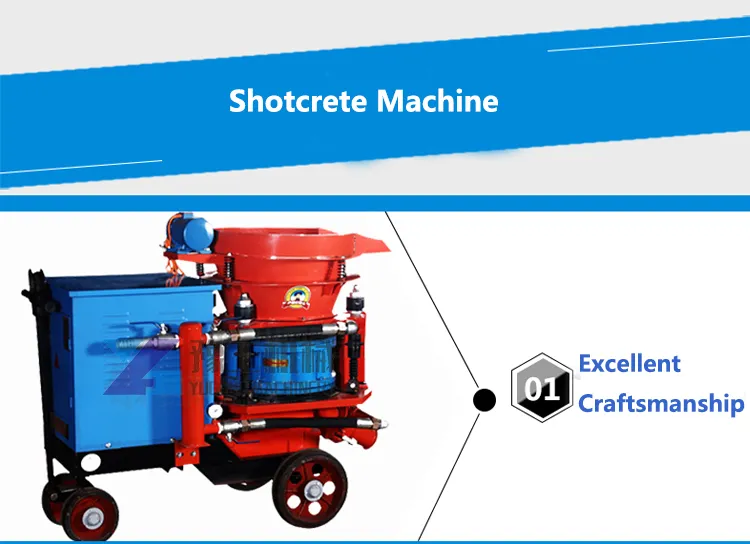

Machine Detail 1

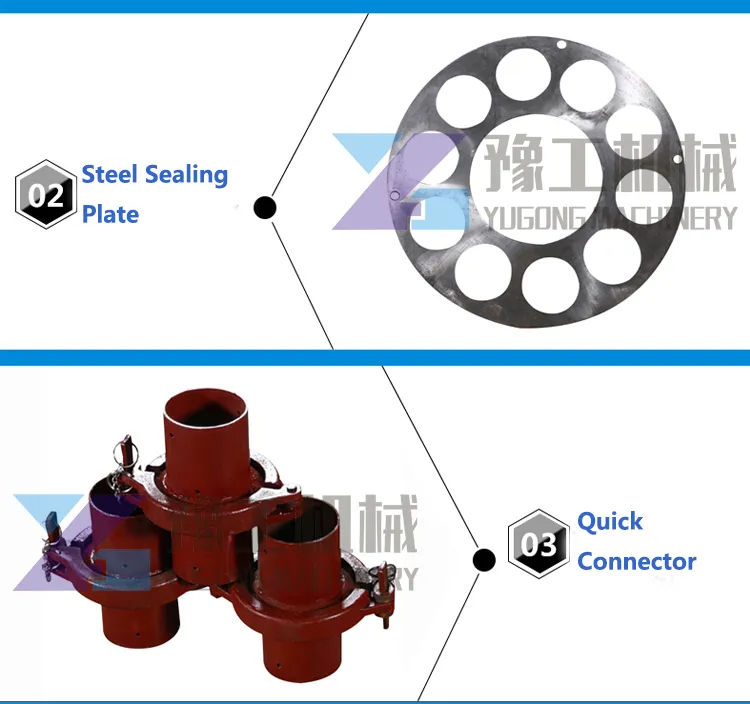

Machine Detail 2

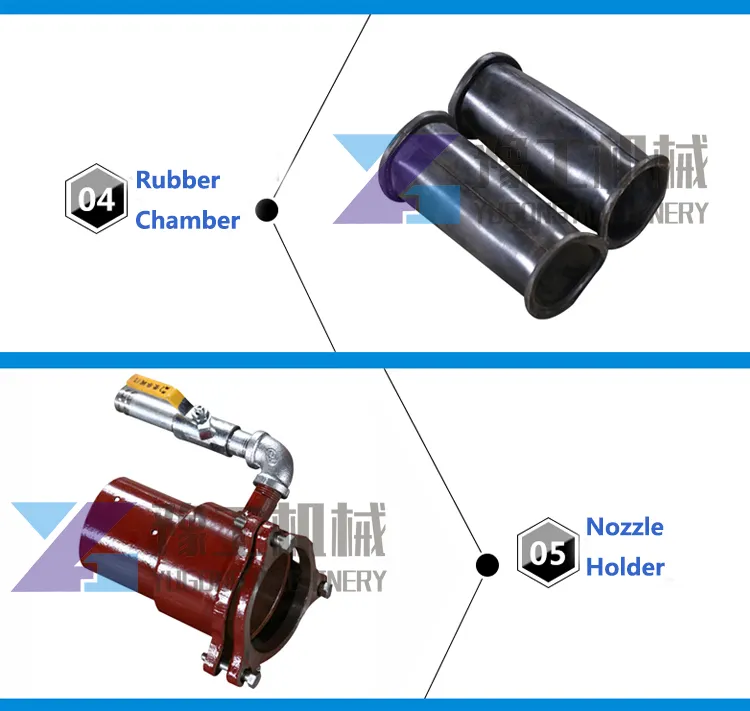

Machine Detail 3

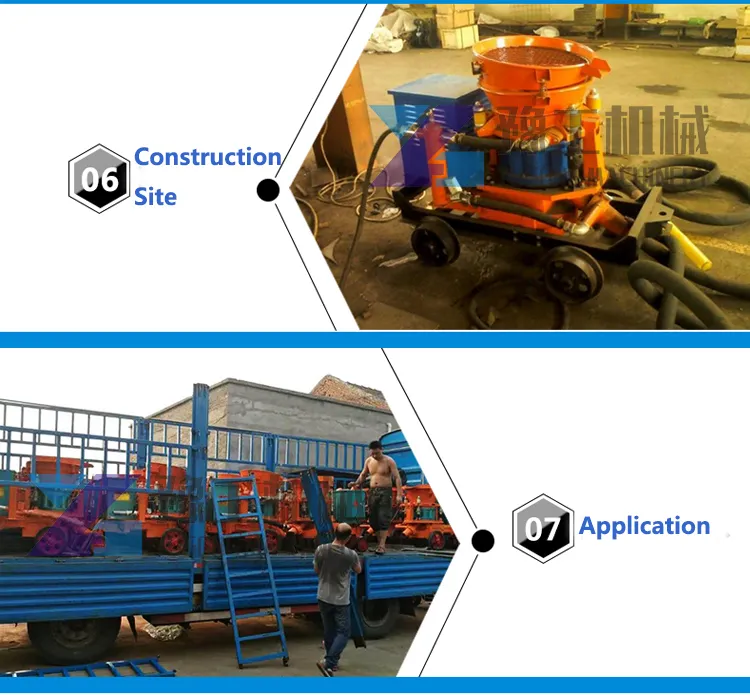

Machine Detail 4

Major Advantages

01
The wet shotcrete machine greatly reduces dust density around the machine and nozzle, protecting workers' health.
02
Much higher efficiency compared to manual work, significantly speeding up construction.
03
Low rebound rate: reduces rebound to under 10% compared to 15%-50% with dry mix methods.
04
Improved concrete quality due to better water control in wet mix shotcrete.
📦

Packaging & Our Services

Packaging: General export packing or customized packaging.
Delivery: 20-30 working days after deposit.
Packaging
1. Pre-Sale: Recommend suitable machine models according to your specific application.
2. In-Sale: Order confirmation, production monitoring, and professional packaging/shipping coordination.
3. After-Sale: 24-hour online technical support to ensure smooth equipment operation.

Frequently Asked Questions

1. What is the difference between wet and dry shotcrete machines? Wet shotcrete machines use pre-mixed concrete with water, resulting in less dust and a lower rebound rate (under 10%), while dry mix machines mix water at the nozzle.
2. What are the primary applications for this equipment? Our machines are ideal for tunnel construction, mining operations, retaining walls, swimming pool construction, and underground engineering projects.
3. What is the maximum feeding distance? The dry shotcrete models can reach a horizontal discharge head of up to 200 meters.
4. Can I customize the color of my machine? Yes, the machine color is customizable to meet your company's branding or preference.
5. What is the typical delivery time for an order? Standard models in stock usually take 3-5 days. For customized requirements, the delivery time is generally between 15 to 30 working days.
6. What payment methods do you accept? We accept various payment terms including T/T, Western Union, Money Gram, and Paypal to facilitate easy transactions.
