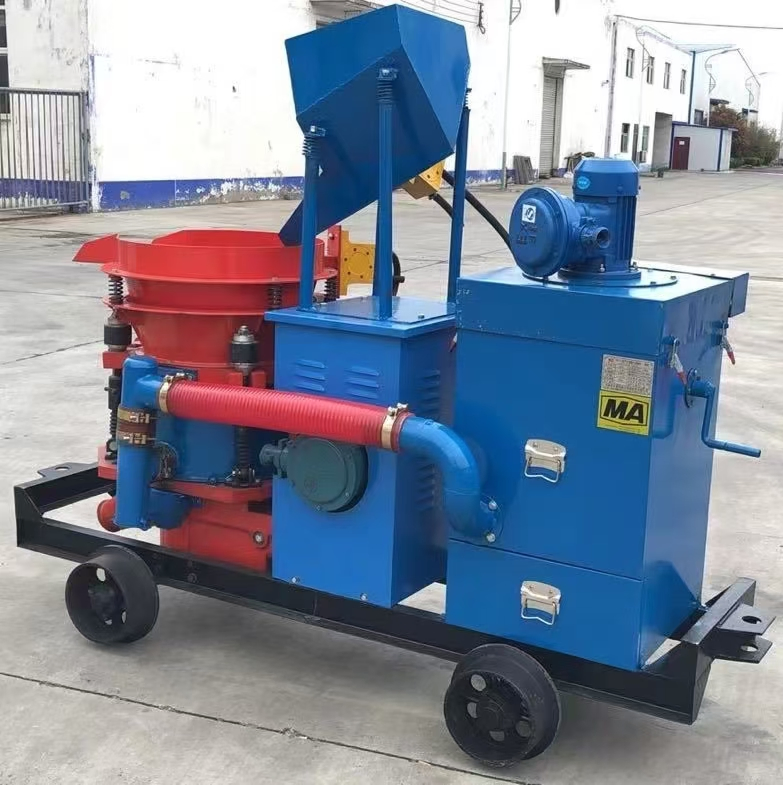

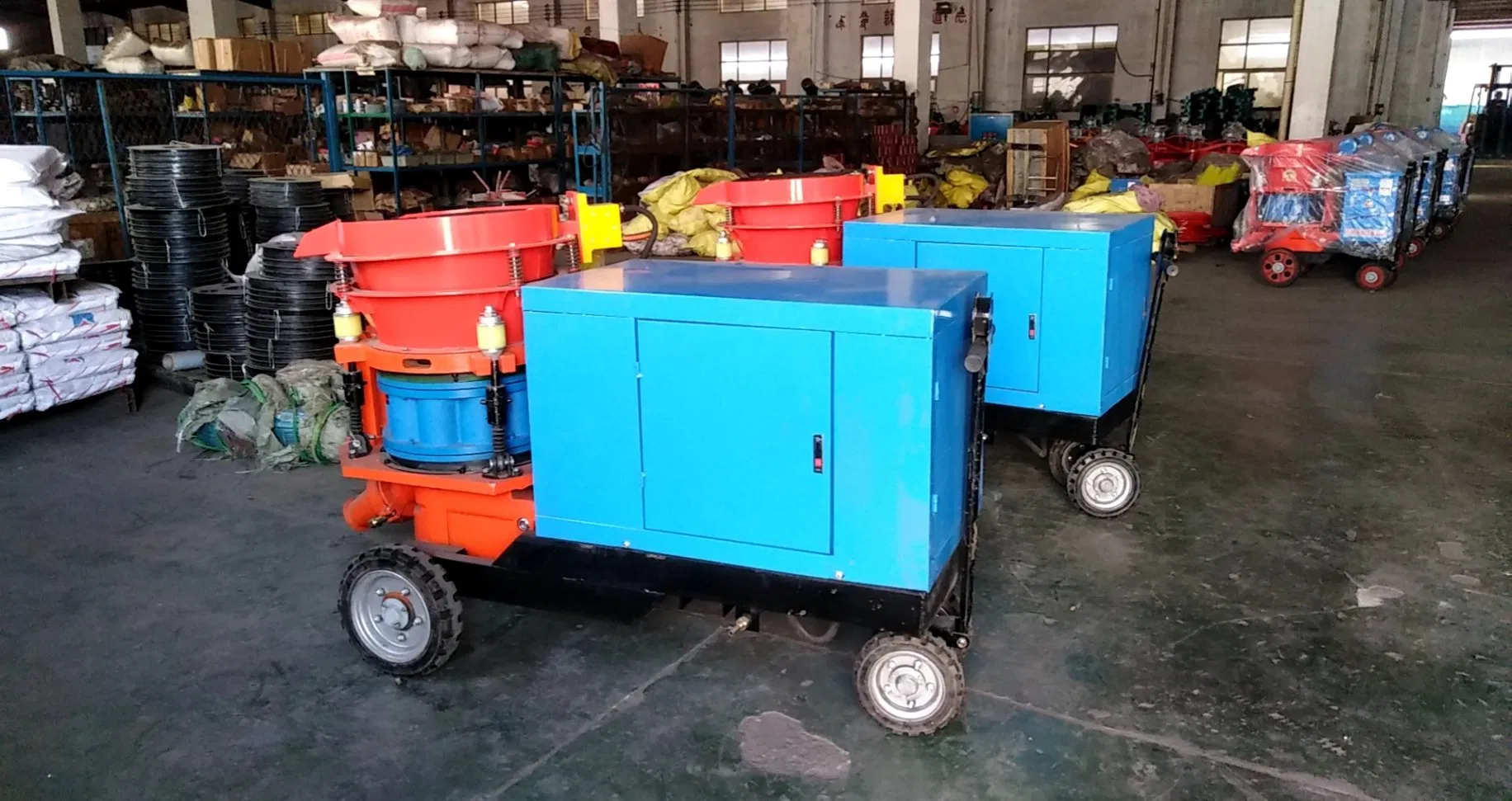

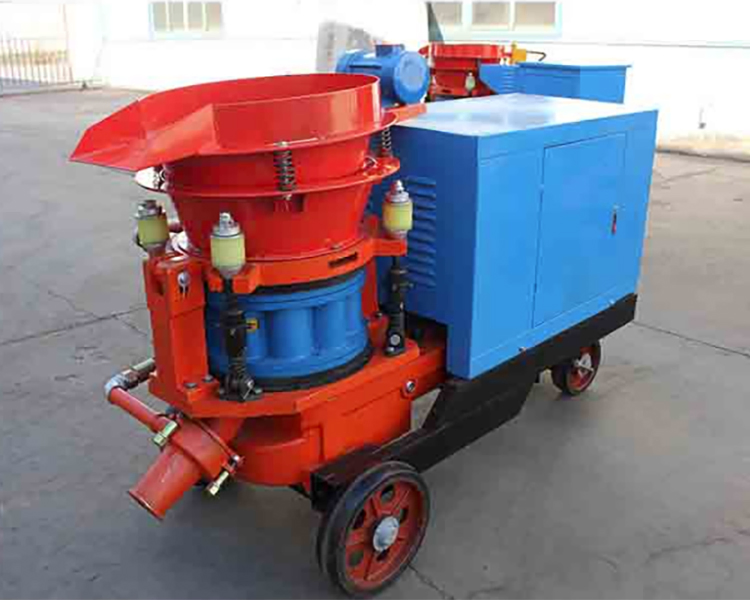

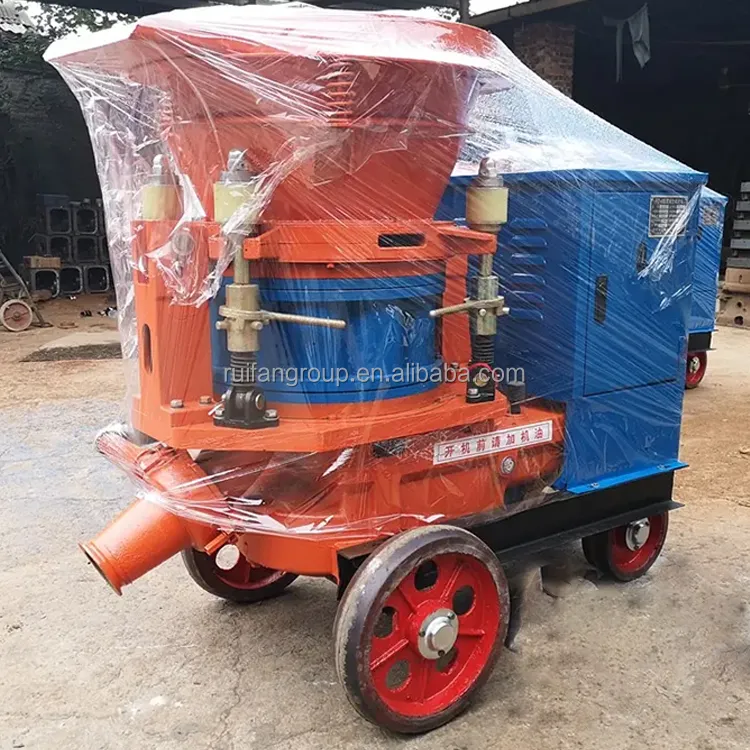

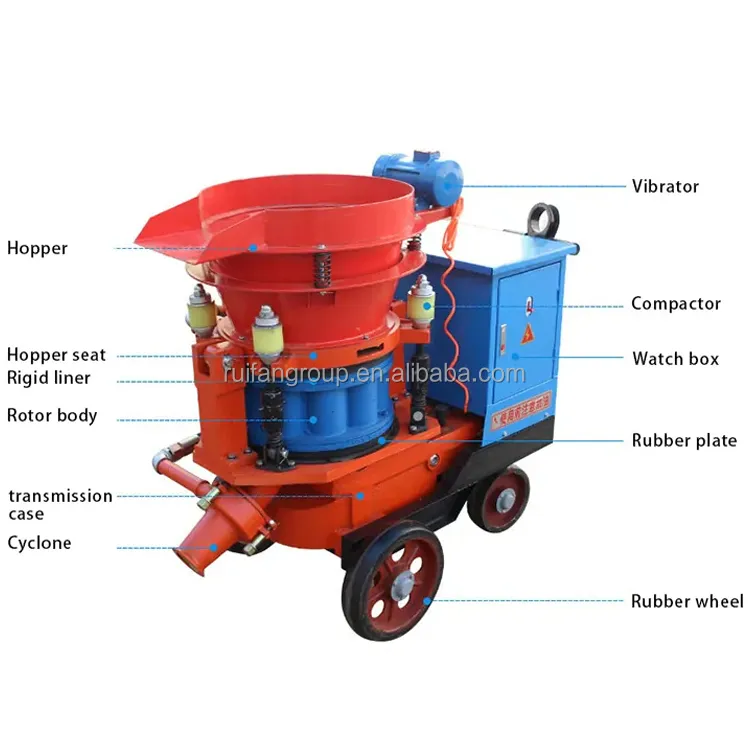

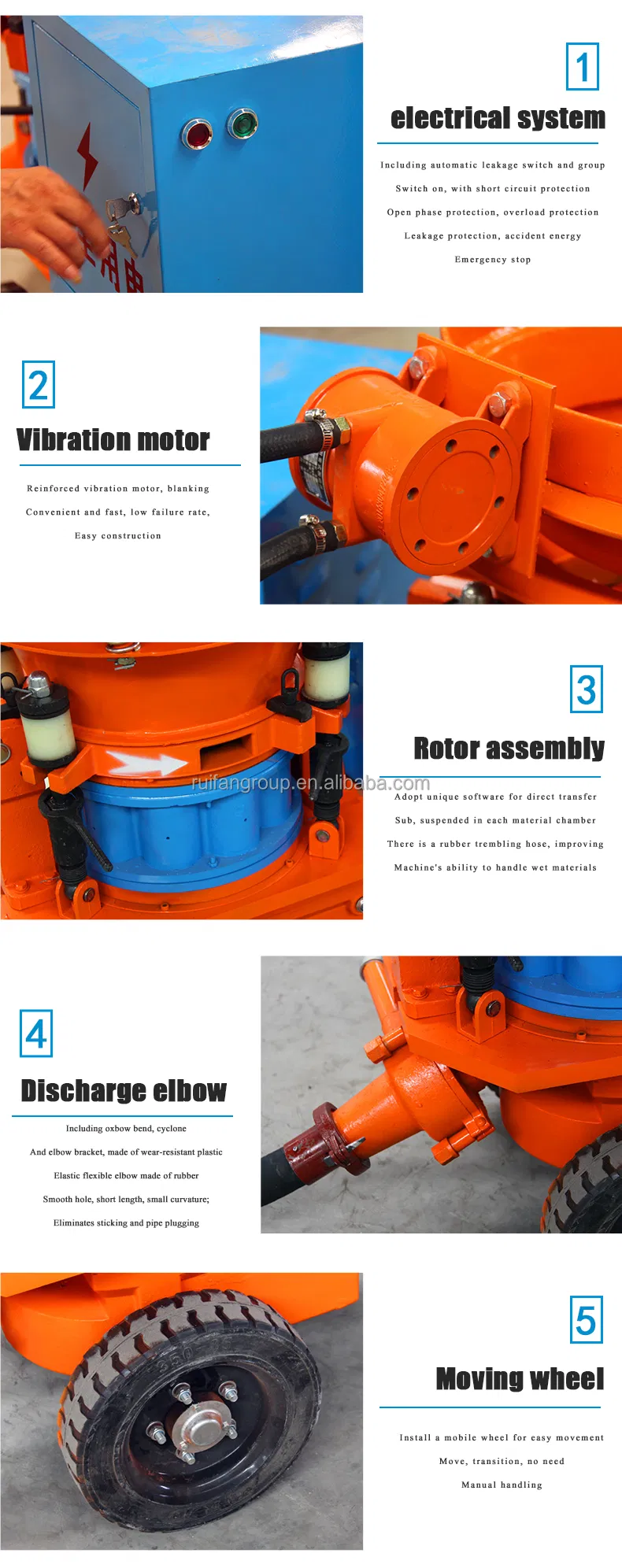

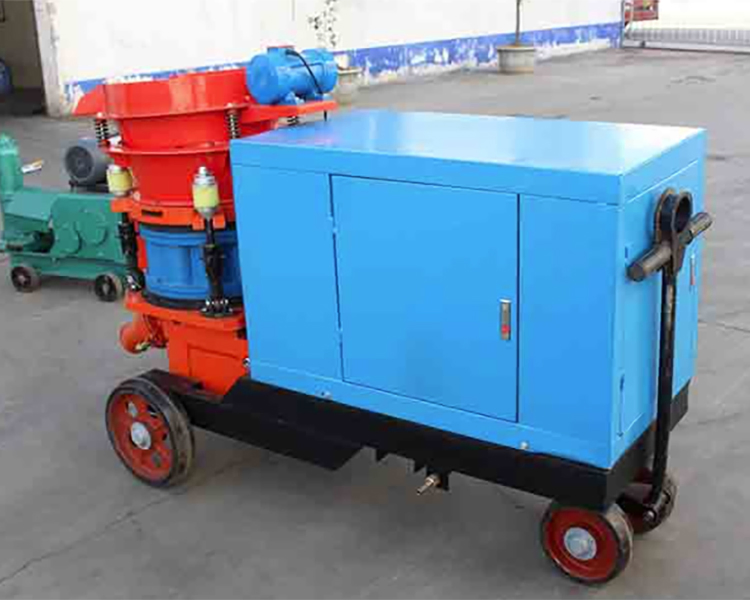

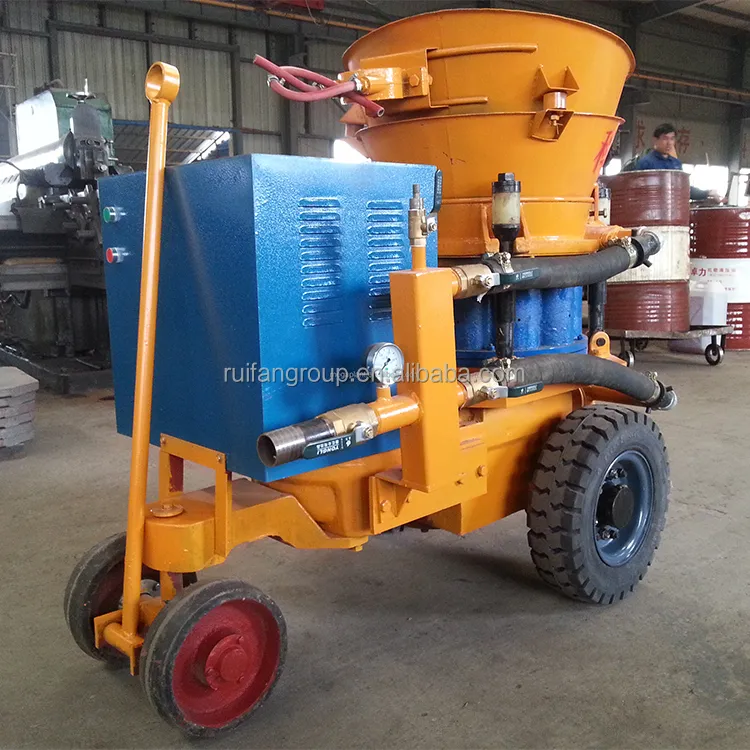

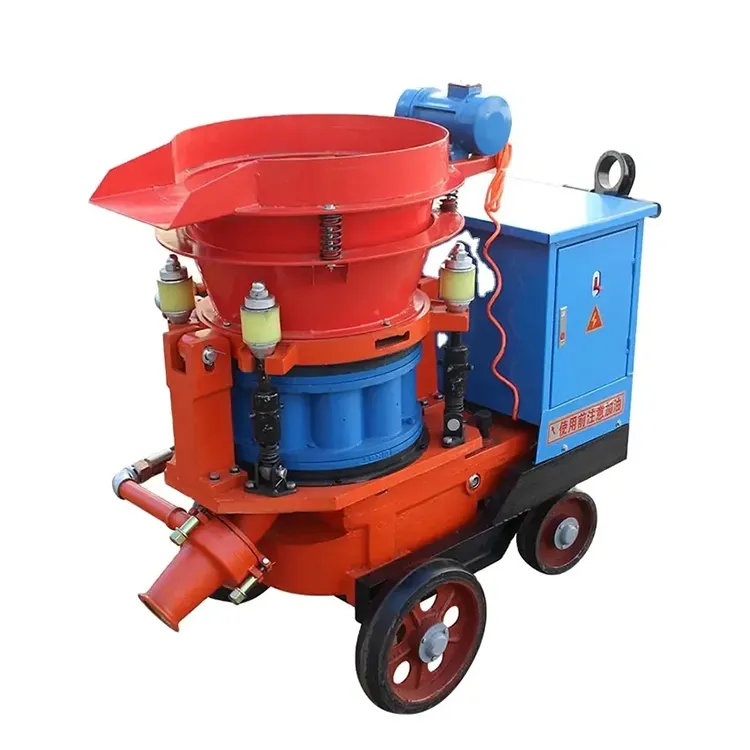

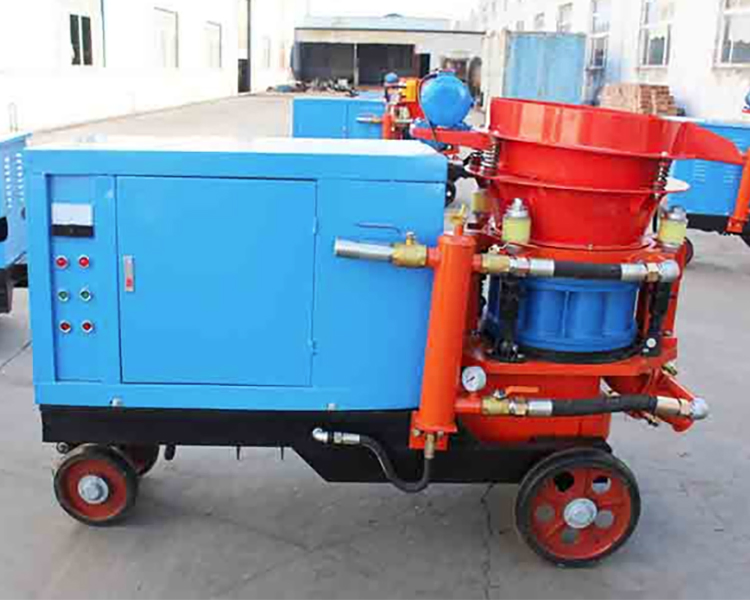

Shotcrete machine is a small size slope protection concrete refractory shotcrete machine that utilizes air pressure to transport dry or wet material through a hose to the water nozzle. The PZ series electric dry powder shotcrete machine is a high-yield, continuous feed device suitable for both underground mining environments and construction sites. The system adopts a rotor feeding system, ensuring continuous operation, long service life, and low maintenance costs.
| Model | PZ-3 | PZ-5 | PZ-6 | PZ-7 |
|---|---|---|---|---|
| Production capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h |
| Max Transmission Distance | 200m | 200m | 200m | 200m |
| Water-cement ratio | <0.4 | <0.4 | <0.4 | <0.4 |
| Max Aggregate Size | 10mm | 15mm | 15mm | 20mm |
| Working pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa |
| Blast consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h |
| Motor power | 4KW | 5.5KW | 5.5KW | 7.5KW |
| Weight | 400kgs | 700kgs | 700kgs | 800kgs |

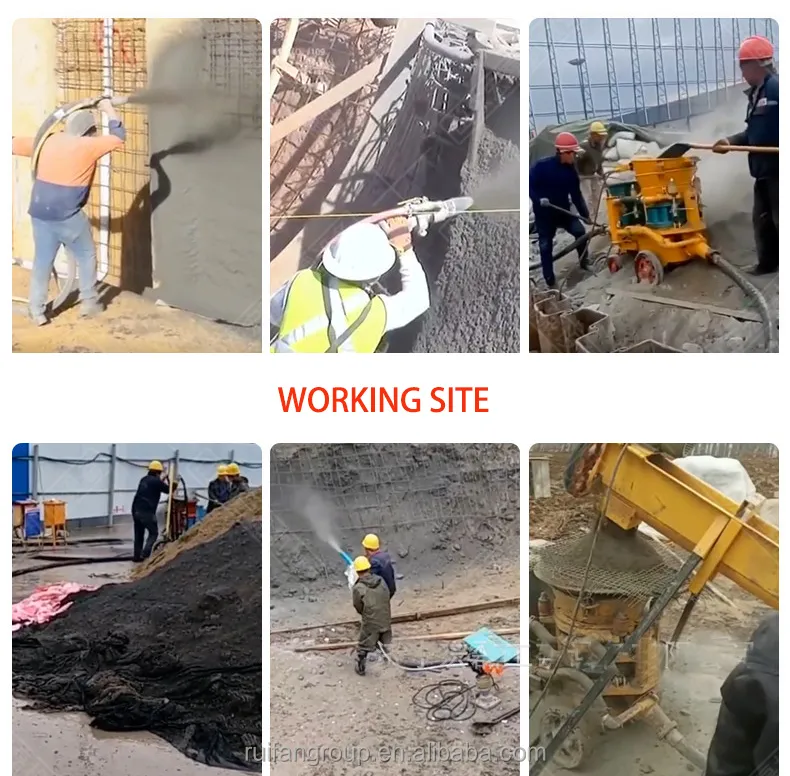

The concrete shotcrete machine is widely used in road slope protection, civil underground foundation, spray swimming pools, tunnels, mining operations, hydropower engineering, slurry walls, and retaining walls.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided, typically using robust plywood cases for international transport.

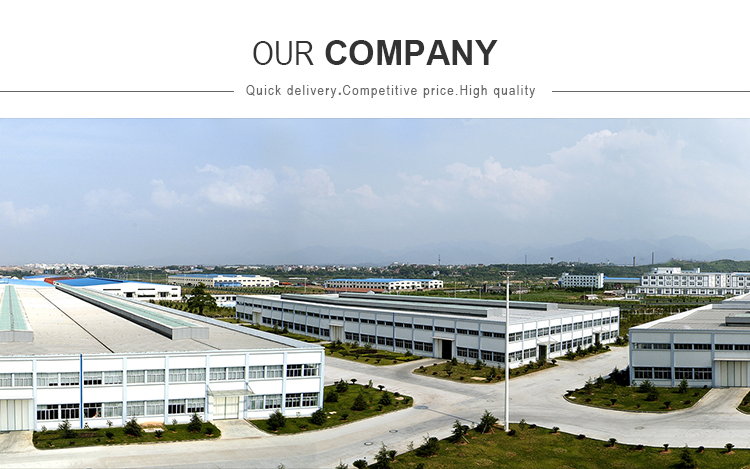

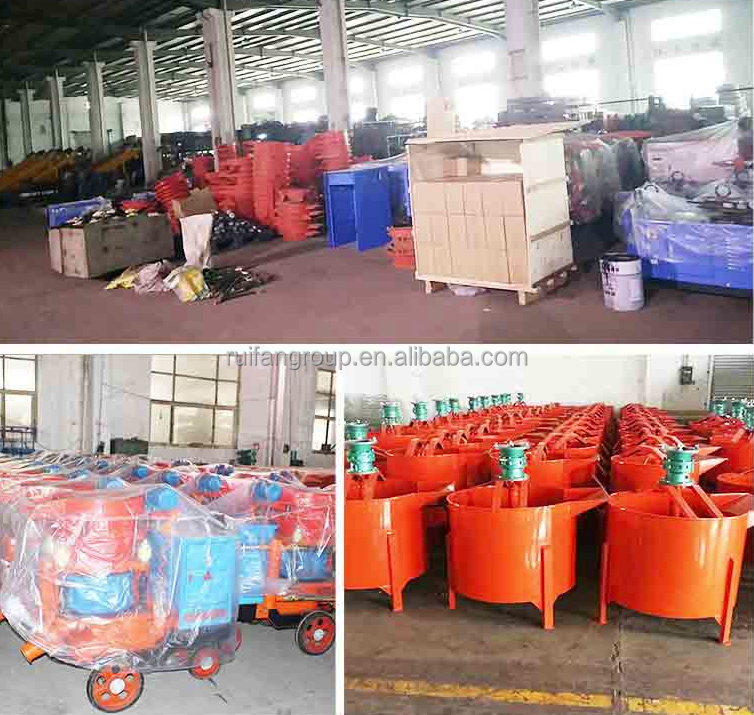

Our facility has become one of the most powerful air compressor and engineering drilling equipment manufacturers in the region. A drafting unit of national standards, all products have passed quality system certifications of ISO9001:2000. With a focus on technology research and development, our manufacturing capabilities span over 31,000m² with a dedicated team of technical personnel.
