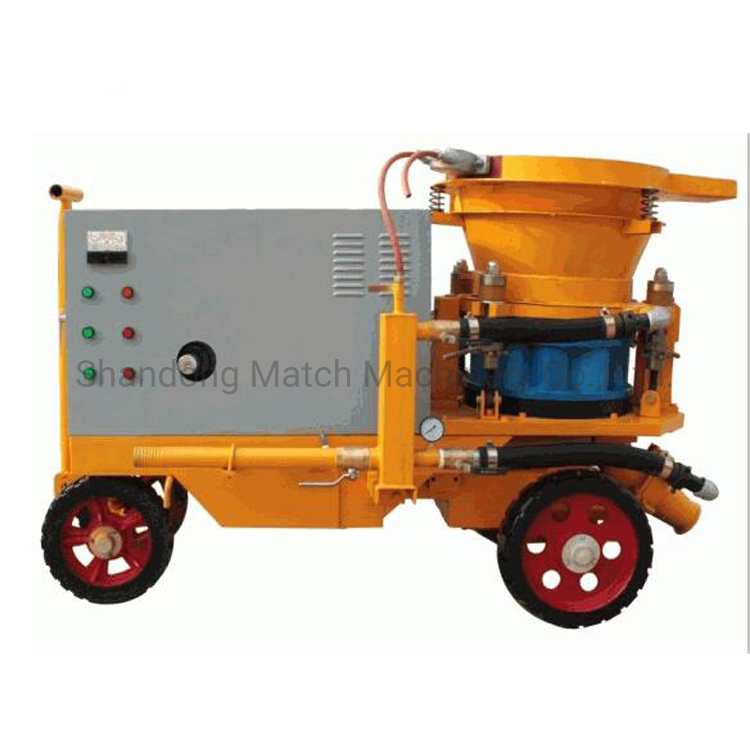

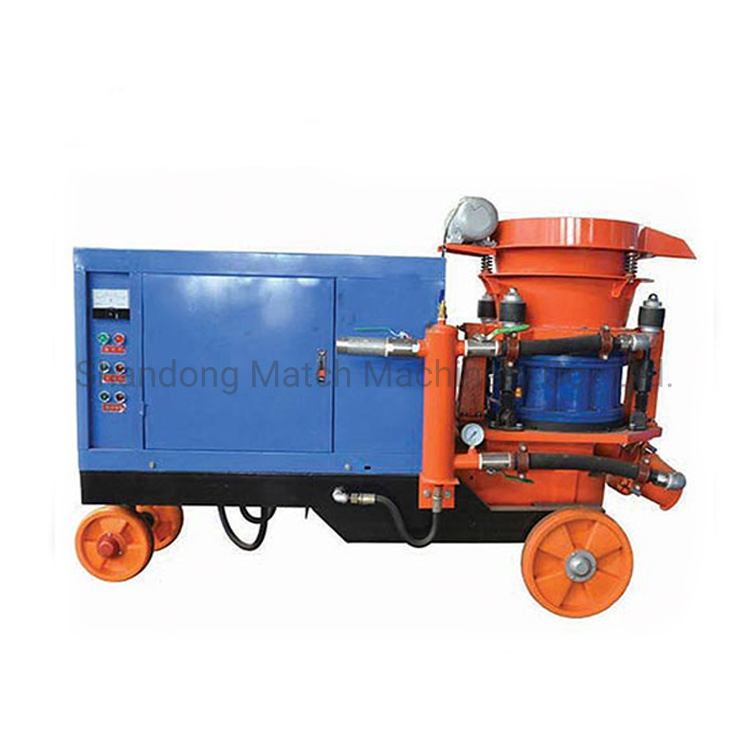

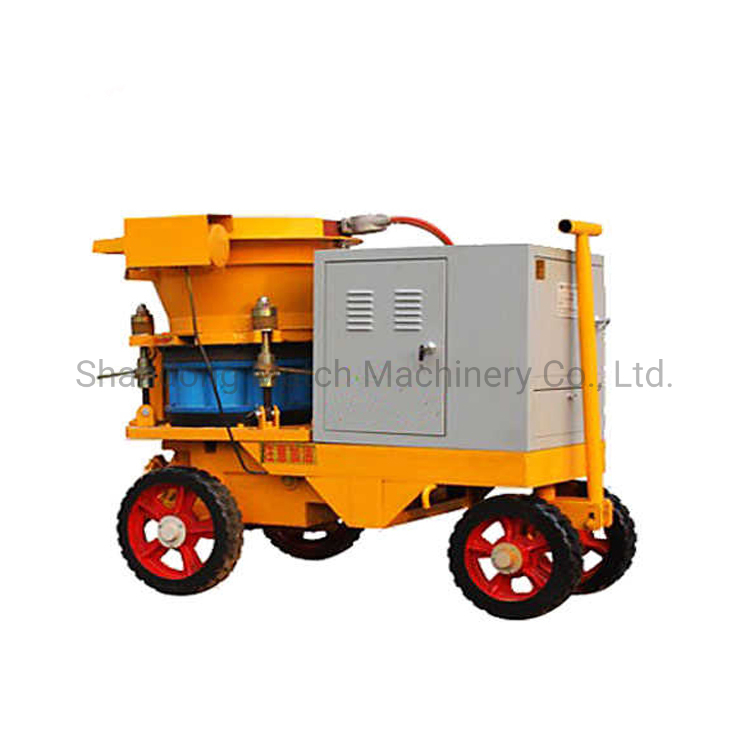

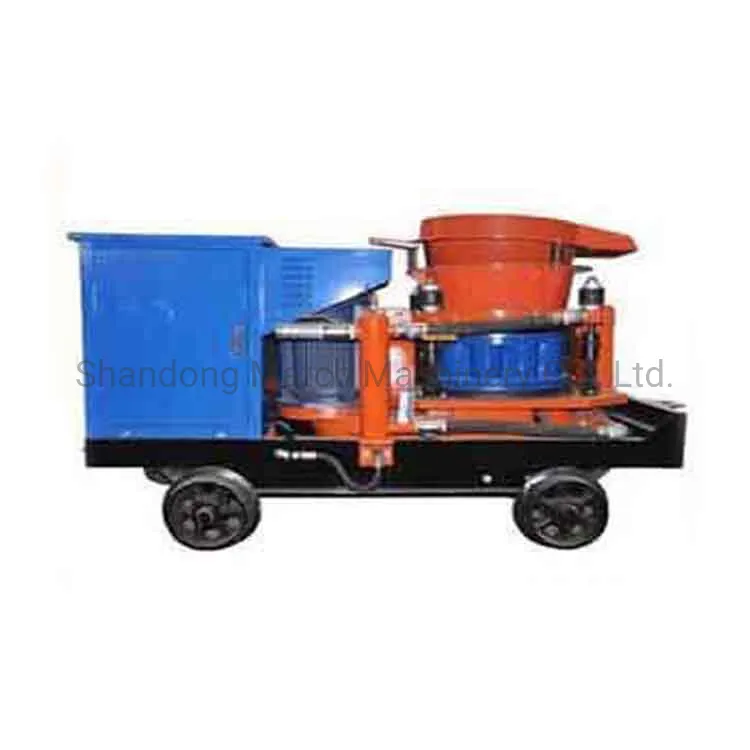

Wet Mixer Shotcrete Machine Feature:
Widely used for Construction Engineering, Mining, Tunnel, Culvert, Hydroelectric Project. HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, has been designed especially for spraying of concrete. It has the advantages of low dust, low rebound, high-strength concrete, simple operation, convenient for maintaining, and prolonged operation life.
The machine, combined with a dosing unit, is suitable for manual spraying or by means of a robotic arm. It is used for the application of shotcrete in rail and road tunnels, subway engineering, hydro-power engineering, underground engineering, mine galleries, and more.
Common Uses:
| Specification | HSP-5 | HSP-7 | HSP-9 |
|---|---|---|---|
| Capacity (m3/h) | 4-5 | 5-7 | 6-9 |
| Max. Conveying Distance (H/V m) | 30,20 | 30,20 | 30,20 |
| Feeding pipe inner diameters(mm) | 51 | 51/64 | 51/64 |
| Max. Aggregate Diameters (mm) | 15 | 15 | 15 |
| Working pressure (MPa) | 0.3-0.6 | 0.4-0.6 | 0.4-0.6 |
| Air consumption (m3/min) | 10-15 | 10-15 | 10-15 |
| Motor Model | Y132M-6-5.5KW | Y160M-6-7.5KW | Y160M-6-7.5KW |
| Overall weight (kg) | 700 | 800 | 900 |
