Basic Specifications
Machining Process
Transmission
Largest Aggregate Size
≤30mm
Max. Conveying Distance
Vertical 25-100m, Horizontal 75-240m

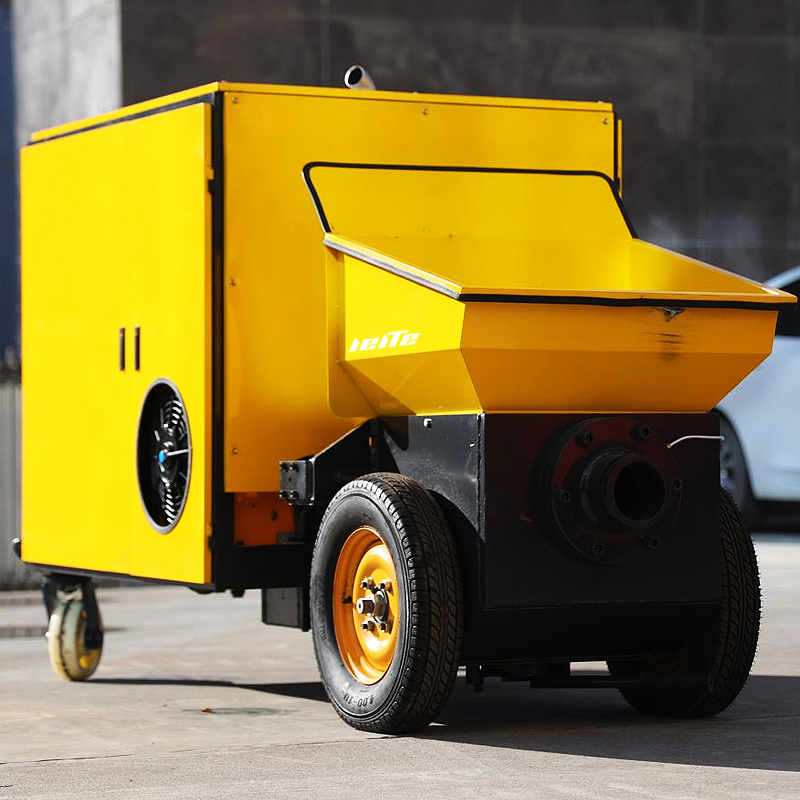

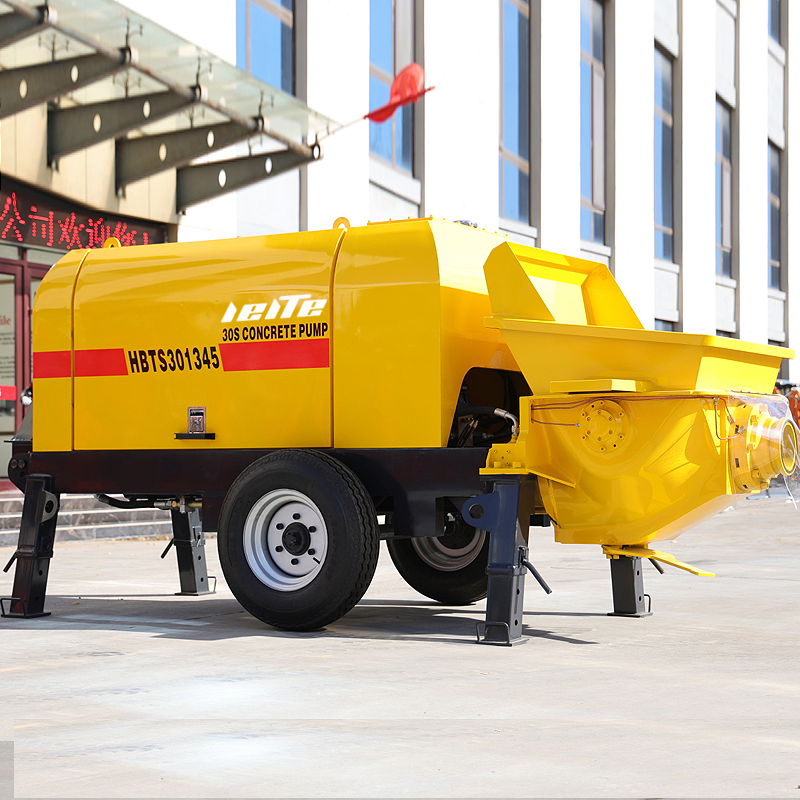

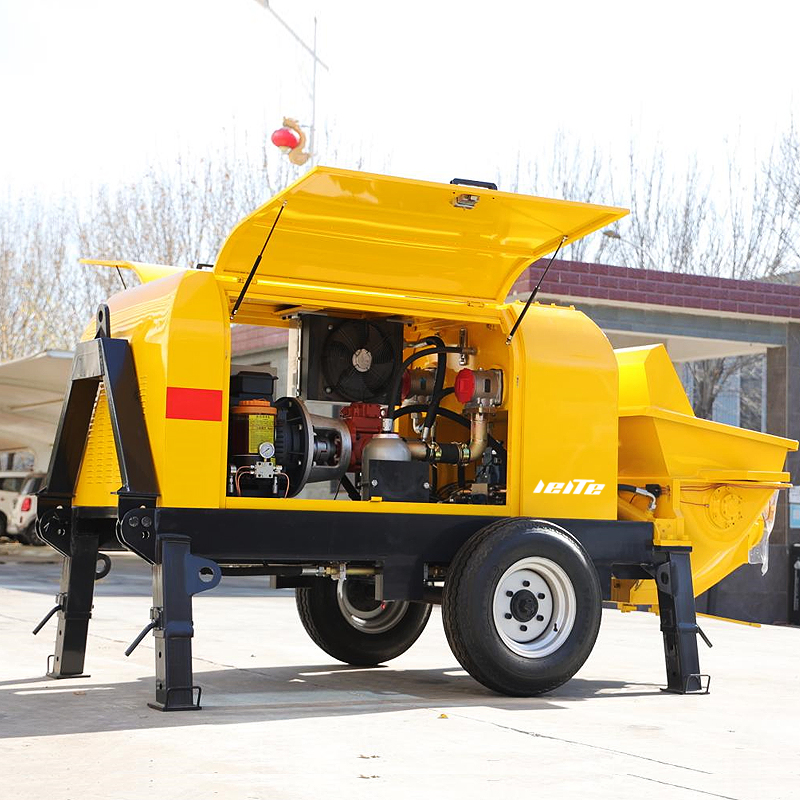

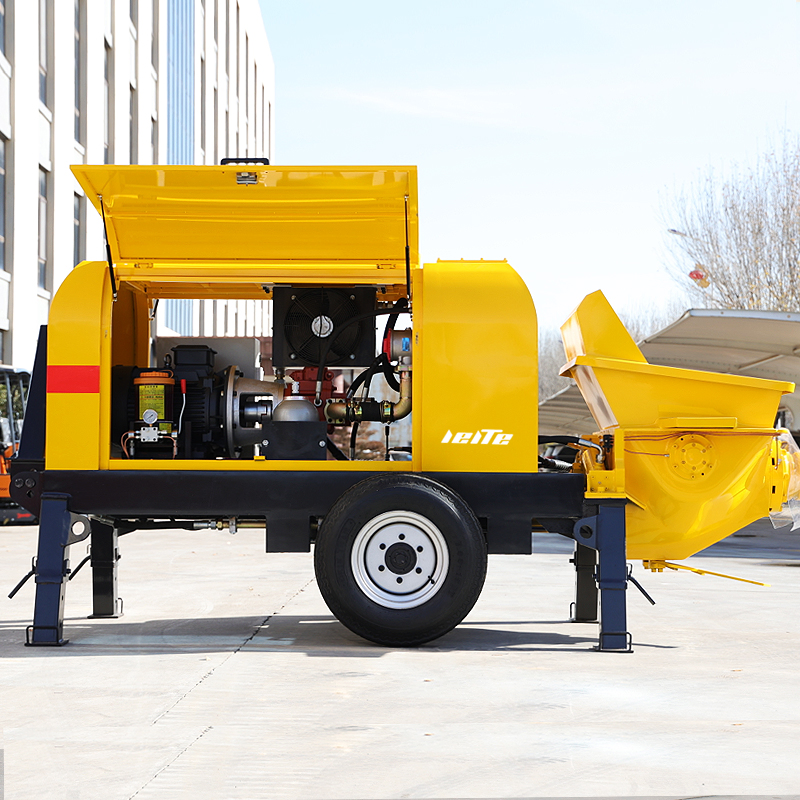

High Efficiency Stationary Electric Hydraulic Concrete Pump
Reliable High-Pressure Mini Concrete Pump for Modern Construction Projects

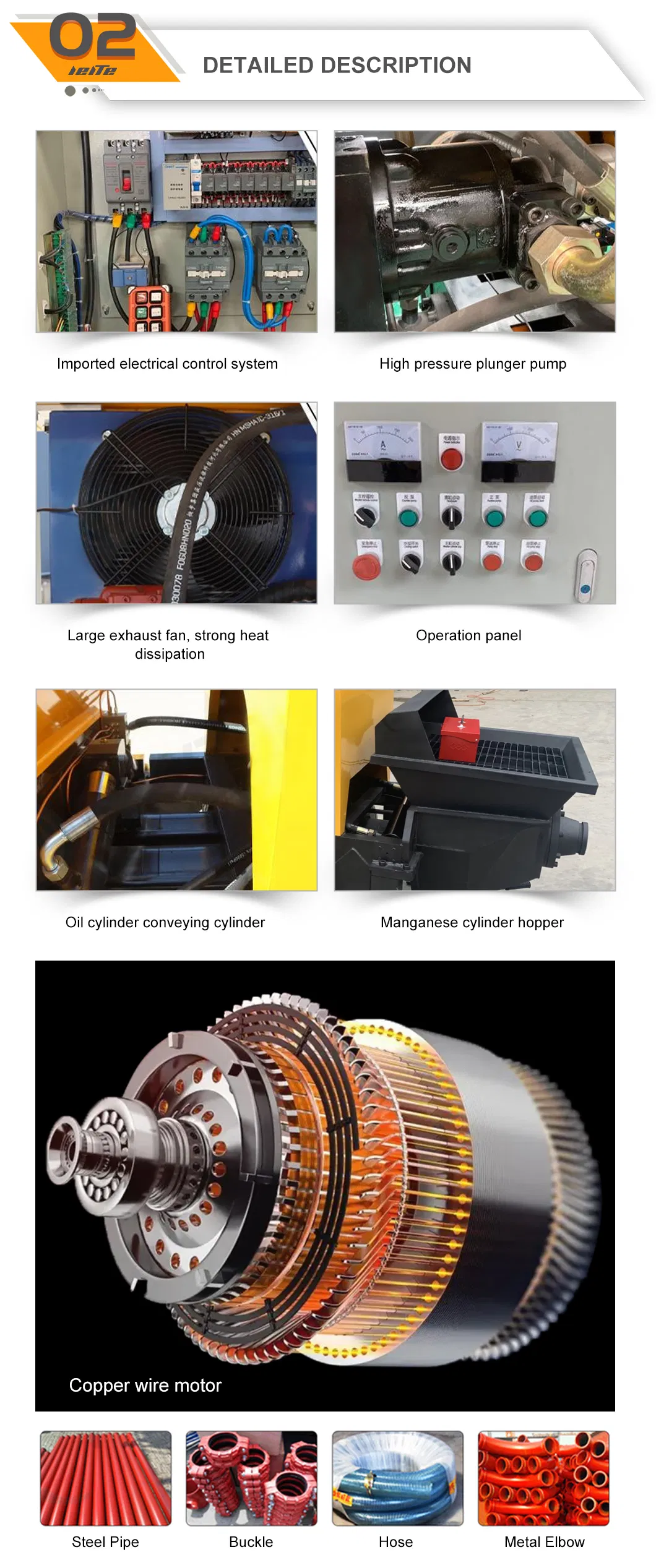

Advantages of Our Product
-
⚙️
Secondary Structure Specialty: Perfect for fine stone mortar transportation in high-rise buildings.
-
⚙️
Advanced Valve System: S-tube distribution valve ensures excellent sealing and reliable performance.
-
⚙️
Durable Components: Wear plates and cutting rings made of high-quality hard alloy for long service life.
-
⚙️
Smart Control: Electric-liquid control mode with hydraulic overload protection and instrument display.
-
⚙️
Automatic Lubrication: Program-controlled lubrication system extends the life of rotating parts.

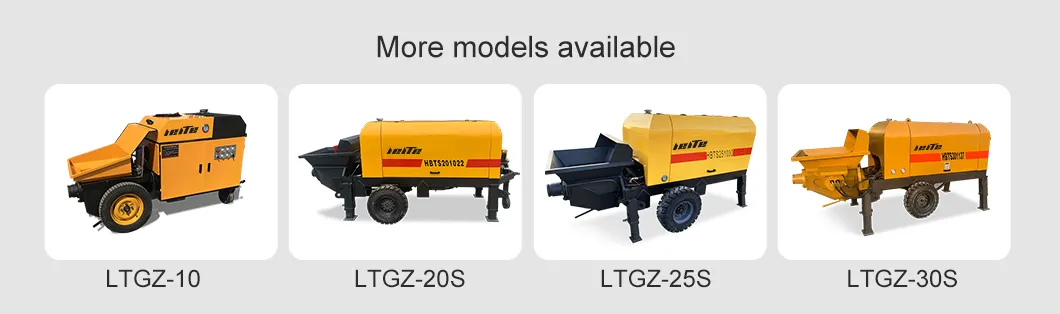

Technical Parameters & Model Options
| Model |
LTGZ-15 |
LTGZ-20S (HOT) |
LTGZ-25S |
LTGZ-30S (HOT) |
| Driving Mode |
Non-pushing |
Non-pushing |
Drag-and-drop |
Drag-and-drop |
| Motor Power |
15KW |
47KW |
47KW |
70KW |
| Concrete Throughput |
6-7m³/h |
10-12m³/h |
12-15m³/h |
18-22m³/h |
| Max. Aggregate |
≤20mm |
≤30mm |
≤20mm |
<30mm |
| Machine Weight |
950kg |
2300kg |
2400kg |
2700kg |
| Theoretical Max. Distance |
Vert: 10-20m / Horiz: 30-50m |
Vert: 10-50m / Horiz: 30-120m |
Vert: 15-80m / Horiz: 55-200m |
Vert: 25-100m / Horiz: 75-240m |
Quality Commitment

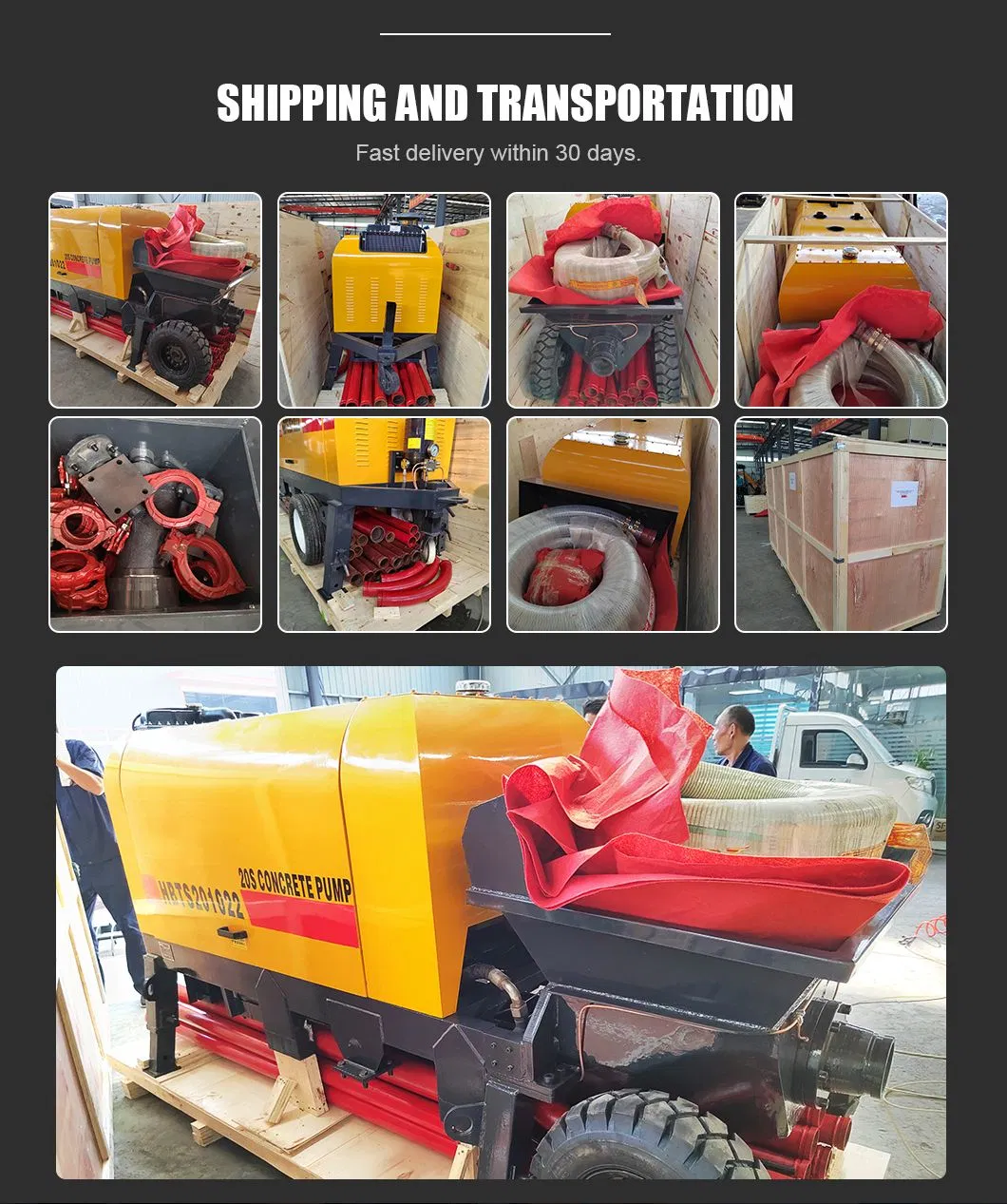

Shipping & Logistics
We offer flexible transportation methods including Sea, Air, and Land. All products are packaged securely to ensure safe delivery to your port or doorstep. We provide a transparent process with no hidden intermediate fees.
Frequently Asked Questions
Why choose our machinery?
We are committed to providing high-performance products with competitive prices, supported by on-time delivery and comprehensive 24/7 after-sales service.
What is the factory product range?
Our manufacturing expertise includes a wide range of concrete pumps, wheel loaders, and related construction accessories, including customizable non-standard products.
What payment terms are accepted?
Typically, we require a 30% deposit in advance, with the 70% balance settled before shipment. We also accept irrevocable letters of credit at sight.
Which certificates do your products hold?
All our products comply with the ISO9001 quality system and have obtained CE certification. EPA approval can be provided upon request.
What is the standard delivery time?
Standard products are often in stock for immediate shipment. Custom orders generally take 15 to 30 days after receiving the deposit.
Do you provide OEM/ODM services?
Yes, we provide full customized services to meet specific customer requirements, including both OEM and ODM manufacturing modes.
