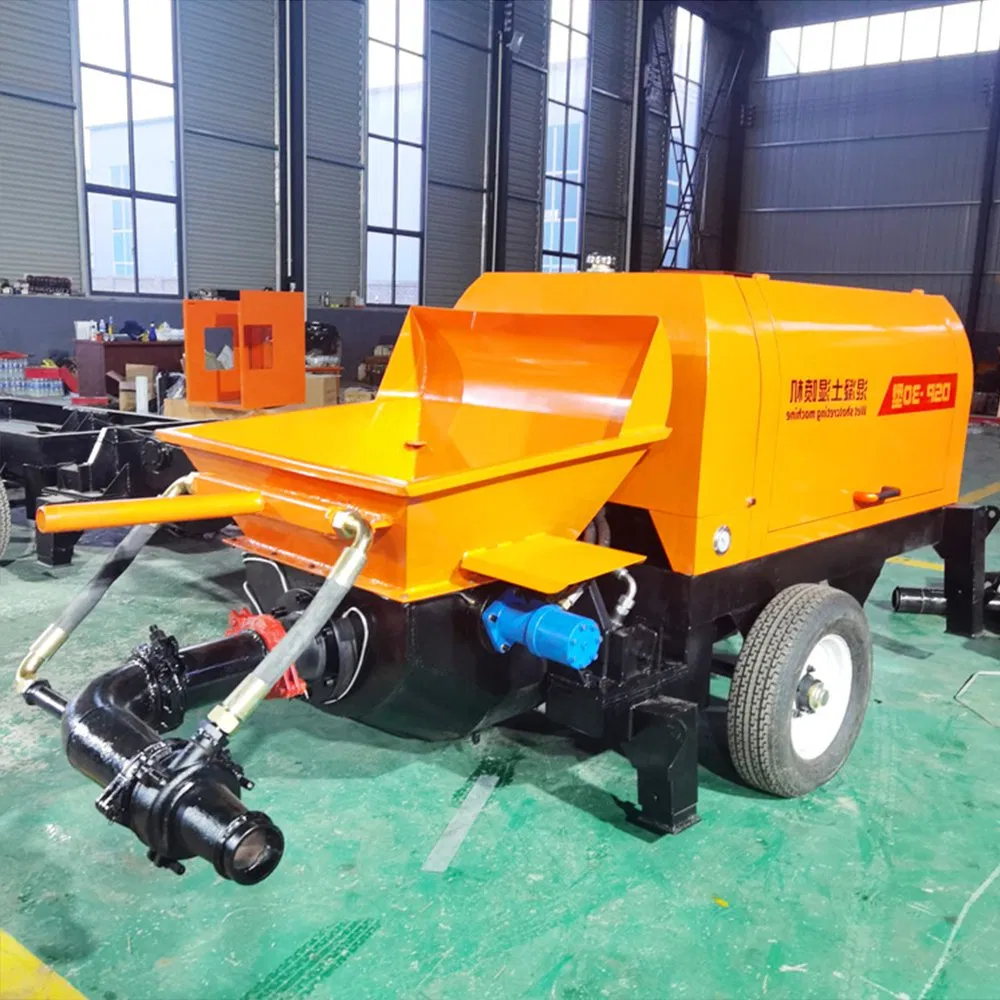

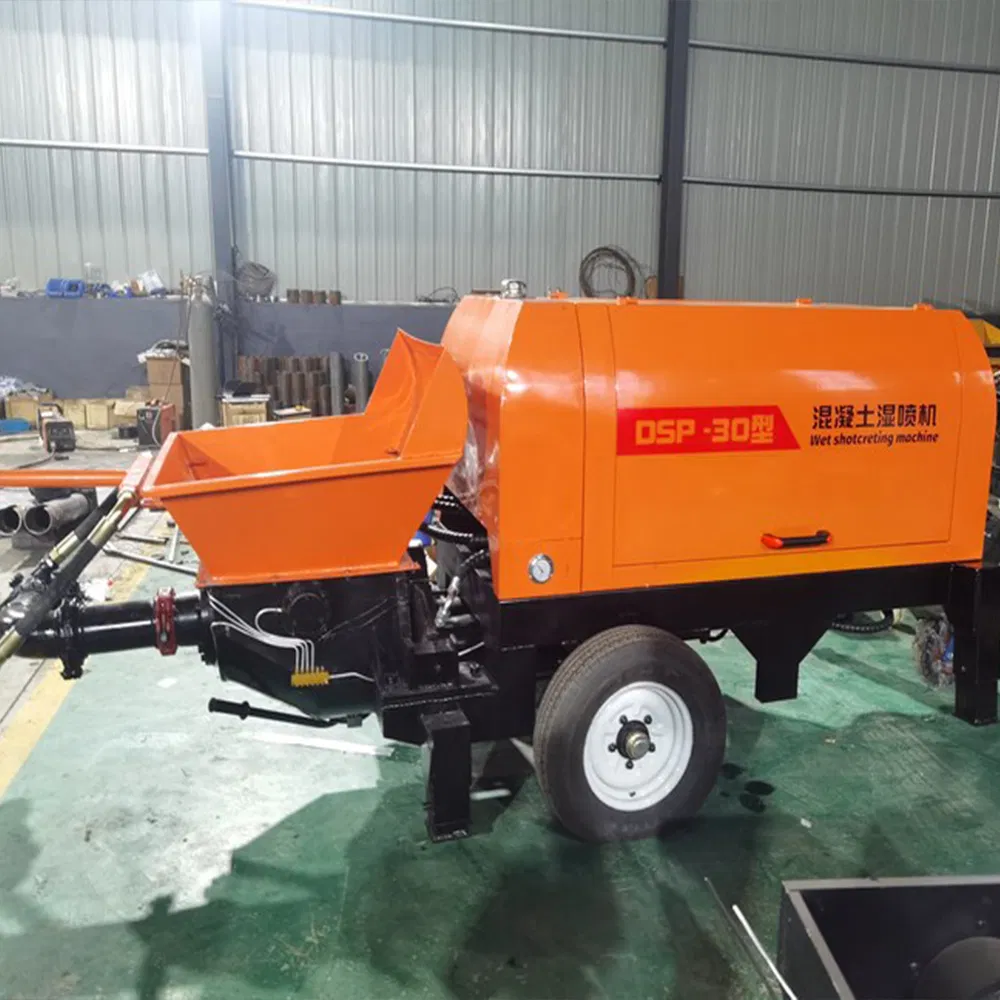

Small Remote Control Stationary Portable Mobile Diesel Electric Hydraulic Trailer Mounted Mini Conveying Pumping Machine Cement Transfer Pump

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.DSP/30/8 Concrete Wet Spraying Machine
TypeConcrete Pump
Shotcrete TypeWet
Machining ProcessHydraulic
StructureCylinder Type
Productivity6-8m³/H
Feeding Height1400mm
Vibrating Amplitude1.1mm
ConditionNew
ColorYellow
Power30kw
Weight1500kg
Rated Speed1480r/Min
Package Size380.00cm * 150.00cm * 170.00cm
🔥 Hot Sales

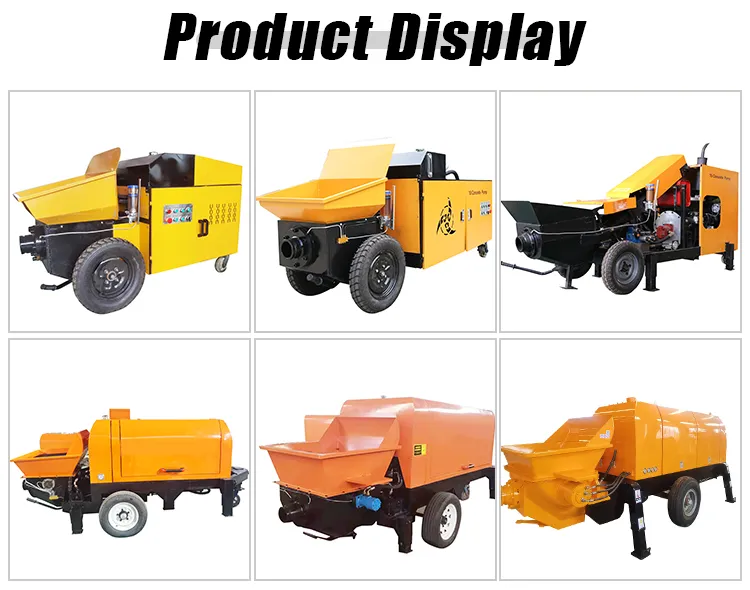

Concrete Spraying Machine
📝 Product Description

Introduction Of DSP/30/8 Model High Quality Concrete Wet Spraying Machine

Concrete wet spraying machine is a kind of construction equipment widely used in engineering construction. It uses compressed air or other power to transport the mixed material in a certain proportion through the pipeline and spray it at a high speed to the sprayed surface to condense and harden, thereby forming a concrete support. The protective layer, shotcrete technology is simple, the construction cost is low, the adaptability is wide, the operation dust is small, the spray rebound is less, and the improvement of the spray layer quality have played an important role in various construction fields.

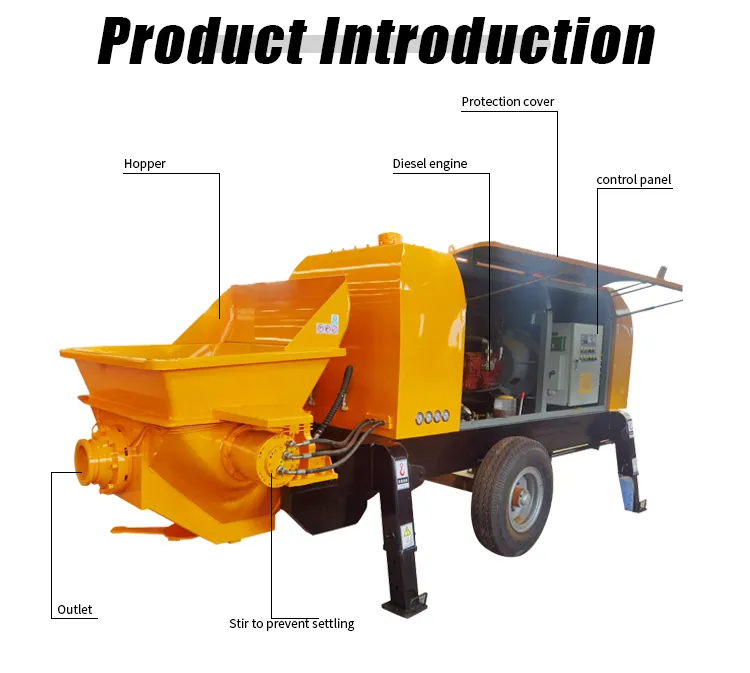

Product Working Image
⚙️ Technical Parameters
Maximum Theoretical Concrete Delivery Volume6-8m³/h
Maximum Pumping Concrete Pressure8MPa
Distribution Valve FormS-pipe valve
Concrete Conveying Cylinder Bore*StrokeΦ140*600mm
Outlet DiameterΦ125mm
Rated Power30KW
Hydraulic Tank Volume70L
Maximum Spray Vertical Distance80m
Maximum Spraying Horizontal Distance120m
Maximum Particles Allowed20mm
Dimensions L*W/*H3800-1500-1550mm
📸 Detailed Photos

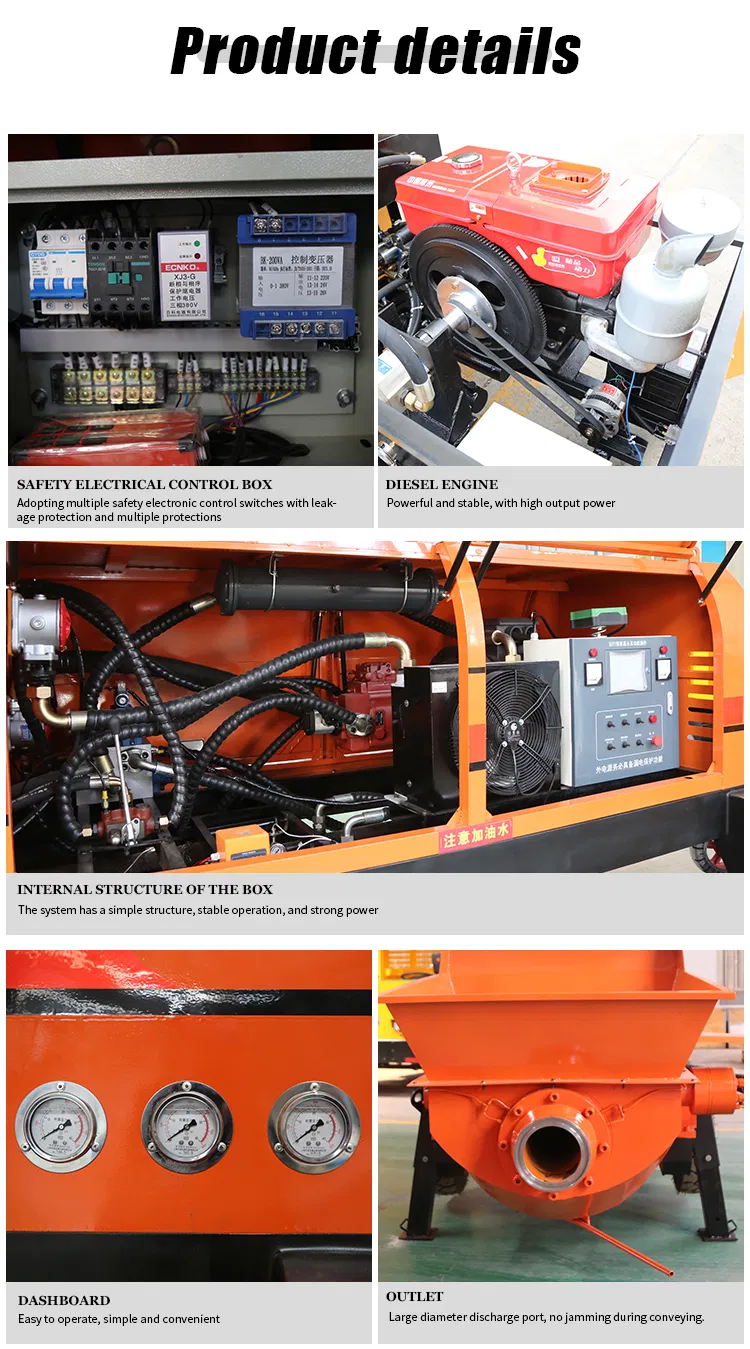

Detailed View 1

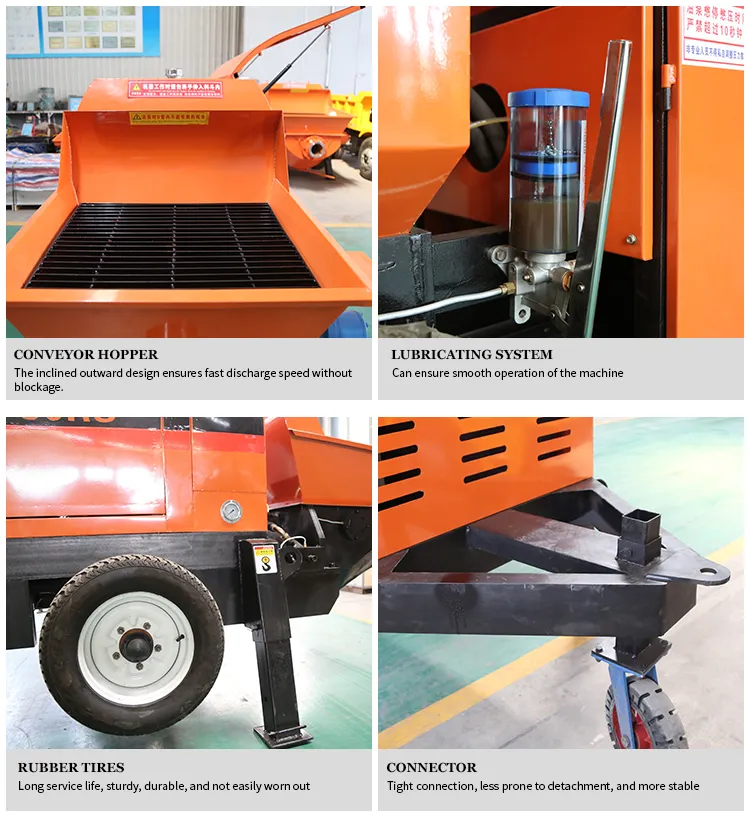

Detailed View 2
🏆 Certifications & Exhibition
Certification
Exhibition
🏭 Factory Display
Factory Image 1

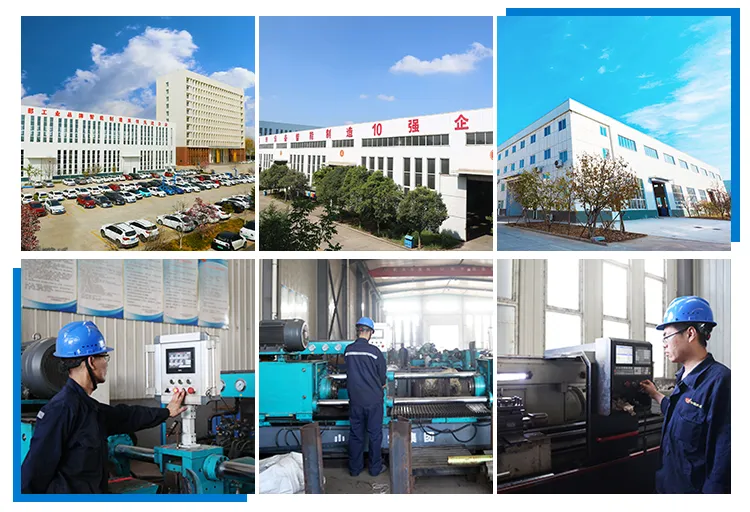

Factory Image 2
Frequently Asked Questions
Q1: What is the main application of the DSP/30/8 concrete wet spraying machine? A1: It is widely used for shotcrete support and protection layers in tunnels, mines, culverts, and various construction engineering projects.
Q2: What is the maximum productivity of this machine? A2: The machine has a working capacity of 6 to 8 cubic meters per hour.
Q3: How far can the concrete be sprayed horizontally and vertically? A3: It can reach a maximum vertical spray distance of 80m and a maximum horizontal distance of 120m.
Q4: What size of particles can this machine handle? A4: The DSP/30/8 model allows for a maximum particle size of 20mm.
Q5: Is the machine easy to transport? A5: Yes, it is designed with a cylinder structure and weighs 1500kg, making it suitable for trailer mounting and site-to-site transportation.
Q6: What type of power system does it use? A6: It utilizes a hydraulic machining process with a 30KW rated power motor.
