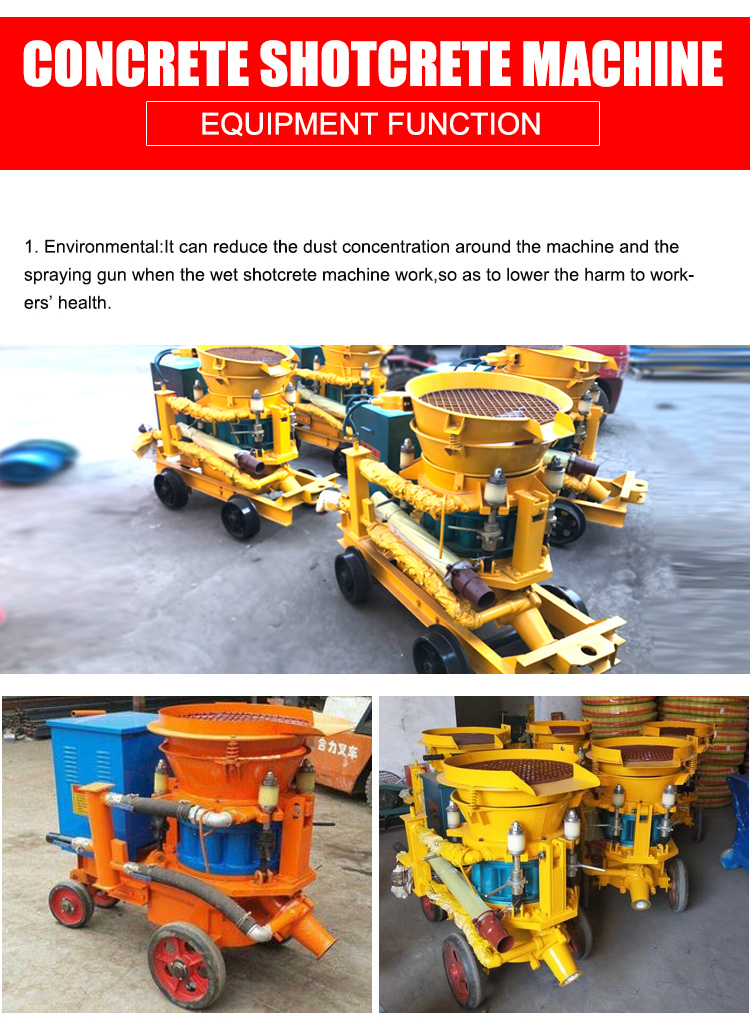

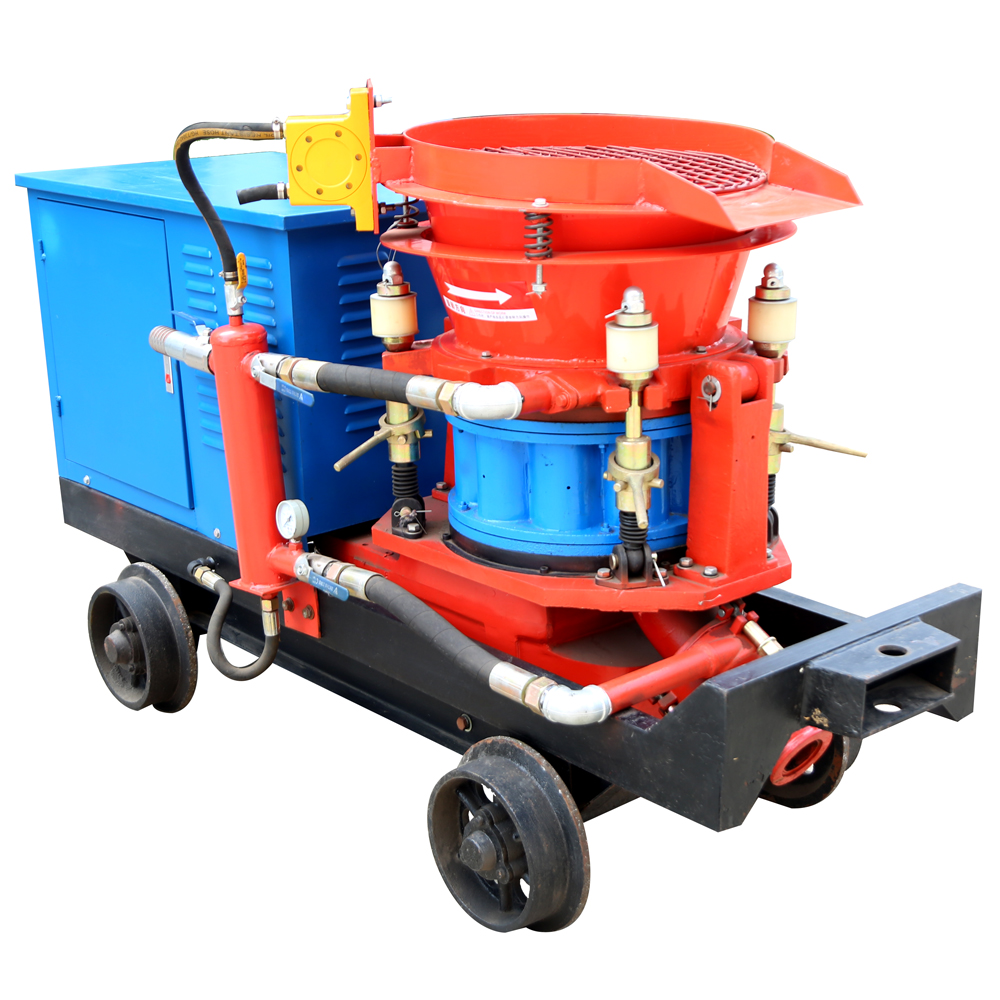

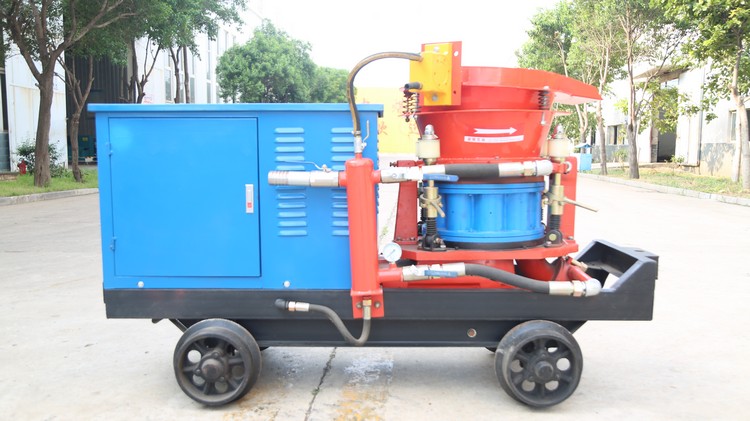

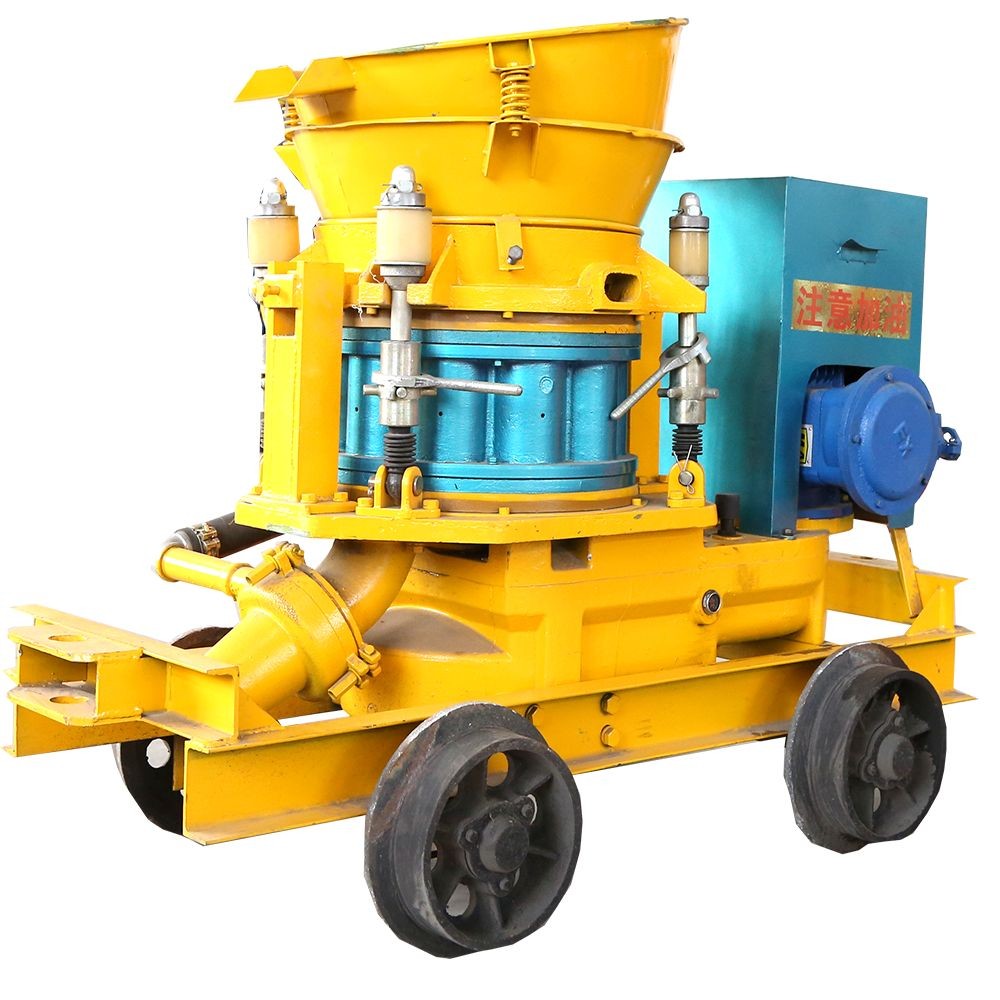

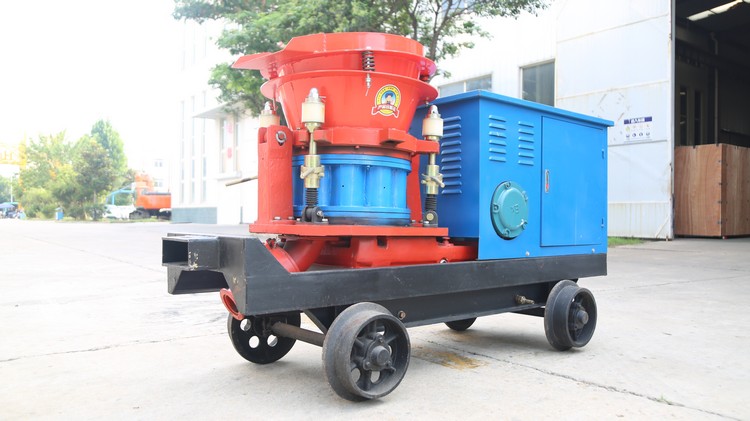

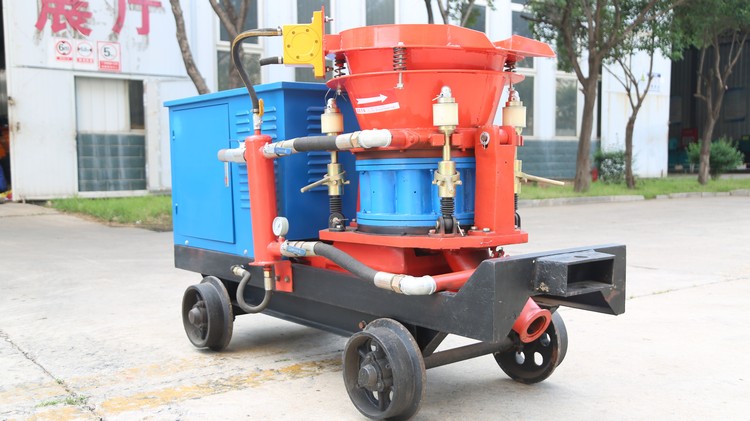

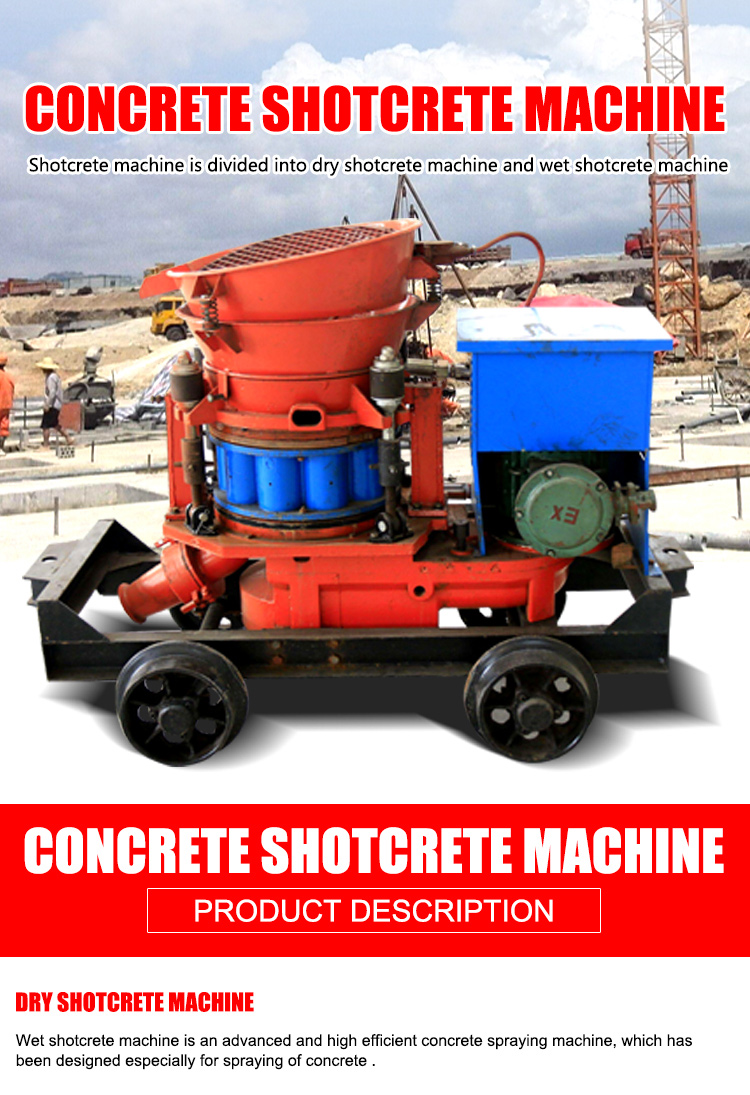

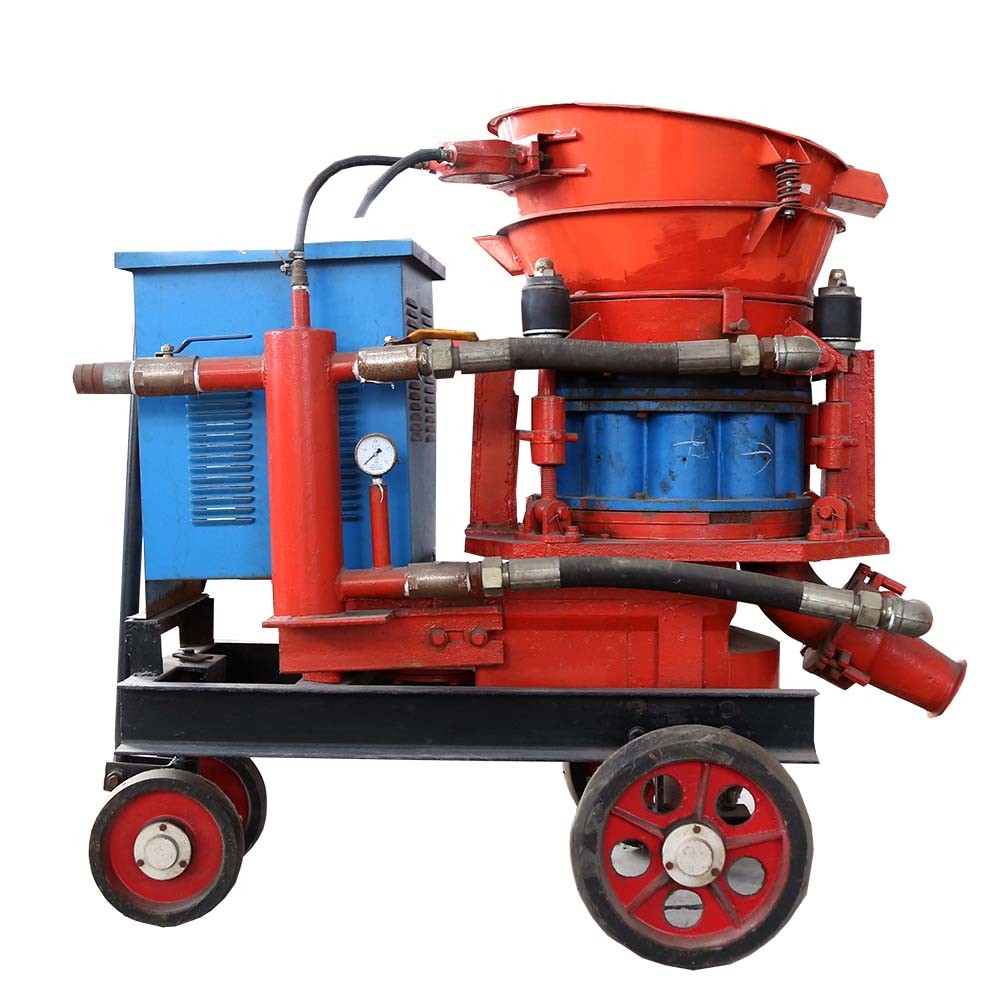

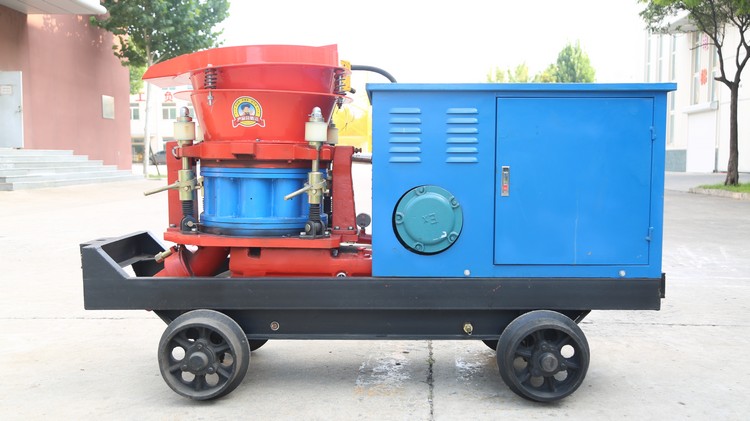

Electric Dry Mix Shotcrete Machine can be used for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface. Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Key Characteristics:

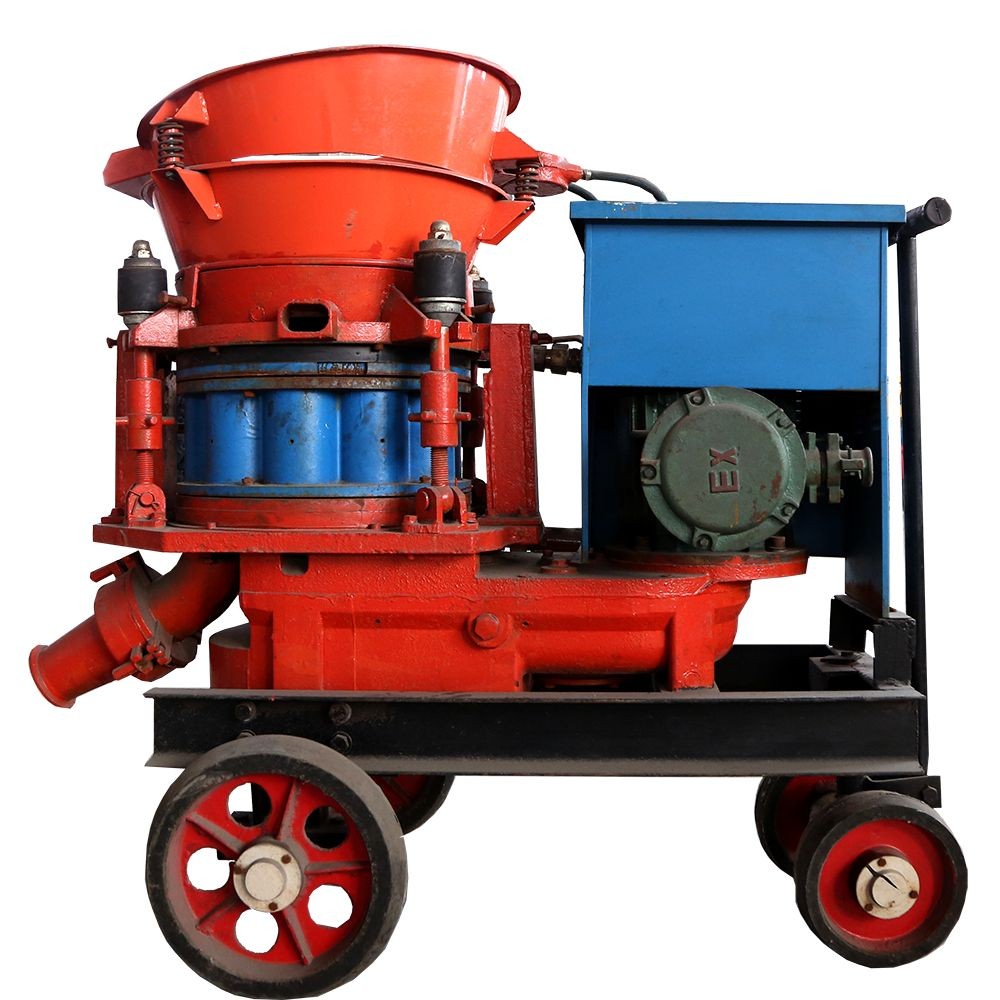

| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 | HSP-9 | |
|---|---|---|---|---|---|---|---|
| Output | 3.5m³/h | 5m³/h | 7m³/h | 4.0-5.0m³/h | 5.0-7.0m³/h | 6.0-9.0m³/h | |
| Max. Convey distance | Horizontal | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m |
| Vertical | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m | |
| Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | |
| Max. Aggregate size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm | Φ15mm | |
| Hose inner size | Φ38mm | Φ51.mm | Φ64mm | Φ51mm | Φ51/64mm | Φ51/64mm | |
| Operating air pressure | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa | |
| Air consumption | 3-4 m³/min | 7-8 m³/min | 12-15 m³/min | 10.0-15.0m³/min | 10.0-15.0m³/min | 10.0-15.0m³/min | |
| Voltage | 380v / customized | 380v / customized | 380v / customized | 380v / customized | 380v / customized | 380v / customized | |
| Whole weight | 550kgs | 600kgs | 900kgs | 700kg | 800kg | 900kg | |
