📋 Basic Information
Model NO.
HWGP440/50PI-22E
Type
Cement Production Machinery
Certification
ISO9001: 2000, CE
Specification
2050*1370*1310
🚀 Product Description

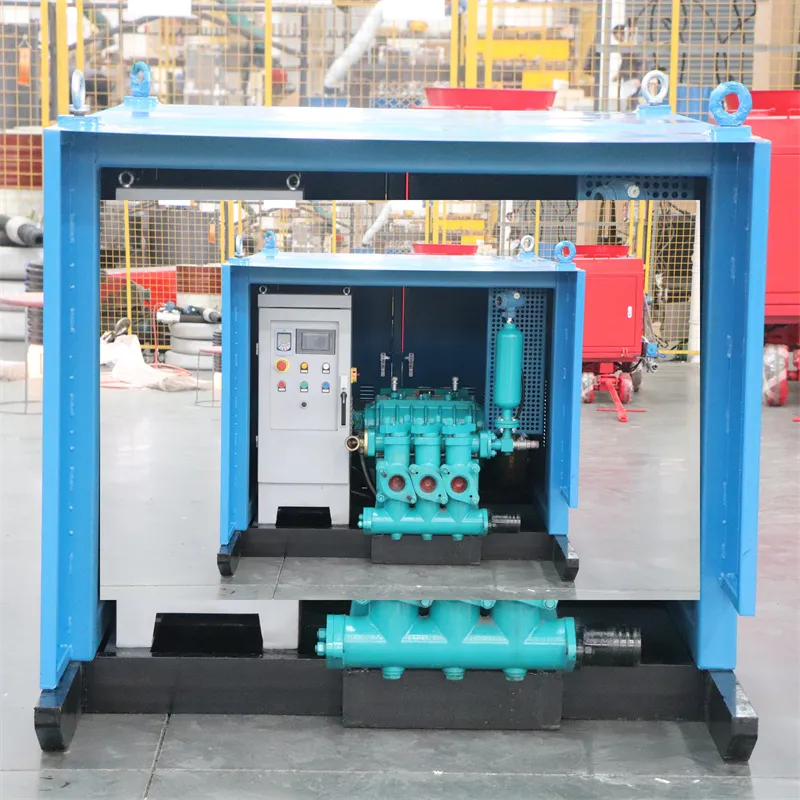

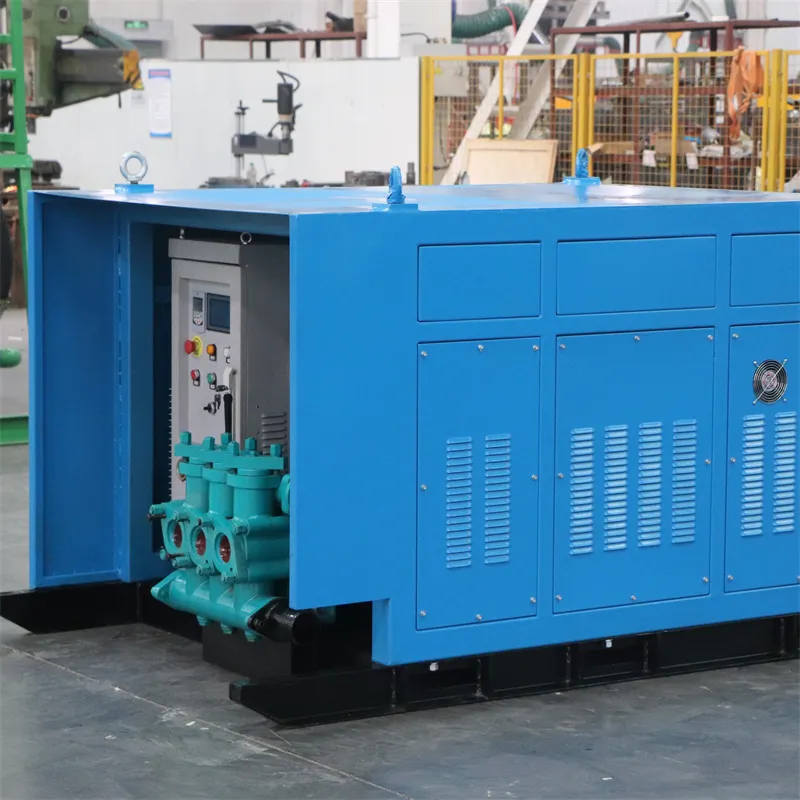

HWGP440/50PI-22E high pressure grout pump supplier

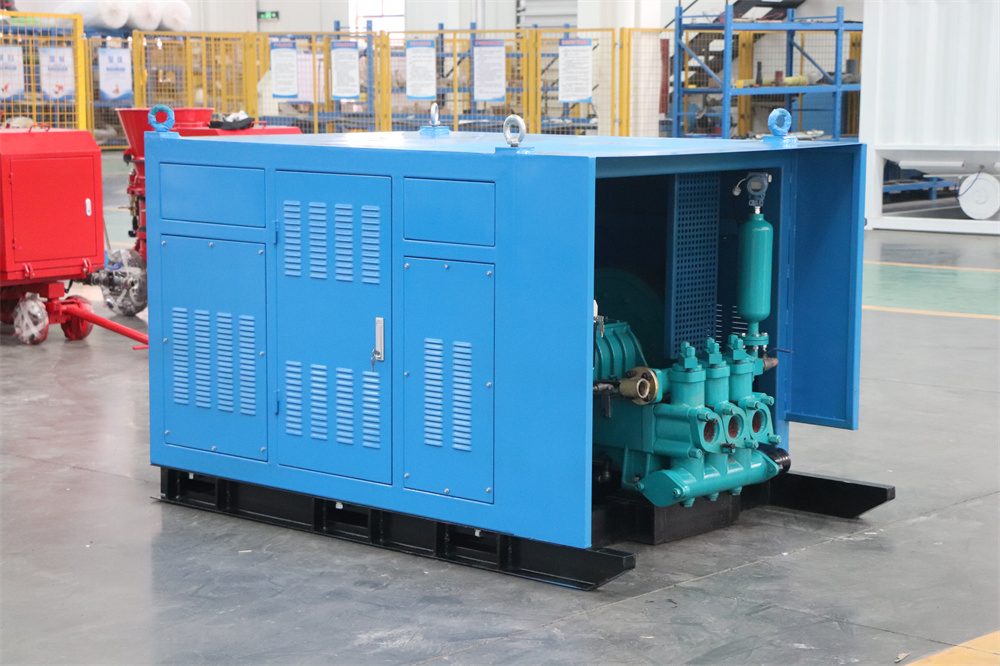

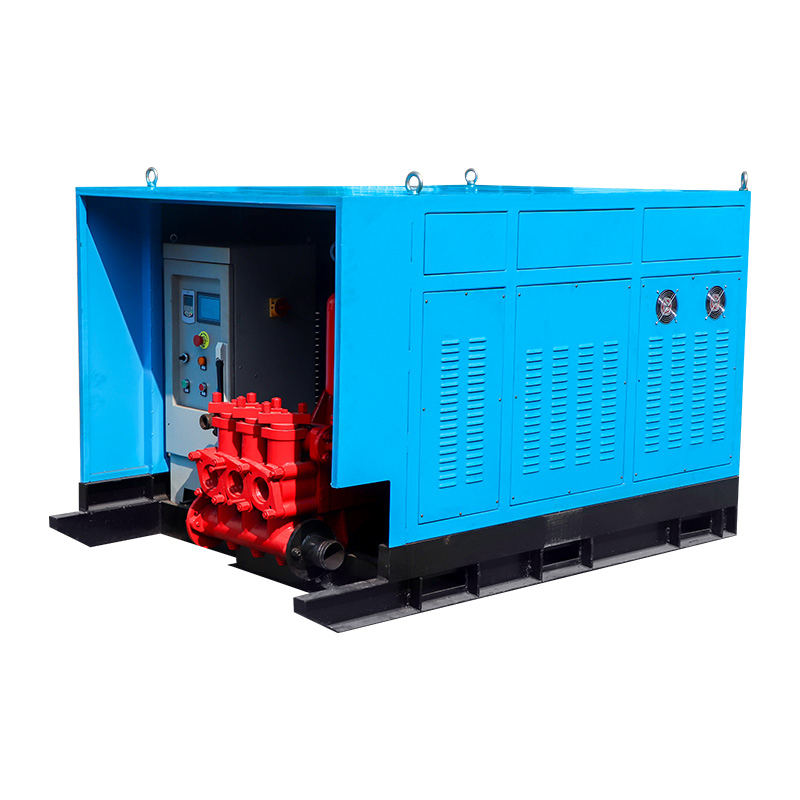

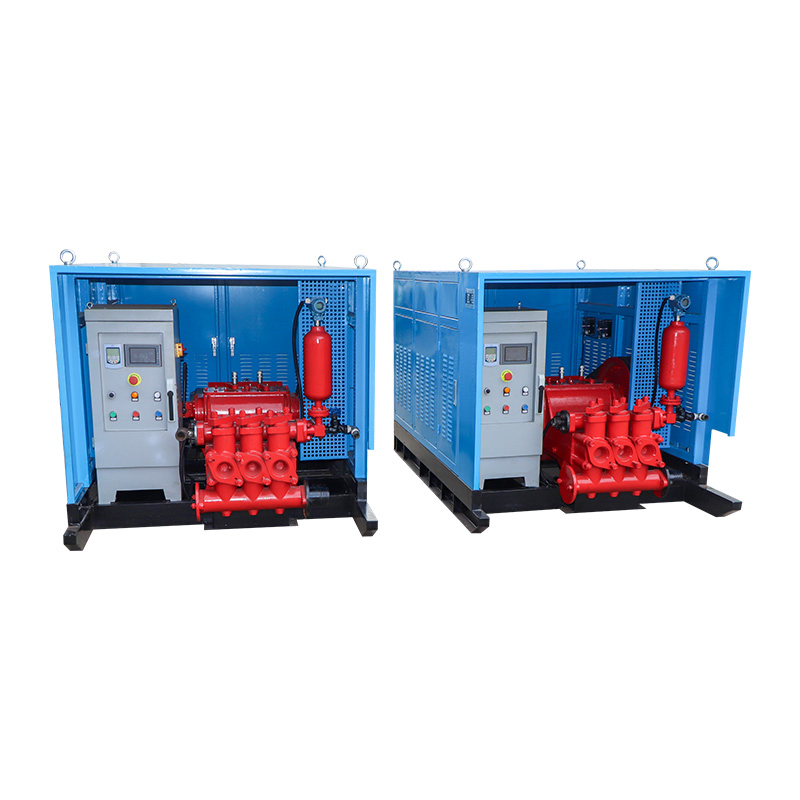

The HWGP440/50PI-22E Grout Pump is a horizontal three-cylinder reciprocating single action piston pump. It is widely used in mining, geological drilling, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement, and other engineering projects.
Features include a mature and reliable frequency converter, safety, energy saving, and convenient operation. Advanced artificial intelligence control is adopted to realize the display and control of pressure, featuring instantaneous flow display and accumulation. The crankcase and gearbox integrated design ensures reliable performance, long service life, small volume, and easy mobility.
📊 Technical Specifications
| Parameter |
Value |
| Modality |
Horizontal three-cylinder reciprocating single-action piston pump |
| Cylinder diameter |
100 mm |
Cylinder stroke |
110 mm |
| Power |
22 Kw |
Pump speed |
214 r/min |
| Max. Output |
440 L/min |
Max. Pressure |
5 MPa |
| Inlet Diameter |
89 mm |
Outlet Diameter |
DN40 |
| Dimensions (L×W×H) |
2050*1370*1310 mm |
Weight |
1365 Kg |
* Note: All data are tested using water. Customization options are available based on specific requirements.
🔍 Product Details

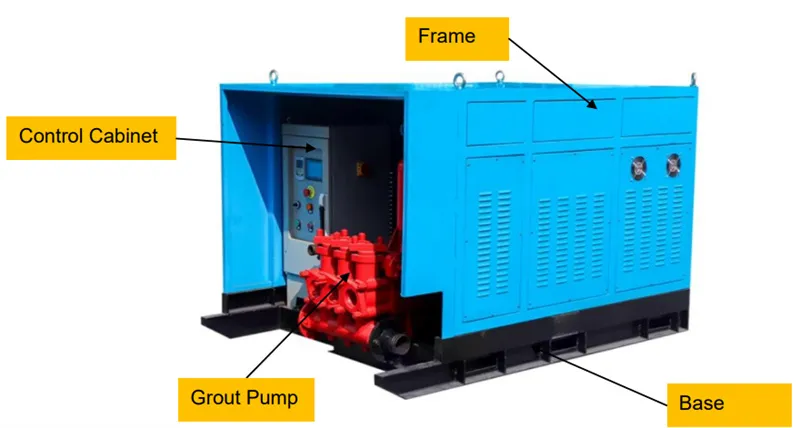

Frame Design: The frame can be removed from the base for maintenance. It features an open-door design in critical parts to facilitate gearbox maintenance and blinds for convenient heat dissipation.

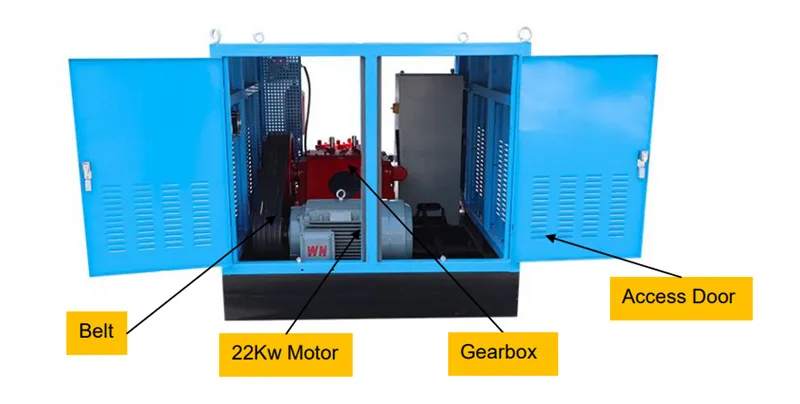

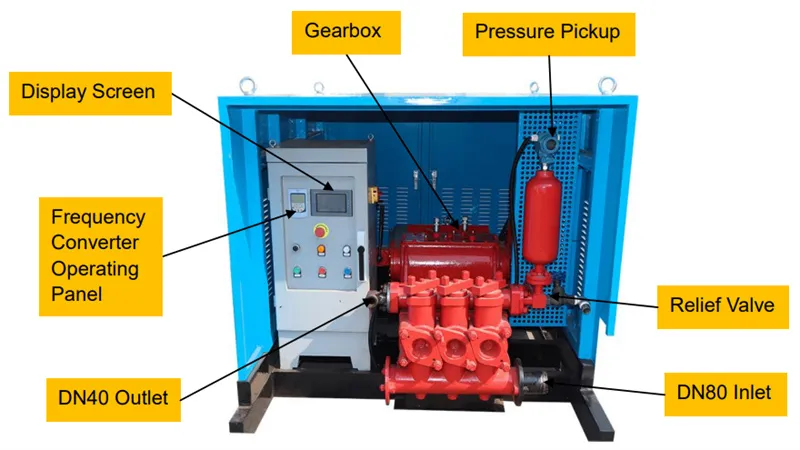

Power Unit & Gearbox: Driven by a 22Kw motor via belt drive. It utilizes an inclined gear transmission for stable, safe, and reliable operation. The integrated design reduces volume and weight while increasing service life.

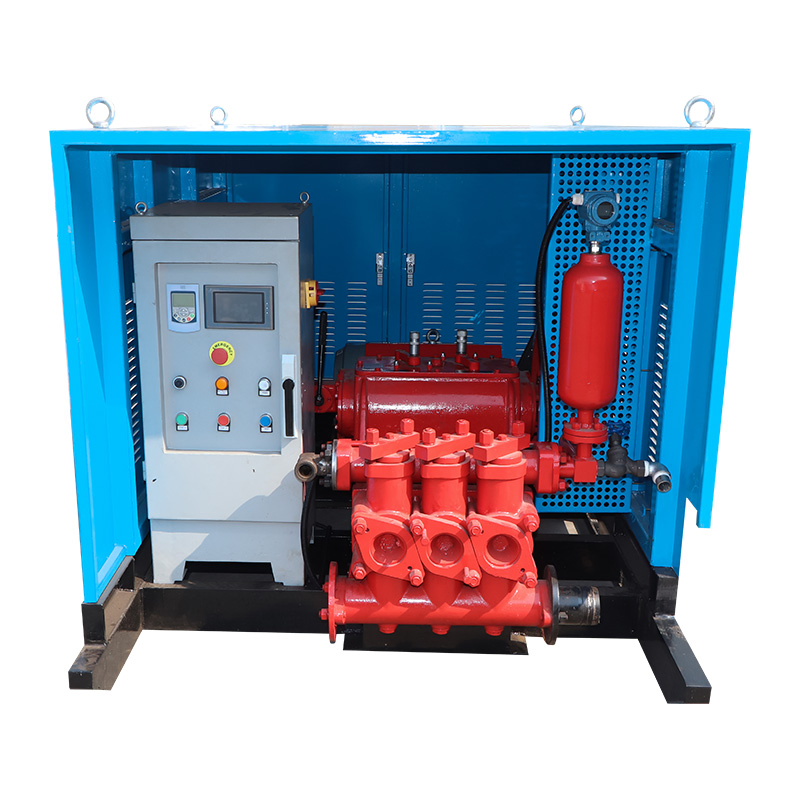

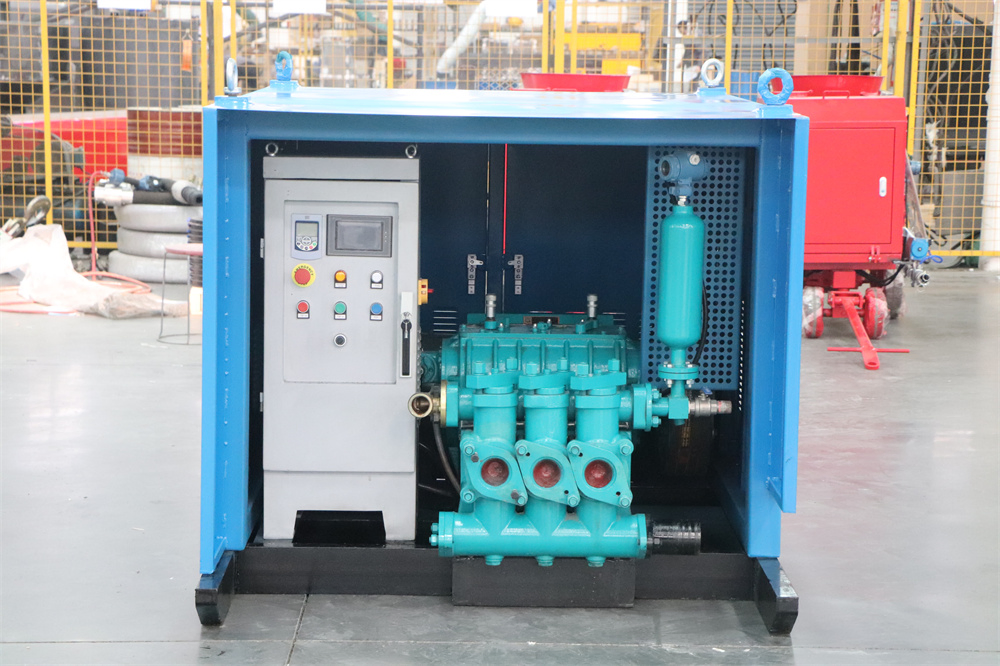

Grout Pump & Control: Features three separated water tanks with a common suction and drainage chamber. The piston is a bowl-shaped nylon self-sealed polyurethane rubber design. The AI control system allows for infinite changes in pressure and flow.
🏢 About Our Enterprise
Our enterprise specializes in the research, development, production, and sales of high-quality construction equipment. We are committed to helping the construction industry improve efficiency, ensure engineering quality, and reduce operational costs.
Our main product line includes grout equipment, screed pumps, hydroseeders, refractory gunning machines & mixers, hose pumps, shotcrete machines, and foam concrete machines. These products are widely used in construction, mining, and tunnels, earning deep trust from customers worldwide.
❓ Frequently Asked Questions
What is the maximum output capacity of the HWGP440/50PI-22E?
The maximum output of this model is 440 Liters per minute with a maximum pressure of 5 MPa.

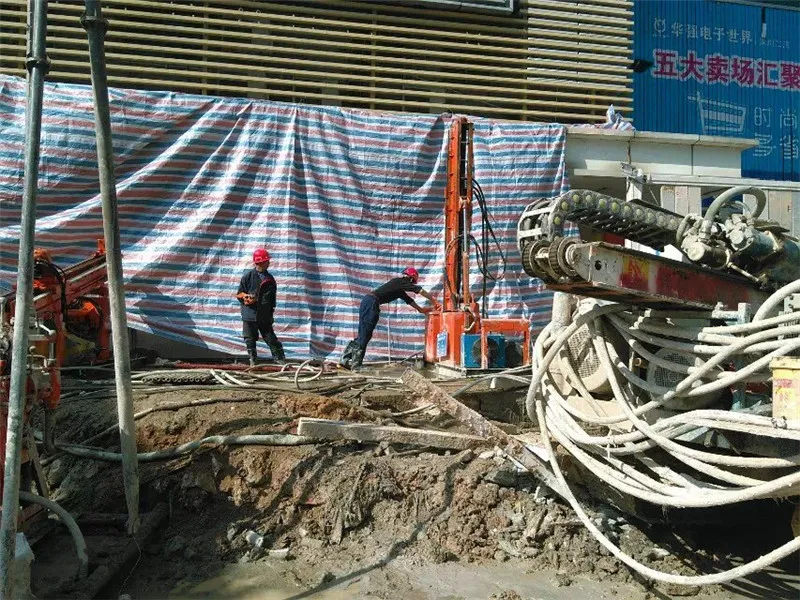

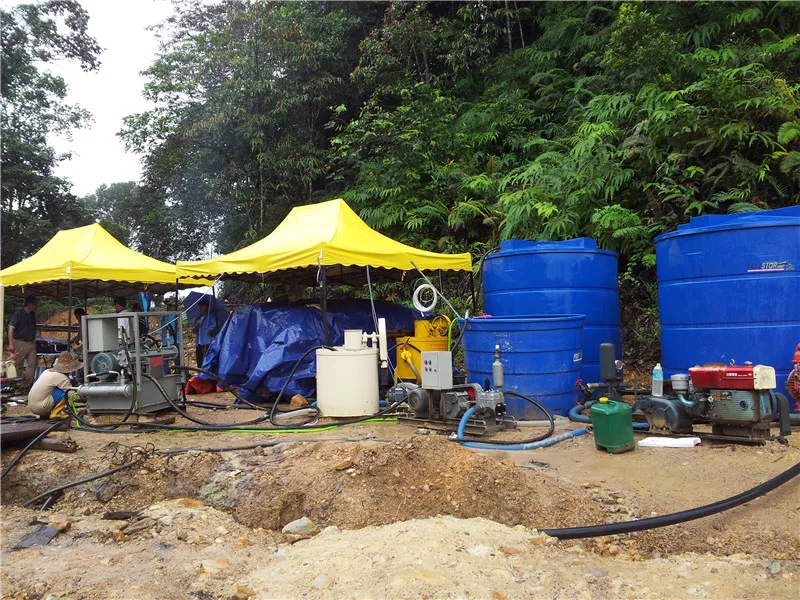

What industries is this grout pump suitable for?
It is ideal for mining, geological drilling, railway and highway construction, water conservancy, hydropower projects, and high-rise foundation reinforcement.
How does the AI control system benefit operation?
The advanced artificial intelligence control allows for real-time display of pressure numbers and flow accumulation, ensuring safer and more precise grout management.
Is the equipment easy to maintain?
Yes, the frame can be detached from the base, and specific doors are designed to allow easy access to the gearbox and other vital components for maintenance.
What type of piston does the pump use?
The pump uses a bowl-shaped nylon self-sealed polyurethane rubber piston, which is designed to significantly improve service life.
Can the pump be customized to specific needs?
Yes, products can be customized according to specific technical requirements and project needs.
