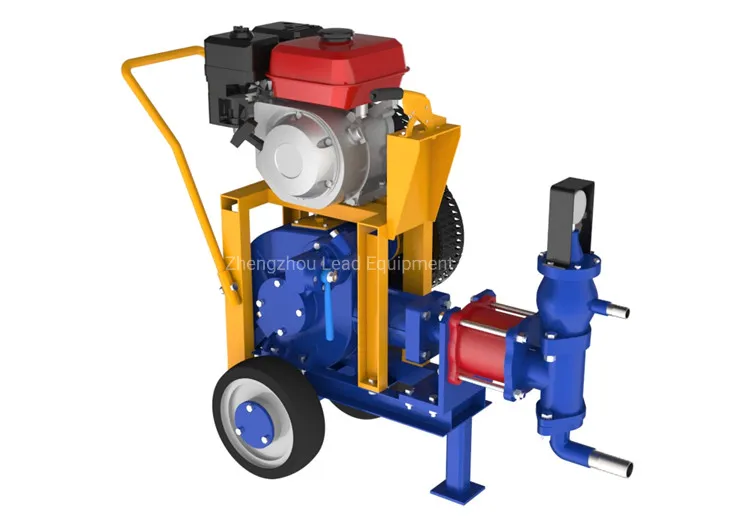

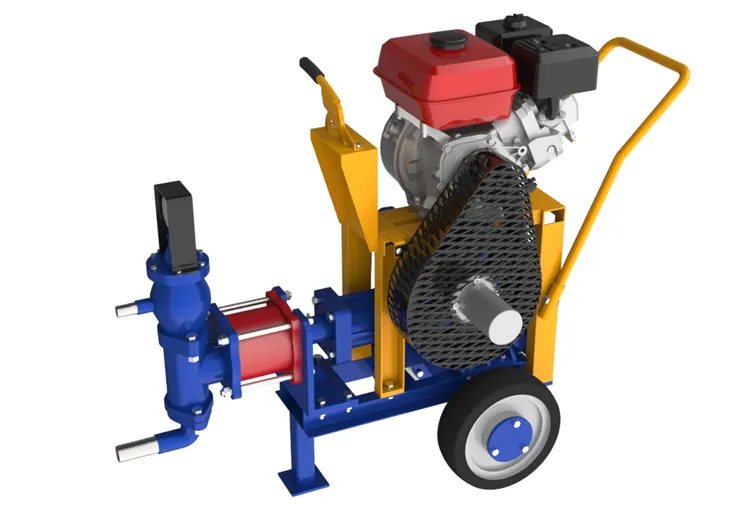

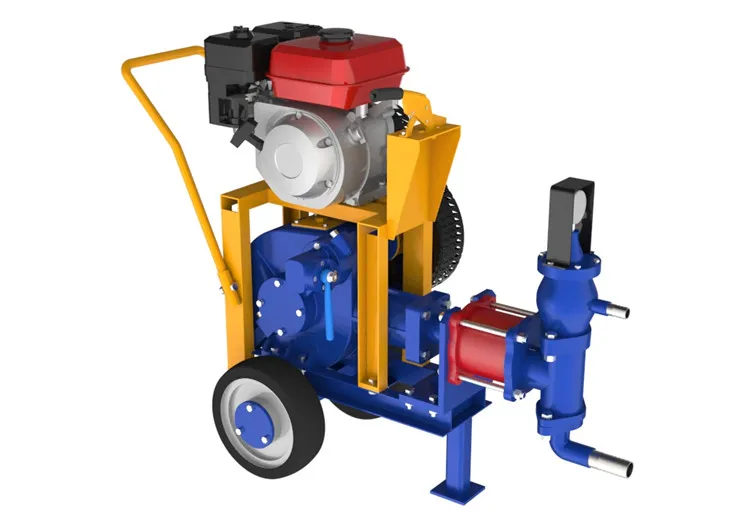

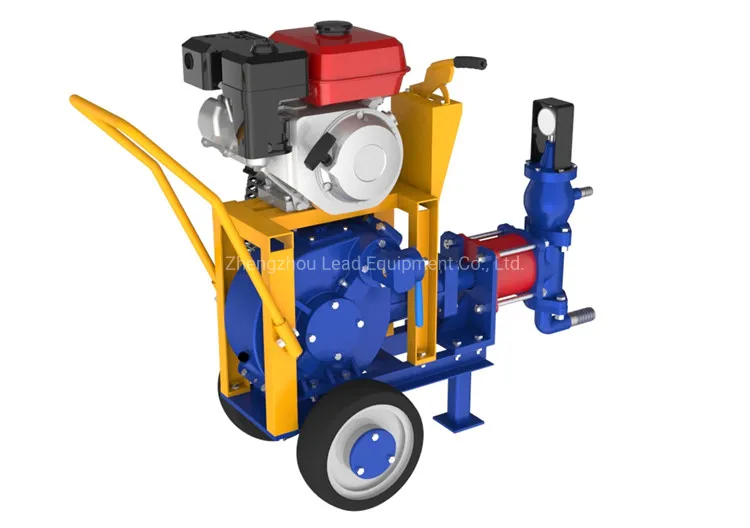

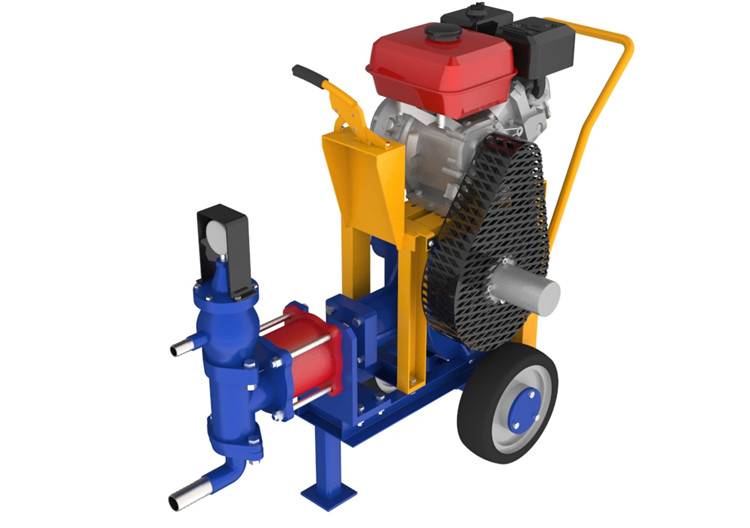

Piston type small gasoline engine cement grouting pump for sale
LGP25/15 is a small type gasoline engine grout pump. The piston is driven by the gasoline engine to produce reciprocating motion, and the cement slurry is sucked into the air chamber by the suction valve, and discharged through the pump cylinder. It has a wide range of applications and can grout various low-viscosity slurry materials with good fluidity, such as cement slurry and chemical slurry.
LGP25/15 grout pump is mainly used for bridges, houses, small areas of seepage prevention, leakage prevention, plugging and repair; tunnels, mines, highways, and other areas without electric power supply.
| Model | LGP25/15 |
|---|---|
| Output Capacity | 25 L/min |
| Working Pressure | 15 bar |
| Piston Diameter | 110 mm |
| Piston Stroke | 42 mm |
| Cycle | 90/time |
| Gasoline Engine Power | 4.8 Kw |
| Outlet Diameter | 25/32 mm |
| Inlet Diameter | 19/25 mm |
| Weight | 120 Kg |

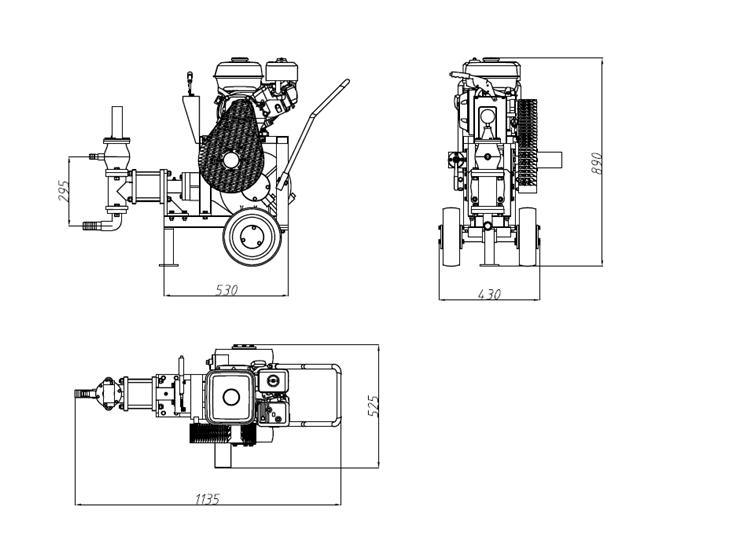

| Dimension | 1135x525x890 mm |
We have many standard models for your option, and we also could customize as per your requirement. If you are interested in our small type grout pump, welcome to send an inquiry to us.
