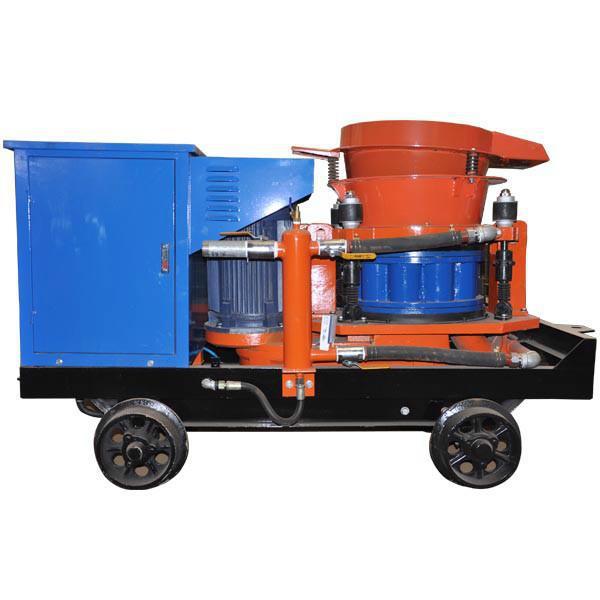

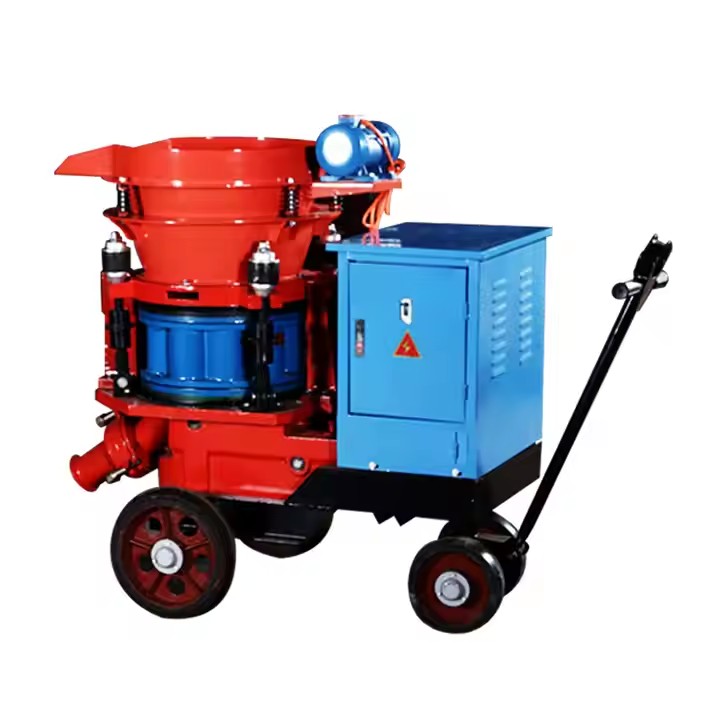

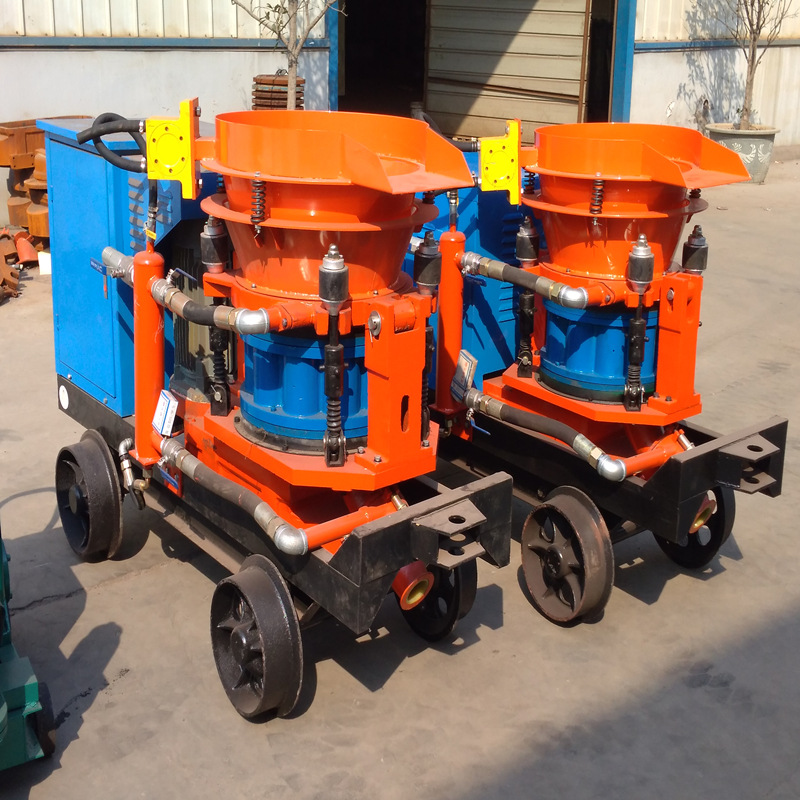

New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
1 / 5
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine
New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine

New Portable PZ5 Shotcrete Pump Gunite Machine Wet Dry Mix Concrete Gunite Machine

Send Inquiry

Product Description

Concrete Spraying Shotcrete Machine
1
Product Description

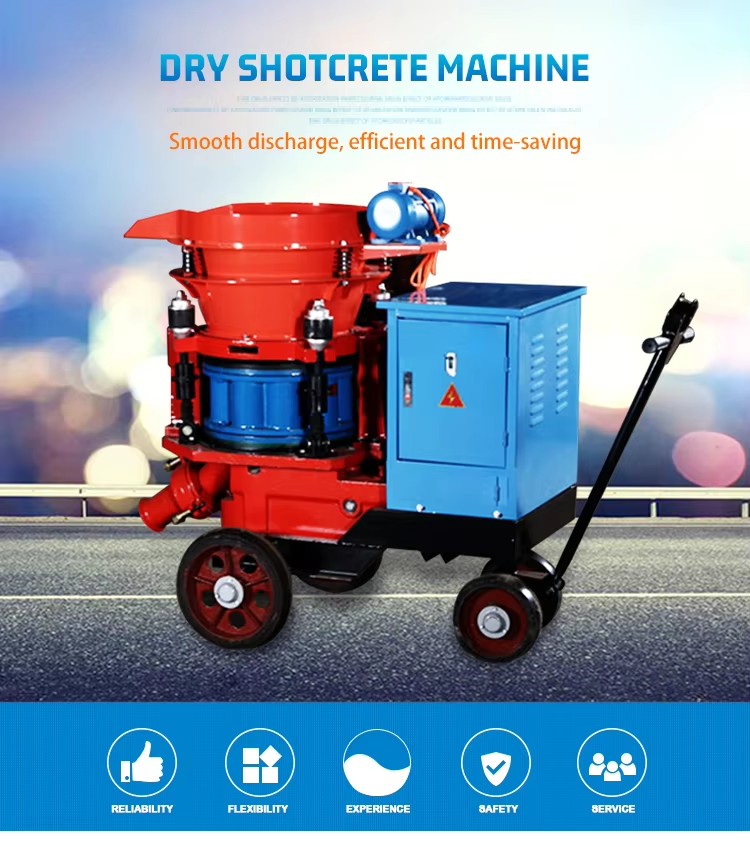

Shotcrete Machine 1
Shotcrete Machine 2

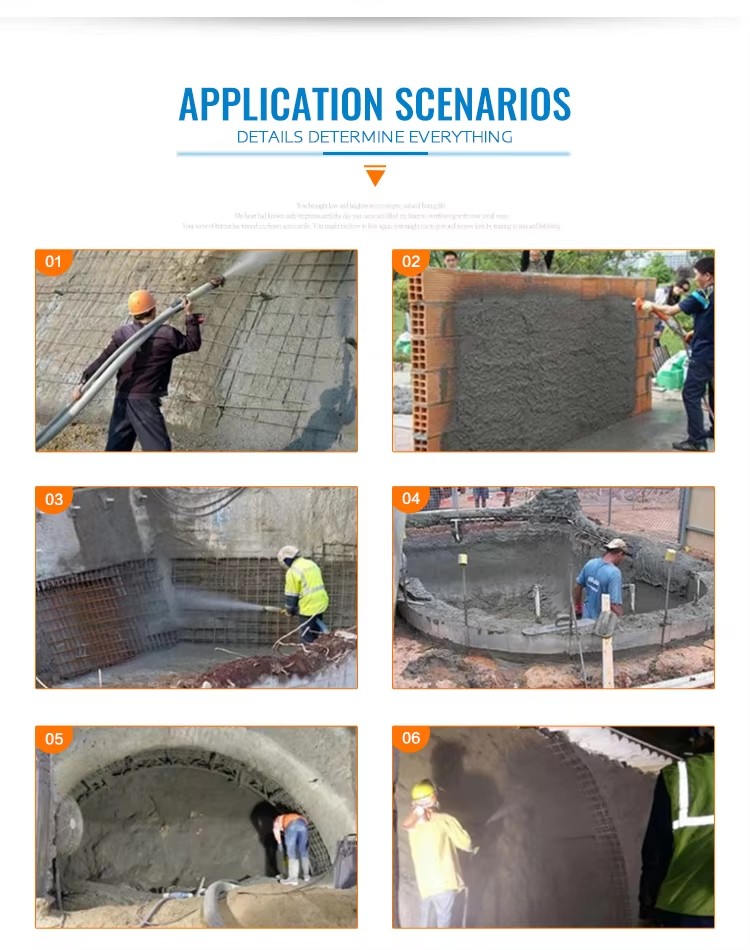

Shotcrete Machine 3

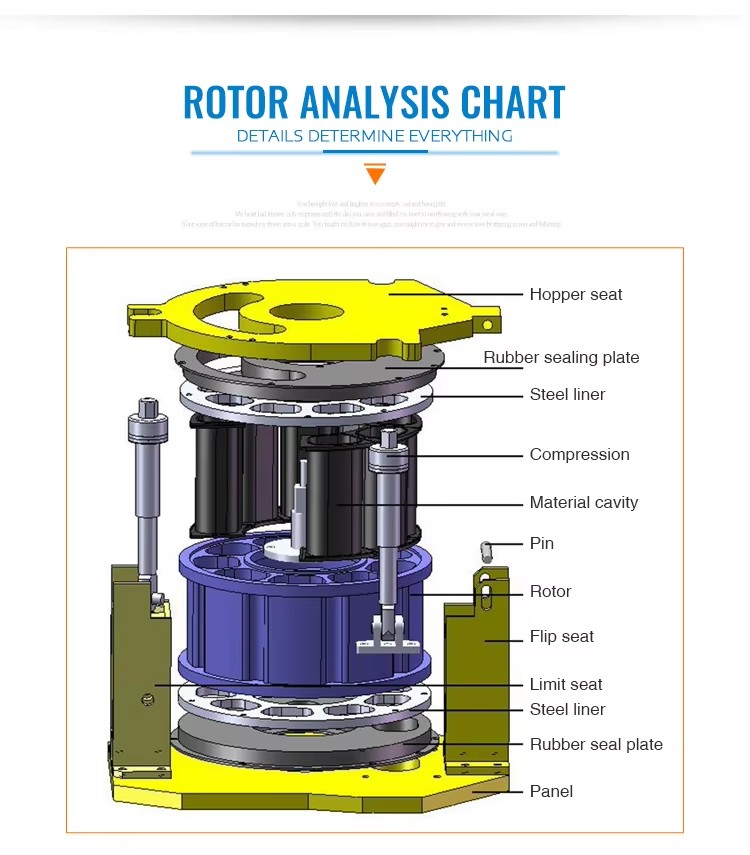

Shotcrete Machine 4

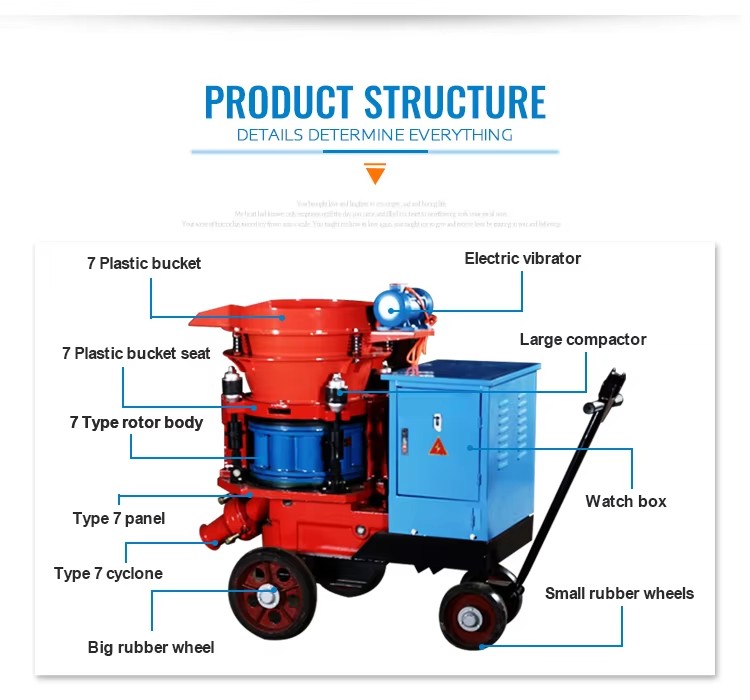

Shotcrete Machine 5

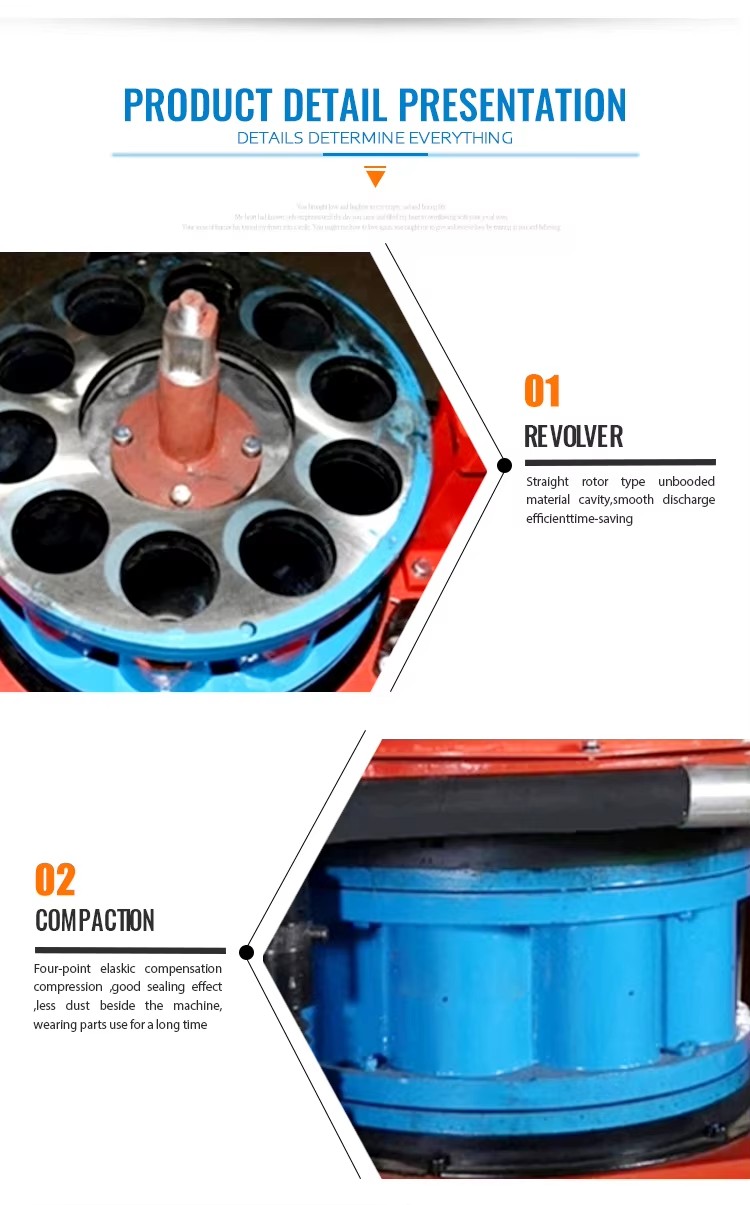

Shotcrete Machine 6

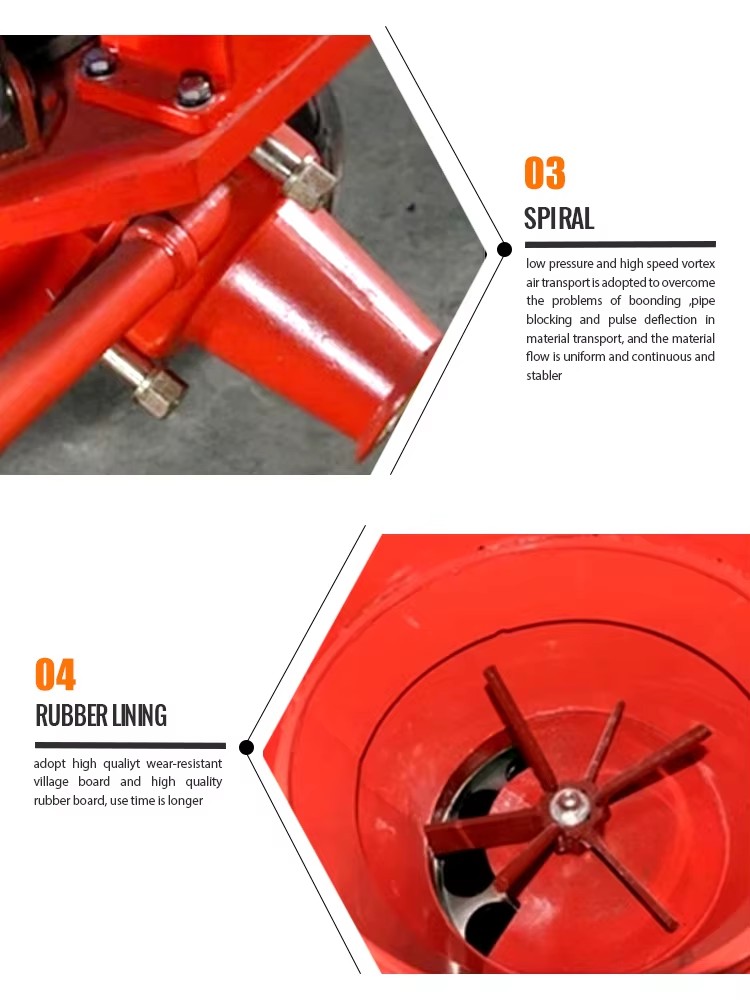

Shotcrete Machine 7

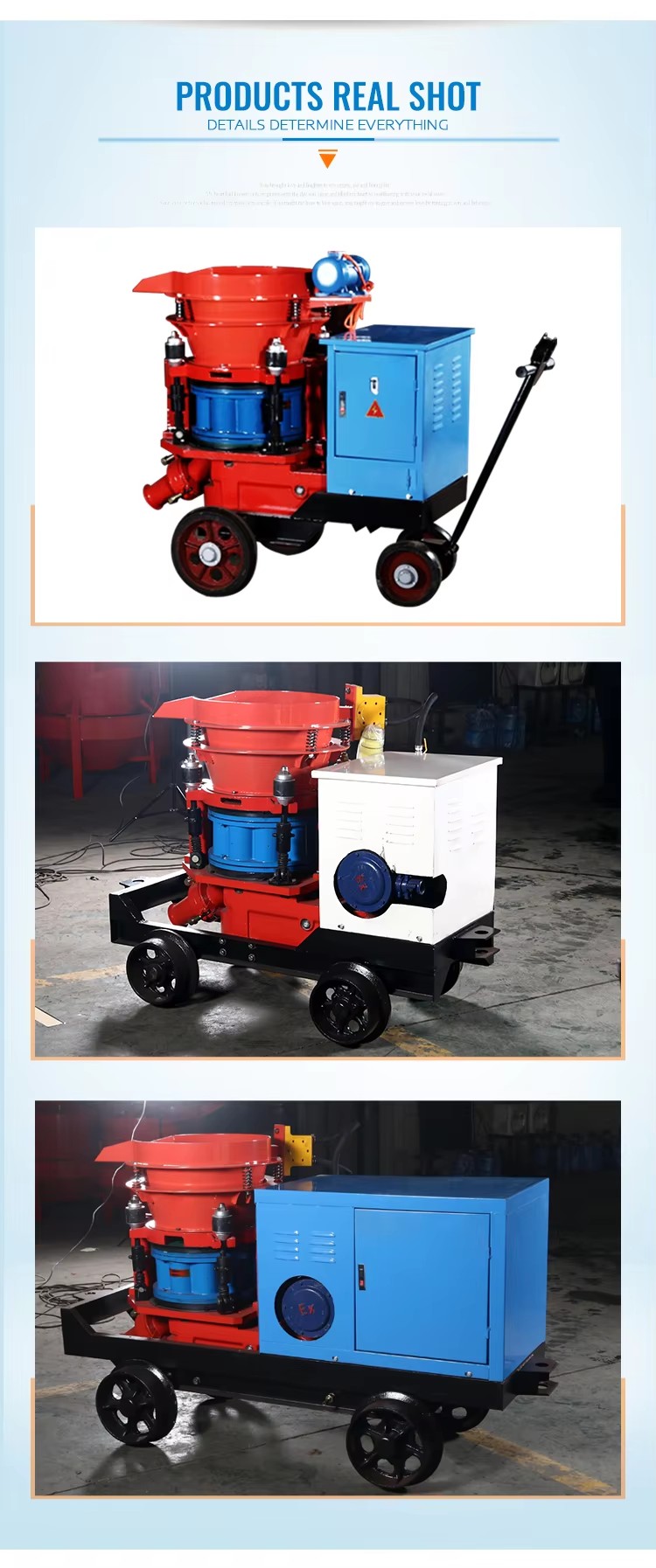

Shotcrete Machine 8
Shotcrete Machine 9
2
Specification
Model PZ3 PZ6 PZ7
Product capacity 3m³/h 3m³/h 3m³/h
Maximum delivery distance 200m 200m 200m
Practical material water-cement ratio <0.4 <0.4 <0.4
Biggest bone grain size of fire 20mm 20mm 20mm
Rotor block 350mm 440mm 480mm
Working pressure 0.4-0.6mpa 0.4-0.6mpa 0.4-0.6mpa
Blast consumption 3-4m³/h 6-8m³/h 7-8m³/h
Motor power 3kw 5.5kw 7.5kw
Dimension(mm) 1040*550*950 1300*705*1300 1600*750*1200
Weight(kg) 260 600 700
3
Packing & Delivery

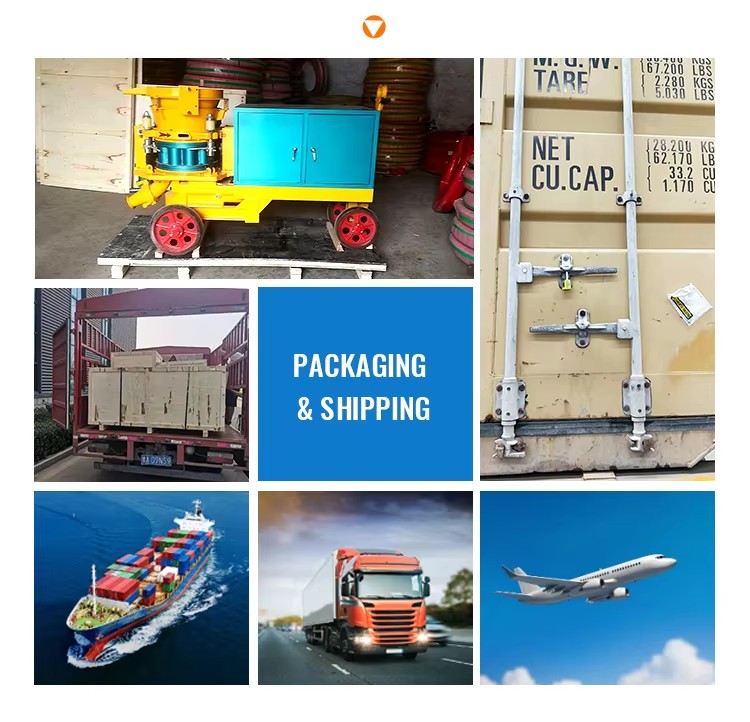

Packing and Delivery
4

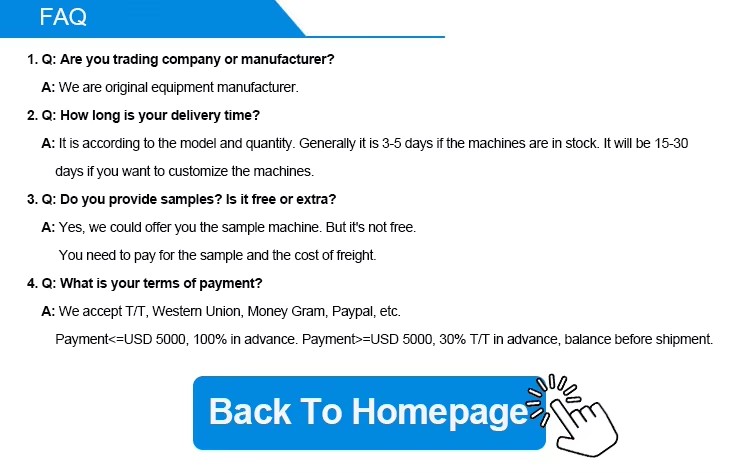

FAQ
FAQ Overview
What are the main differences between the PZ3, PZ6, and PZ7 models?
The main differences lie in the motor power (ranging from 3kw to 7.5kw), the rotor block size, and the blast consumption requirements. While they share similar delivery distances, the PZ7 is built for heavier-duty applications with a larger dimension and weight.
What is the maximum delivery distance for these shotcrete machines?
All three models (PZ3, PZ6, and PZ7) are capable of reaching a maximum delivery distance of 200 meters.
What is the ideal water-cement ratio for operation?
The practical material water-cement ratio for these machines should be kept below 0.4 to ensure optimal performance and prevent clogging.
What size of aggregate can the machine handle?
The machines can handle a maximum bone grain size (aggregate size) of up to 20mm.
How is the equipment typically packed for delivery?
The machines are securely packed in industrial-grade wooden crates or reinforced frames to ensure protection against impact and moisture during sea or land transit.
What working pressure is required for these machines?
The standard working pressure for the PZ series shotcrete machines is between 0.4 and 0.6 mpa.
