Prestressed Single And Double Cylinder Piston Type Small Grouting Mortar Pump

1 / 5

Prestressed Single And Double Cylinder Piston Type Small Grouting Mortar Pump

Customization:	Available
After-sales Service:	Yes
Warranty:	1 year

Send Inquiry

Product Description

Basic Information

Model NO.

LGP25/15

Structure

Vertical Piston Pump

Power

Gasoline Engine

Application

Machinery Manufacturing

Flow

25L/min

Pressure

15bar

Gasoline Engine Power

4.8Kw

Weight

120Kg

Dimension

1135x525x890mm

Origin

China

Product Description

Prestressed Single And Double Cylinder Piston Type Small Grouting Mortar Pump

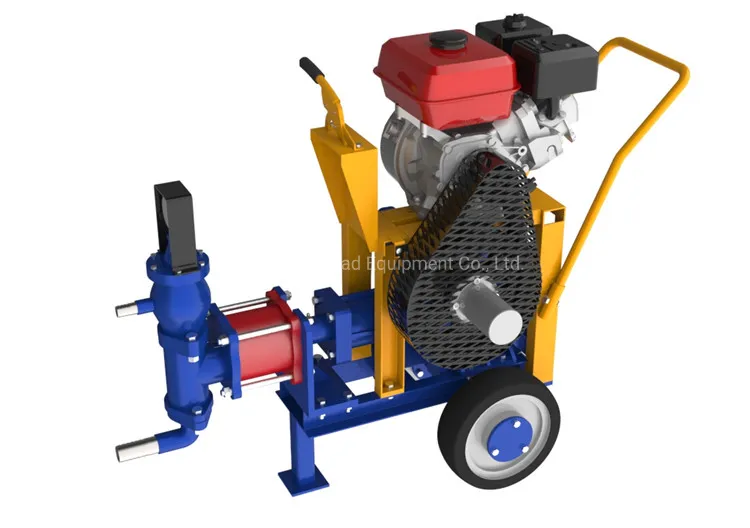

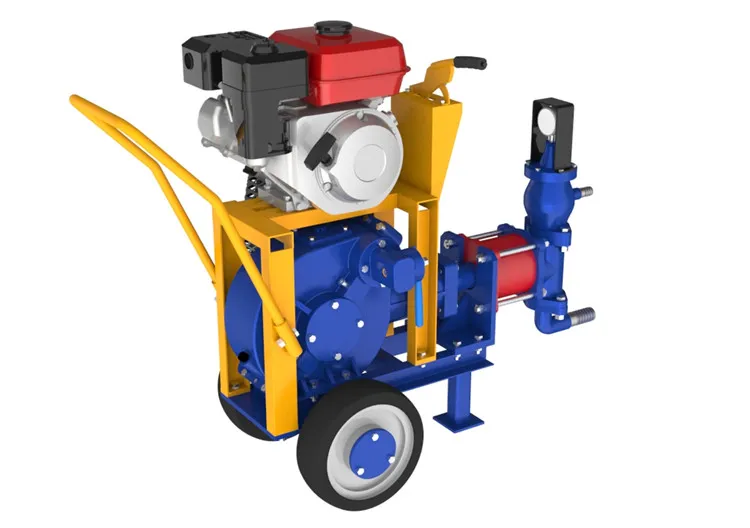

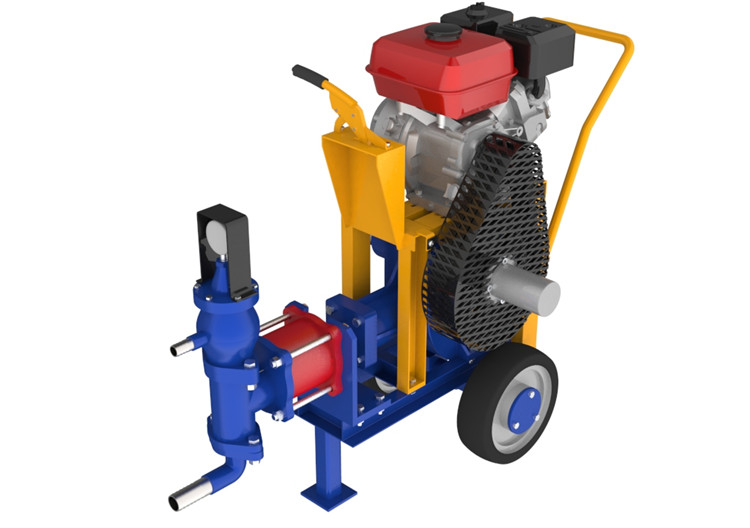

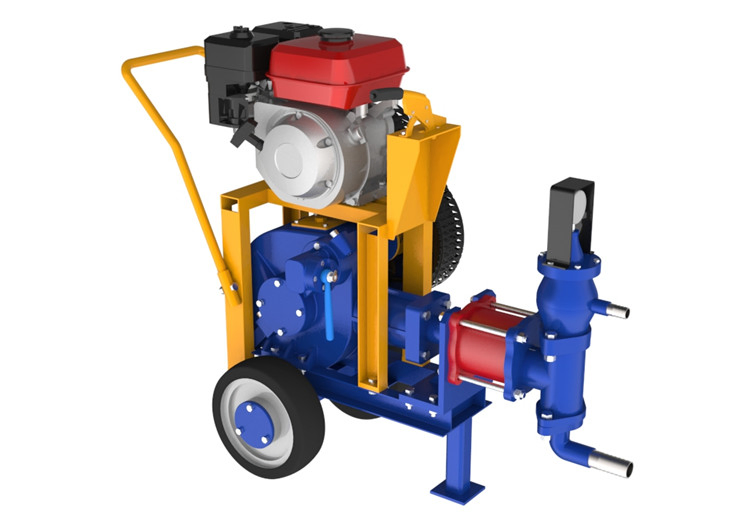

LGP25/15 is a small type gasoline engine grout pump. The piston is driven by the gasoline engine to produce reciprocating motion, and the cement slurry is sucked into the air chamber by the suction valve, and discharged through the pump cylinder. It has a wide range of applications, and can be grouted with various low-viscosity slurry materials with good fluidity, such as cement slurry and chemical slurry.

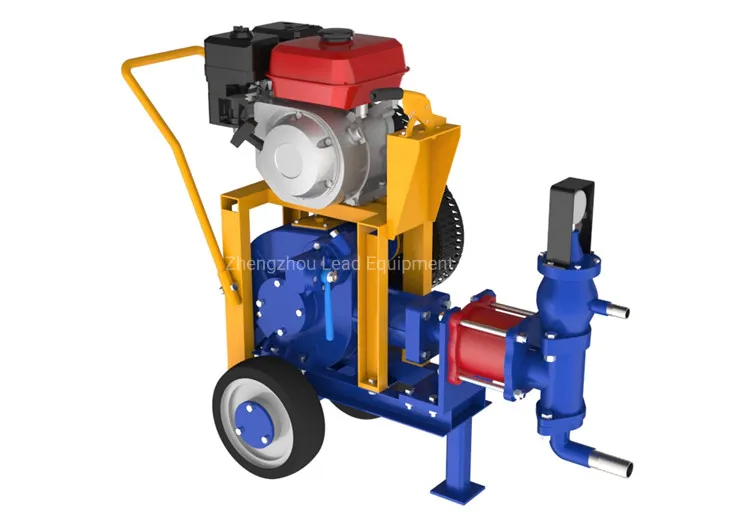

Product Application

LGP25/15 grout pump is mainly used for bridges, houses, small areas of seepage prevention, leakage prevention, plugging and repair; tunnels, mines, highways, and other areas without electric power supply.

Key Features

Small size, light weight, easy to move;
Gasoline engine, don't need electric supply;
Simple structure, durable;
Suitable for grouting cement slurry and chemical slurry.

Product Parameters

Model	LGP25/15
Output Capacity	25L/min
Working Pressure	15bar
Piston Diameter	110mm
Piston Stroke	42mm
Cycle	90/time
Gasoline Engine Power	4.8Kw
Outlet Diameter	25/32mm
Inlet Diameter	19/25mm
Weight	120Kg

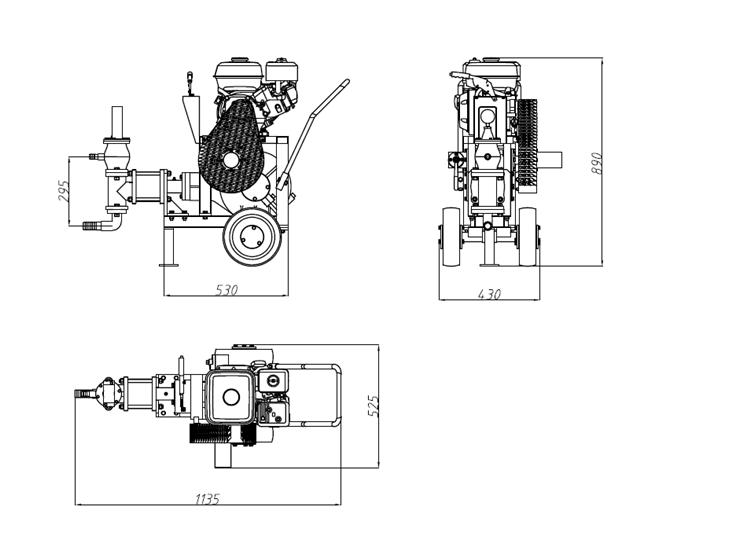

Dimension	1135x525x890mm

We have many standard models for your option, and we also could customize as per your requirement. If you are interested in our small type grout pump, welcome to send an inquiry.

Frequently Asked Questions

Q1: What is the main advantage of the LGP25/15 grout pump? A: Its main advantage is its portability and independence from electric power, as it is driven by a gasoline engine, making it ideal for remote sites.

Q2: What types of materials can this pump handle? A: It is designed for low-viscosity slurry materials with good fluidity, including standard cement slurry and various chemical slurries.

Q3: How much does the machine weigh and is it easy to transport? A: The pump weighs 120Kg and features a compact design (1135x525x890mm), making it relatively easy to move around small job sites.

Q4: What is the output capacity and pressure of this model? A: The LGP25/15 has an output capacity of 25L/min and a maximum working pressure of 15 bar.

Q5: Can the specifications be customized? A: Yes, while we have many standard models, we can also customize the equipment according to your specific project requirements.

Q6: In which scenarios is this pump typically used? A: It is widely used for seepage prevention in bridges and houses, repair work in tunnels and mines, and highway maintenance where power is limited.
