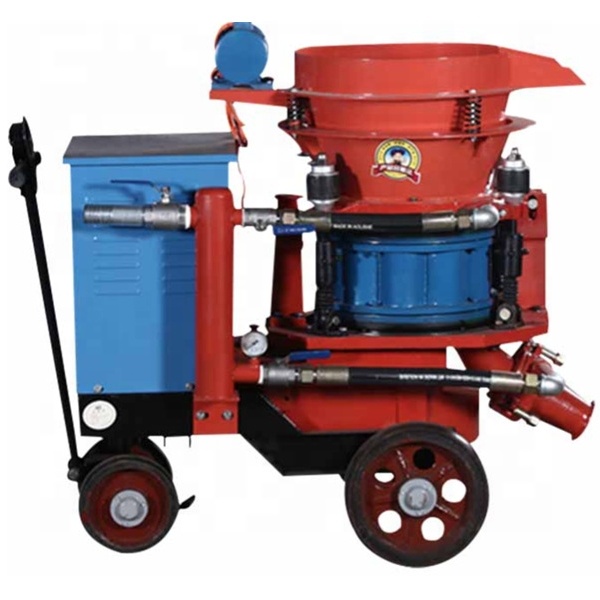

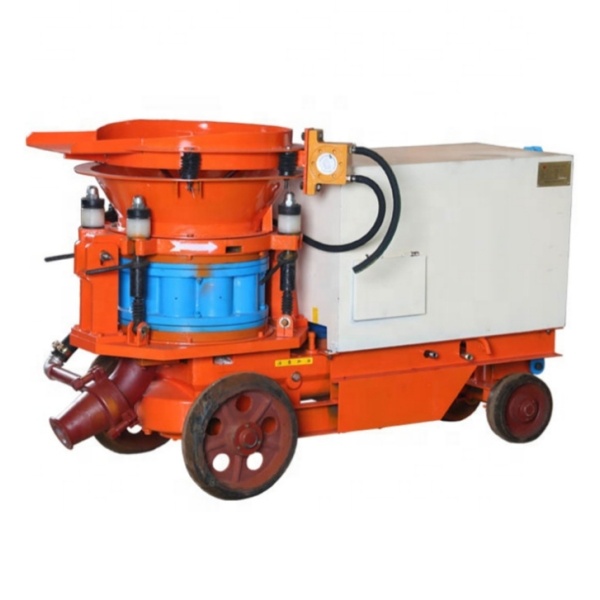

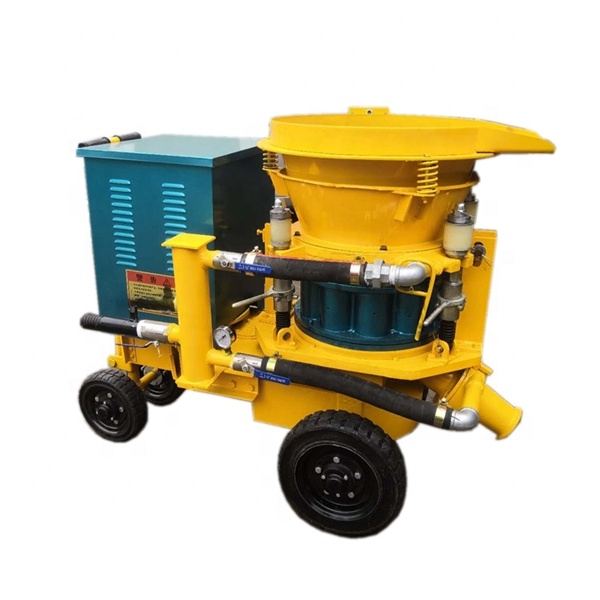

Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
1 / 5
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine
Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine

Underground Construction Slope Project Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine

Send Inquiry

Product Description

Product Overview

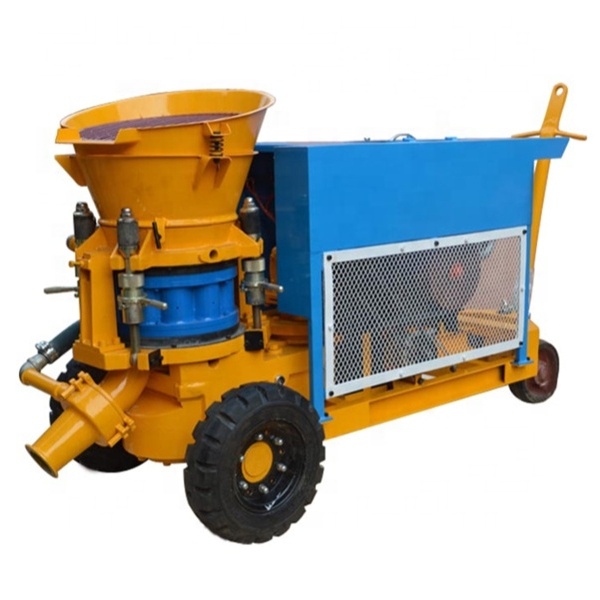

PZ-6F Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine

PZ-6F Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine is widely used in tunnel, culvert, subway, hydroelectric engineering, underground engineering and mine roadway shotcrete construction in high marsh mine.

The working principle of PZ-6F Dry Mix Concrete Gunite Spraying Machine Refractory Shotcrete Machine is that the compressed concrete is used to convey a certain proportion of the concrete mix through the pipeline and spray it at high speed to the surface to be solidified by the spray surface to form a concrete support layer.

FEATURES AT A GLANCE
⚙️
Efficient Rotor Design: PZ-6F features a straight-through rotor type non-bonded material cavity, ensuring smooth discharge, efficient operation, and time-saving performance.
🌪️
Stable Material Flow: Low pressure, low speed swirling wind, and thin stream conveying provide a uniform and stable material flow with high spray strength.
🛡️
Advanced Sealing: Four-point elastic compensation clamping provides an excellent sealing effect, reducing dust near the machine and extending the life of wearing parts.

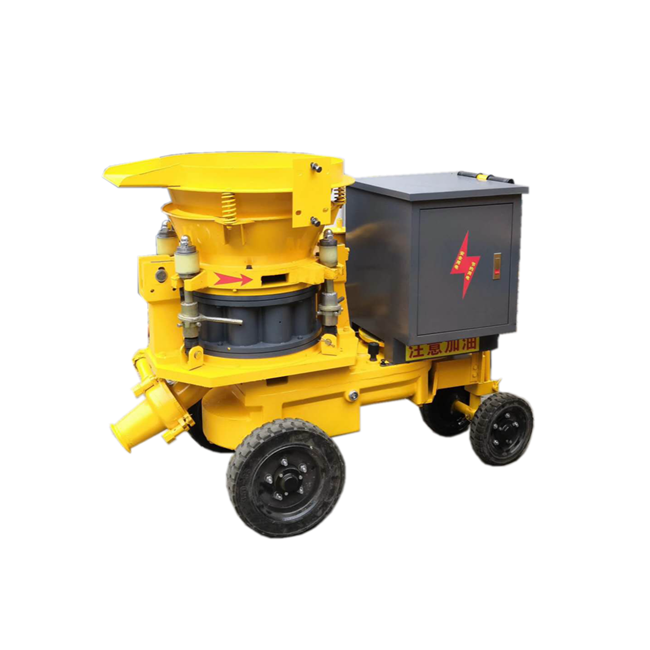

PZ-6F Machine Features
PRODUCT SPECIFICATIONS
ModelPZ-6F
Applicable Material (Cement/Sandstone) Ratio1：3—5
Transportation volume (m3/h)6-7
Applicable Material (Water/Ash) Ratio≤0.4—0.45
Max. aggregate size≤Φ20 mm
Motor power (KW)7.5
Rotor speed11 r/min
Inner diameter of the feeding pipeΦ51 mm
Working Pressure0.6—0.8 Mpa
Shape size (L * W * H)1350*740*1160 mm
Whole Machine Weight700 kg
SIMILAR PRODUCTS

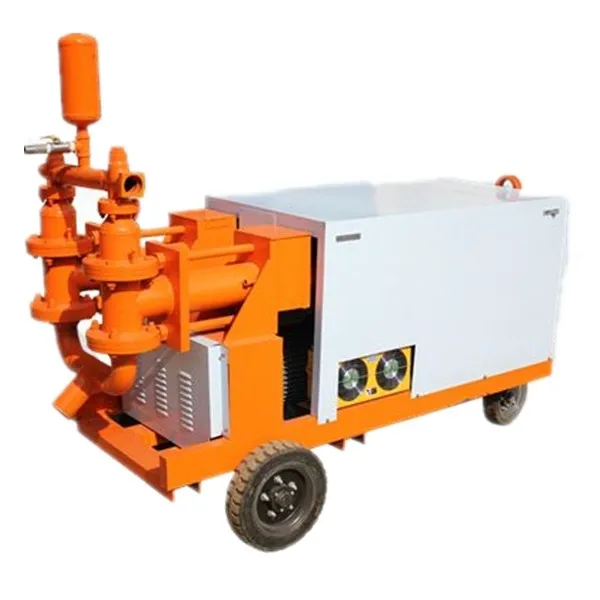

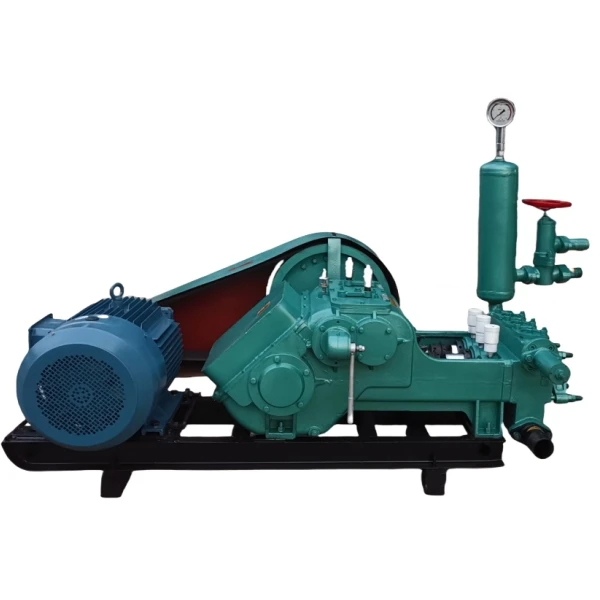

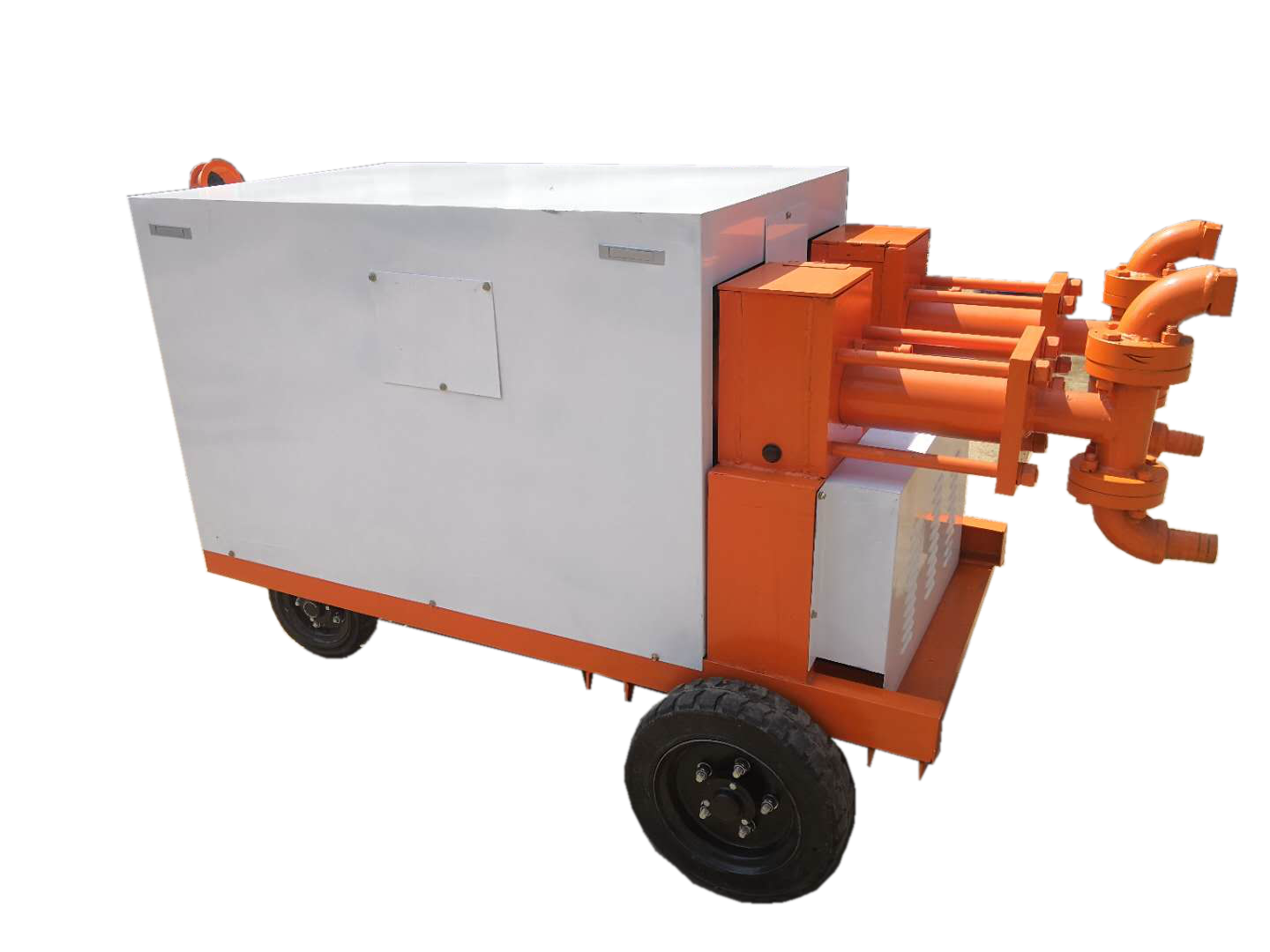

Similar Product 1 Similar Product 2 Similar Product 3
QUALIFICATIONS & SERVICES
Qualifications Our Services

Frequently Asked Questions

Q1: How about the quality of machines?
A1: Our machines adopt CR-Steel and advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.
Q2: About the delivery time?
A2: Generally, if have in stock, the machine will be about 3-5 days after your deposit, which also will be on basis of your order.
Q3: As for the warranty?
A3: We provide 1-2 years for warranty according to the machine.
Q4: Which kind of payment is available for us?
A4: T/T, L/C and Western Union are common for us.
Q5: How about the service?
A5: Provide overseas installation, debugging and training the relating work.
Q6: Is there a discount on your price about this machine?
A6: Yes, we will give you a big discount about the machine.
