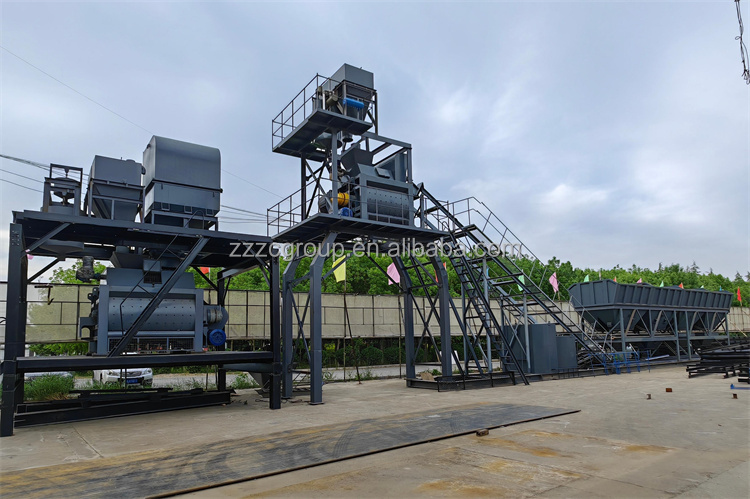

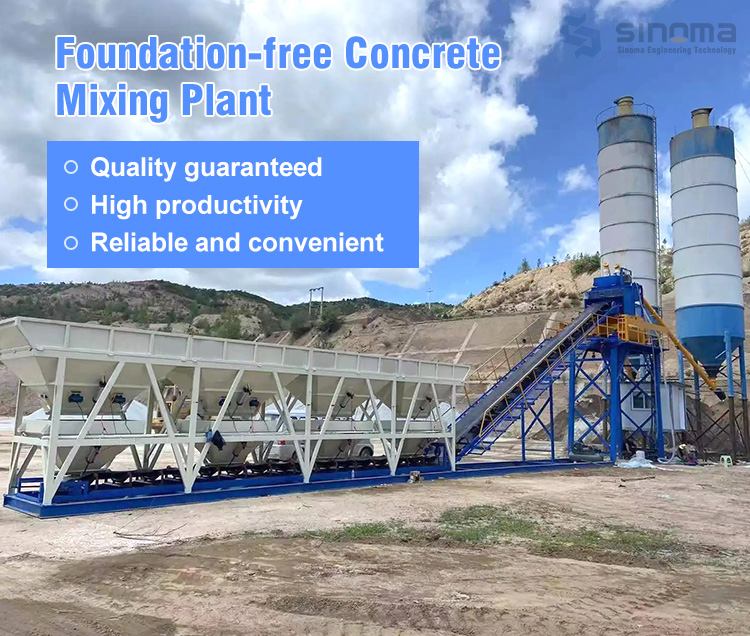

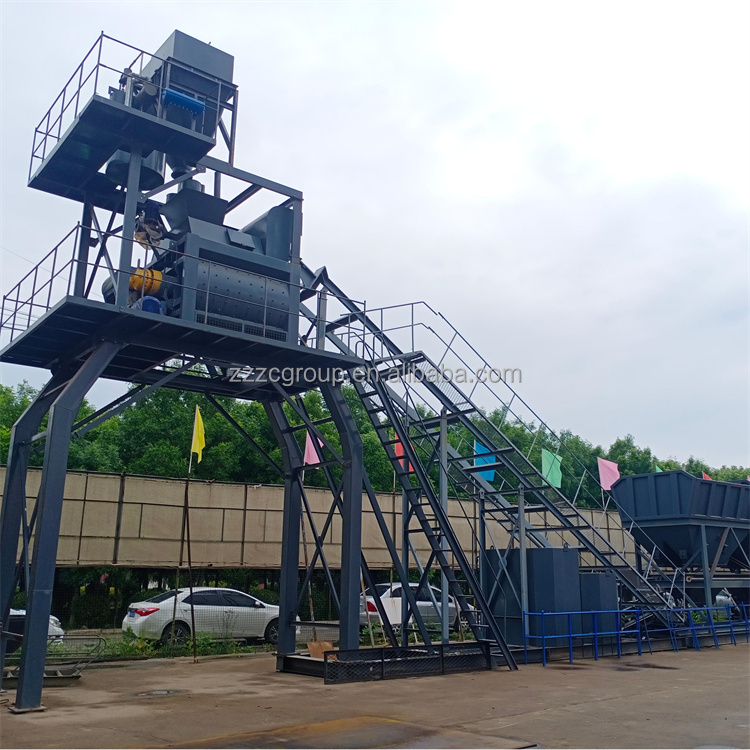

Foundation-free concrete mixing plant is ideal for urban construction, infrastructure projects, remote areas, temporary construction sites, and projects requiring frequent relocation. Characterized by its modular design and easy installation, eliminates the need for complex foundation work. With rapid assembly and disassembly capabilities, it offers flexibility and cost savings. It provides efficient and reliable concrete production without the constraints of traditional foundation requirements.
| Model | Theoretical Productivity (m³/h) | Standard Height (m) | Mixer Model (Mixer Output L) | Mixer Power (kW) | Total Power (kW) | Mixing Cycle time(s) |
|---|---|---|---|---|---|---|
| HZS25 | 25 | 3.8m | JS750 | 18.5 | ≤60 | 60 |
| HZS35 | 35 | 3.8m | JS750 | 30 | ≤60 | 60 |
| HZS50 | 50 | 4.2m | JS1000 | 2×18.5 | ≤110 | 60 |
| HZS60 | 60 | 4.2m | JS1000 | 2×18.5 | ≤110 | 60 |
| HZS75 | 75 | 4.2m | JS1500 | 2×30 | ≤160 | 60 |
| HZS90 | 90 | 4.2m | JS1500 | 2×30 | ≤160 | 60 |
| HZS120 | 120 | 4.2m | JS2000 | 2×37 | ≤210 | 60 |
| HZS180 | 180 | 4.2m | JS3000 | 2×55 | ≤270 | 60 |
| HZS240 | 240 | 4.2m | JS4000 | 2×55 | ≤350 | 60 |

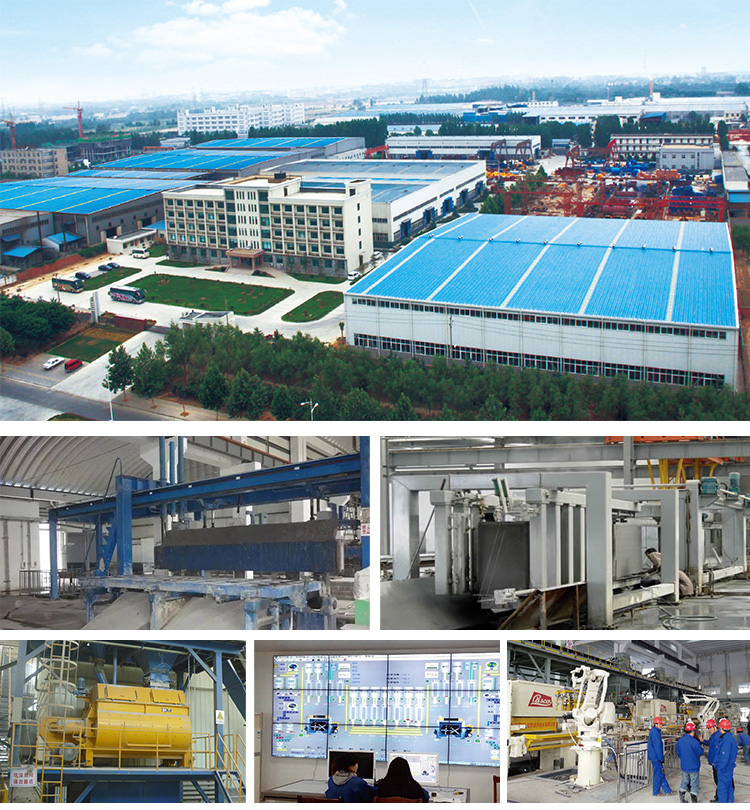

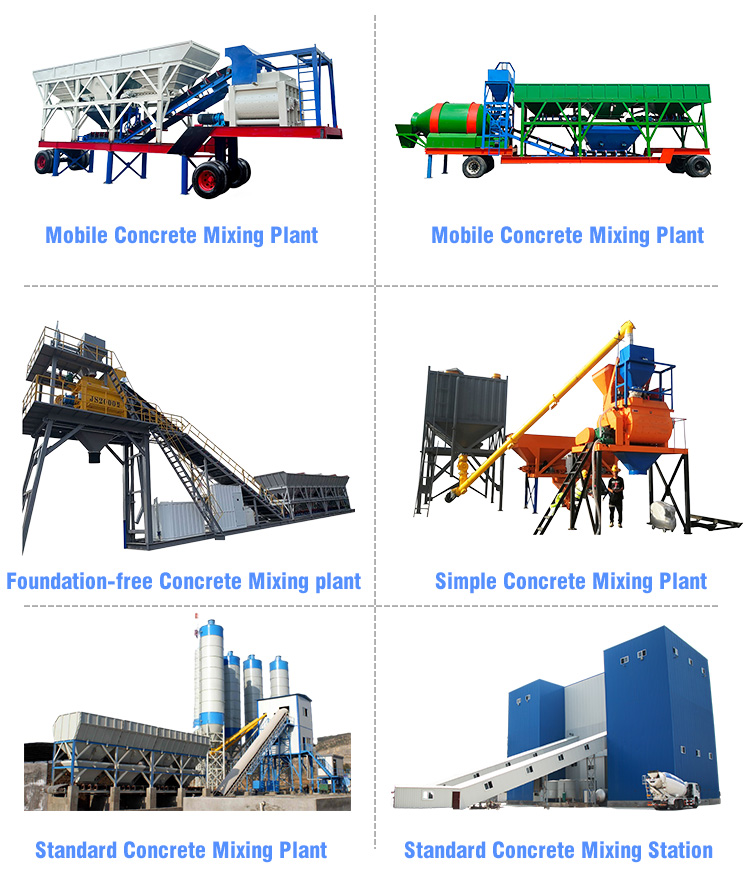

As a large-scale equipment manufacturer integrating R&D, production, and sales, we provide high-quality concrete machinery, grinding equipment, and stone crushing machinery. Our range includes concrete batching plants, mixers with pumps, mixer trucks, vertical mills, and various crushers. Our equipment is widely used in the building, mining, and construction industries. We utilize standardized production processes and strict quality control to ensure excellence in all products.
