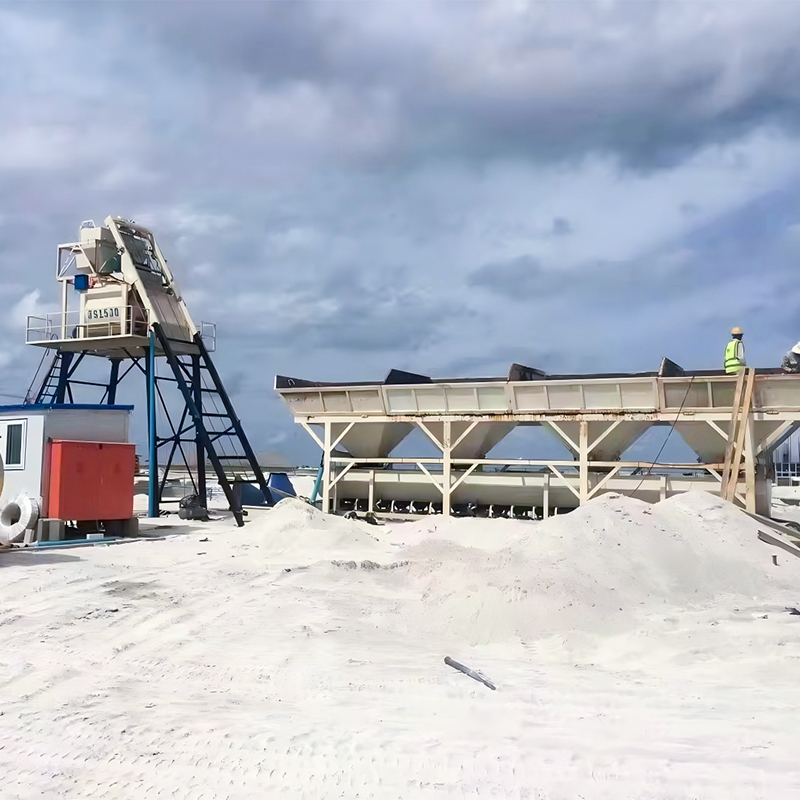

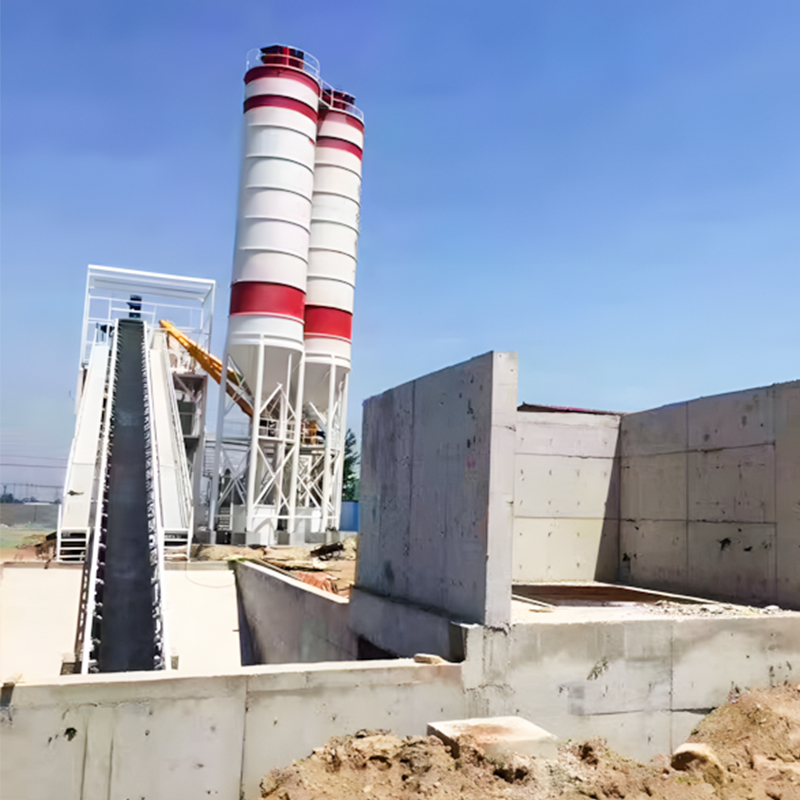

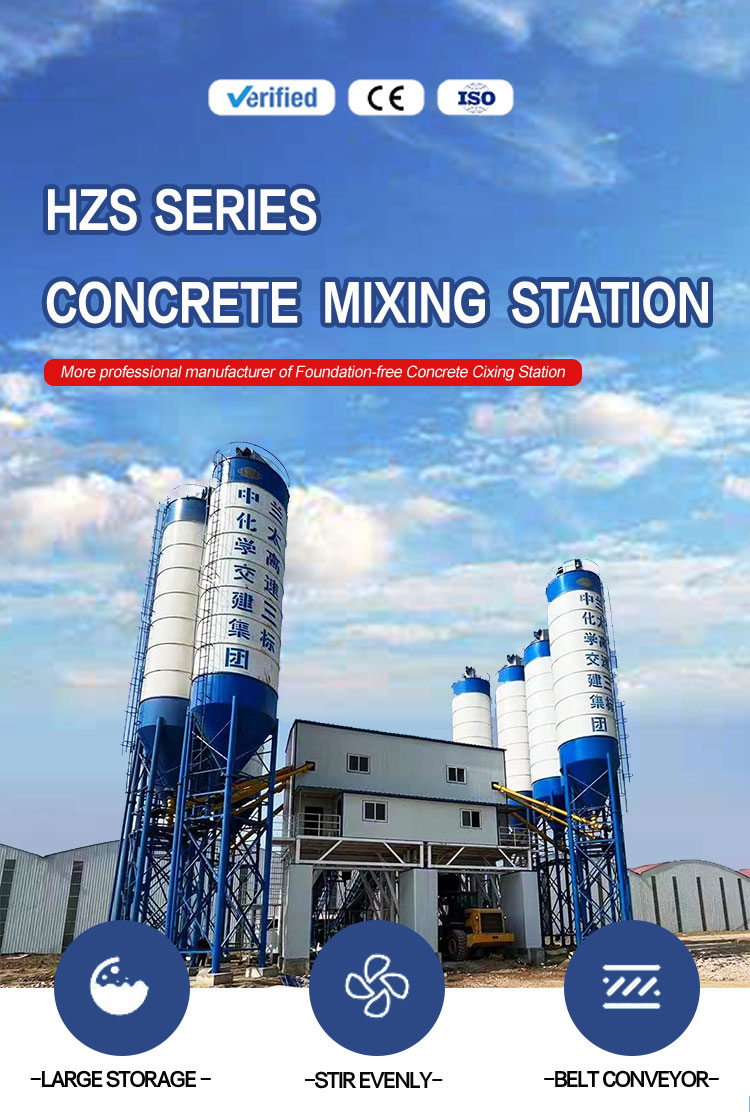

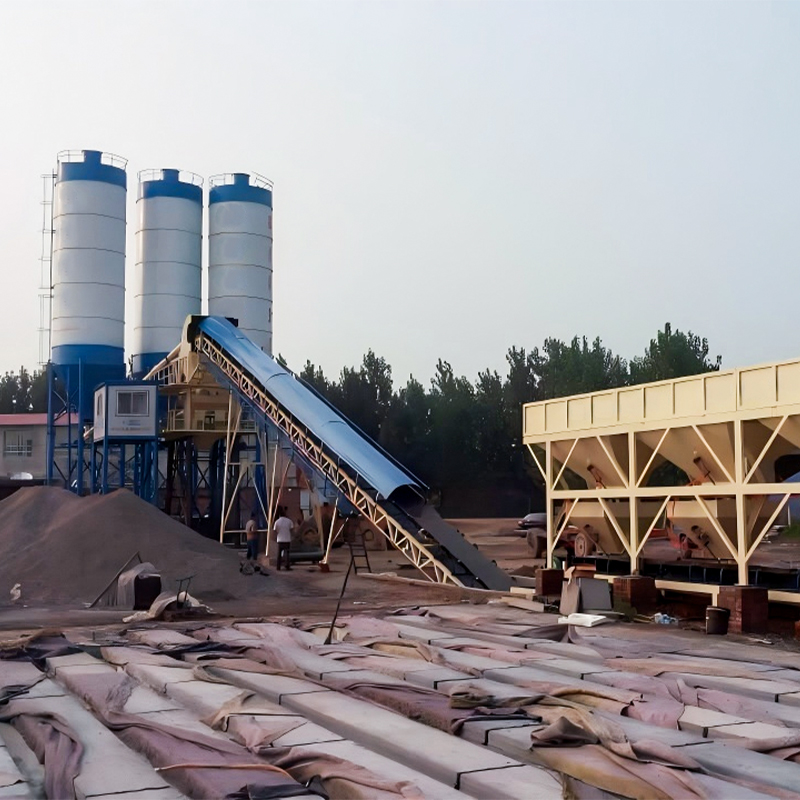

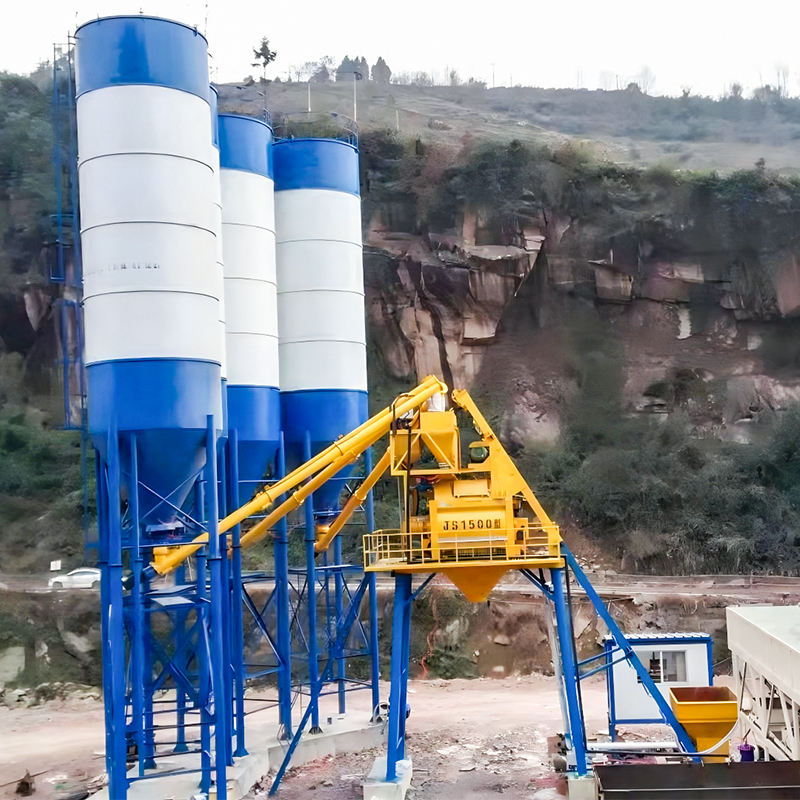

Factory Manufacturer Hzs Ready Mixed Concrete Batching Plant Electric Concrete Batch Mix Plants for Sale-Corey

Product Description

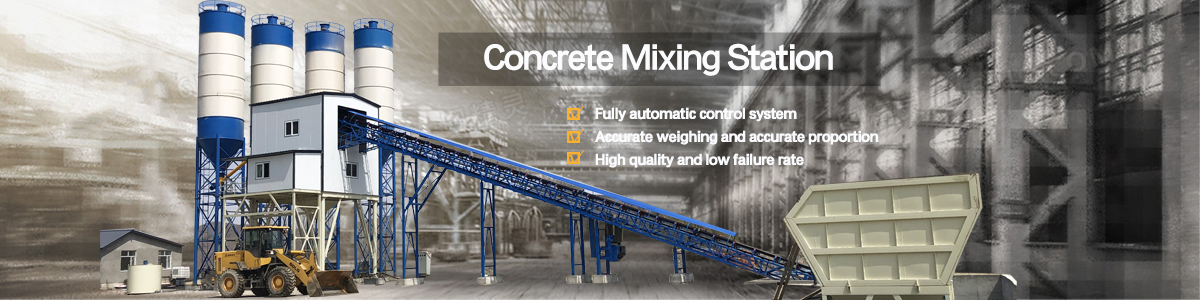

HZS Mixing Station Mixing Plant Overview
HZS series mixing station can be composed of double horizontal shaft mixer, batching machine and related equipment flexible combination. This simple mixing station has the single independent use and PLD series batching machine into the production capacity of 25m³/h-180m³/h the concrete mixing station double advantages, and simple structure, convenient disassembly, and convenient construction.

It is suitable for all kinds of large and medium-sized prefabricated parts factories and industrial and civil construction projects such as highway, bridge, water conservancy, wharf, etc. It can mix dry hard concrete, light aggregate concrete and various mortar. It is a kind of high efficiency mixing station.

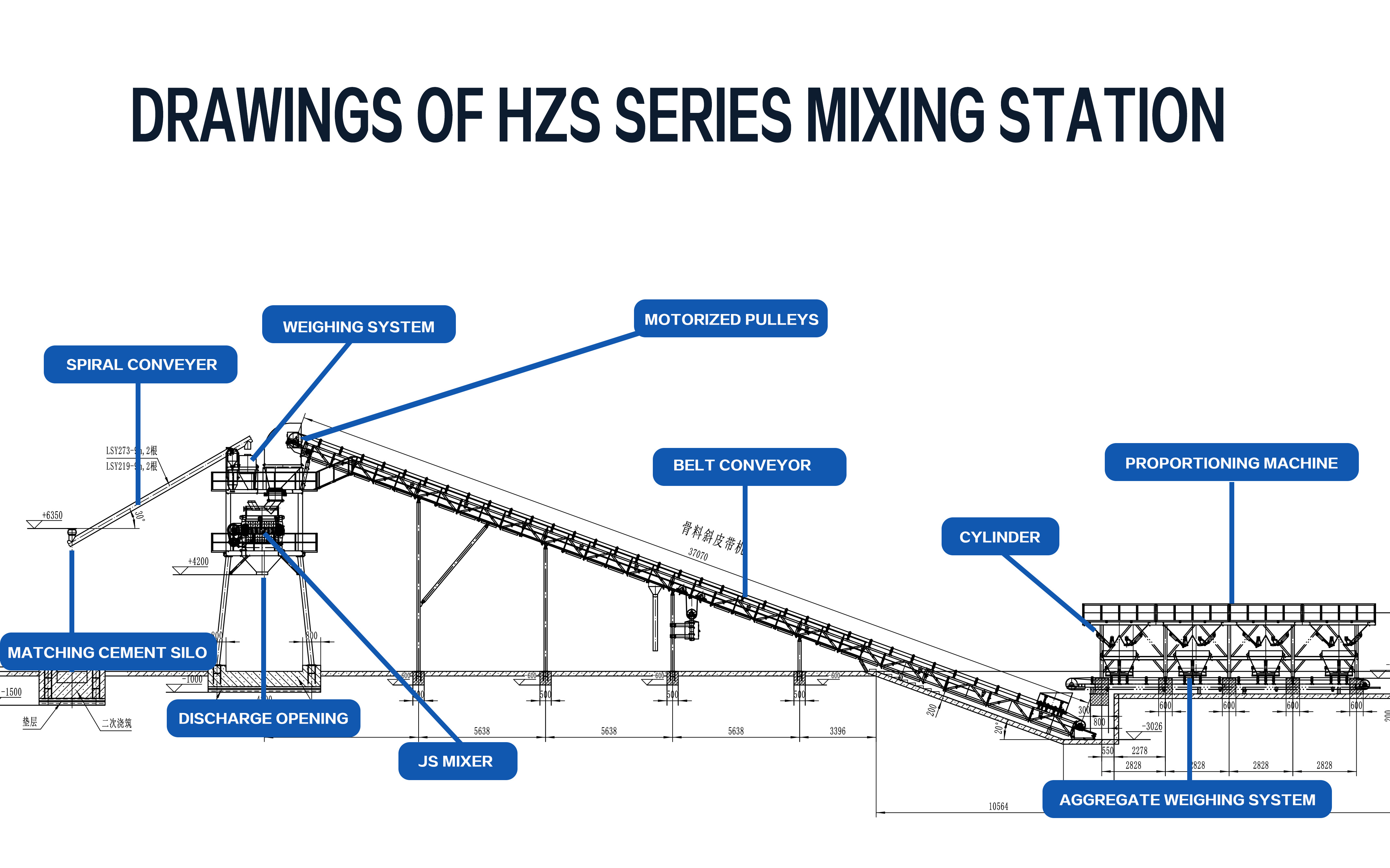

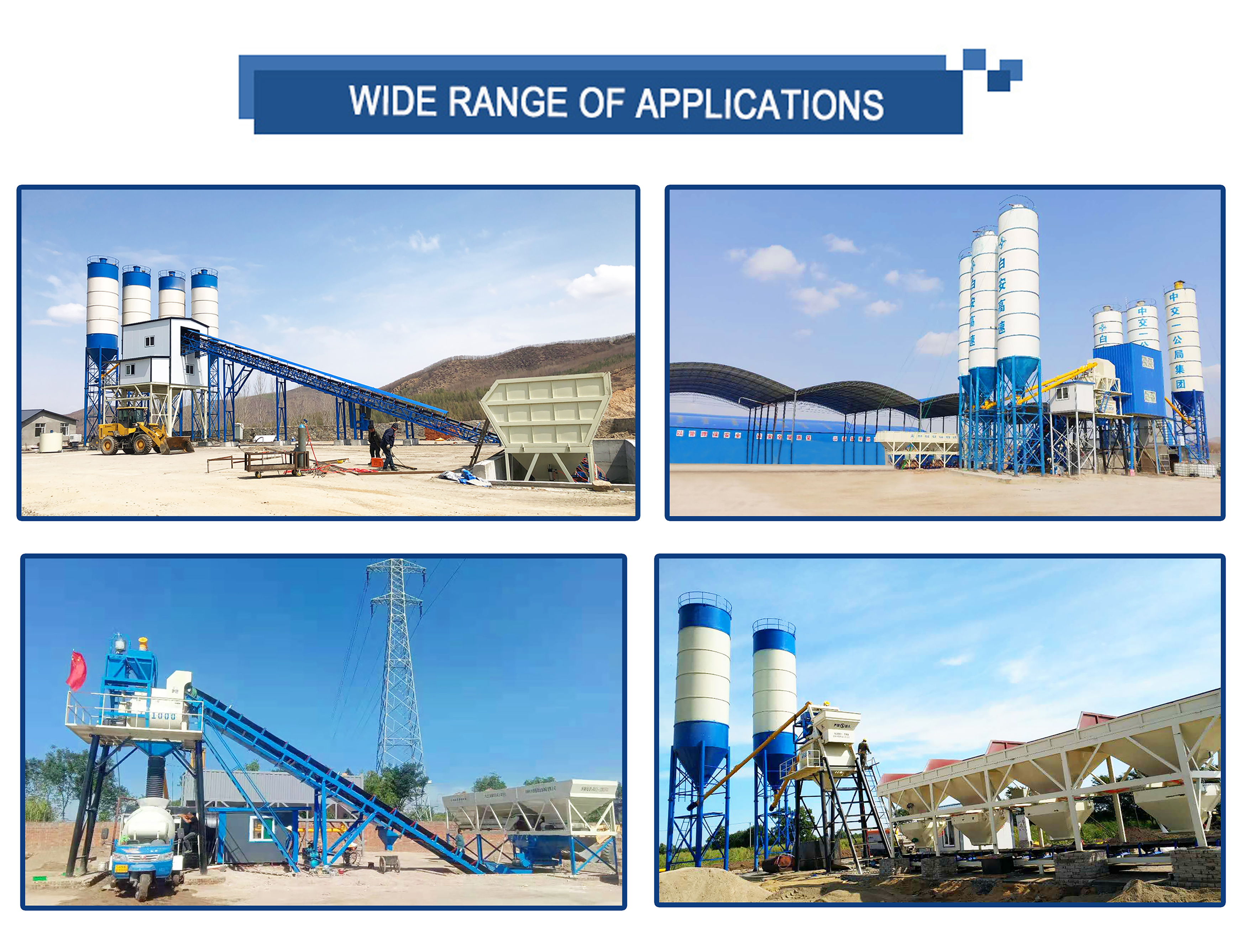

Production Details Structural Details
⚙️
We are specialized in manufacturing concrete mixing plant factories, doing export for more than 12 years. Diversified mixing plant customization, common fixed mixing plant, mobile mixing plant, drum mobile mixing plant truck, foundation-free simple mixing plant, etc. are available. According to the site conditions, we can provide you with suitable programs to build. We have professional engineers and technicians responsible for product installation guidance and lifelong after-sales service.
Factory Show

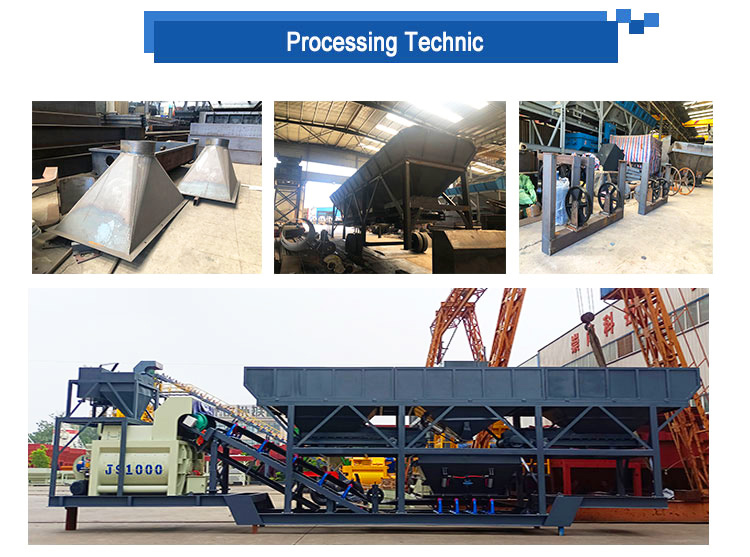

Factory View 1

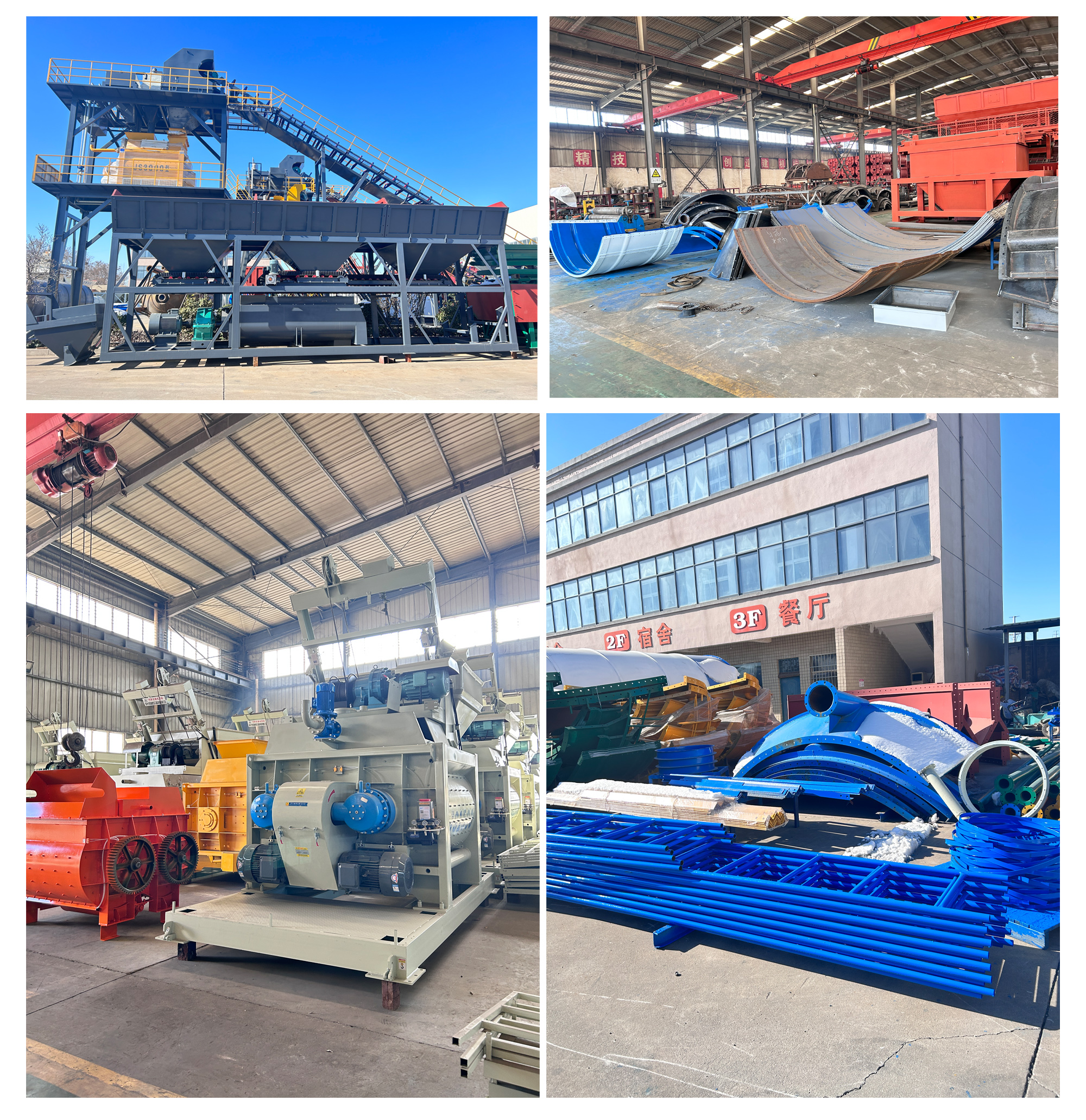

Factory View 2
Factory View 3

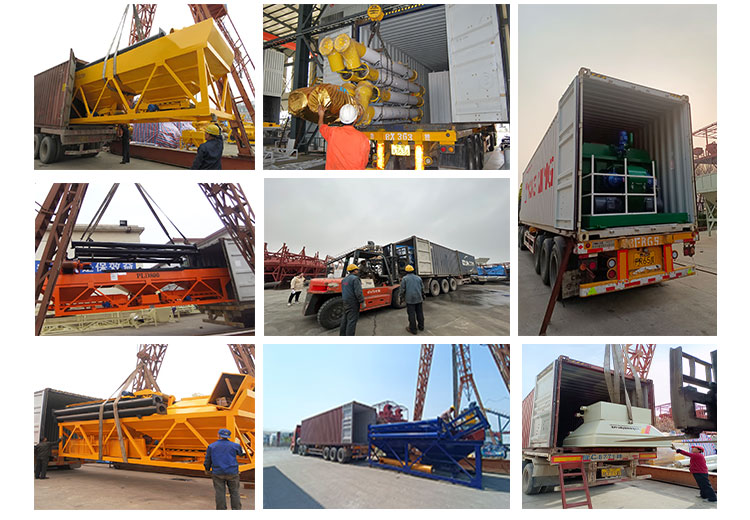

Factory View 4
Product Details

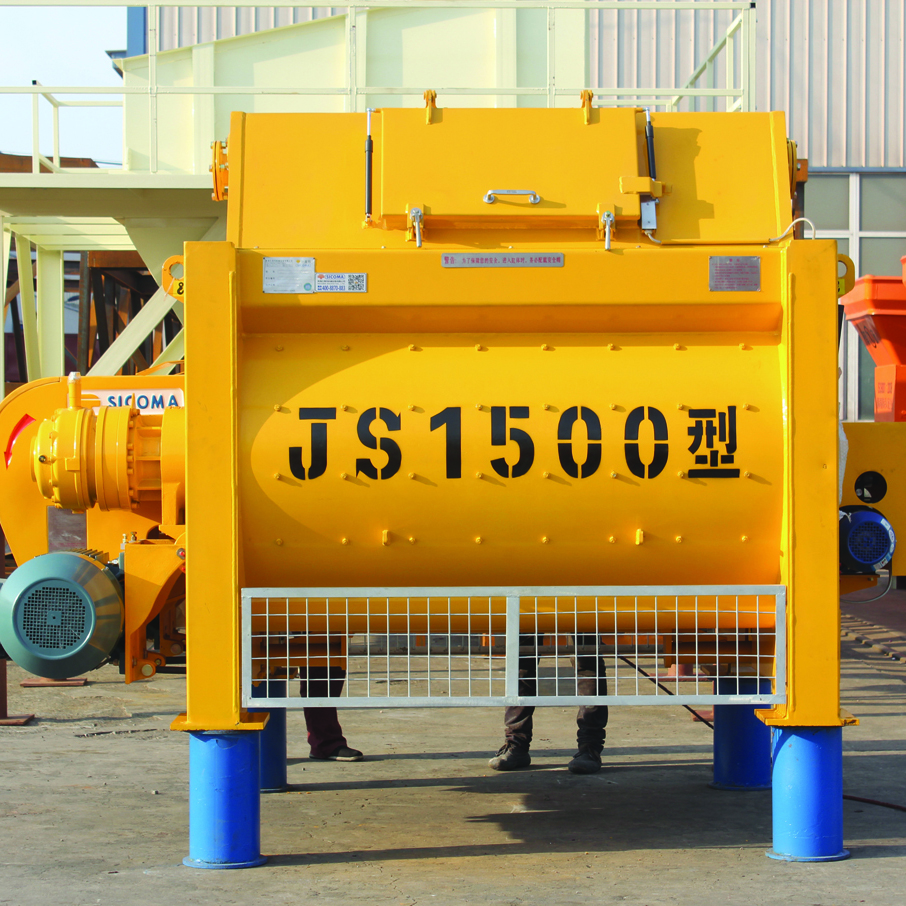

JS Mixing Machine

JS (500-3000) Mixing Machine

Mixing system selection JS/SICOMA twin shaft concrete mixer, high efficiency, high mixing quality.

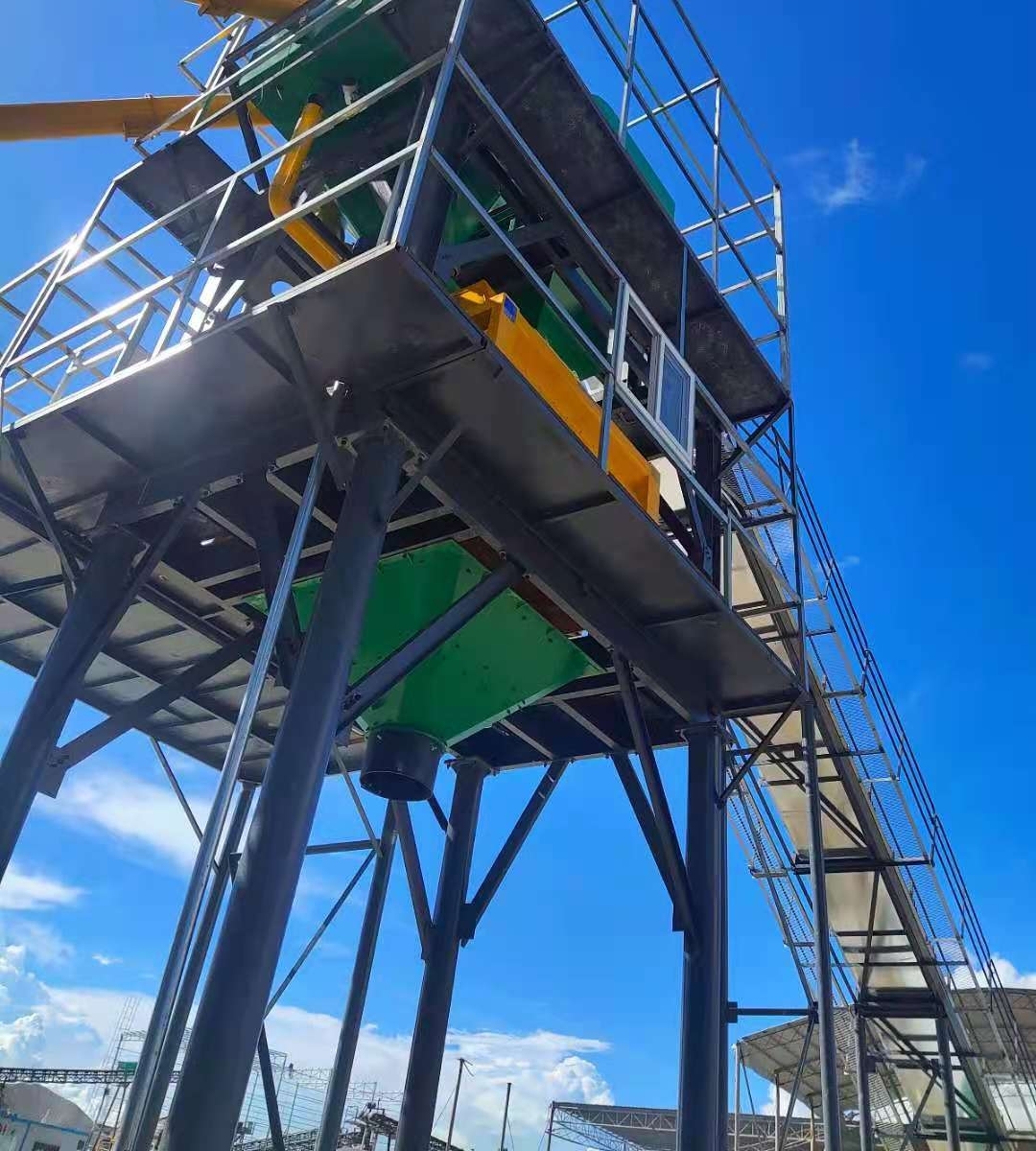

Steel Frame

Steel Frame

Base frame of the host: standard channel steel 32#. Host leg: 4.54 meters, 6mm thick Φ273 round tube. Structural components are durable.

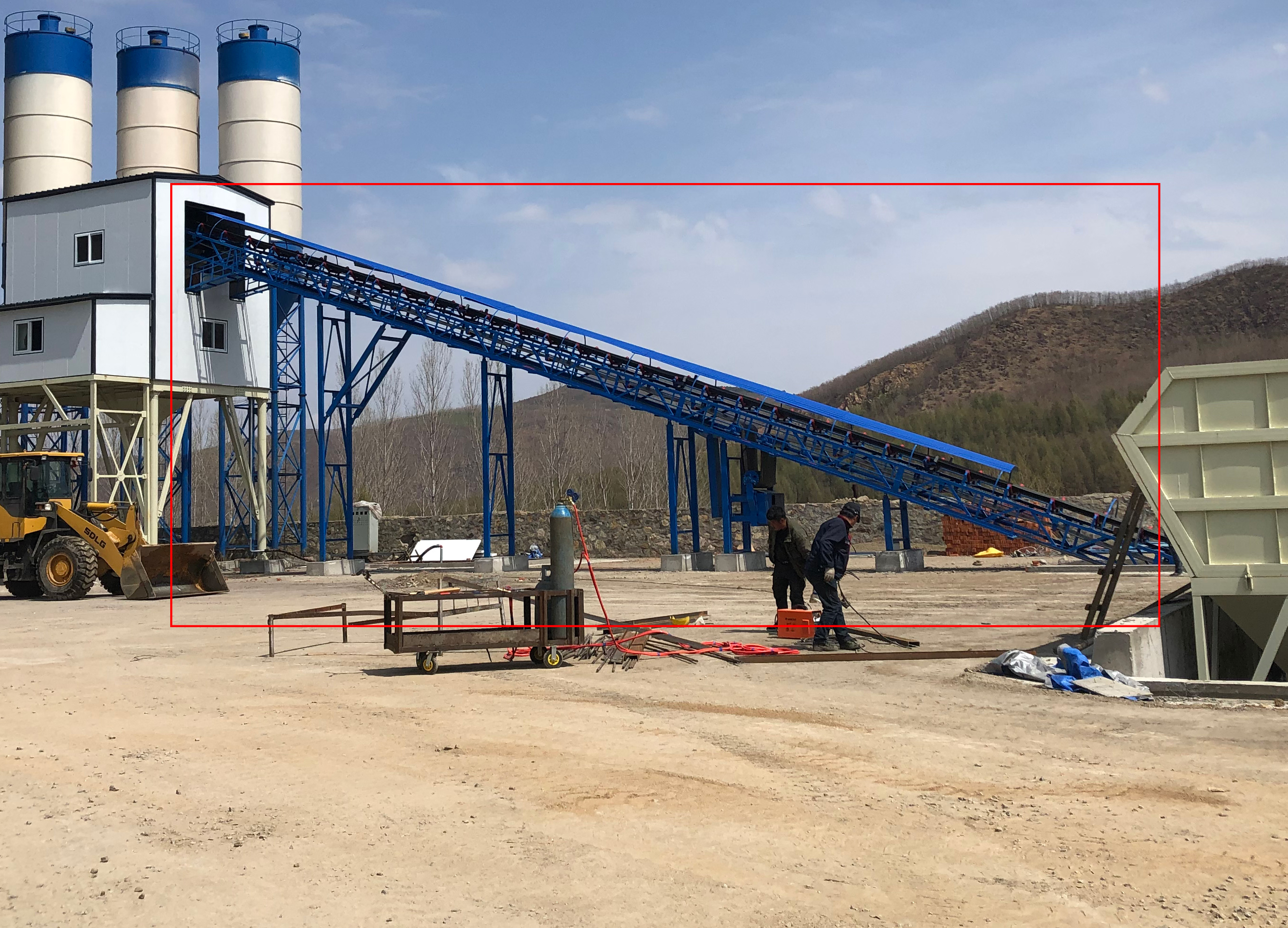

Belt Feeder

Belt Feeder & Storage Silo

Fast feeding speed, large conveying distance, high efficiency, and reduced failure rates.

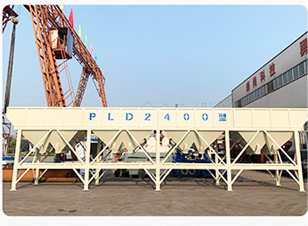

Batching Machine

Aggregate Batching Machine

PLD800 to PLD6400 models available to suit various production requirements.

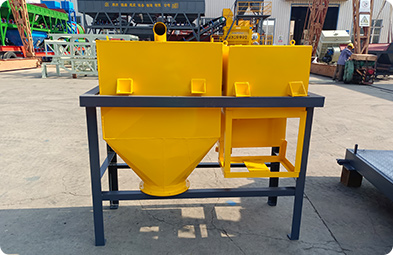

Measuring System

Measuring System

Powder and water are measured using electronic scales, ensuring high batching accuracy.

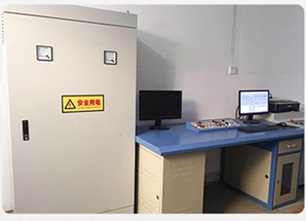

Control System

Control System

Computer plus PLC control system ensures smart and stable operation with a dynamic panel display.

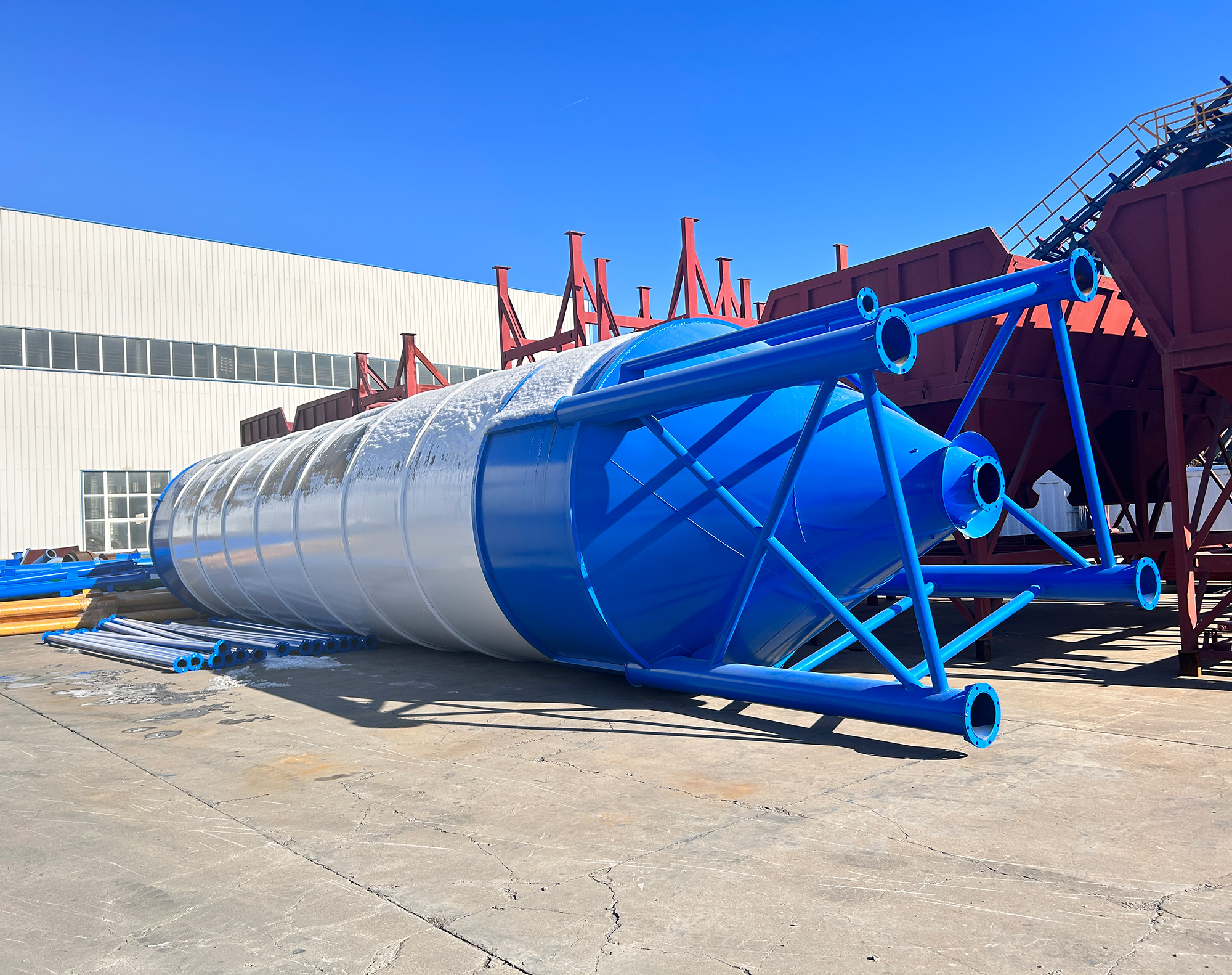

Cement Silos

Cement Silos

Customized sizes available: 20t, 50t, 100t, 150t, 200t, and more.

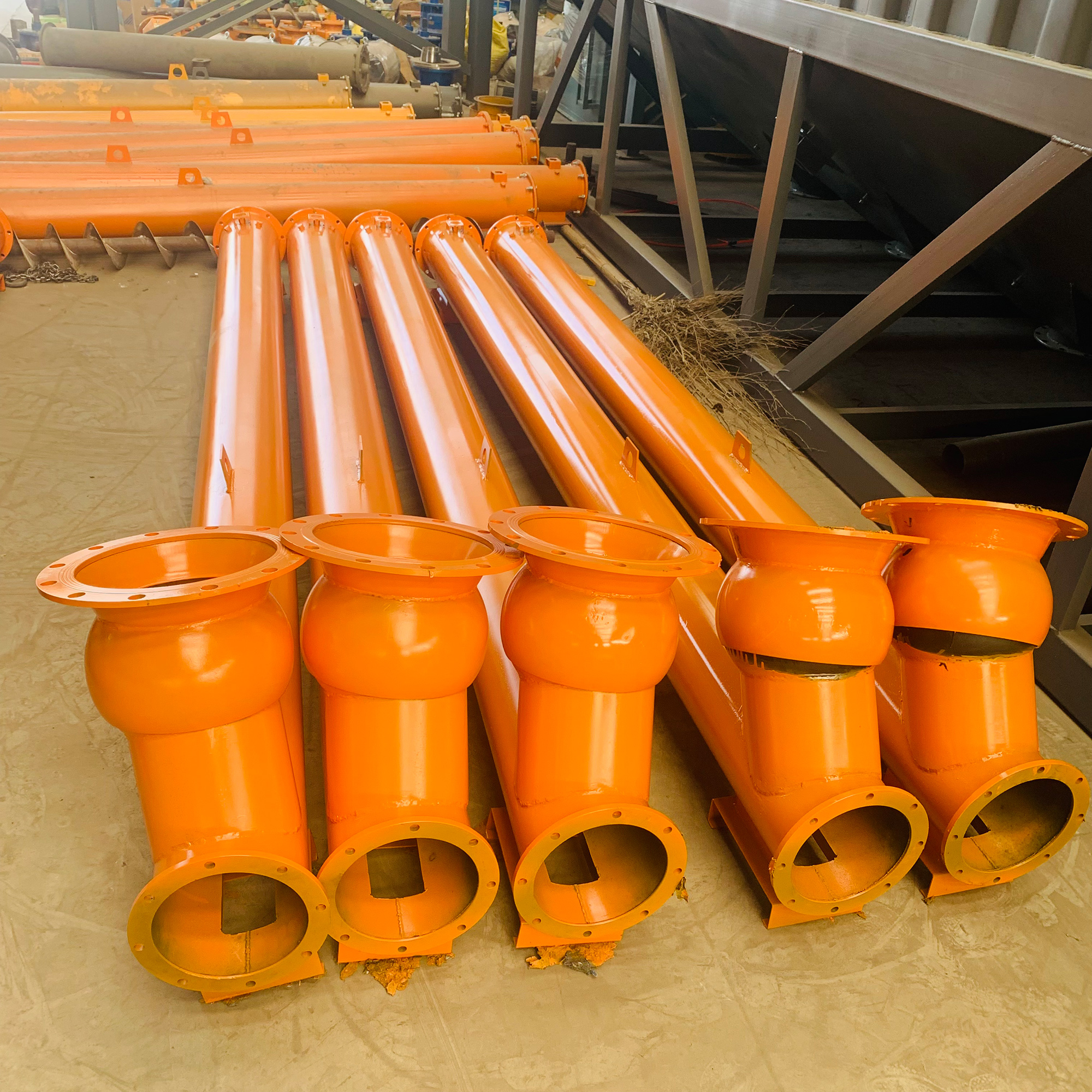

Screw Conveyors

Screw Conveyors

Excellent sealing, closed trough design, suitable for long conveying distances.

Product Parameters
Type HZS25 HZS35 HZS50 HZS60 HZS75 HZS90 HZS120 HZS180
Mixing Power 18.5KW 30kw 37kw 37kw 30kw*2 30kw*2 37kw*2 55kw*2
Motor Power 50.25KW 65kw 90kw 110kw 110kw 120kw 210kw 260kw
Discharge Method Manual/Pneumatic Manual/Pneumatic Pneumatic Pneumatic Hydraulic Hydraulic Hydraulic Hydraulic
Theoretical Capacity 25m³/h 35m³/h 50m³/h 60m³/h 75m³/h 90m³/h 120m³/h 180m³/h
Max. Aggregate 60/80mm 60/80mm 60/80mm 60/80mm 60/80mm 60/80mm 60/80mm 100/120mm
Product Parameter Sheet
Company Profile

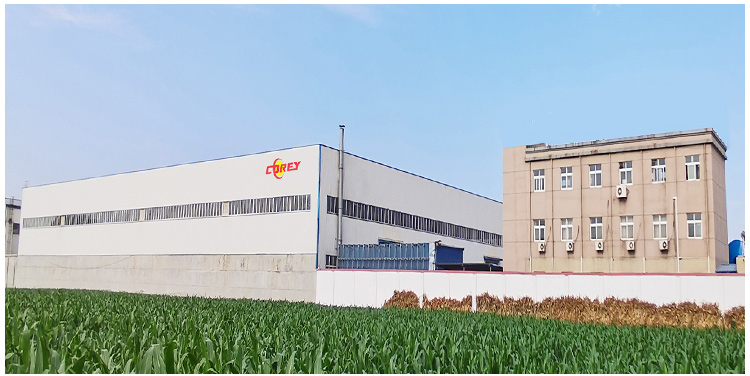

Profile Image 1

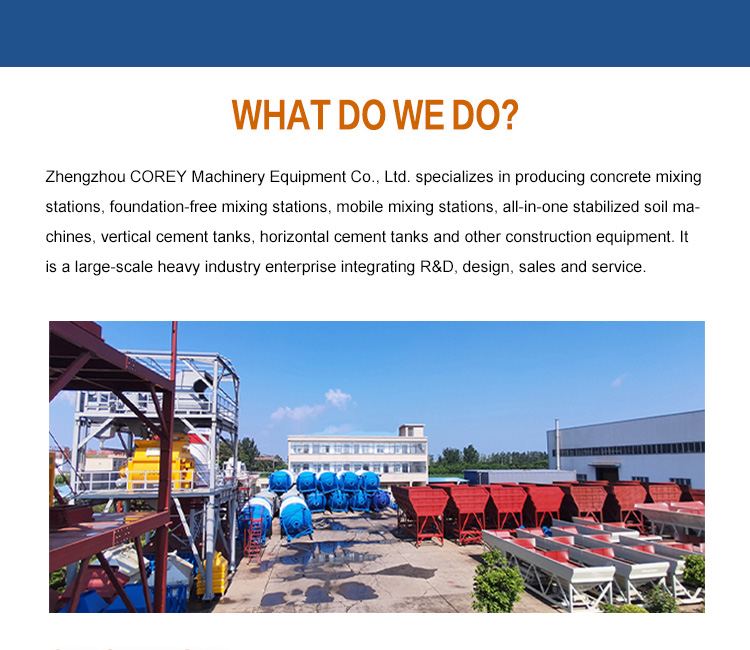

Profile Image 2
Certification
Frequently Asked Questions
What is the production capacity of the HZS series mixing stations?
The HZS series offers a wide range of production capacities, starting from 25m³/h up to 180m³/h, making it suitable for both small-scale projects and large-scale industrial constructions.
What types of concrete can be mixed with this equipment?
This high-efficiency mixing station is versatile and can handle dry hard concrete, light aggregate concrete, and various types of mortar.
Is the control system easy to operate?
Yes, the system features a computer plus PLC control system with a dynamic panel display, allowing operators to monitor and manage the process clearly and stably.
Can the mixing plant be customized for specific site conditions?
Absolutely. We provide diversified customization options including fixed, mobile, drum mobile, and foundation-free simple mixing plants tailored to your specific site requirements.
How accurate is the batching and measuring system?
The system utilizes high-precision electronic scales for measuring powder and water, ensuring consistent batching accuracy for high-quality concrete production.
What kind of after-sales support do you provide?
We provide professional technical support, including installation guidance by experienced engineers and lifelong after-sales service for all our mixing plant products.
