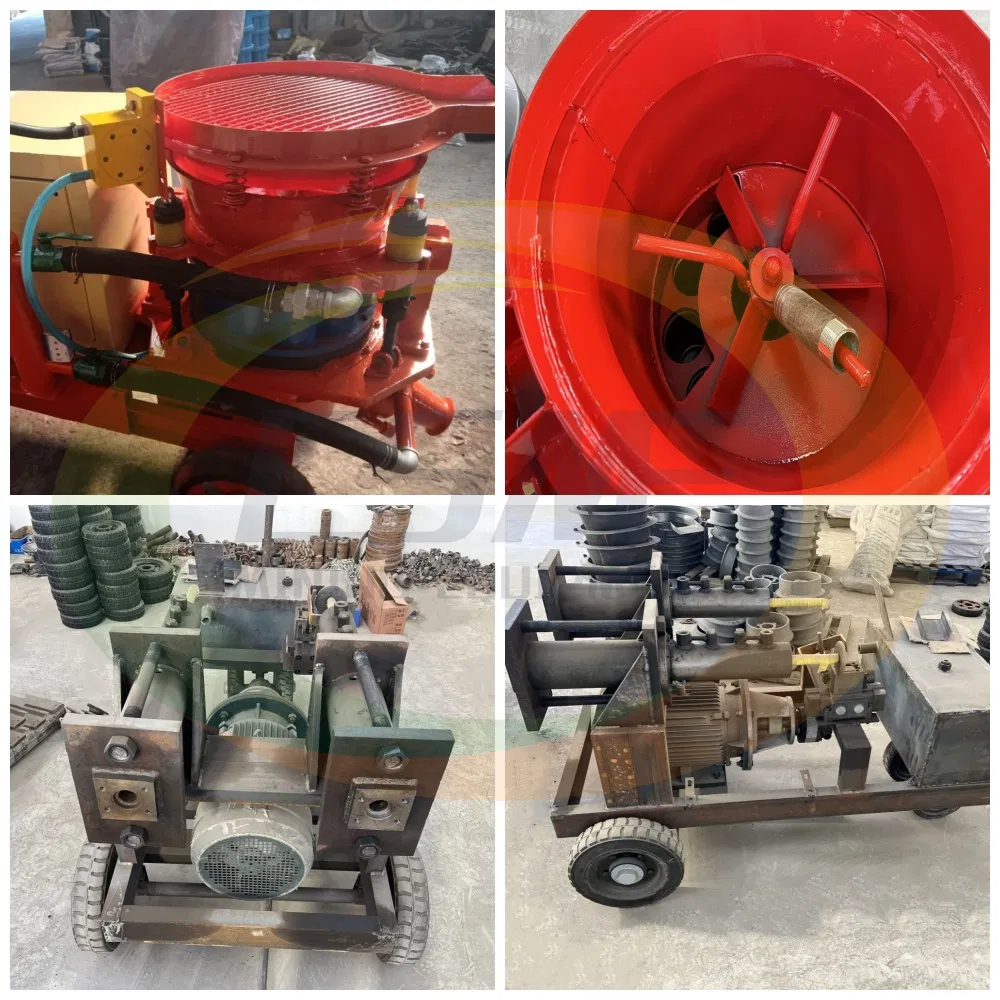

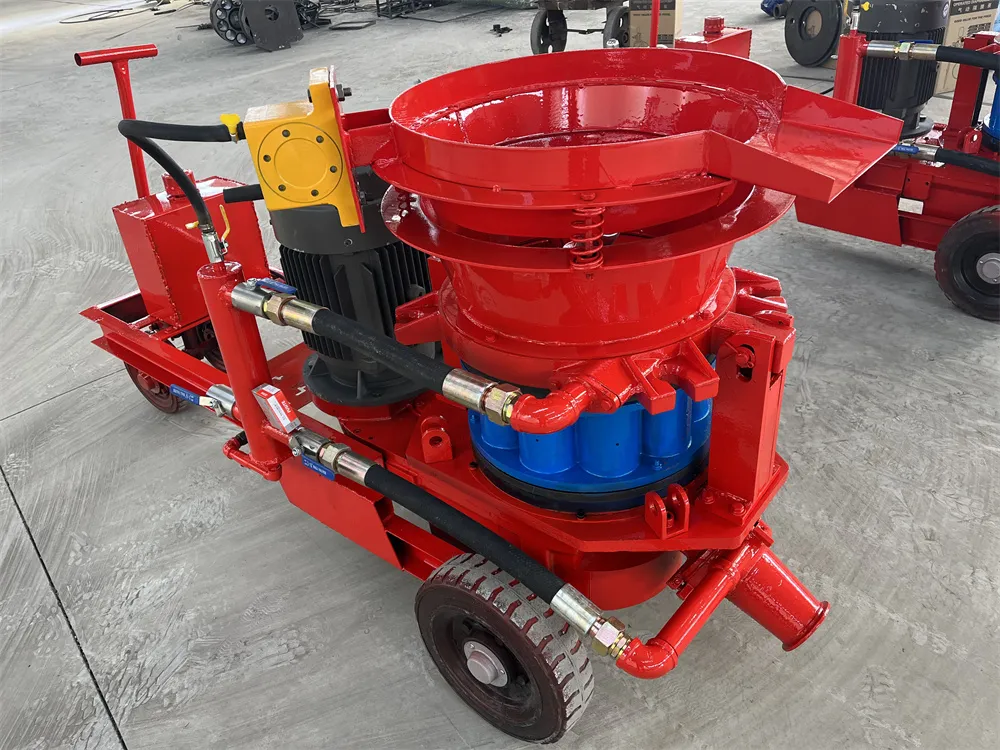

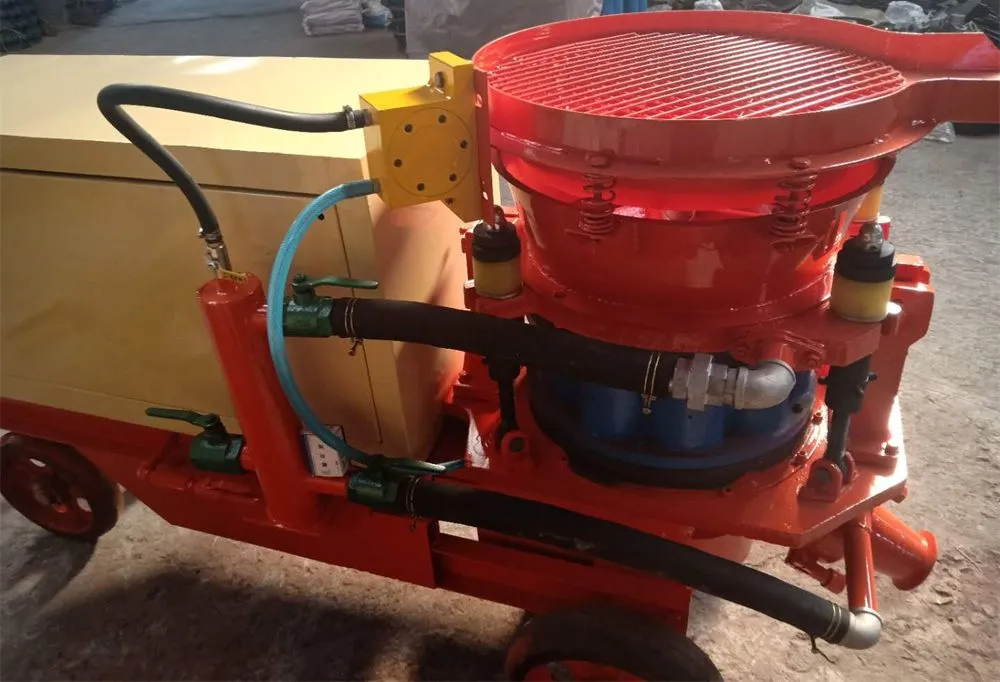

1. Anti-Sticking Rotor: The through-type anti-sticking material rotor ensures fast discharging and prevents blocking.
2. Elastic Clamping Mechanism: Floating elastic clamping keeps reasonable compression on sealing plates, automatically compensating for wear to prolong sealing life.

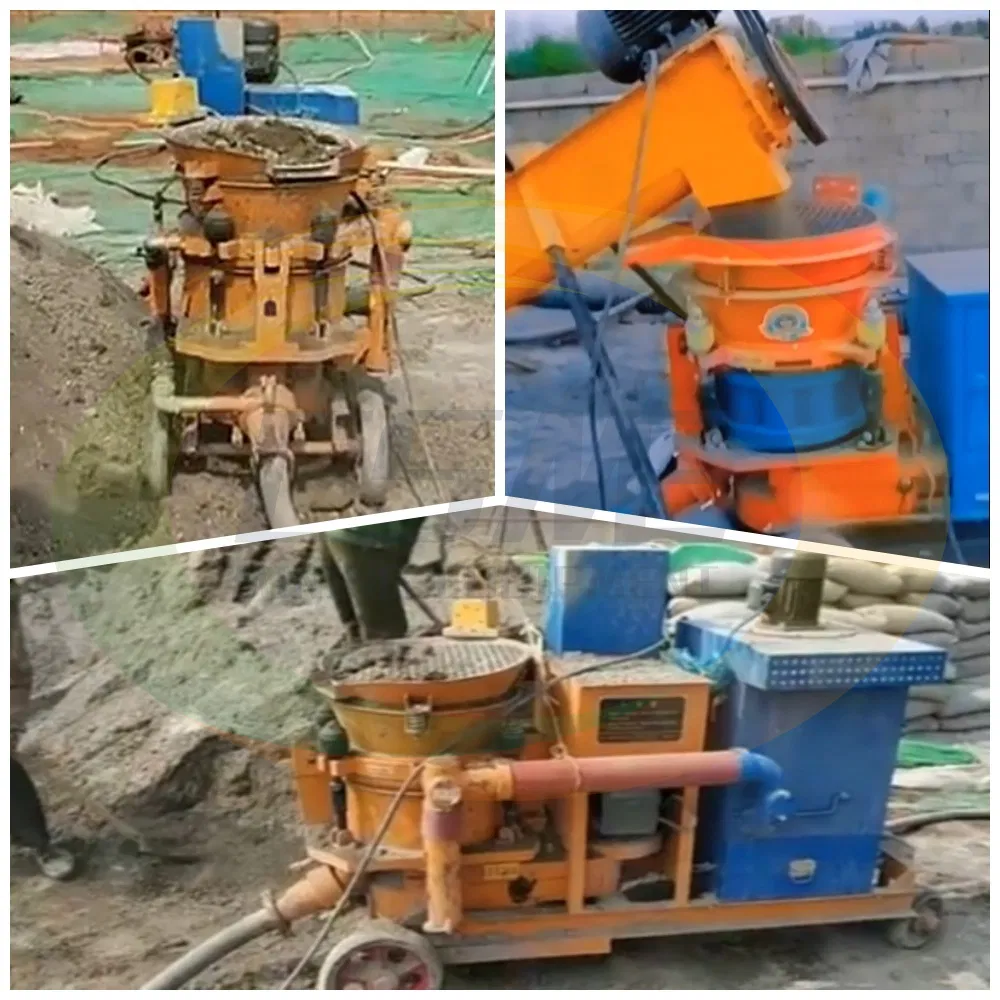

3. Environmentally Friendly: Improved wet spraying technology allows for direct concrete wet material spraying, eliminating dust on the job site and purifying the air.
| Model | PS5I | PS6I | PS7I |
|---|---|---|---|
| Capacity (m³/h) | 5 | 6 | 7 |
| Transport Distance (L/H)(m) | 30/20 | 30/20 | 30/20 |
| Max Aggregate Dia. (mm) | ≤20 | ≤20 | ≤20 |
| Spray Pipe ID (mm) | Ф51 | Ф51 | Ф57 |
| Water Cement Ratio | ≥40% | ≥40% | ≥40% |
| Liquid Accelerant | 3-6% | 3-6% | 3-6% |
| Working Pressure (MPa) | 0.5 | 0.5 | 0.5 |
| Motor Power (KW) | 5.5 | 5.5 | 7.5 |
| Voltage (V) | 380/660/1140 | 380/660/1140 | 380/660/1140 |
| Weight (kg) | 750 | 750 | 850 |
