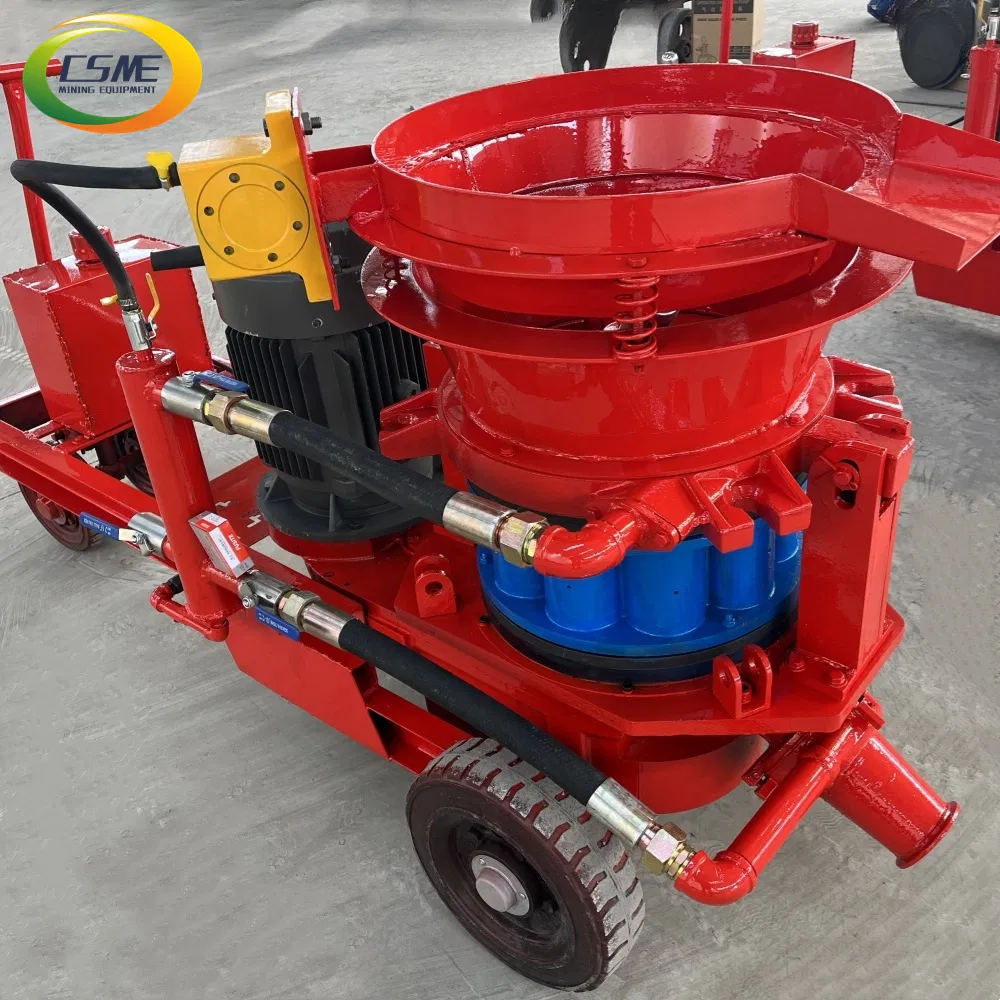

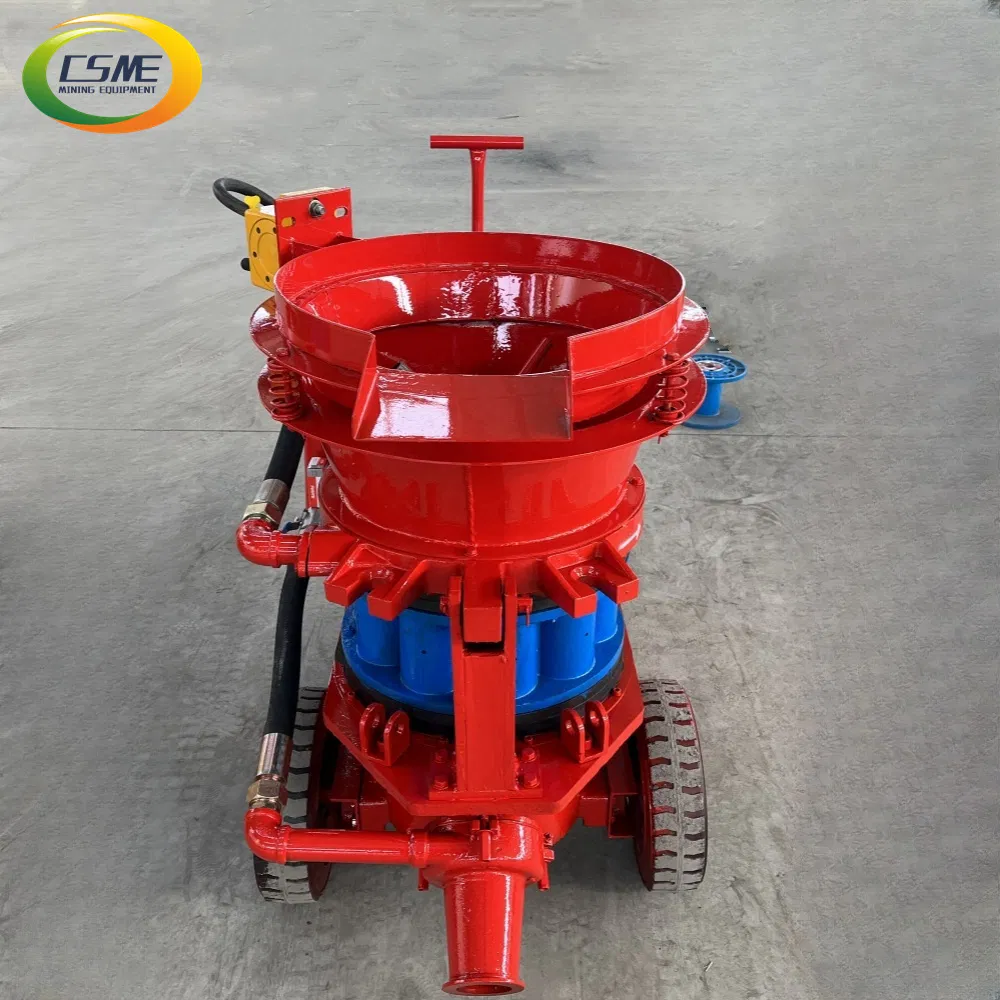

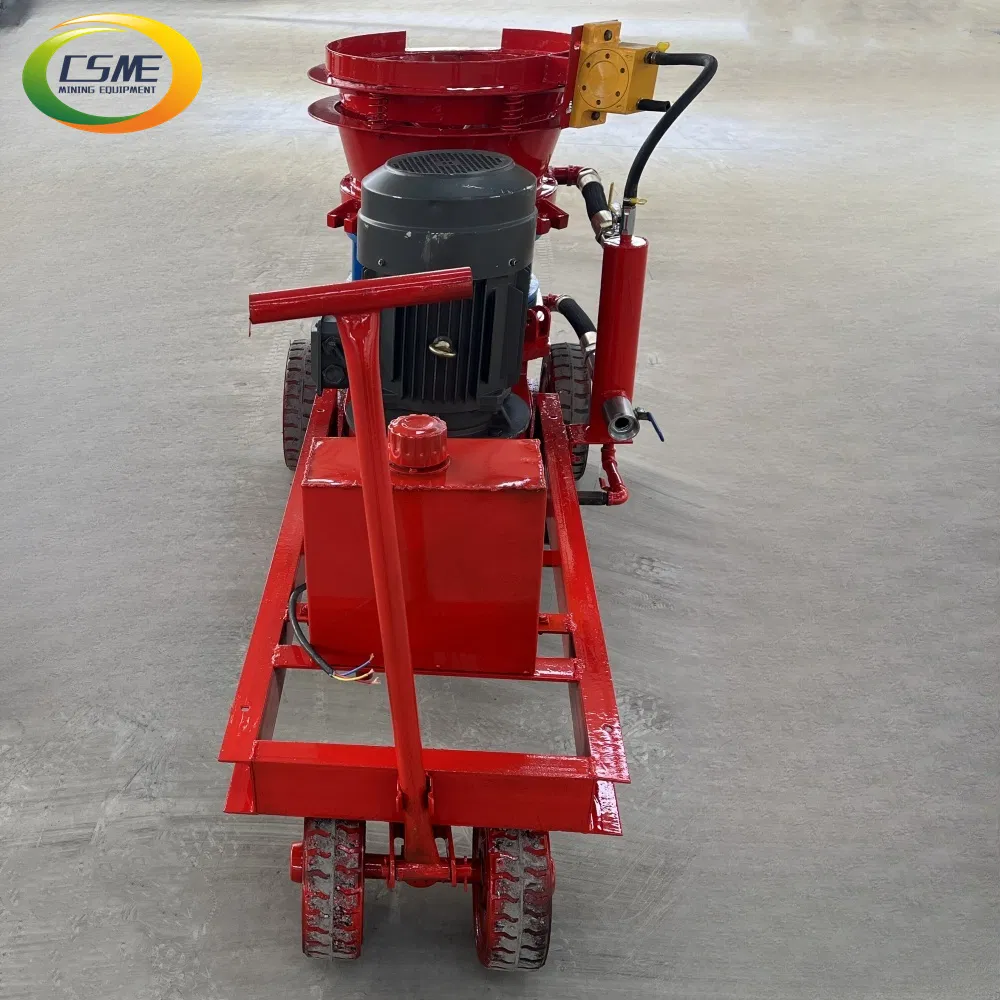

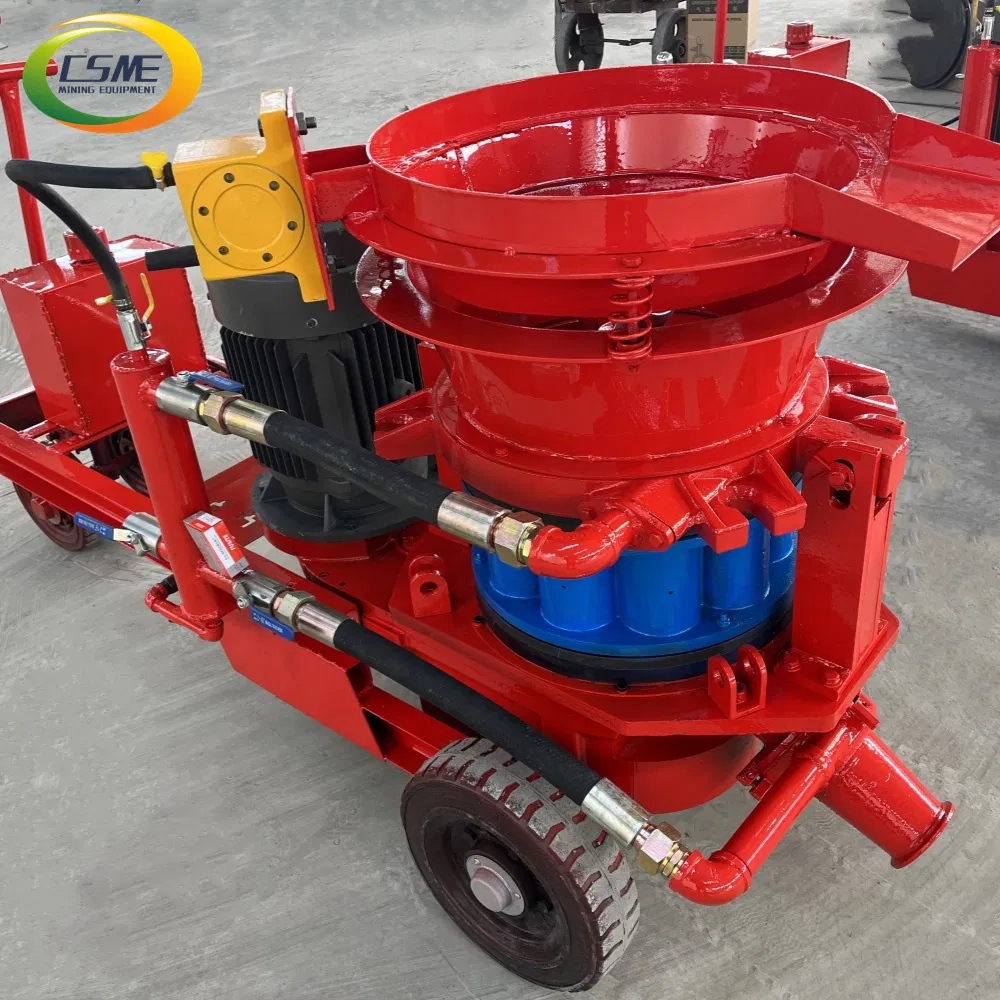

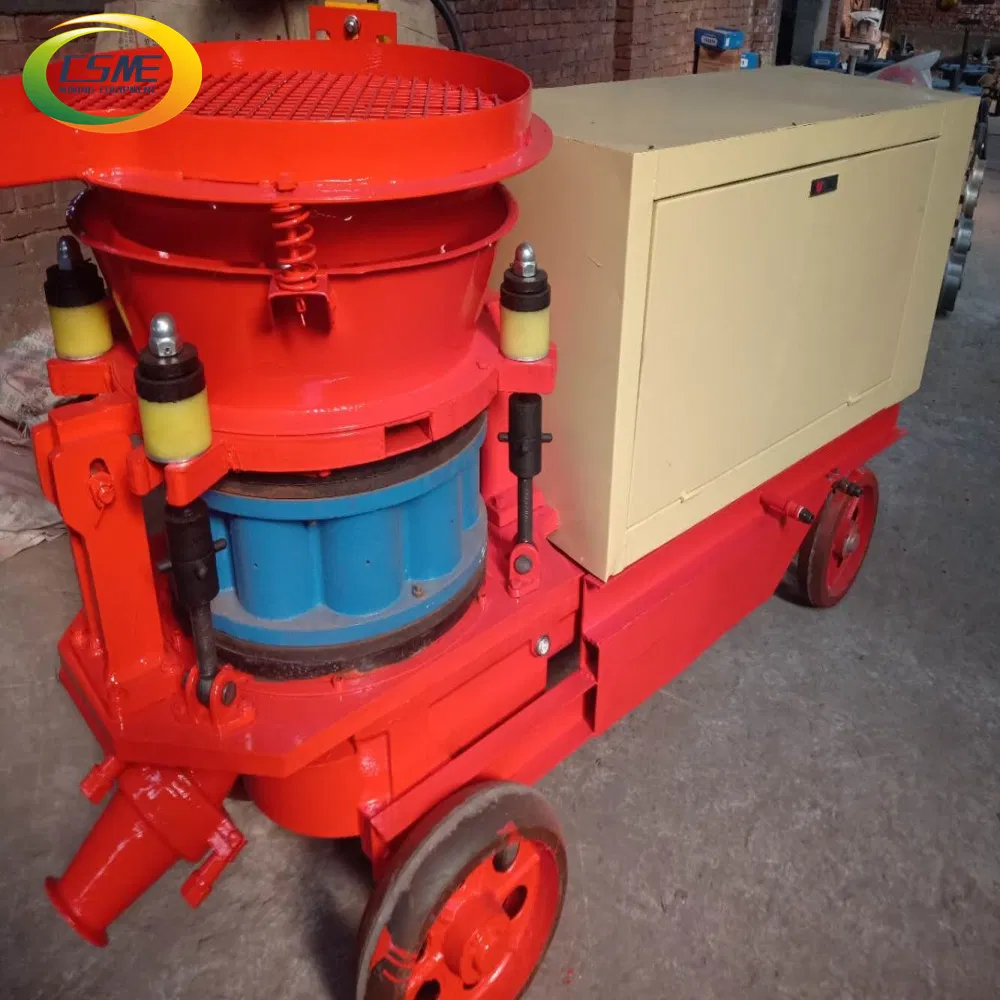

Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
1 / 5
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine
Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine

Small Dry Mix Shotcrete Machine Tunnel Construction Wet Shotcrete Truck Spraying Plastering Machine

Customization: Available
After-sales Service: Video Training or Send Engineer to The Site
Warranty: 1 Year
Send Inquiry

Product Description

i
Basic Info
Model NO.
PS Series
Power Supply
Electric
Voltage
380V, 660V, 1140V
Vertical Distance
20M
Horizontal Distance
30M
Hopper Volume
6m3/H
Motor Power
5.5kw
Rotor Diameter
440mm
Track Gauge
600mm 762mm 900mm
HS Code
8479109000
Production Capacity
5000 Sets/Year
★
Product Features
The through-type anti-sticking material rotor is fast discharging and not easy to block.
The floating elastic clamping mechanism keeps a reasonable compression force on the joint surface of the upper and lower sealing plates and the lining plate of the rotor, and can automatically compensate after wear, thereby prolonging the sealing time.
The wet spraying machine is improved on the basis of original tide spraying technology, allowing direct spraying of concrete wet material, eliminating dust on the job site, purifying air, and reducing health hazards.

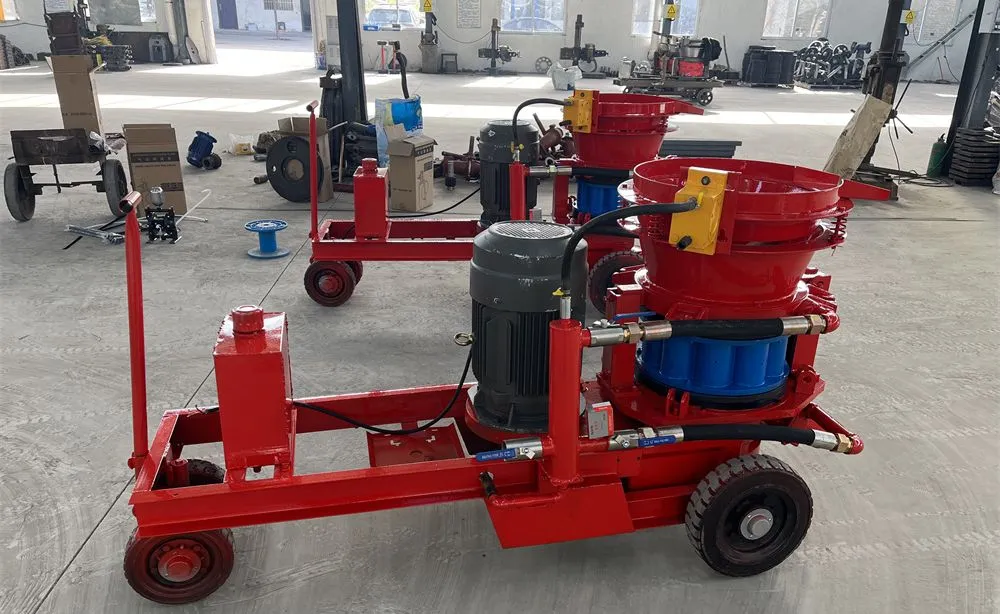

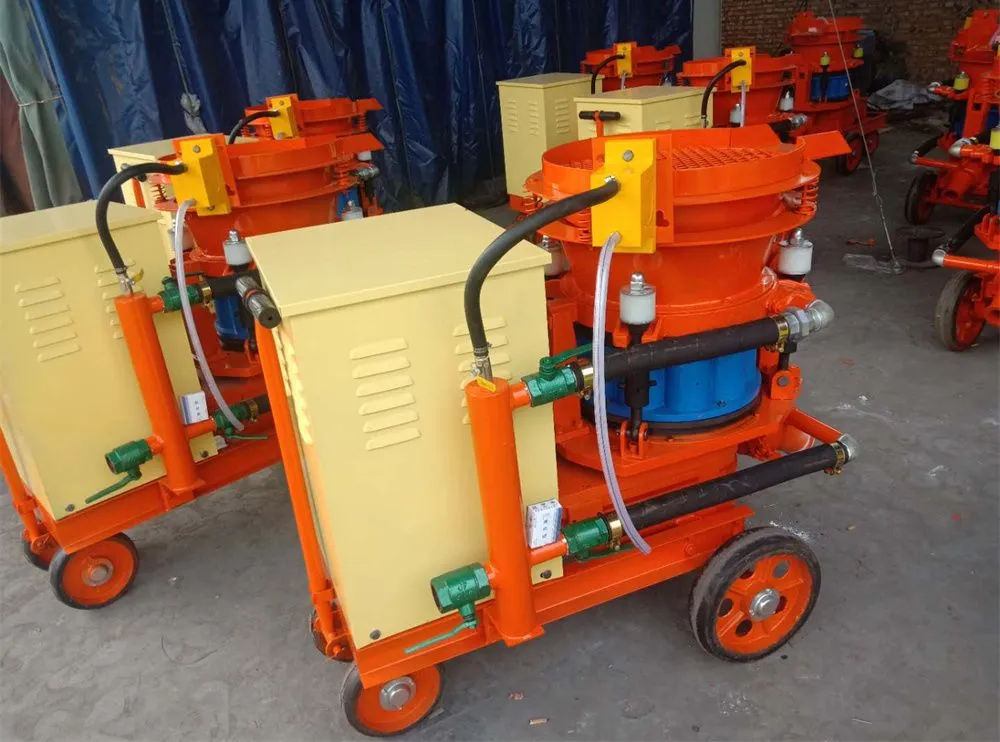

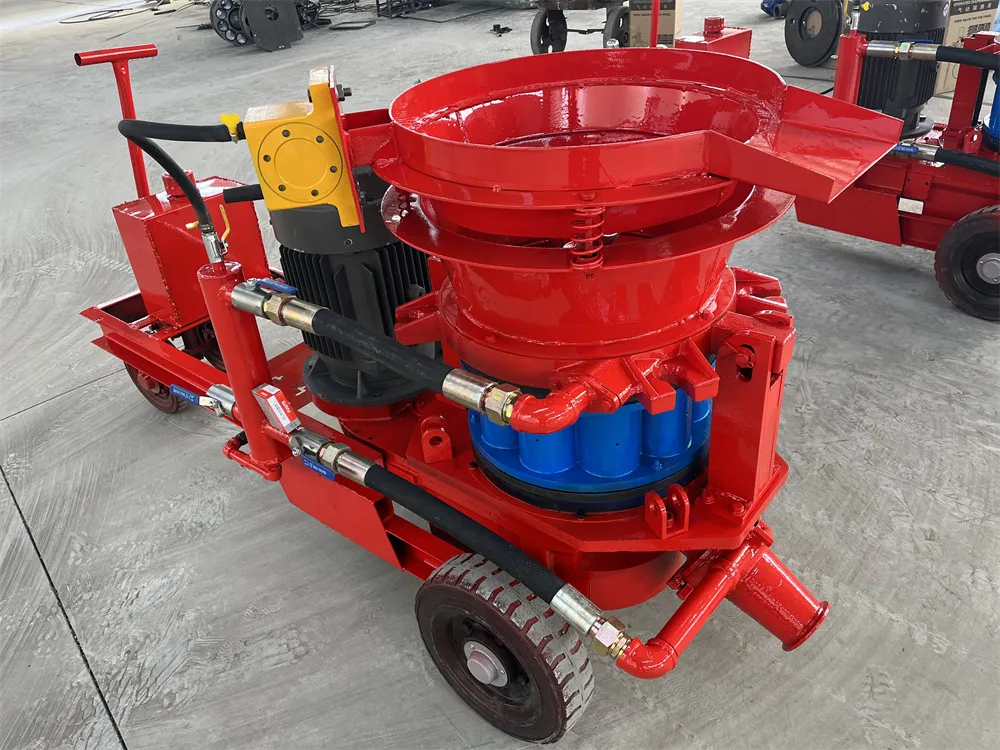

Shotcrete Machine Detail 1 Shotcrete Machine Detail 2 Shotcrete Machine Detail 3

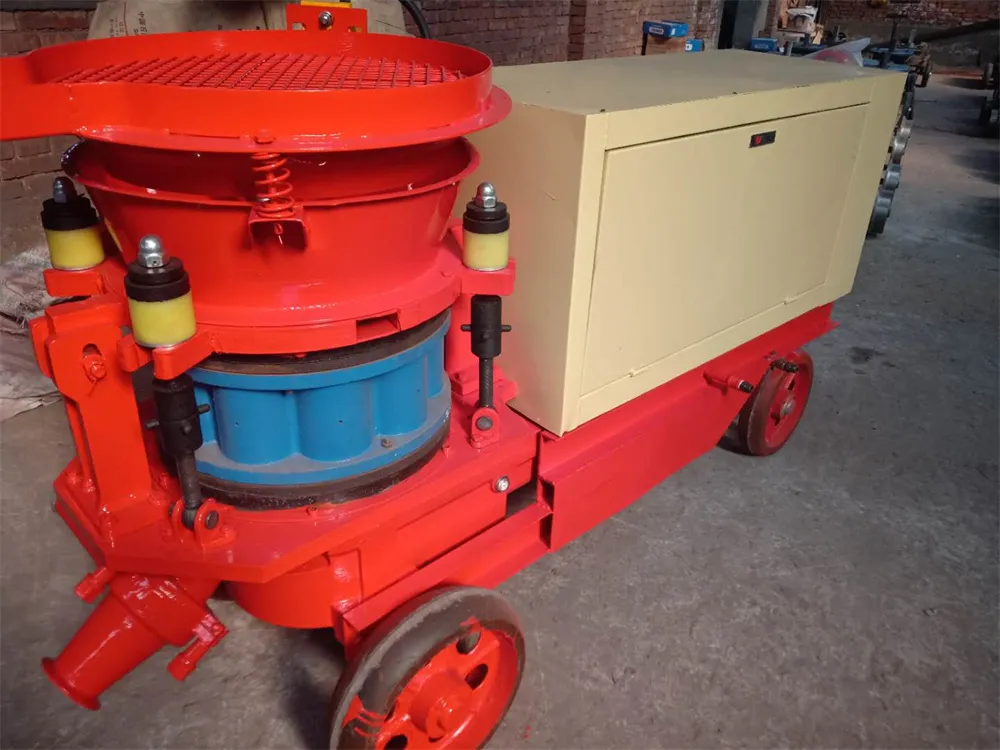

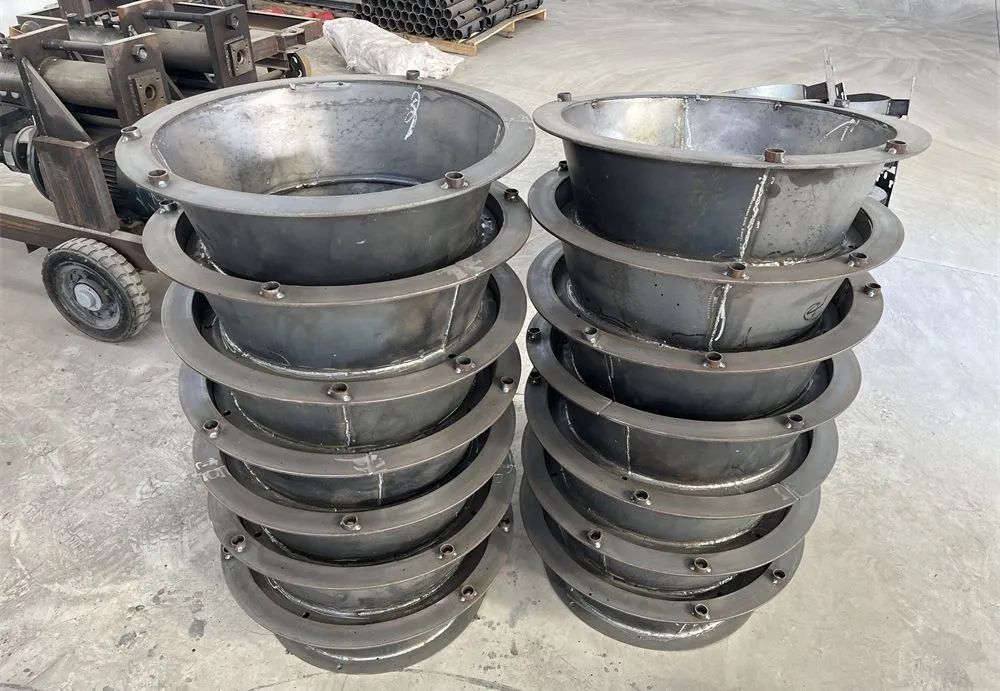

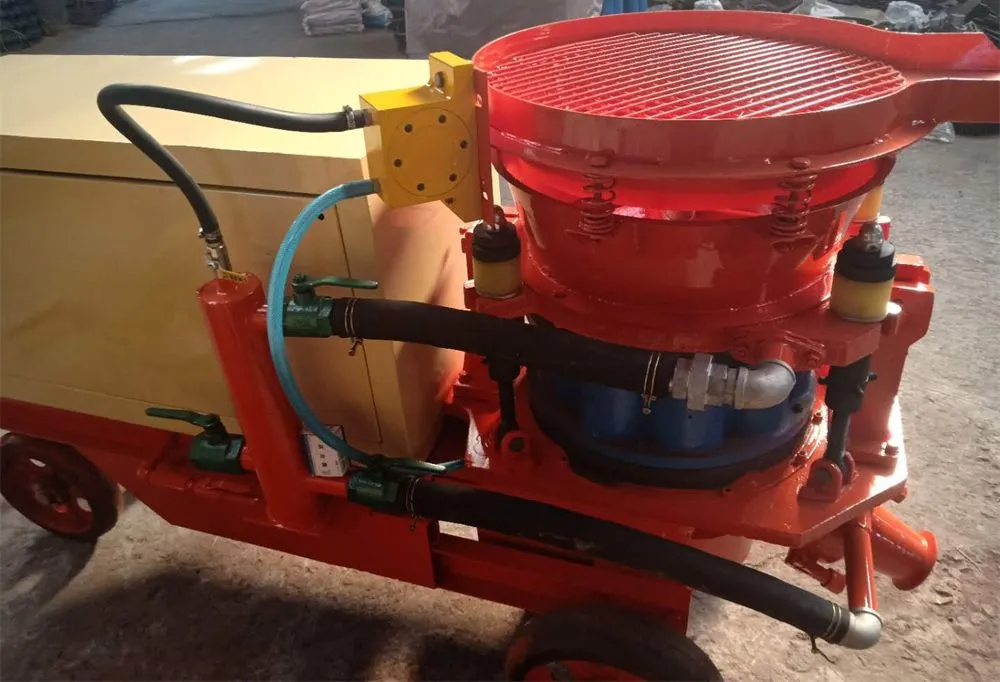

Machine Structure Internal Components Operation View

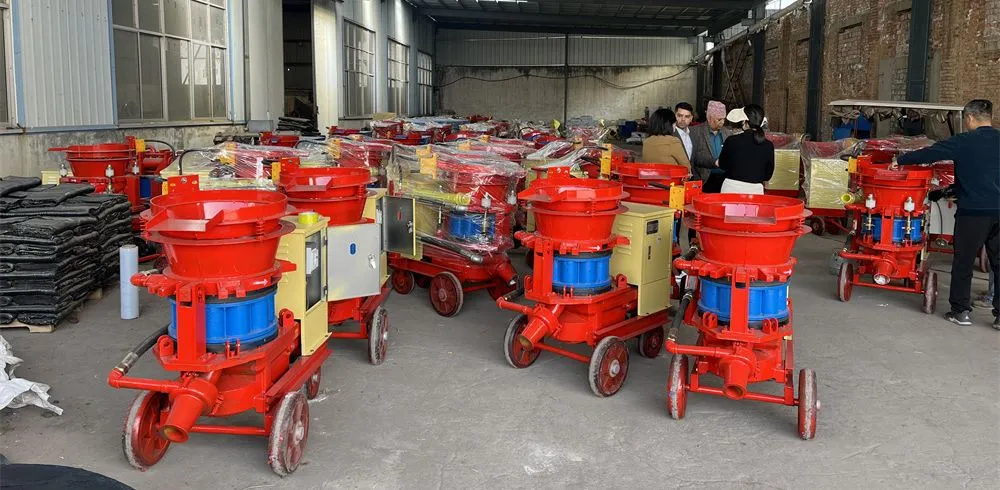

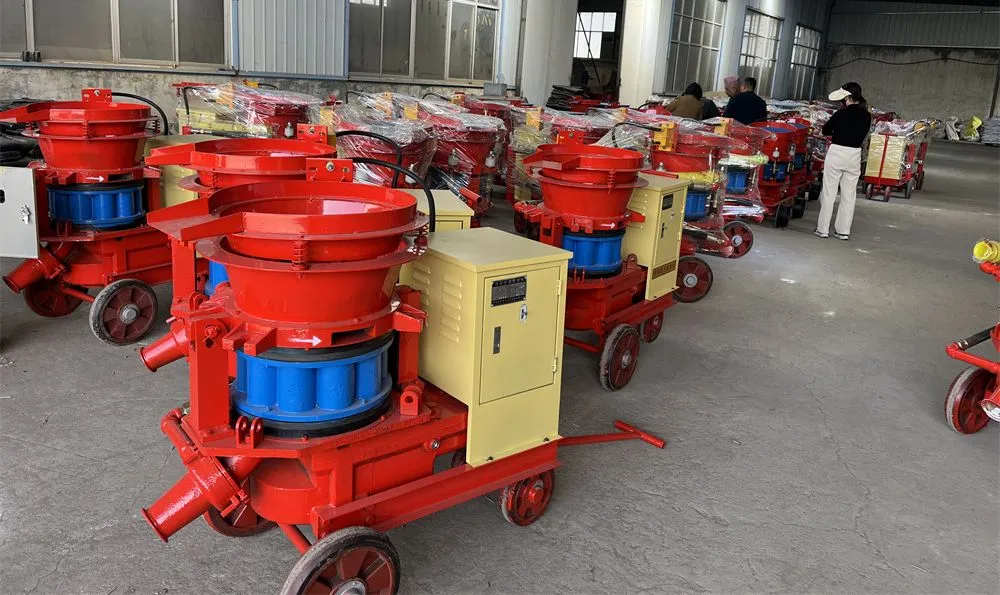

Technical Layout 1 Technical Layout 2
📷
Detailed Photos

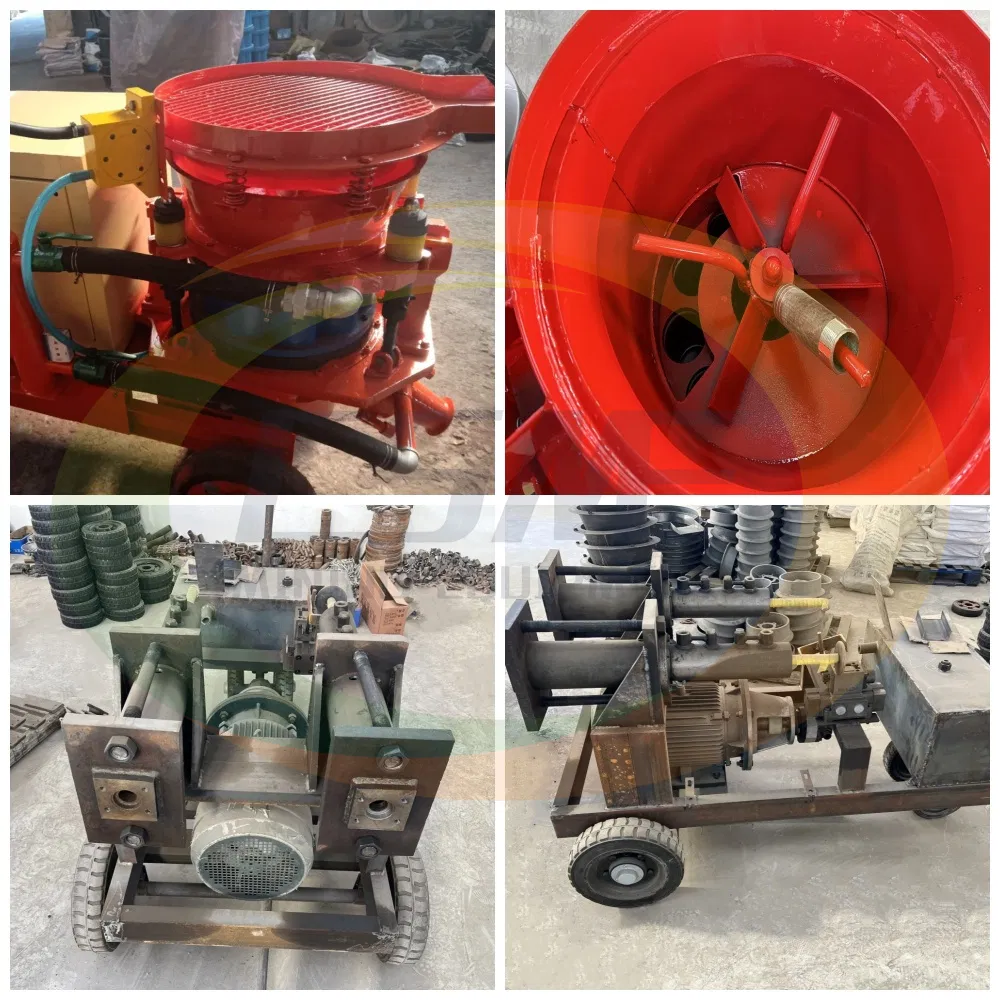

High Resolution Detail
📋
Product Parameters
Model PS5I PS6I PS7I
Capacity(m³/h) 5 6 7
Transport Distance (L/H)(m) 30/20 30/20 30/20
Max Aggregate Diameter(mm) ≤20 ≤20 ≤20
Inner Dia. Spray Pipe(mm) Ф51 Ф51 Ф57
Mixture Ratio 1:2:2 1:2:2 1:2:2
Water Cement Ratio ≥40% ≥40% ≥40%
Gas Consumption(m³/min) 12 12 12
Motor Power(KW) 5.5 5.5 7.5
Dimensions(mm) 2100x760x1180 2100x760x1180 2100x800x1200
Weight (kg) 750 750 850

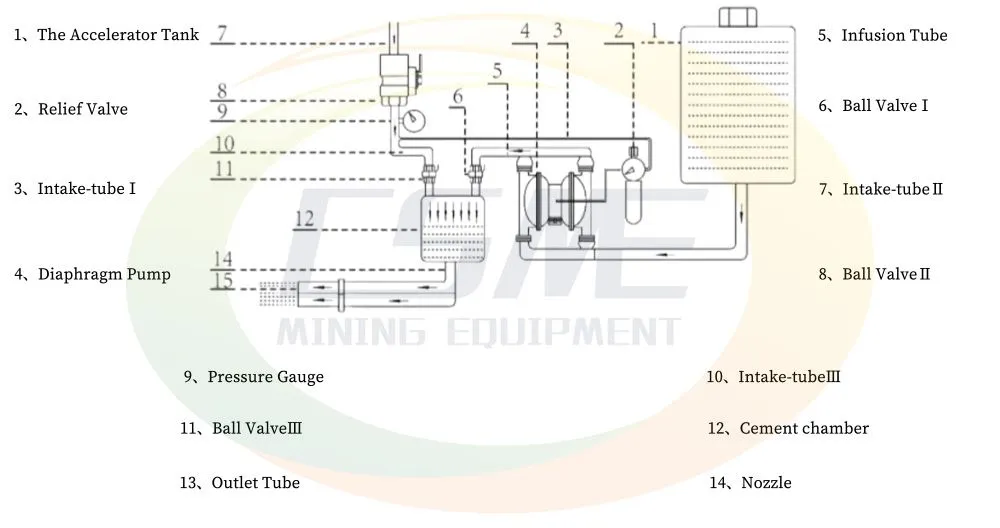

Parameter Chart
📦
Packaging & Shipping

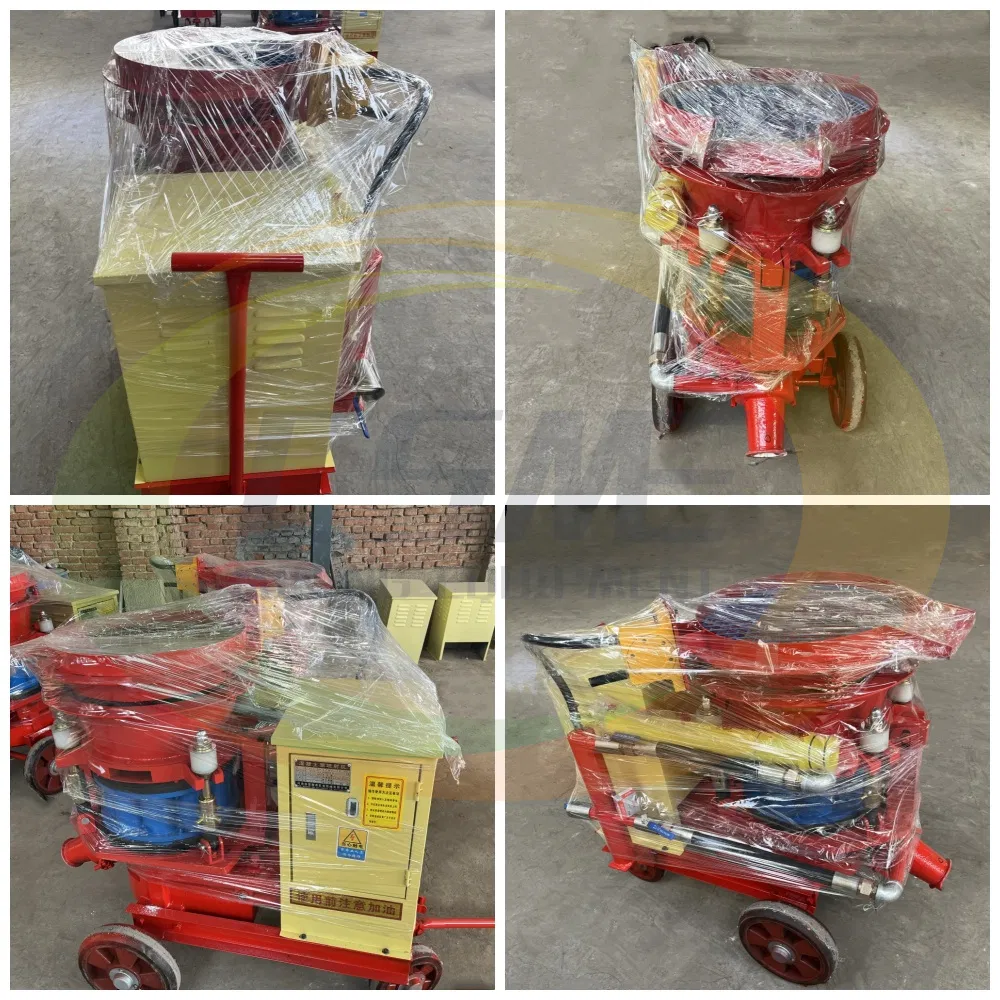

Shipping Package
⚙
Usage & Application

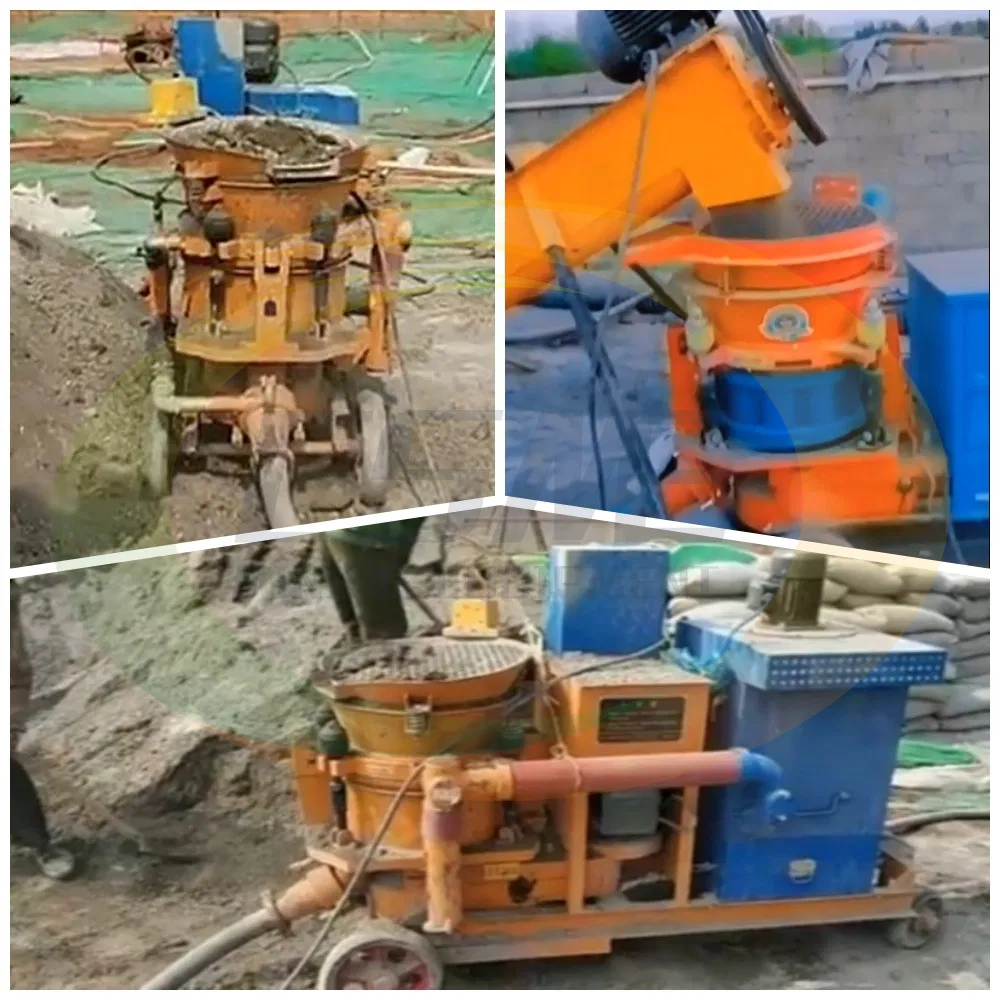

Application Scenario
✔
Certifications & Real Partnerships
Certification 1 Exhibition

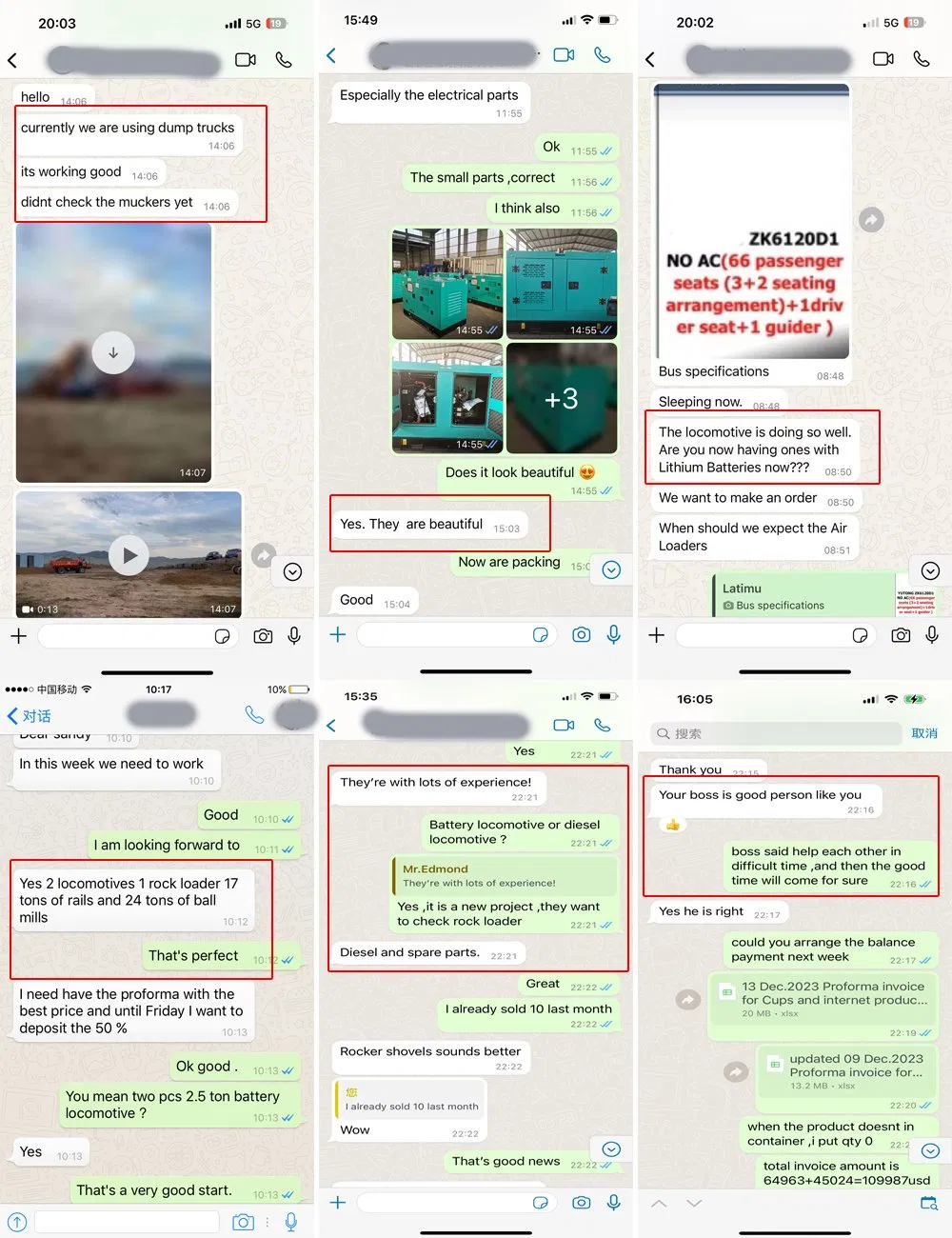

Partnership 1 Partnership 2 Partnership 3
Profile View
?
Frequently Asked Questions
Who are we?
We are an established industrial supplier based in China, serving global markets including South America, Africa, Eastern Europe, and Southeast Asia since 2016.
How can we guarantee quality?
Quality is ensured through pre-production samples before mass manufacturing and a rigorous final inspection before every shipment.
What can you buy from us?
We specialize in mining and construction equipment, including Mining Locomotives, Hoists, Winches, Mucking Loaders, and Shotcrete Machinery.
Why choose us over other suppliers?
With over 10 years of focus on mining equipment and a network of over 30 certified production plants, we offer one-stop solutions with successful cases in over 20 countries.
What services and terms do we provide?
We support various delivery terms (FOB, CIF, EXW, FCA) and payment methods (T/T, L/C, Western Union). Our team communicates in English, Chinese, Spanish, and Russian.
What is the main advantage of the wet spraying machine?
It significantly improves the working environment by eliminating dust at the job site, protecting workers' health while maintaining high efficiency and sealing performance.
