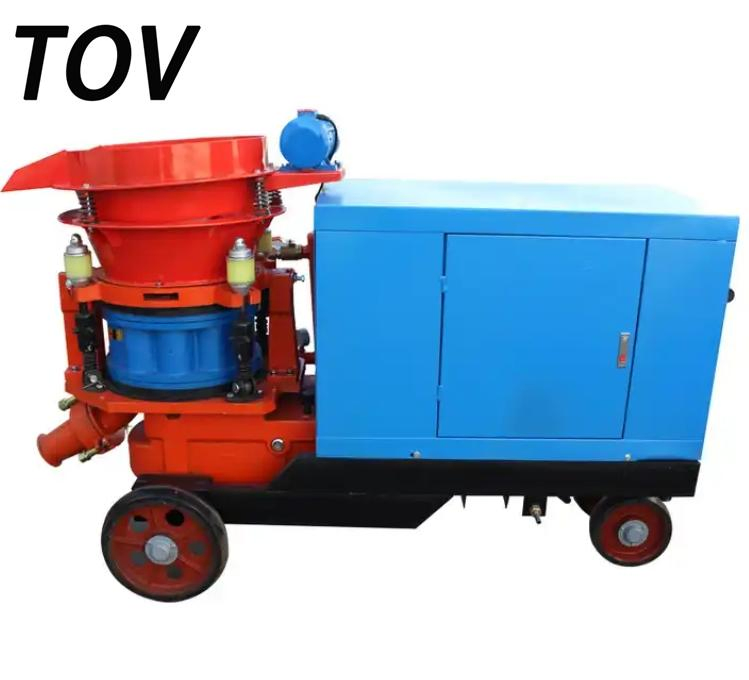

Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
1 / 5
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery
Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery

Hsp-5/7/9 Mortar Spray Machine Wall Concrete Sprayer Wet Mix Concrete Shotcrete Concrete-Machinery Engineering-Construction-Machinery

Customization: Available
Power Supply: Electric
Voltage: 380V
Send Inquiry

Product Description

Basic Information
Model NO.:
HSP-5/7/9
Vertical Delivery:
20M
Machining Process:
Hydraulic
Structure:
Rotor Type
Shotcrete Type:
Wet
Motor Power:
5.5/7.5kw
Transport Package:
Wooden Case
Specification:
1800*800*125 mm
HS Code:
847910900
Production Capacity:
200sets/Month
Packaging & Delivery
Package Size:
910.00cm * 900.00cm * 860.00cm
Gross Weight:
400.000kg
Product Description
It has the advantages of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, and long service life. It is widely used in mines, tunnels, culverts, subways, underground engineering, and coal mine drainage tunnel construction work.
Technical Parameters
HSP Model (Wet-Type) Shotcrete Machine
Model (Wet-type) HSP-5 HSP-7 HSP-9
Capacity (m3/h) 4-5 5-7 6-9
Max. Conveying Distance (H/V m) 30/20 30/20 30/20
Pipe Inner Diameter (mm) 51 51/64 51/64
Max. Aggregate Diameter (mm) 15 15 15
Working Pressure (MPa) 0.3-0.6 0.4-0.6 0.4-0.6
Air Consumption (m3/min) 10-15 10-15 10-15
Motor Power (KW) 5.5KW 7.5KW 7.5KW
Voltage (V) 380, 660, etc. 380, 660, etc. 380, 660, etc.
Overall Size (mm) 1280*700*1280 2000*800*1300 2000*800*1300
Overall Weight (kg) 700 800 900
Detailed Photos

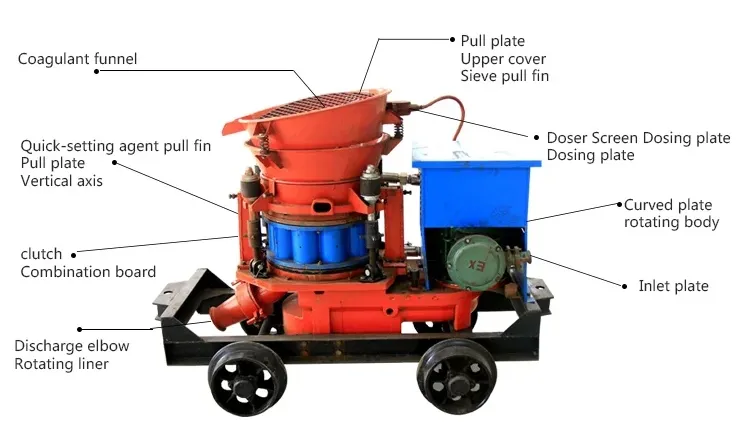

Shotcrete Machine View 1

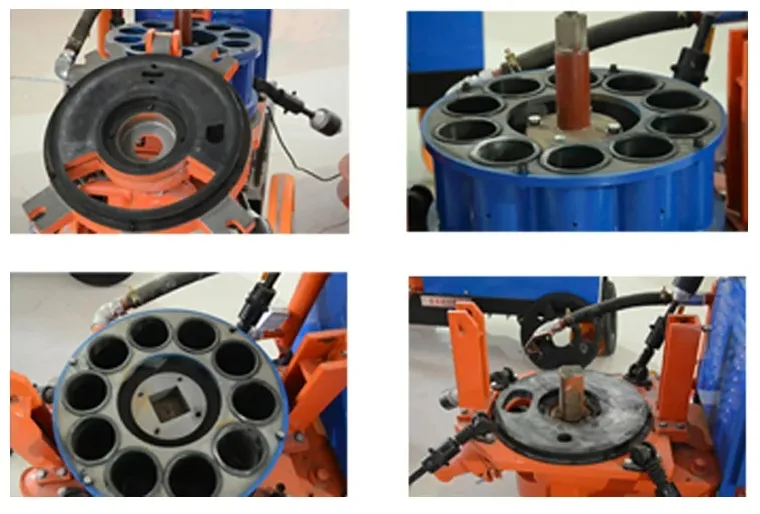

Shotcrete Machine View 2

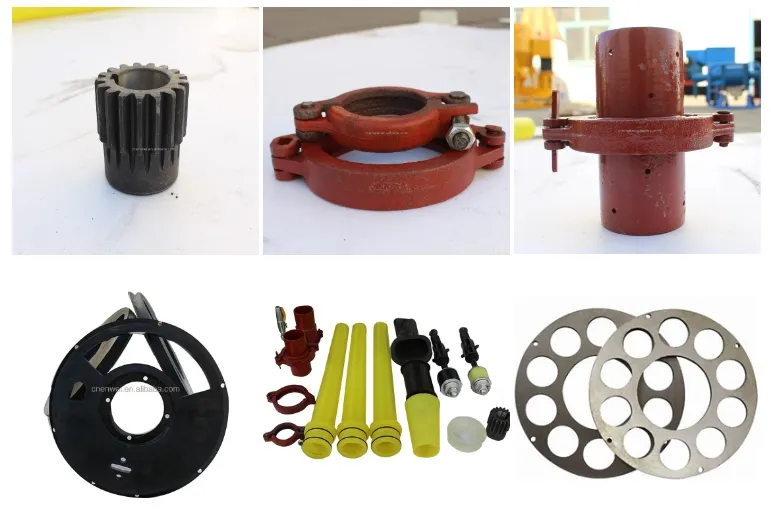

Shotcrete Machine View 3
Application

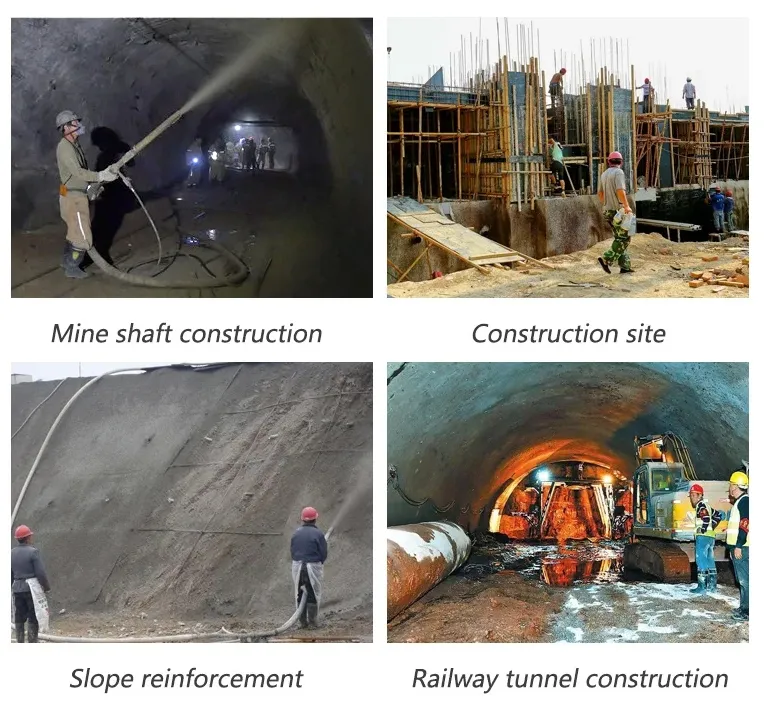

Application Display
Packaging & Shipping
Packaging Detail
Frequently Asked Questions
Can you provide a preferential price?
We welcome every customer who likes our project to discuss preferential pricing. Please contact us to obtain a specific quotation for your selected project needs.
How do you manage quality control?
We believe quality is controlled through the entire order process, starting with detailed drawings and standards. We conduct pre-production sample checks and final inspections before shipment.
What kind of after-sale service do you offer?
After ordering, we provide production updates and shipping tracking. Upon receipt, we offer guidance on usage and maintenance, along with timely solutions for any problems during operation.
Why should we choose your machines?
We are a manufacturer with rich export experience. As a high-quality supplier, we maintain excellent customer relationships and provide stable prices and professional services.
What are the main applications for the HSP series?
The HSP series is ideal for mines, tunnels, culverts, subways, and underground engineering, specifically for wet-mix concrete spraying and coal mine drainage construction.
Is the machine compatible with different industrial voltages?
Yes, the motors are designed to support various voltages such as 380V, 660V, and other specific requirements depending on the project site.
