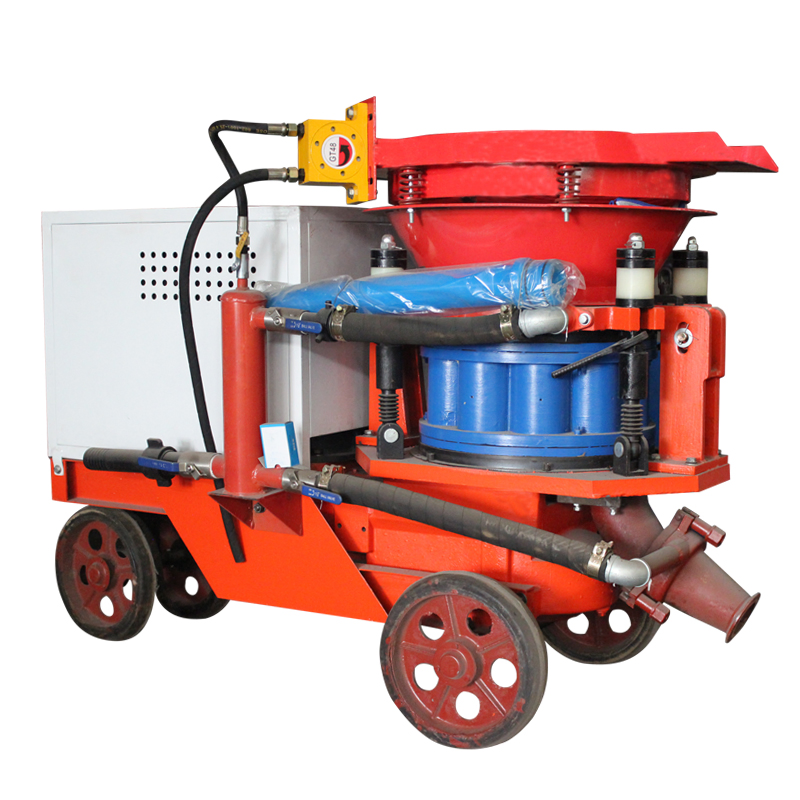

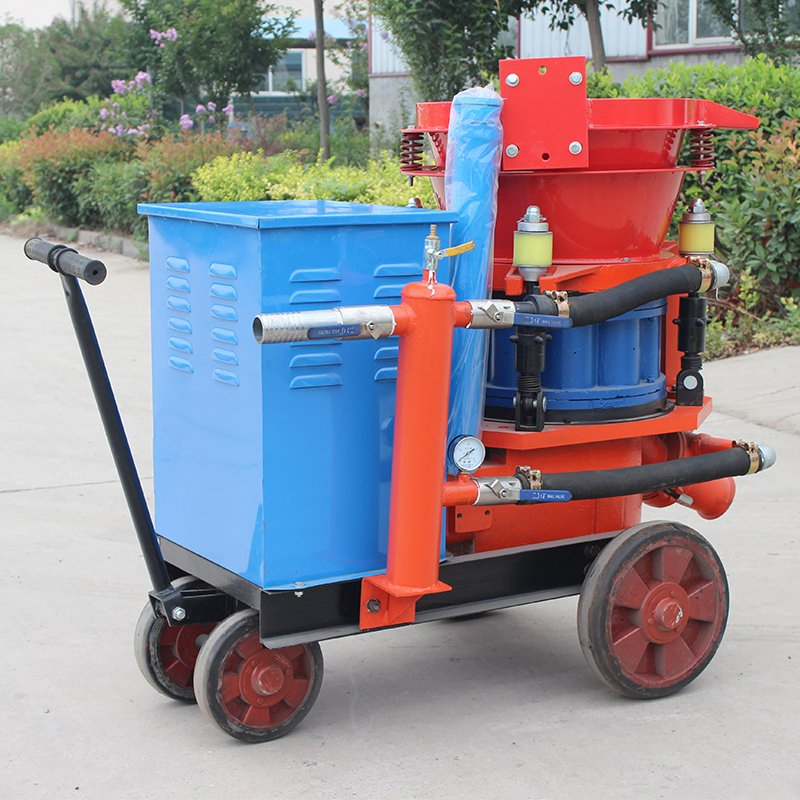

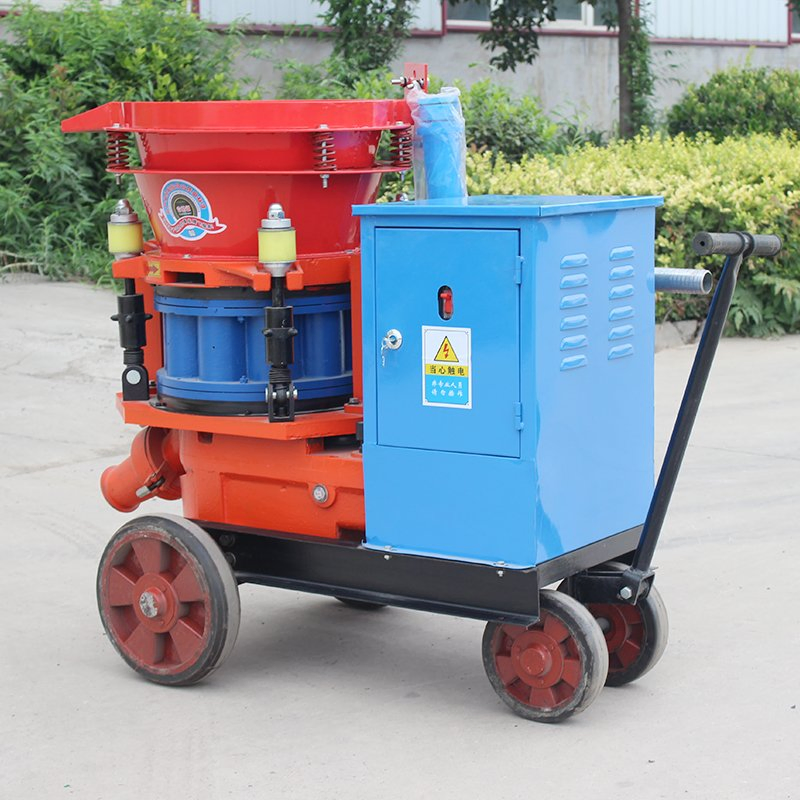

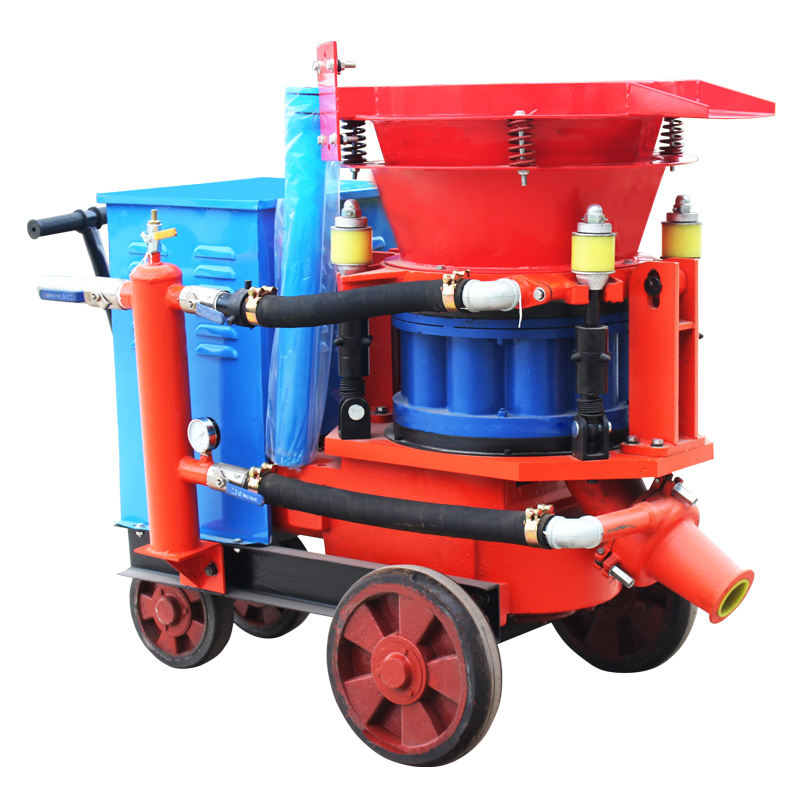

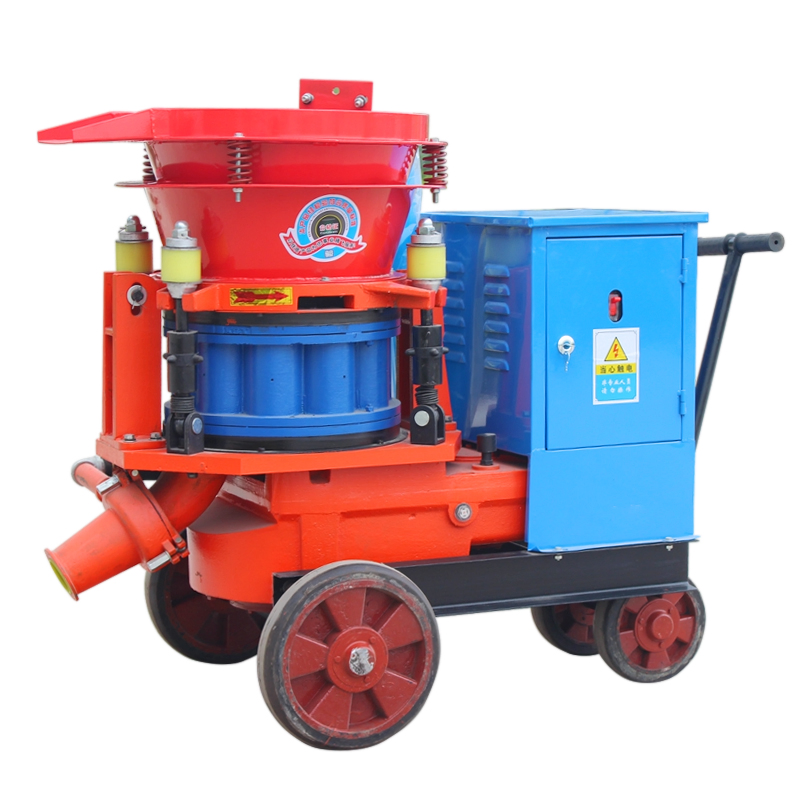

Wet Mix Concrete Spray Pz5 Shotcrete Machine
A concrete shotcrete machine is a specialized equipment for spraying concrete, which sprays concrete onto the surface of buildings that need reinforcement or repair through high-pressure spraying.
Concrete shotcrete machines have the advantages of fast spraying speed, high construction efficiency, and good construction quality, and are widely used in fields such as construction engineering, tunnel engineering, and mining engineering. The machine is composed of the spraying machine body, conveying system, and control system. The spraying machine body is the core part, consisting of a compressor, concrete mixer, and spraying pump.
| Model | PZ-6 | PZ-7 |
|---|---|---|
| Production efficiency | 6m³/h | 7m³/h |
| Water cement ratio | <0.4 | <0.4 |
| Max. conveying distance | 200M | 200M |
| Max. aggregate size | 20m | 20m |
| Rotor body diameter | 440mm | 480mm |
| Working pressure | 0.4-0.6mpa | 0.6-0.8mpa |
| Air consumption | 6-8m³/h | 7-8m³/h |
| Motor power | 5.5kw | 7.5kw |
| Size | 1300*705*1300mm | 1600*750*1200mm |
| Weight | 600kg | 700kg |

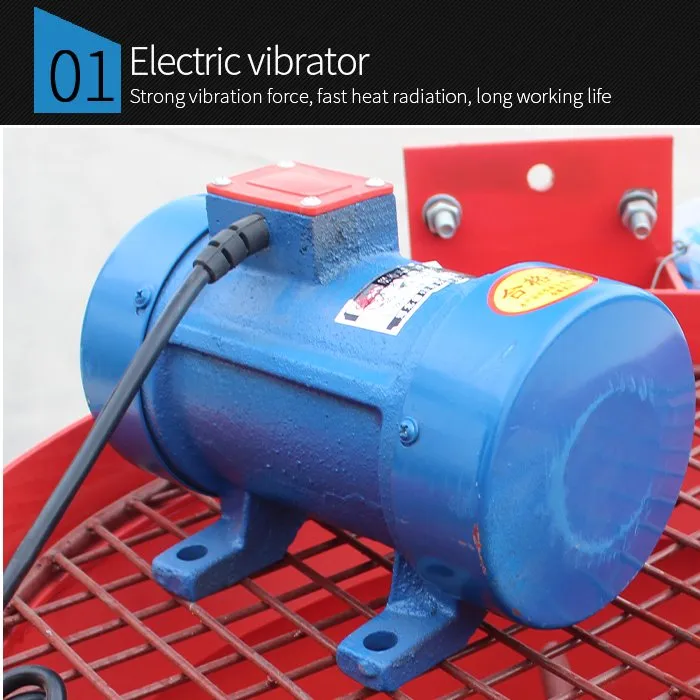

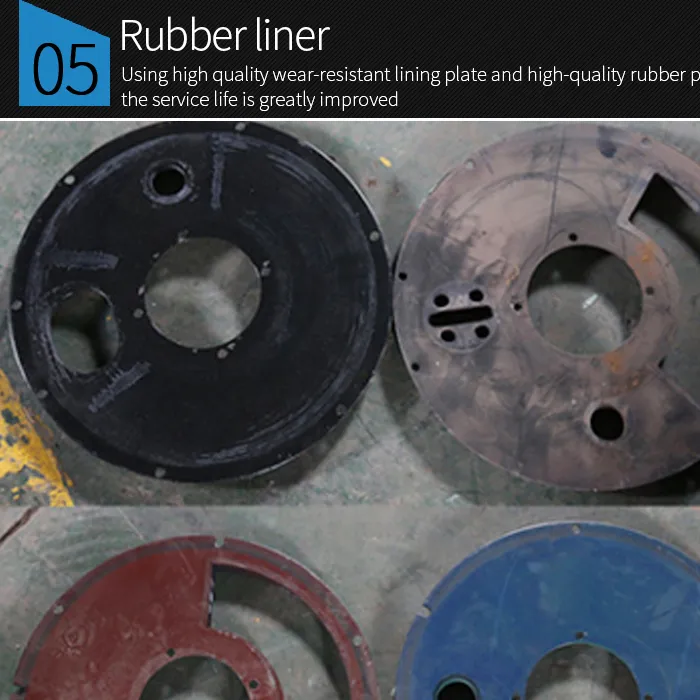

Main Wearing-out Parts:

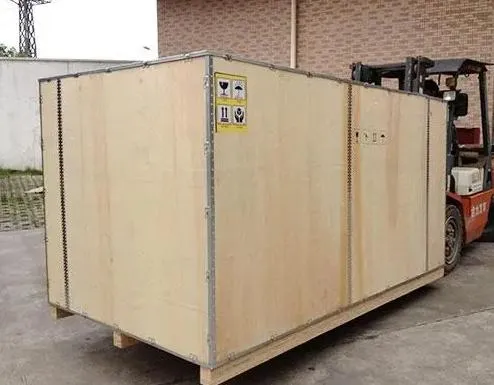

Package:
1 unit packed into an iron frame and then protected with 5 layers of corrugated cartons. 4 strips reinforce the carton to guarantee the machines are not damaged during transportation.
Delivery detail:
Swift delivery, within 15-30 days after receiving the deposit.
