Basic Information
Installation Instructions & Introduction

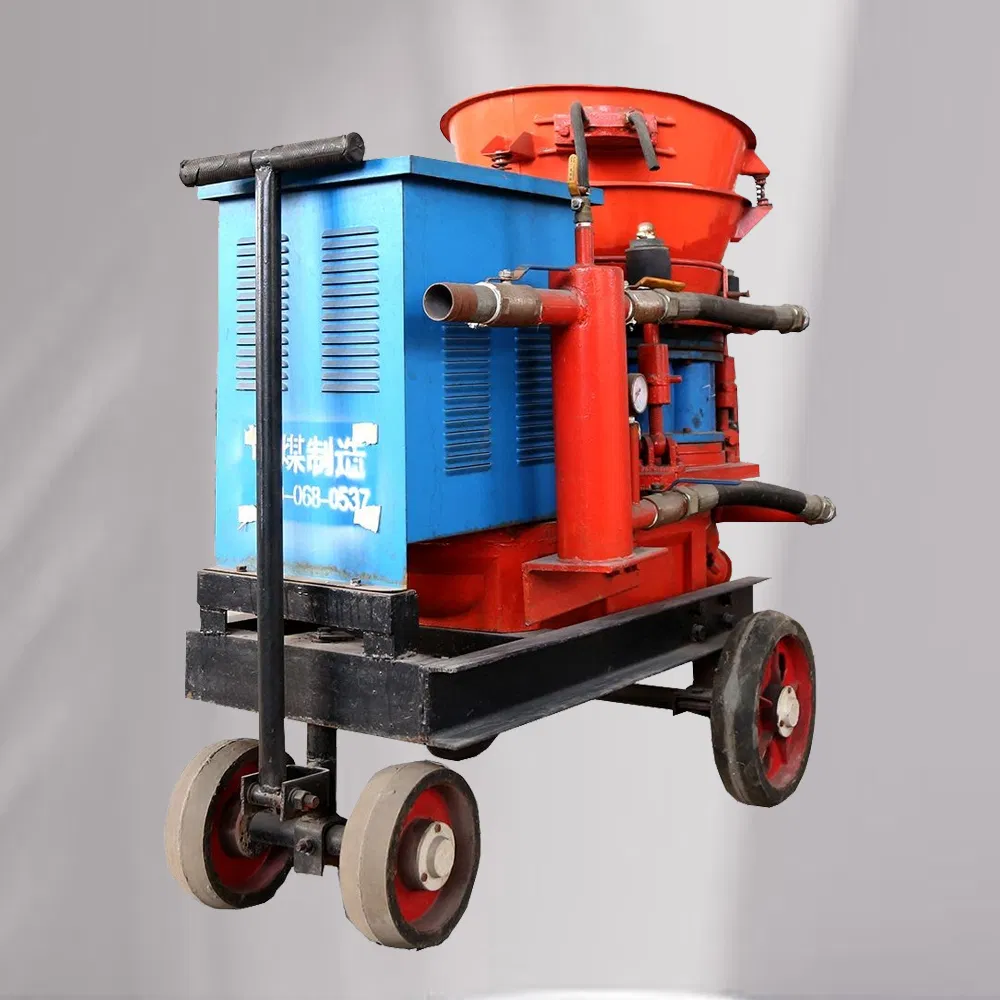

Concrete spraying machine is a specialized equipment for spraying concrete, which sprays concrete onto the surface of buildings that need reinforcement or repair through high-pressure spraying. Concrete spraying machines have the advantages of fast spraying speed, high construction efficiency, and good construction quality, and are widely used in fields such as construction engineering, tunnel engineering, and mining engineering.
The concrete spraying machine is composed of the spraying machine body, conveying system, and control system. The spraying machine body is the core part of the entire equipment, consisting of a compressor, concrete mixer, and spraying pump.
Product Parameters
| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 | HSP-9 |
|---|---|---|---|---|---|---|
| Output | 3.5m3/h | 5m3/h | 7m3/h | 4.0-5.0m3/h | 5.0-7.0m3/h | 6.0-9.0m3/h |
| Max. Distance (H) | 200m | 200m | 200m | 30-50m | 30-50m | 30-50m |
| Max. Distance (V) | 20m | 20m | 20m | 20m | 20m | 20m |
| Aggregate Size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm | Φ15mm |
| Air Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa |

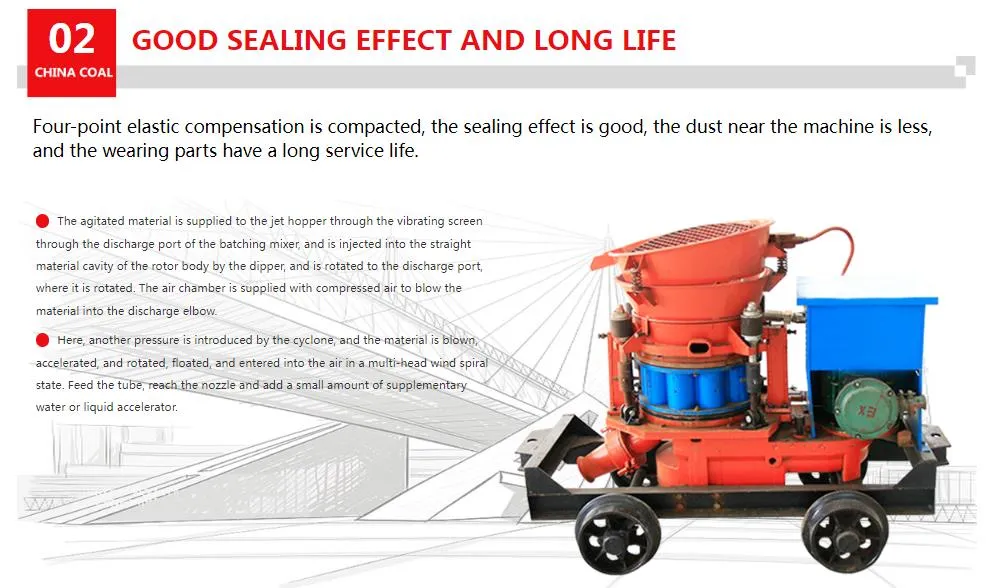

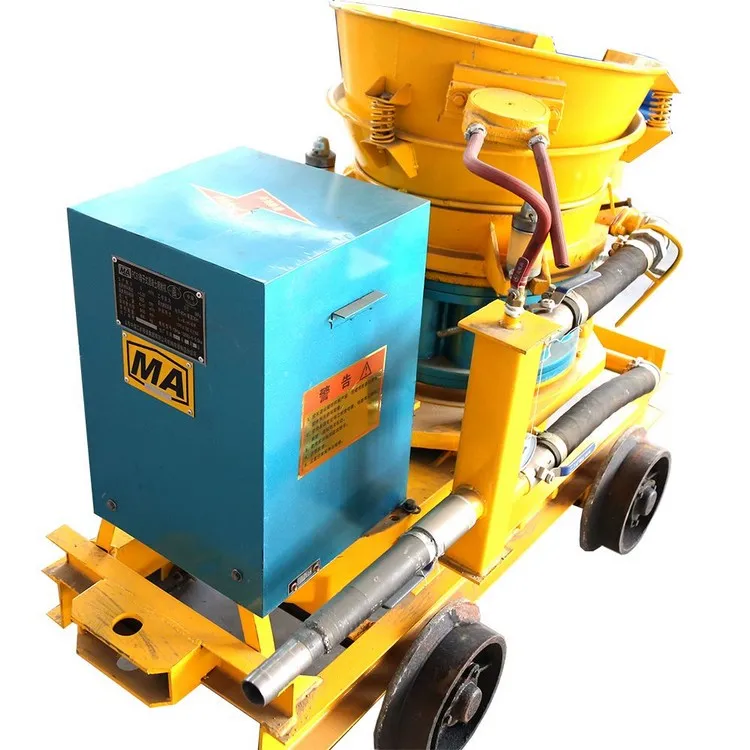

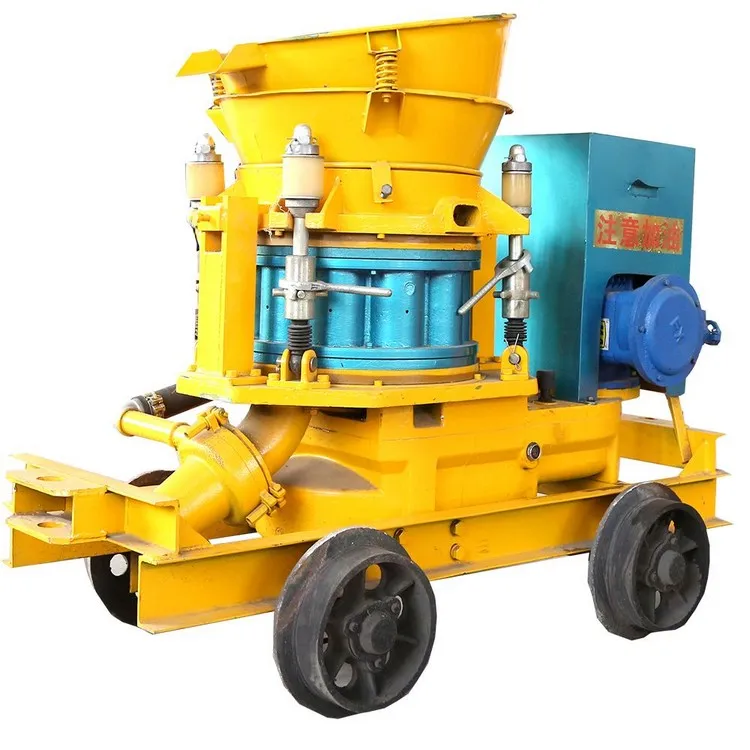

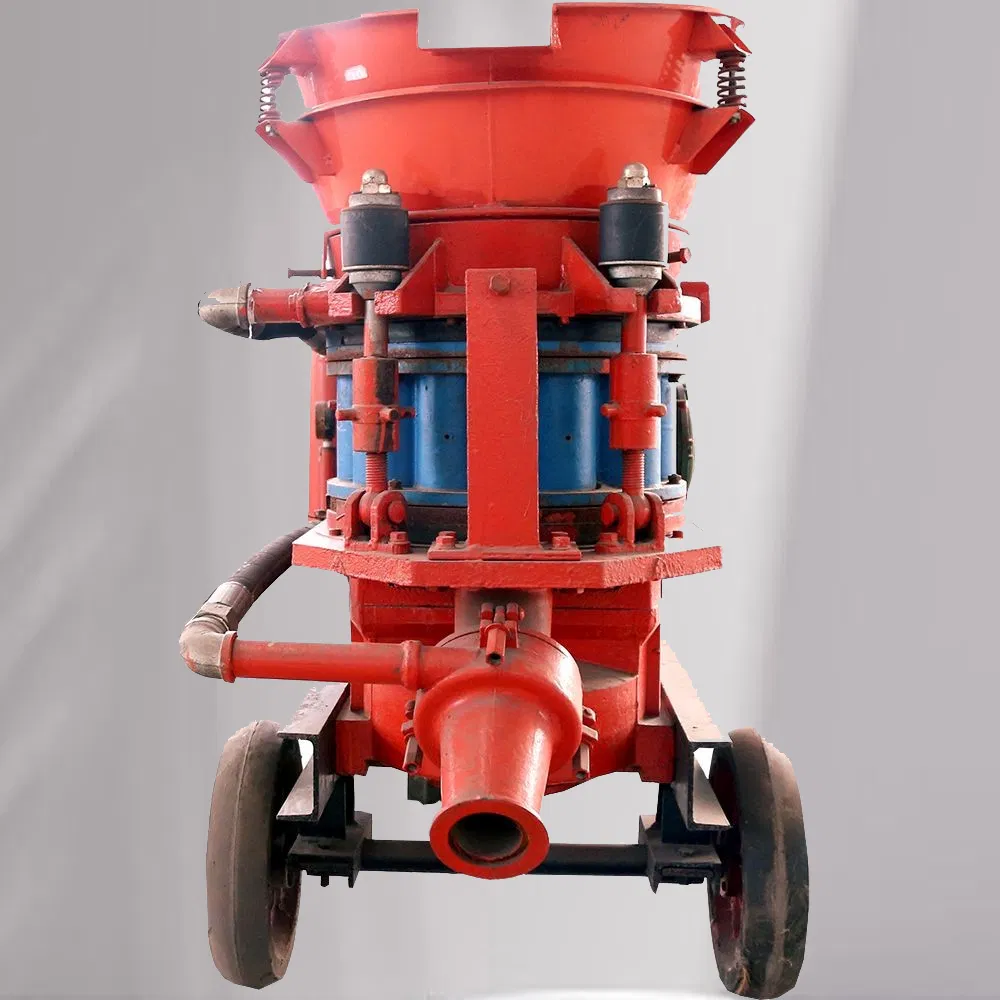

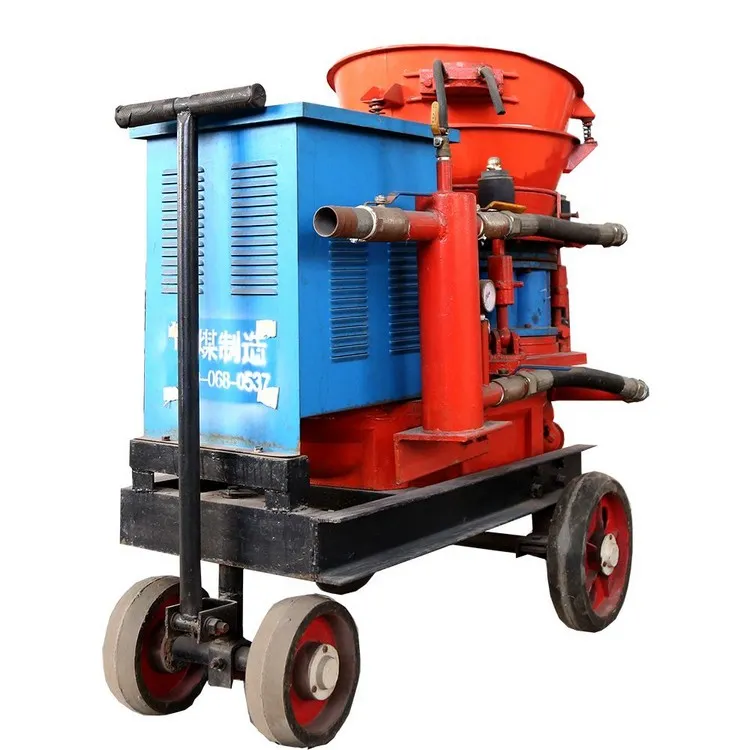

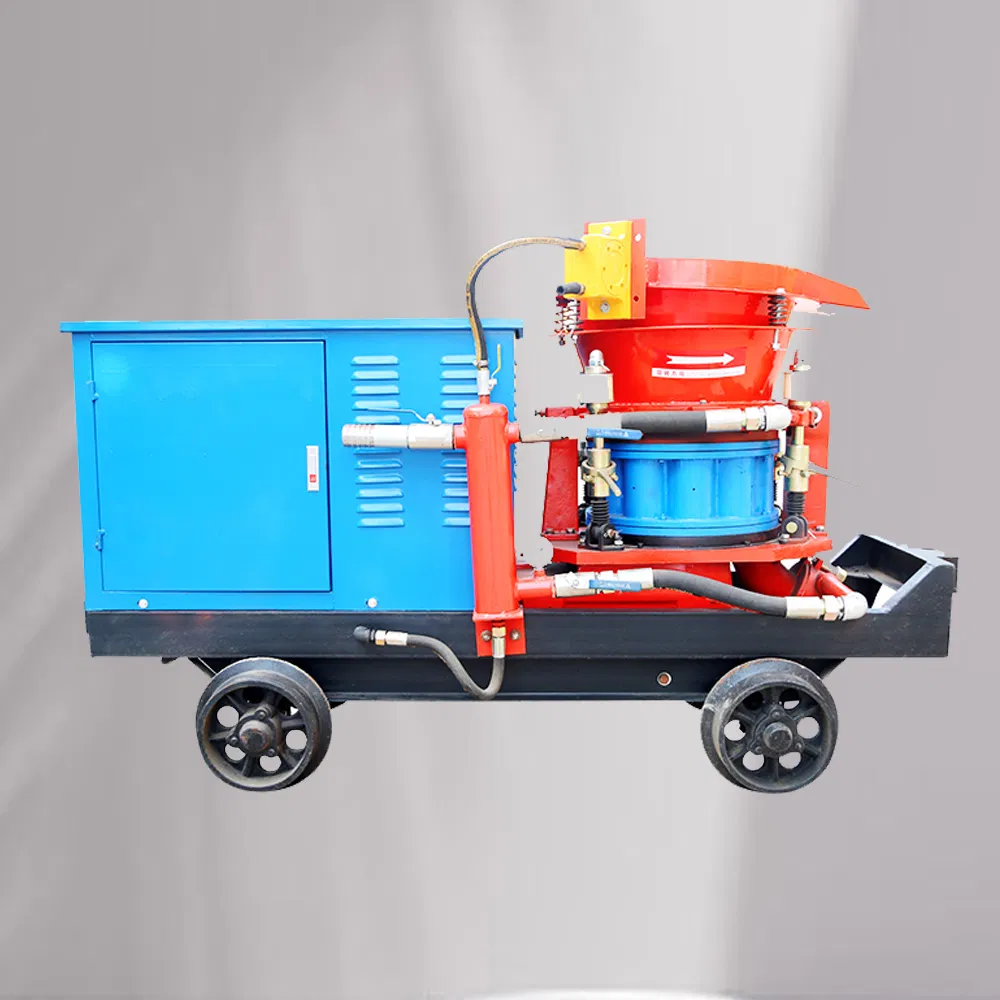

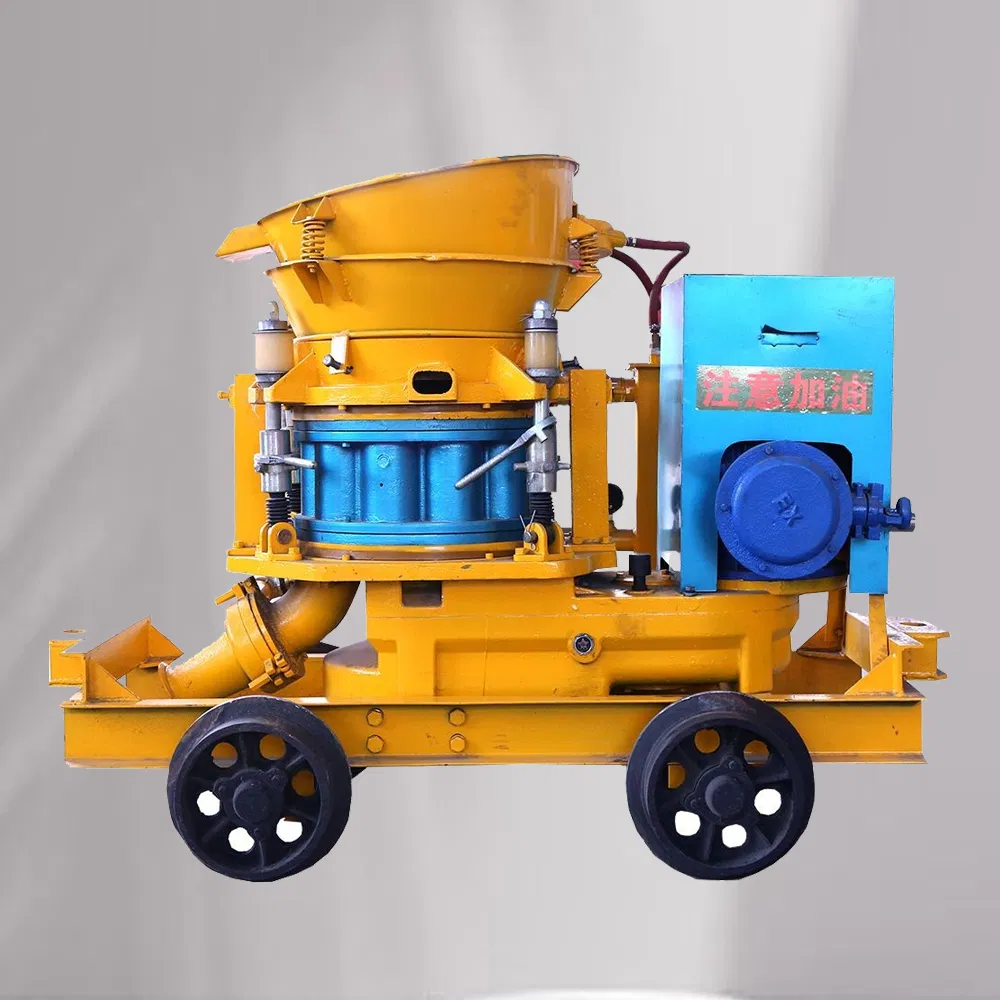

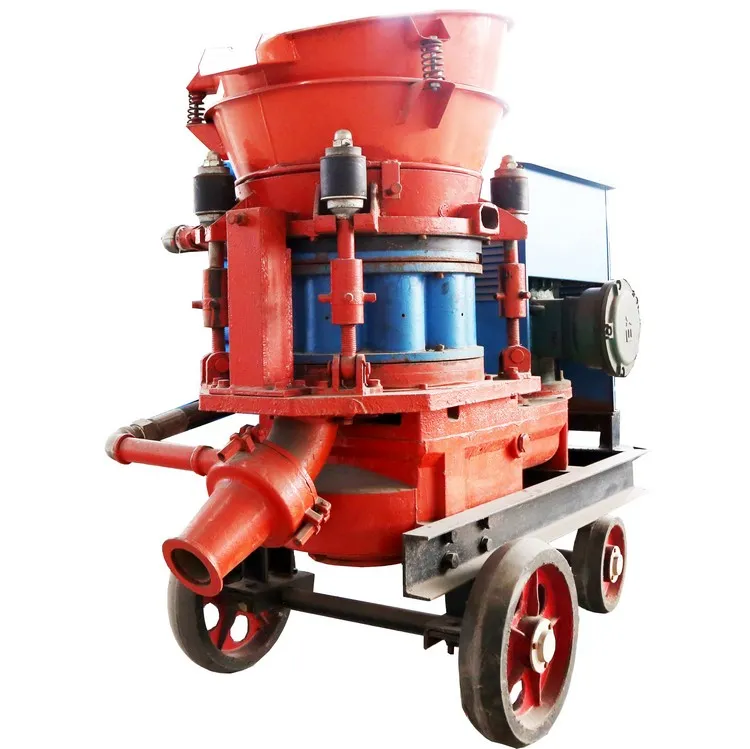

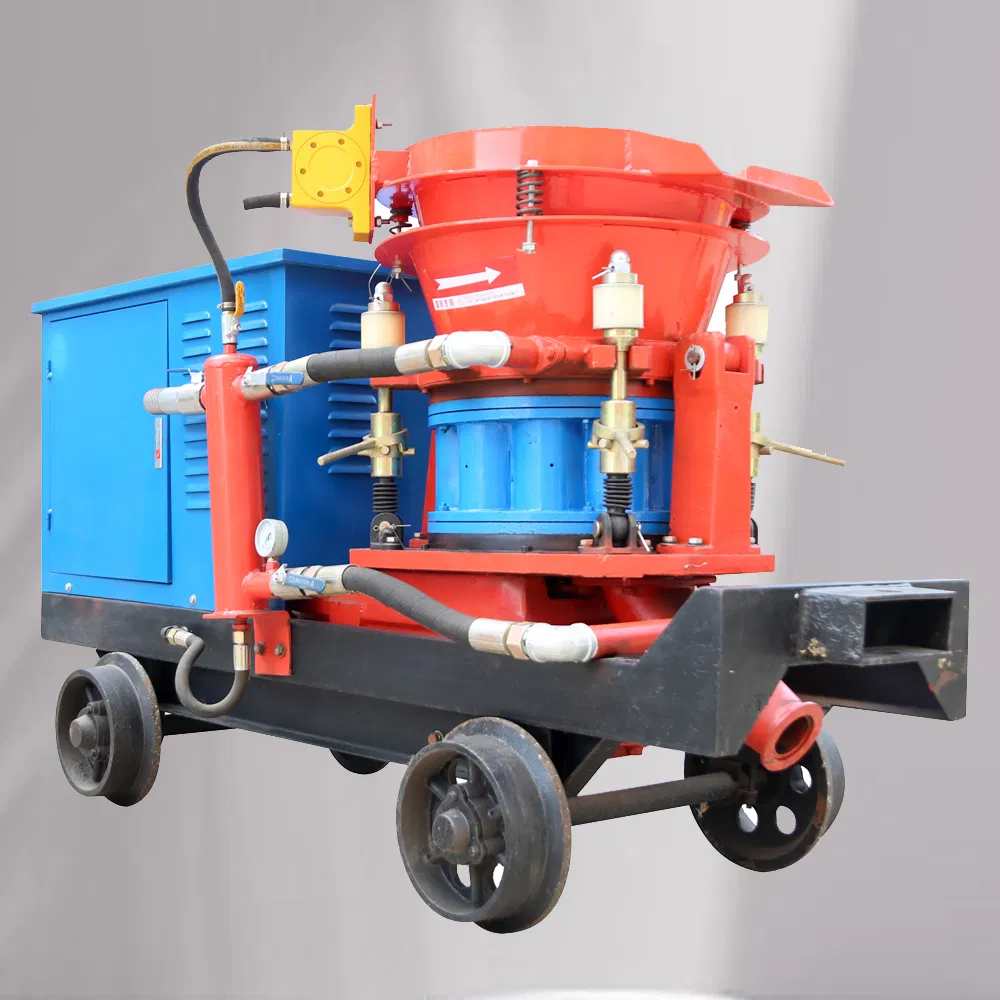

Detailed Photos

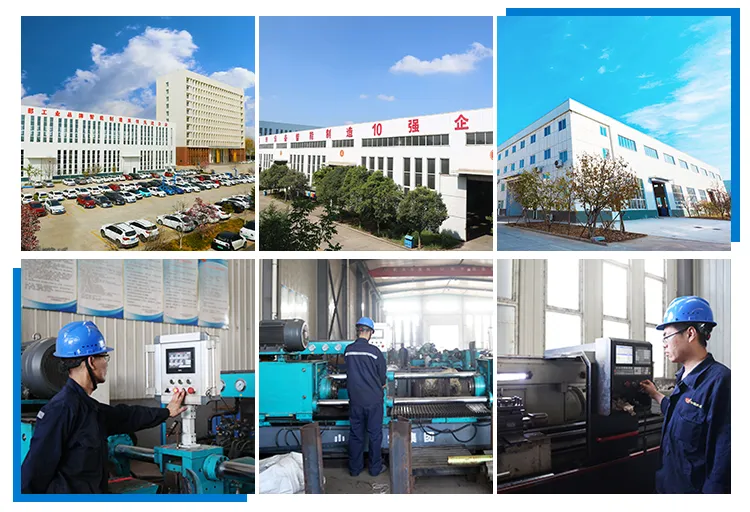

Professional Manufacturing
Frequently Asked Questions
