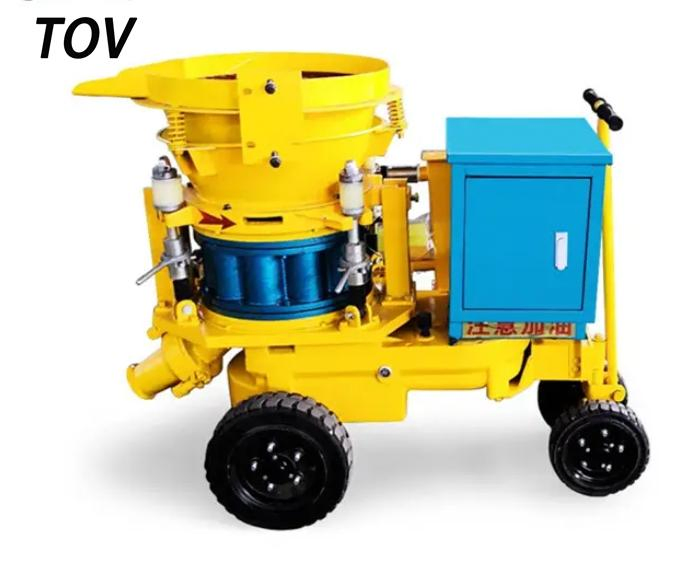

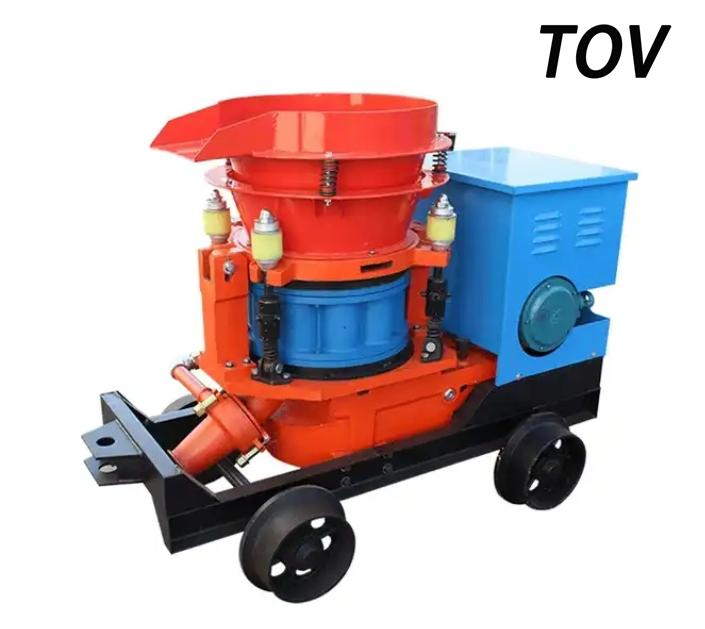

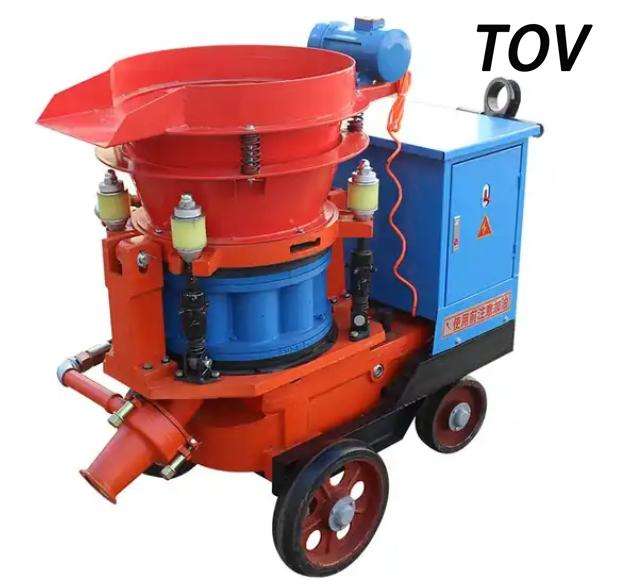

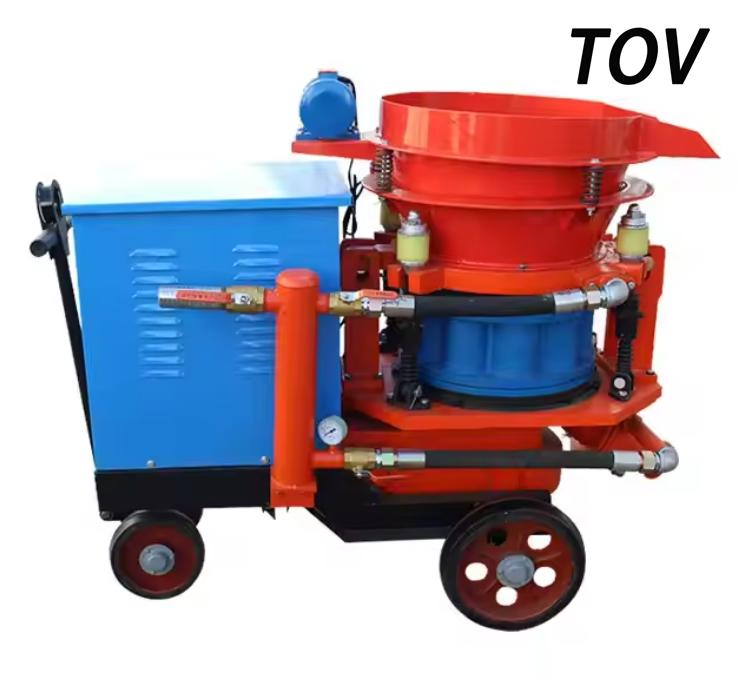

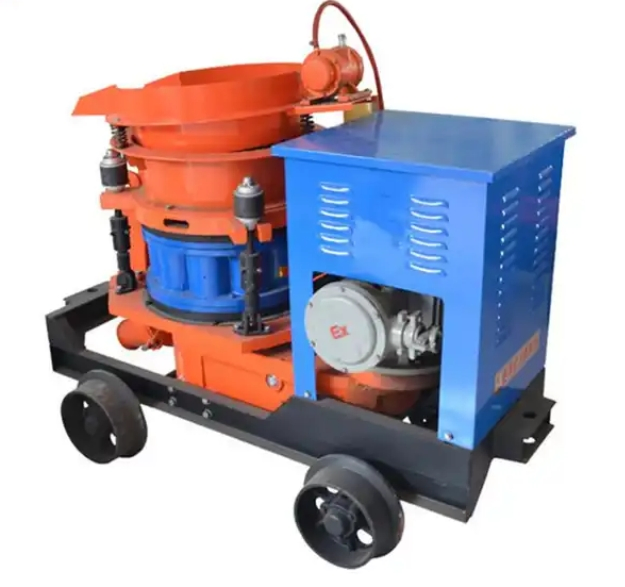

Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
1 / 5
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine
Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine

Pz-3/5/7 Concrete Injection Shoot Throwing Machine Dry Wet Mix Concrete Spray Shotcrete Shot-Blasting Machine

Customization: Available
Warranty: 1 Year
Power Supply: Electric
Send Inquiry

Product Description

i

Basic Information

Model NO.:
Pz-3/5/7
Voltage:
380V
Vertical Delivery:
20M
Output:
3.5m3-7m3
Air Pressure:
0.4~0.6MPa
Max Convey Dist:
Horizontal: 200m / Vertical: 20m
Motor Power:
3-7.5kw
Package:
Wooden Case
Specification:
1280x700x1280mm
HS Code:
847910900
Capacity:
200sets/Month
!

Product Description

Dry electrical shotcrete machine is a professional device designed for dry concrete shooting. Featuring advanced technology and a robust structure, it offers stable performance, ease of operation, and a long service life.

This equipment is ideally suited for mine, tunnel, culvert, subway, underground engineering, and coal mine drainage tunnel construction projects.

T

Product Parameters

Item PZ-3 PZ-5 PZ-7
Output 3.5m3/h 5m3/h 7m3/h
Max. Convey Dist Horizontal: 200m / Vertical: 20m
Water Cement Ratio ≤0.4 ≤0.4 ≤0.4
Max. Aggregate Size 20mm 20mm 20mm
Hose Inner Size 38mm 51mm 64mm
Operating Air Pressure 0.4~0.6MPa 0.4~0.6MPa 0.4~0.6MPa
Air Consumption 3-4 m3/min 7-8 m3/min 8-10 m3/min
Motor Power 3KW 5.5KW 7.5KW
Voltages 380v or as your requirement
Overall Dimension (mm) 1040X550X940 1280x700x1280 1500X700X1280
Whole Weight 260kgs 600kgs 700kgs
Wheel Types Nylon wheel; Rubber wheel; Skid wheel; Rail wheel
P

Detailed Photos

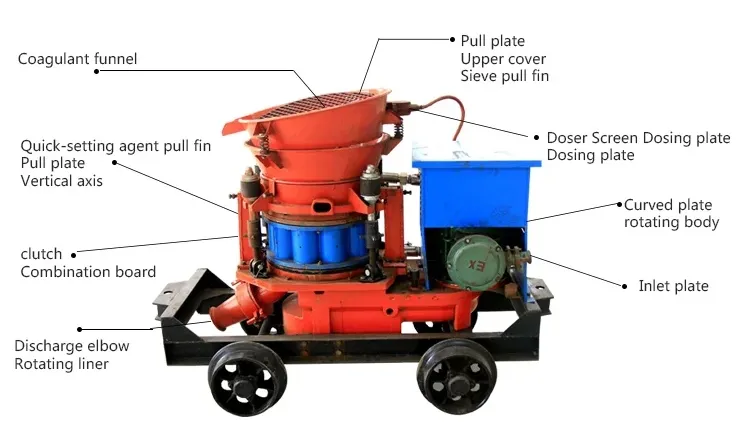

Detailed Machine View 1

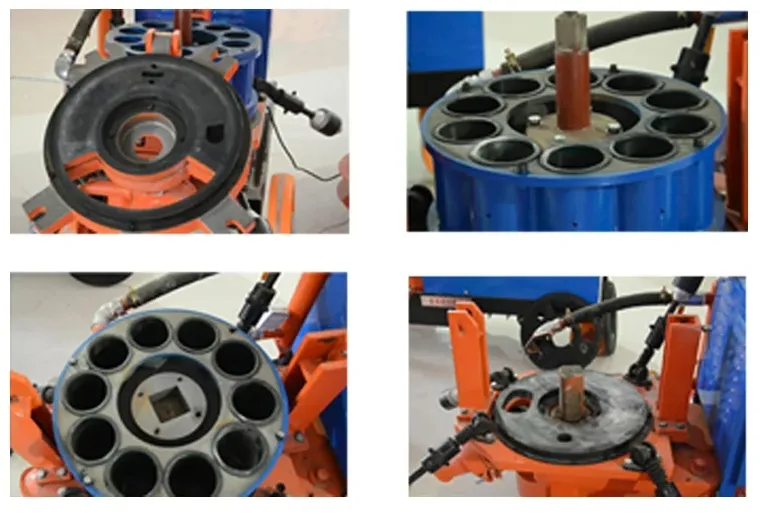

Detailed Machine View 2

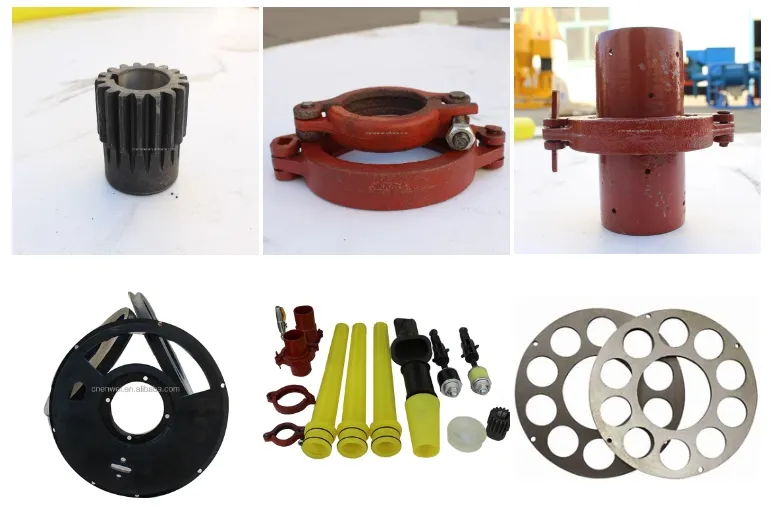

Detailed Machine View 3
A

Application

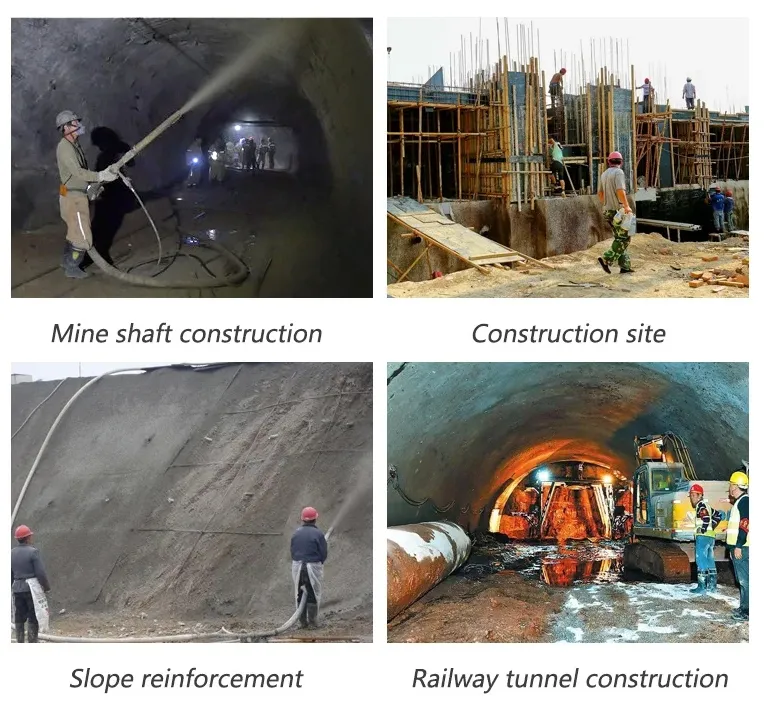

Machine Application Site
S

Packaging & Shipping

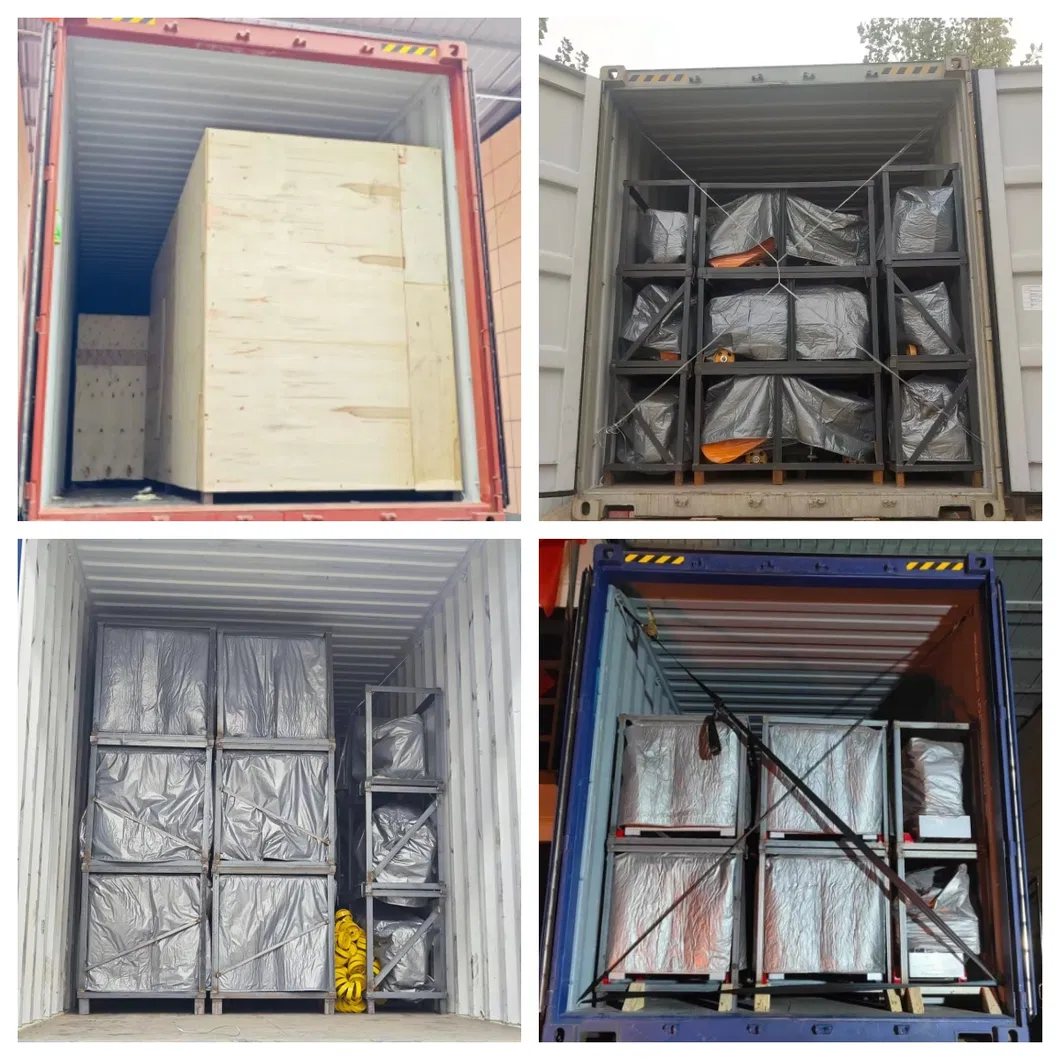

Packaging Details
?

Frequently Asked Questions

Can you provide a preferential price?
We welcome every customer interested in our project. Please contact us immediately to obtain a specific quotation tailored to your project requirements.
How do you handle quality control?
Quality is controlled throughout the entire process. We start with detailed drawings and agreed standards, followed by pre-production samples and a final inspection before shipment.
What after-sale services are available?
We provide regular updates during production and tracking after shipment. Once received, we offer guidance on usage and maintenance, ensuring timely solutions for any operational problems.
Why should we choose your machinery?
We are an experienced manufacturer with a strong reputation for high-quality, stable pricing, and professional service, maintaining excellent long-term customer relationships.
What are the primary applications for this shotcrete machine?
It is widely used in mines, tunnels, culverts, subways, underground engineering, and coal mine drainage construction for dry concrete spraying.
Can the voltage be customized for different regions?
Yes, while the standard is 380V, we can adjust the voltage specifications based on your specific local power requirements.
