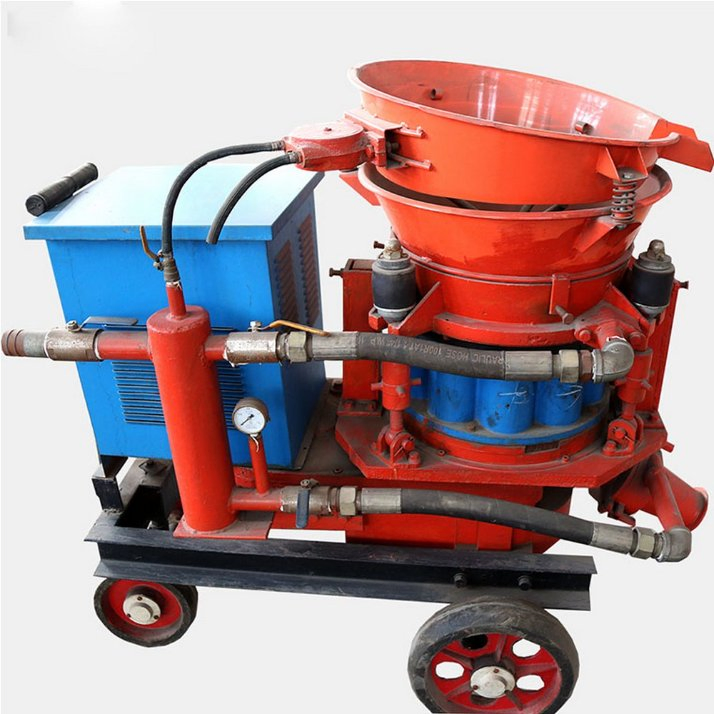

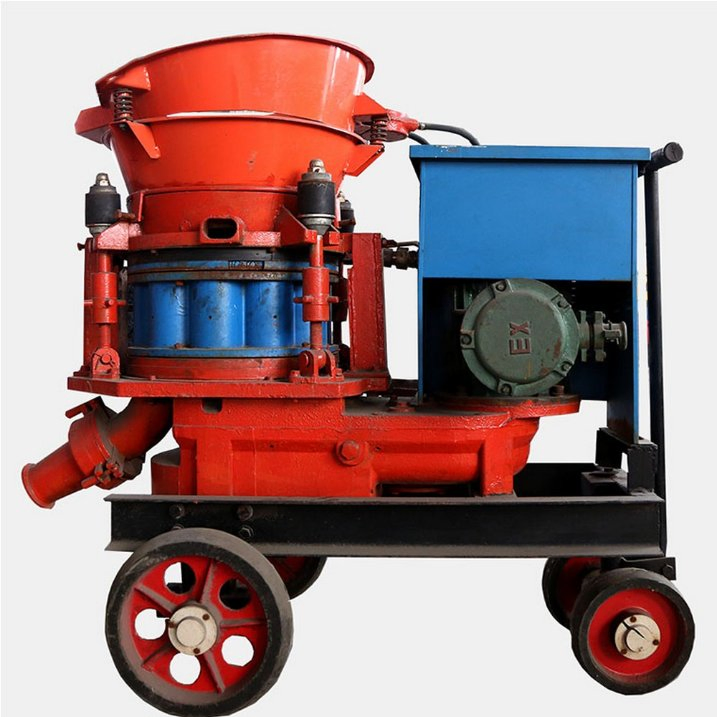

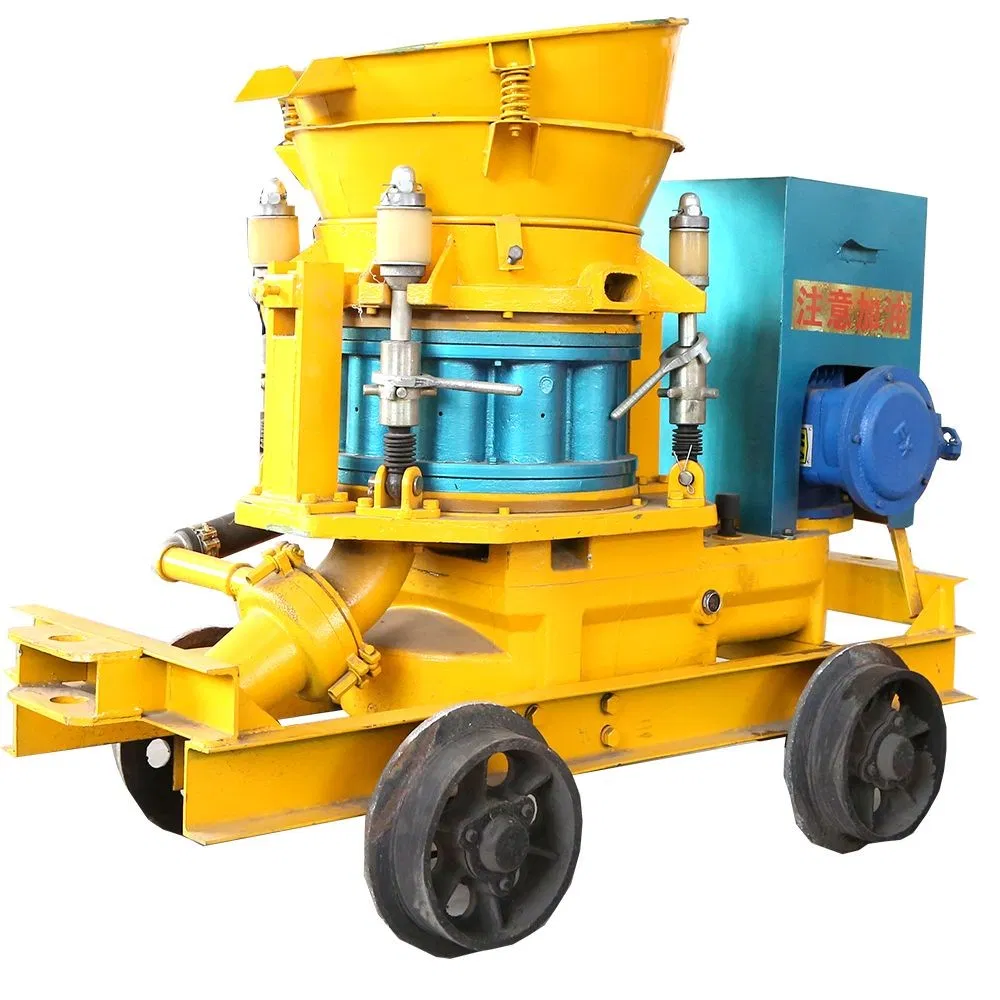

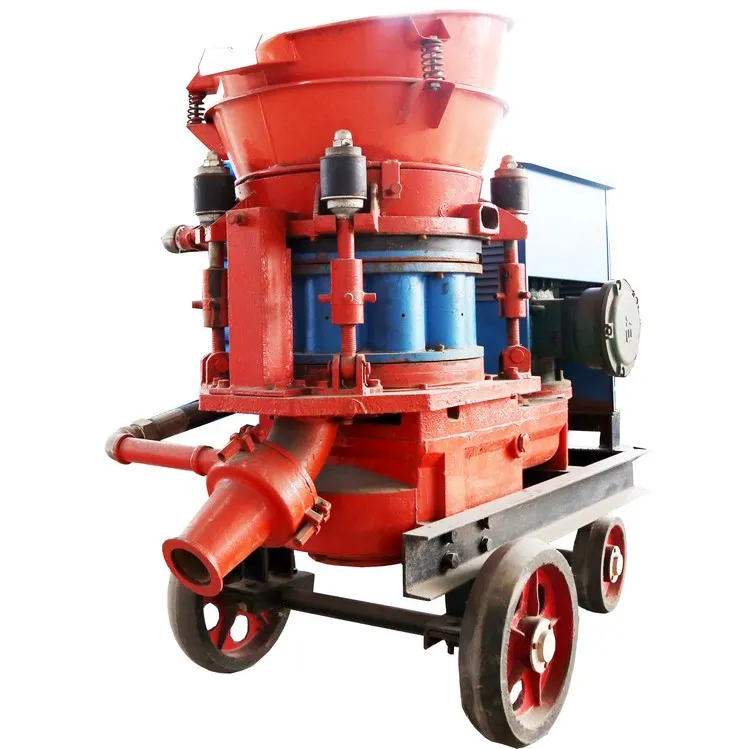

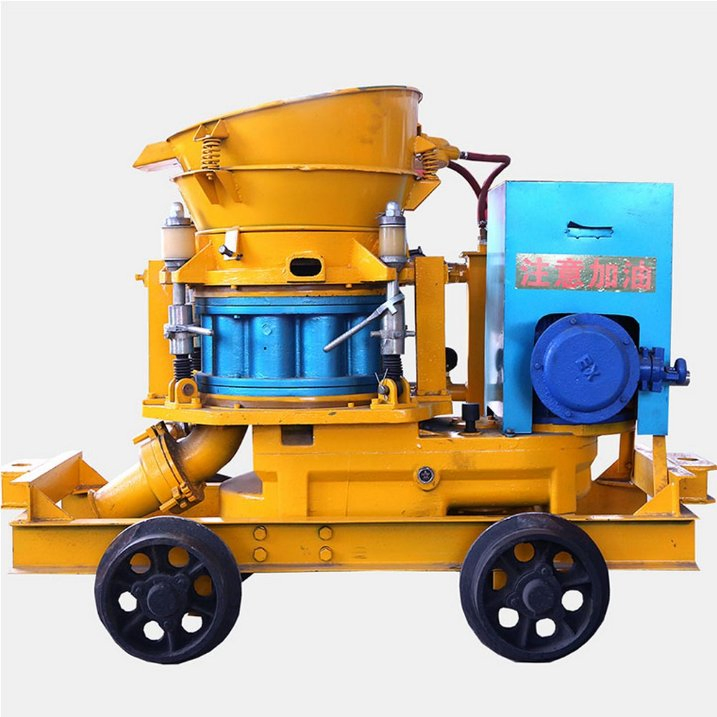

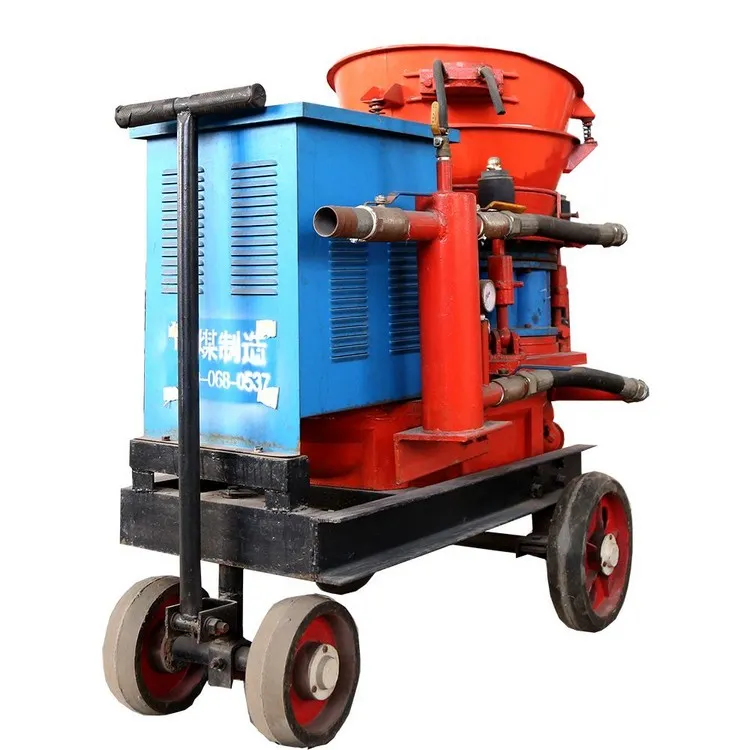

| Model NO. | PZ5 Shotcrete Machine |
|---|---|
| Type | Shotcrete |
| Shotcrete Type | Dry |
| Machining Process | Mix |
| Structure | Rotor Type |
| Productivity | 5m3 |
| Feeding Height | 20 |
| Vibrating Amplitude | 0.8mm |
| Certification | CE |
| Condition | New |
| Color | Orange |
| Whole Weight | 260kgs |
| Overall Dimension | 1040X550X940 mm |
| Package Size | 800.00cm * 800.00cm * 800.00cm |
|---|---|
| Package Gross Weight | 800.000kg |
| Transport Package | Wooden Case |
Introduction: Dry Wall Reinforcement Gunite Machines, Electric Diesel Mini Concrete Explosion Proof Wall Spraying Gun Sand Cement Mortar Shotcrete Construction Spray Plaster.
Concrete spraying machine is a specialized equipment for spraying concrete, which sprays concrete onto the surface of buildings that need reinforcement or repair through high-pressure spraying.

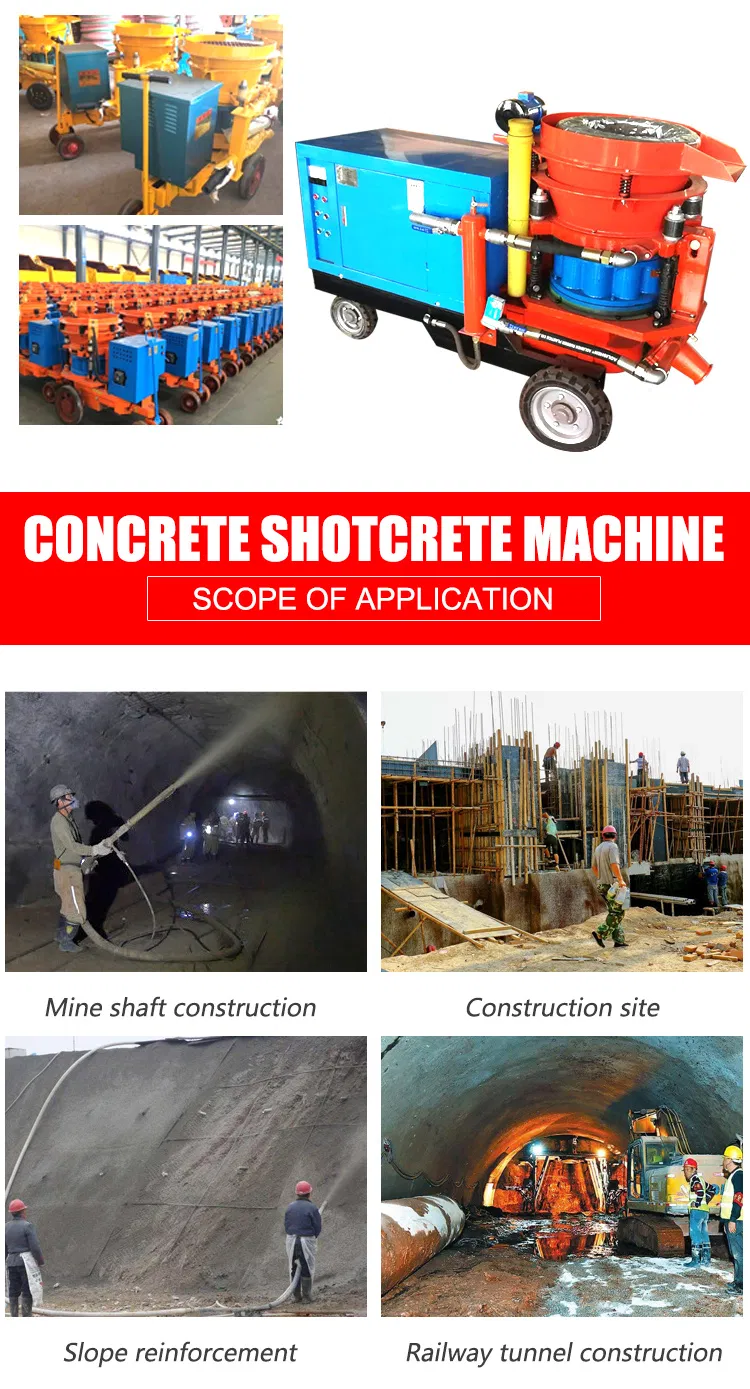

Concrete spraying machines have the advantages of fast spraying speed, high construction efficiency, and good construction quality, and are widely used in fields such as construction engineering, tunnel engineering, and mining engineering.
The concrete spraying machine is composed of the spraying machine body, conveying system, control system, etc. The spraying machine body is the core part of the entire equipment, consisting of a compressor, concrete mixer, and spraying pump.
| Model | PZ-3 | PZ-5 | PZ-7 | HSP-5 | HSP-7 |
|---|---|---|---|---|---|
| Output | 3.5m3/h | 5m3/h | 7m3/h | 4.0-5.0m3/h | 5.0-7.0m3/h |
| Max. Horizontal Distance | 200m | 200m | 200m | 30-50m | 30-50m |
| Max. Vertical Distance | 20m | 20m | 20m | 20m | 20m |
| Water Cement Ratio | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Max. Aggregate size | Φ20mm | Φ20mm | Φ20mm | Φ15mm | Φ15mm |
| Voltage | 380v | 380v | 380v | 380v | 380v |
A: It is primarily used for spraying concrete onto surfaces for reinforcement or repair in construction, tunnel engineering, and mining projects.
A: The PZ5 model has a productivity capacity of 5 cubic meters per hour (5m3/h).
A: Yes, the PZ5 is a rotor-type machine specifically designed for dry shotcrete applications.
A: For the PZ series, the maximum horizontal conveying distance is up to 200 meters, and the vertical distance is 20 meters.
A: The standard voltage is 380V, but it can be customized according to specific regional requirements.
A: The machines are securely packed in wooden cases to ensure safety during transport.
