Product Description

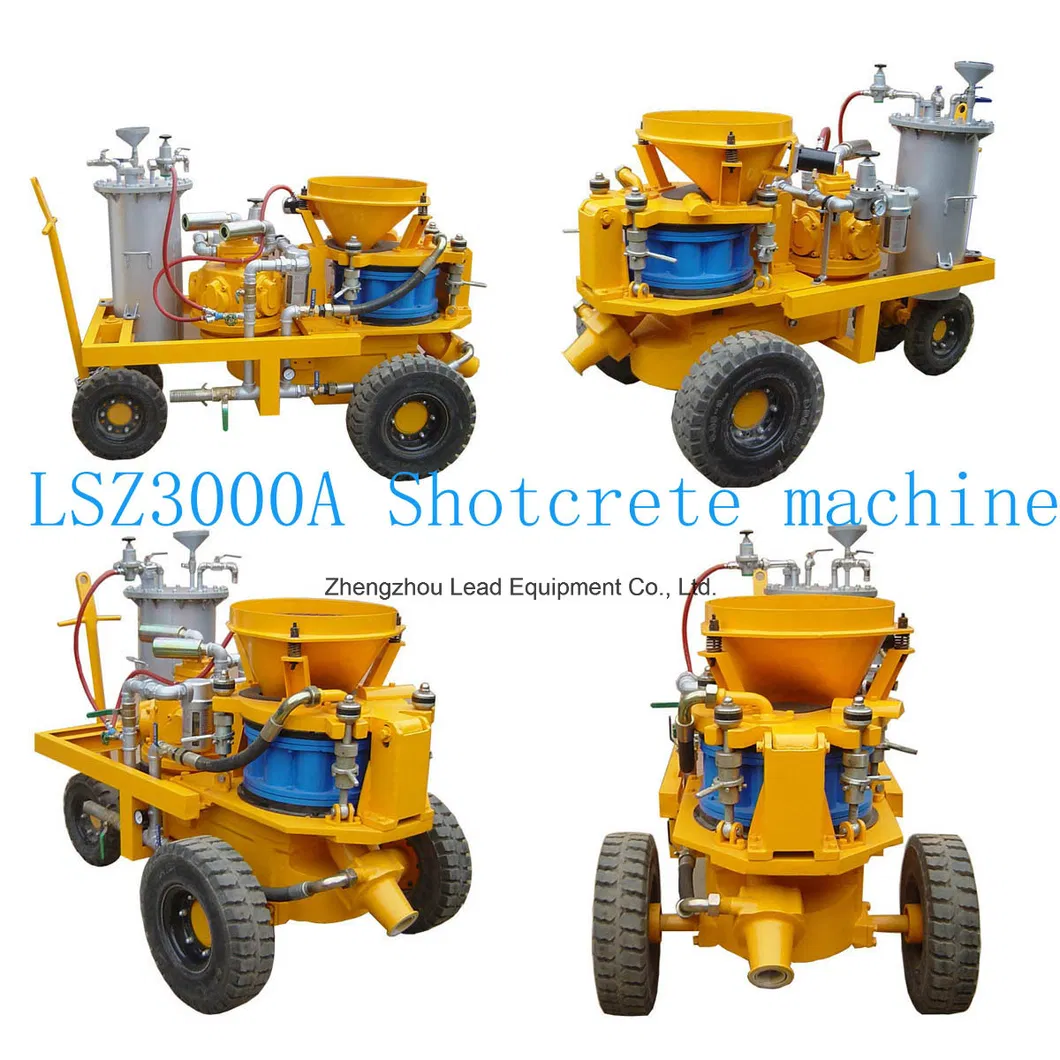

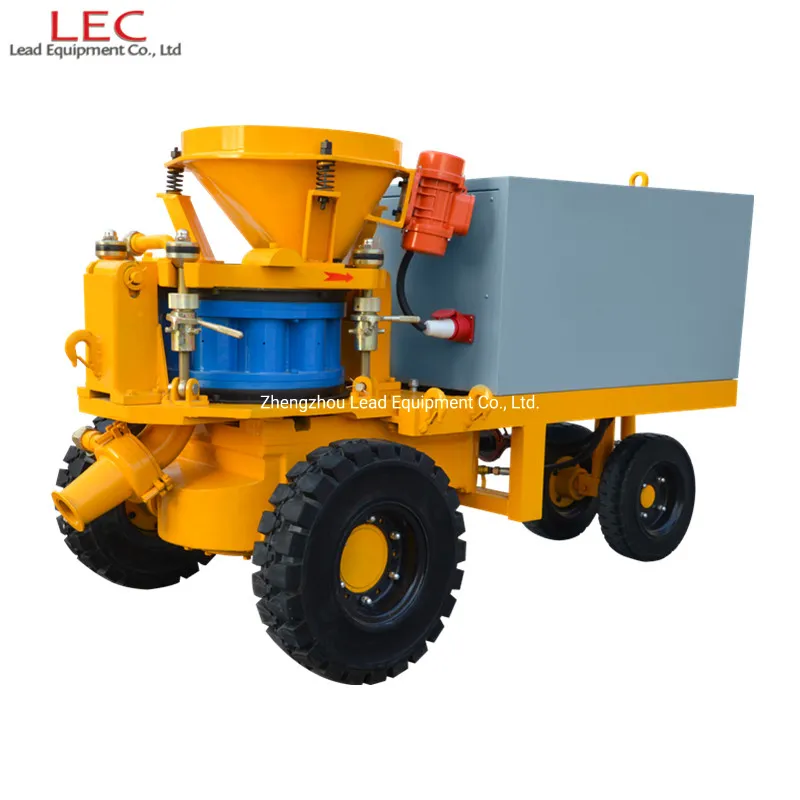

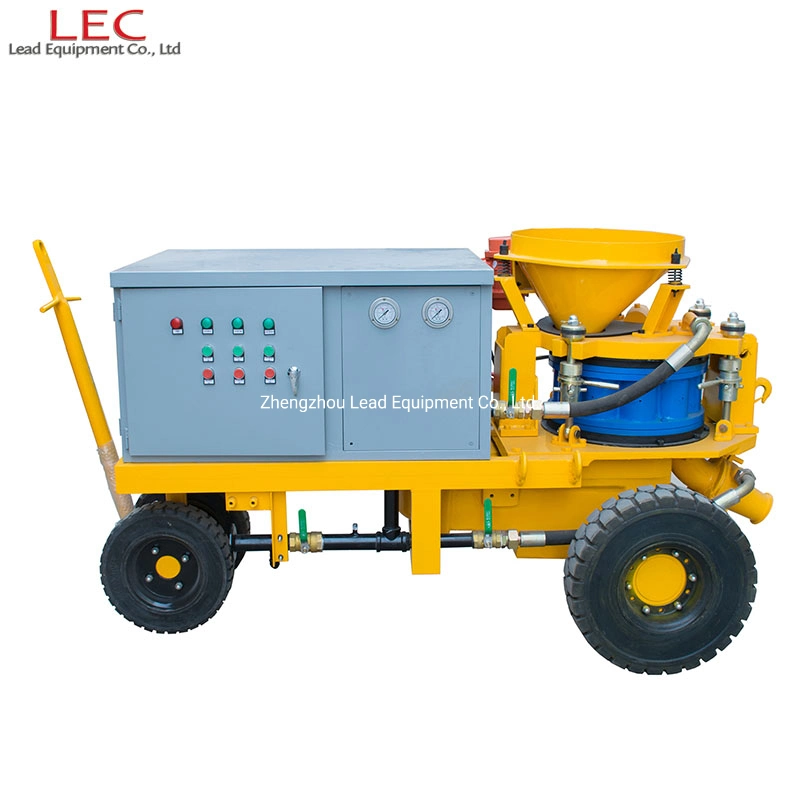

LSZ3000 Shotcrete Machine

Description

LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.

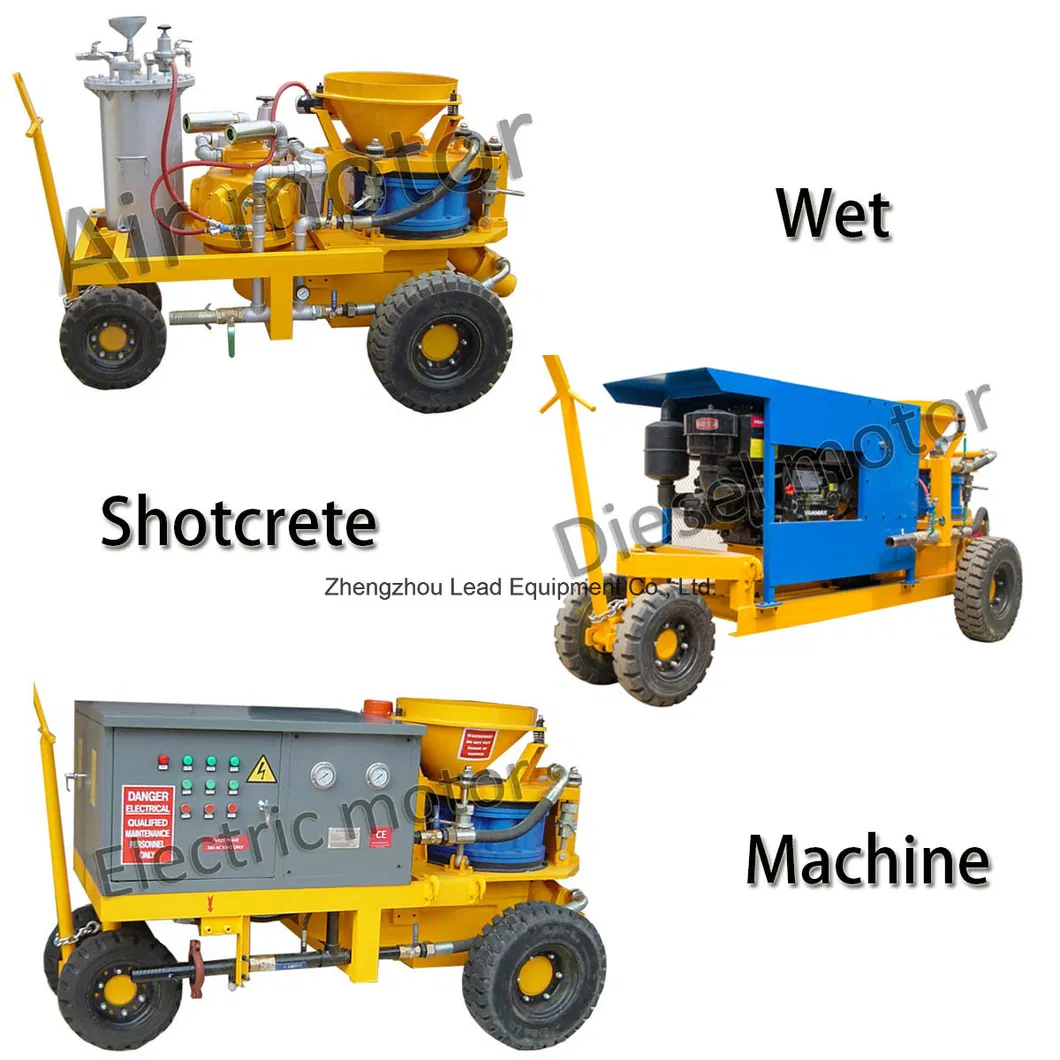

The machine is suitable either for manual spraying or by means of a robotic arm. Basic configuration includes an electric drive combined with tyre chassis. Extended options include air motor drive or diesel drive combined with Skid or Rail-wheel.

Application

LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. The dosing unit is integrated with this machine for precise operation.

Technical Features

The LSZ3000 is capable of both dry and wet shotcrete concrete spraying, providing versatile performance for various job sites.

Drive type	Electric motor drive
Rated Output	5m³ /h
Max. Horizontal Conveying Distance	35m
Max. Aggregate Size	15mm
Concrete Slump	8 -15cm
Conveying Hose Inner Diameter	51/ 64mm
Operating air Pressure	0.3-0.6MPa (43-86PSI)
Air Consumption	10~ 12m³ /min(357-430CFM)
Main Motor Power	7.5kW(10hp)
Dosing Pump	BRJ15
Dosing Pump Rated Pressure	0.6MPa(86PSI)
Dosing Pump Output	17.5 -88L /h
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height	1.17m
Rotor Speed	11r/min
Overall Dimension (L × W × H)	2.05× 0.95× 1.18m
Net Weight	1200kg

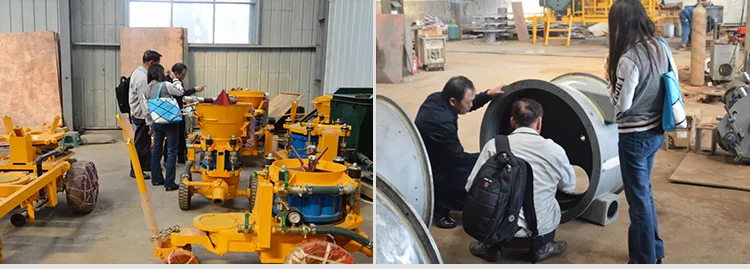

Production & Quality

Frequently Asked Questions (FAQ)

Q1: Can the LSZ3000 handle both wet and dry concrete? A: Yes, the LSZ3000 is a universal shotcrete machine designed for both wet and dry mix spraying processes.

Q2: What makes the LSZ3000A suitable for coal mining? A: The LSZ3000A features a full pneumatic driven unit, which provides the necessary anti-explosion capabilities required for underground coal mining and tunnel engineering.

Q3: What is the maximum conveying distance of the machine? A: The machine can achieve a maximum horizontal conveying distance of up to 35 meters.

Q4: What size of aggregate can the machine process? A: The LSZ3000 can handle a maximum aggregate size of 15mm.

Q5: Are there different chassis options available? A: Yes, while the basic model uses a tyre chassis, you can optionally choose Skid or Rail-wheel mounting depending on your project requirements.

Q6: Is this machine compatible with robotic arms? A: Yes, it is suitable for both manual spraying and operation via a robotic arm for automated construction.
